NafionW-supported oxovanadium catalyzed hydrophosphonylation
result suggests that the background reaction catalyzed by
perfluorinated sulfonic acid can be excluded (Table 1, entry 12).
The advantages of this Nafion-Vpowder catalytic system are that
the catalyst can be recovered by simple filtration and reused for
several runs (Table 1, entries 4–7), and that the reaction does
not require the use of any organic solvent. Thus the catalytic
protocol meets the standards of green chemistry from an envi-
ronmental point of view. It is worth noting that a slight decrease
in yield was observed after every three runs (Table 1, compare
entries 5–7), indicating a loss of vanadium metal during the
reaction and catalyst recovery processes. Further investigations
of the leaching of vanadium metal during the recycle reactions
were also carried out. TGA of recovered Nafion-Vpowder catalyst
after the ninth run showed that the V=O metal composition of
the powder Nafion support was 0.0041 mmol mgꢀ1. This result
indicates that approximately 2–3% of vanadium metal leached
out of the support during each reaction cycle.
and aliphatic aldehydes. This new catalytic protocol represents a
mild and practical synthetic approach to achieve potentially

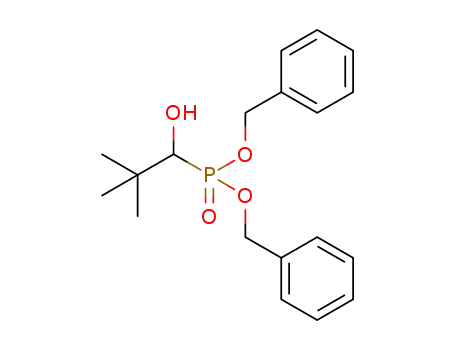

biologically and pharmaceutically useful a-hydroxyphosphonates
under mild conditions without using organic solvents. Further-
more, the solid perfluorinated oxovanadium catalyst can be easy
recovered and recycled and therefore meets the standards of
green chemistry.
Acknowledgements
Financial support was granted by the National Science Council
of the Republic of China (98-2119-M-145-001-MY2). We thank
Professor Chien-Tien Chen for providing chemicals and for
useful discussions and fruitful contributions. We thank the
thermogravimetric analysis laboratory of National Taiwan Univer-
sity and the X-ray photoelectron spectrometry and electron para-
magnetic resonance laboratory of National Chung Hsing University
for TGA, XPS, and EPR measurements.
Hydrophosphonylation with Various Aldehydes
References
In addition to the parent benzaldehyde, various aromatic alde-
hydes with varying electron demands (heterocyclic, a,b-unsaturated,
and propargyl) and aliphatic aldehydes were also tested in the
hydrophosphonylation reaction catalyzed by 5 mol% recoverable
Nafion-Vpowder catalyst under solvent-free conditions (Table 2). In
general, reactions with liquid aromatic aldehydes (entries 5–9 and
12–16) proceeded faster than those with solid aldehydes (entries
1–4 and 10–11) because of the easy blending of the liquid
aldehydes with dibenzyl phosphite. Because solid aldehydes
dissolve more slowly, a prolonged reaction time was necessary
to achieve high yields. Substituted aromatic aldehydes with
electron-withdrawing groups were found to be more reactive
than aldehydes bearing electron-donating groups (compare entry
5 with entries 7–9, and compare entries 1–4 with entries 10 and
11). Acid-sensitive a,b-unsaturated cinnamyl and propargyl and
heterocyclic furfuryl and thiophenyl aldehydes remained intact
and showed high reactivities under the reaction conditions
(entries 13–16). Aliphatic aldehydes, such as 3-phenyl ethanal,
3-methyl butanal, steric-hindered cyclohexyl carboxylic aldehyde
and 2,2-dimethyl propanal, also reacted efficiently to generate the
corresponding a-hydroxyl phosphonates in good to excellent
yields in reasonable periods of time (entries 17–20).
It is noteworthy that aldehydes bearing a basic dimethylamino
group, which serves as an acid inhibitor, could also be used even
though a prolonged reaction time was required (entry 11). Therefore,
the involvement of acidic co-catalysis could be excluded again from
our catalytic system. In addition to aldehydes, hydrophosphonylation
with sterically hindered acetophenone catalyzed by Nafion-Vpowder
was found sluggish even at elevated temperature. It should be
noted that approximate 4–8% oxidation side products were
observed during the reactions, especially in the reaction with
electrodeficient aromatic aldehydes (entries 1–3, 5, and 14),
a,b-unsaturated (entry 15), and propagyl aldehydes (entry16).
These side reactions led to undesirable but synthetically useful
a-keto-phosphonates, because of the high oxidation ability of
the oxovanadium species in the presence of oxidants.[17]
[1] a) R. Engel, I. I. Cohen, Synthesis of Carbon–Phosphorous Bonds
(2nd edn), CRC Press, Boca Raton, FL, 2003; b) L. D. Quin, A Guide
to Organophosphorus Chemistry, Wiley, New York, 2000; c) Ó. López,
ꢀ
J. G. Fernández-Bolanos, M. V. Gil, Green Chem. 2005, 7, 431; d)
J.M. Brunel, G. Buono, Top. Curr. Chem. 2002, 220, 79.
[2] a) A. Szymańska, M. Szymczak, J. Boryski, J. Stawiński, A. Kraszewski,
G. Collu, G. Sanna, G. Giliberti, R. Loddo, P. La Colla, Bioorg. Med.
Chem. 2006, 14, 1924; b) A. J. Ganzhorn, J. Hoflack, P. D. Pelton,
F. Strasser, M.-C. Chanal, S. R. Piettre, Bioorg. Med. Chem. 1998, 6,
1865; c) S. S. Beers, E. A. Malloy, W. Wu, M. P. Wachter, U. Gunnia,
D. Cavender, C. Harris, J. Davis, R. Brosius, J. L. Pellegrino-Gensey,
J. Siekierka, Bioorg. Med. Chem. 1997, 5, 2203; d) D. V. Patel,
K. Rielly-Gauvin, D. E. Ryono, C. A. Free, W. L. Rogers, S. A. Smith,
J. M. DeForrest, R. S. Oehl, E. W. Petrillo, J. Med. Chem. 1995, 38,
4557; e) B. Stowasser, K.-H. Budt, L. Jian-Qi, A. Peyman, D. Ruppert,
Tetrahedron Lett. 1992, 33, 6625; f) S. J. Hecker, M. D. Erion, J. Med.
Chem. 2008, 51, 2328.
[3] a) B. Kaboudin, Tetrahedron Lett. 2003, 44, 1051; DOI:10.1186/1860-
5397-2-4; b) H. Firouzabadi, N. Iranpoor, S. Sobhani, Synth. Commun.
2004, 34, 1463; DOI:10.1186/1860-5397-2-4; c) L. S. M. Miranda,
M. L. A. A. Vasconcellos, Synthesis 2004, 1767; DOI:10.1055/s-2004-
829119.
[4] a) T. P. Kee, T. D. Nixon, The Asymmetric Phospho-Aldol Reaction: Past,
Present and Future. New Aspects in Phosphorus Chemistry II. Topics in
Current Chemistry 223, Springer, Berlin, 2003, pp. 45–65; b) P. Merino,
E. Marqués-López, R. P. Herrera, Adv. Chem. Catal. 2008, 350, 1195; c)
F. Yang, D. Zhao, J. Lan, P. Xi, L. Yang, S. Xiang, J. You, Angew. Chem.
Int. Ed. 2008, 47, 5646; d) J. P. Abell, H. Yamamoto, J. Am. Chem. Soc.
2008, 130, 10521; e) O. I. Kolodiazhnyi, Tetrahedron: Asymmetry
2005, 16, 3295; f) T. Arai, M. Bougauchi, H. Sasai, M. Shibasaki, J.
Org. Chem. 1996, 61, 2926; g) B. Saito, H. Egami, T. Katsuki, J. Am.
Chem. Soc. 2007, 129, 1978; h) E. Martínez-Castro, Ó. López, I. Maya,
ꢀ
G. G. Fernández-Bolanos, M. Petrini, Green Chem. 2010, 12, 1171.
[5] R. G. de Noronha, P. J. Costa, C. C. Romão, M. J. Calhorda, A. C.
Fernandes, Organometallics 2009, 28, 6206.
[6] a) A. D. Pomogaĩlo, Catalysis by Polymer-immobilized Metal Com-
plexes, CRC Press, New York, 1998; b) N. E. Leadbeater, M. Marco,
Chem. Rev. 2002, 102, 3217; c) K. Burgess, Solid Phase Organic Synthe-
sis, Wiley, New York, 2000; d) K. Yamaguchi, K. Mori, T. Mizugaki, K.
Ebitani, K. Kaneda, J. Am. Chem. Soc. 2000, 122, 7144; e) S. Velusamy,
M. Ahamed, T. Punniyamurthy, Org. Lett. 2004, 6, 4821.
[7] a) G. A. Olah, P. S. Iyer, G. K. S. Prakash, Synthesis 1986, 513;
DOI:10.1055/s-1986-31692; b) G. K. S. Prakash, T. E. Thomas, I.
Bychinskaya, A. G. Prakash, C. Panja, H. Vaghoo, G. A. Olah, Green
Chem. 2008, 10, 1105; DOI:10.1039/B803152E; c) G. A. Olah,
T. Mathew, G. K. S. Prakash, Chem. Commun. 2001, 1696;
DOI:10.1039/b104603a; d) M. A. Harmer, W. E. Farneth, Q. Sun, J.
Am. Chem. Soc. 1996, 118, 7708; DOI:10.1021/ja9541950; e) I. F. J.
Vankelecom, Chem. Rev. 2002, 102, 3779; DOI:10.1021/cr0103468; f)
M. A. Hickner, H. Ghassemi, Y. S. Kim, B. R. Einsla, J. E. McGrath, Chem.
Conclusions
We have developed a highly potent NafionW-supported oxovanadium
catalyst for the hydrophosphonylation of a wide range of aromatic
