2362 J ournal of Medicinal Chemistry, 2004, Vol. 47, No. 9
Shen et al.
23.90 mmol), 4-methylmorpholine (2.9 mL, 26.29 mmol),
isobutyl chloroformate (3.4 mL, 26.29 mmol), dimethylamine
(2.0 M in THF, 13.2 mL, 26.40 mmol), and THF (150 mL) gave
crude 27. The product was purified by column chromatography
(SiO2; 1:49, MeOH:CHCl3) to obtain 4.24 g (75%) of pure 27
as a pale green solid: mp 57-58 °C; Rf 0.36 (1:19, MeOH:
CHCl3); IR (KBr) 3261, 3052, 2929, 1725, 1643, 1546, 1407,
1248, 1170, 1045, 990, 741, 647 cm-1; 1H NMR (CDCl3) δ 2.96
(s, CH3), 2.98 (s, CH3), 4.01 (d, J ) 4.5 Hz, CH2C(O)), 5.13 (s,
OCH2), 5.93 (br s, NH), 7.30-7.38 (m, PhH); 13C NMR (CDCl3)
35.4 (CH3), 35.6 (CH3), 42.5 (CH2C(O)), 66.6 (OCH2), 127.8 (C4′),
127.9 (2C2′ or 2C3′), 128.3 (2C2′ or 2C3′), 136.4 (C1′), 156.1
(OC(O)NH), 167.7 (C(O)NH) ppm; MS (+CI) (rel intensity) 238
(10), 237 (M+ + 1, 75), 194 (14), 193 (100), 154 (31), 129 (67);
Mr (+CI) 237.123 88 [M+ + 1] (calcd for C12H17N2O3 237.123 92).
Anal. (C12H16N2O3) C, H, N.
phasis on the rigorous validation of QSAR models as
well as conservative extrapolation limited to the ap-
plicability domain, which allows us to achieve the
highest possible accuracy in predicted biological activity
of compounds external to the training set. Second, the
similarity metric used in database mining is defined by
the Euclidean distances in the descriptor pharmaco-
phore space as opposed to the full descriptor space.
Third, we select only consensus hits obtained with
multiple validated QSAR models as opposed to the
predictions based on a single best model.
Future studies should provide additional enhance-
ments of the workflow employed in this paper. Thus,
we are currently enlarging the selection of data model-
ing algorithms and descriptor sets in the context of
combinatorial QSAR modeling that we began to explore
recently.37 We suggest that the combined predictive
QSAR modeling and database-mining approach devel-
oped in this paper can be applied to a variety of
experimental datasets and exploited as a general tool
for the design and discovery of novel, biologically active
compounds.

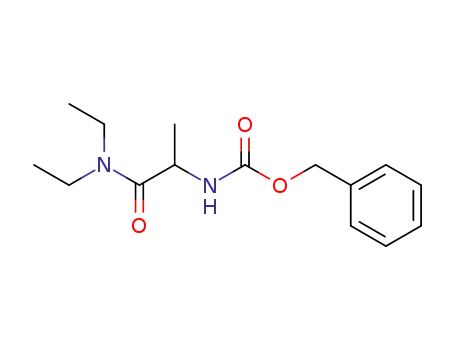

Syn th esis of N-(Ben zyloxyca r bon yl)glycin e-N,N-d i-
eth yla m id e (5). N-(Benzyloxycarbonyl)glycine (5.00 g, 23.90
mmol), 4-methylmorpholine (2.9 mL, 26.29 mmol), isobutyl
chloroformate (3.4 mL, 26.29 mmol), diethylamine (3.0 mL,
26.29 mmol), and THF (150 mL) gave crude 5. The product
was purified by column chromatography (SiO2; 3:2, EtOAc:
hexanes) to obtain 5.68 g (90%) of pure 5 as a translucent
solid: mp 40-41 °C; Rf 0.31 (3:2, EtOAc:hexanes); IR (KBr)
3268, 3066, 2986, 2940, 1726, 1642, 1550, 1454, 1255, 1167,
1049, 1006, 743, 653 cm-1; 1H NMR (CDCl3) δ 1.13 (t, J ) 7.2
Hz, CH2CH3), 1.19 (t, J ) 7.2 Hz, CH2CH3), 3.26 (q, J ) 7.2
Hz, CH2CH3), 3.40 (q, J ) 7.2 Hz, CH2CH3), 4.02 (d, J ) 4.2
Hz, CH2C(O)), 5.13 (s, OCH2), 5.85 (br s, NH), 7.30-7.37 (m,
PhH); 13C NMR (CDCl3) 12.7 (CH2CH3), 13.7 (CH2CH3), 40.2
(CH2CH3), 40.7 (CH2CH3), 42.3 (CH2C(O)), 66.5 (OCH2), 127.7
(C4′), 127.8 (2C2′ or 2C3′), 128.2 (2C2′ or 2C3′), 136.4 (C1′), 156.0
(OC(O)NH), 166.7 (C(O)NH) ppm; MS (+CI) (rel intensity) 266
(17), 265 (M+ + 1, 100), 221 (32), 157 (16), 154 (11); Mr (+CI)
265.154 61 [M+ + 1] (calcd for C14H21N2O3 265.155 22). Anal.
(C14H20N2O3) C, H, N.
Exp er im en ta l Meth od s
Gen er a l P r oced u r e. To a cold (-78 °C) THF solution
(∼0.1-0.2 mmol N-(benzyloxycarbonyl) amino acid/mL of
solvent) containing the N-(benzyloxycarbonyl)amino acid, the
4-methylmorpholine (1.1 equiv) was slowly added. After stir-
ring (2 min), isobutyl chloroformate (1.1 equiv) was added. The
reaction was stirred (2 min) and then the amine (1.1 equiv)
was added dropwise. The reaction was stirred at -78 °C (15
min) and allowed to warm to room temperature (1 h). The
reaction mixture was filtered and the filtrate evaporated in
vacuo. The residue was purified by chromatography on SiO2
gel to obtain the desired product. Using this general procedure,
the following compounds were prepared.
Syn th esis of N-(Ben zyloxyca r bon yl)glycin e-N-m eth yl-
a m id e (25).29 N-(Benzyloxycarbonyl)glycine (5.00 g, 23.90
mmol), 4-methylmorpholine (2.9 mL, 26.29 mmol), isobutyl
chloroformate (3.4 mL, 26.29 mmol), methylamine (2.0 M in
THF, 13.2 mL, 26.40 mmol), and THF (150 mL) gave crude
25. The product was purified by column chromatography (SiO2;
1:19, MeOH:CHCl3) to obtain 5.03 g (95%) of pure 25 as a white
solid: mp 105-106 °C (lit.29 mp 105-107 °C); Rf 0.31 (1:19,
MeOH:CHCl3); 1H NMR (CDCl3) δ 2.76 (d, J ) 4.5 Hz, NCH3),
3.81 (d, J ) 5.7 Hz, CH2C(O)), 5.10 (s, OCH2), 5.86 (br t, J )
5.7 Hz, NH), 6.48 (br s, NH), 7.27-7.33 (m, PhH); 13C NMR
(CDCl3) 26.0 (NCH3), 44.5 (CH2C(O)), 67.0 (OCH2), 127.9 (C4′),
128.1 (2C2′ or 2C3′), 128.4 (2C2′ or 2C3′), 136.1 (C1′), 156.6
(OC(O)NH), 169.7 (C(O)NH) ppm.
Syn t h esis of N-(Ben zyloxyca r b on yl)glycin e-N-et h yl-
a m id e (26). N-(Benzyloxycarbonyl)glycine (5.00 g, 23.90
mmol), 4-methylmorpholine (2.9 mL, 26.29 mmol), isobutyl
chloroformate (3.4 mL, 26.29 mmol), ethylamine (2.0 M in
THF, 13.2 mL, 26.40 mmol), and THF (150 mL) gave crude
26. The product was purified by column chromatography (SiO2;
1:49, MeOH:CHCl3 to 1:19, MeOH:CHCl3) to obtain 5.07 g
(90%) of pure 26 as a white solid: mp 99-100 °C; Rf 0.41
(1:19, MeOH:CHCl3); IR (KBr) 3318, 3051, 2971, 1702, 1655,
1545, 1453, 1373, 1252, 1155, 732, 698 cm-1; 1H NMR (CDCl3)
δ 1.01 (t, J ) 7.2 Hz, CH2CH3), 3.19-3.28 (m, CH2CH3), 3.81
(d, J ) 5.7 Hz, CH2C(O)), 5.09 (s, OCH2), 6.16 (t, J ) 5.7 Hz,
NH), 6.76 (br s, NH), 7.28-7.32 (m, PhH); 13C NMR (CDCl3)
14.3 (CH2CH3), 34.1 (CH2CH3), 44.2 (CH2C(O)), 66.7 (OCH2),
127.7 (C4′), 127.9 (2C2′ or 2C3′), 128.3 (2C2′ or 2C3′), 136.0 (C1′),
156.6 (OC(O)NH), 168.9 (C(O)NH) ppm; MS (+CI) (rel inten-
sity) 238 (12), 237 (M+ + 1, 83), 194 (12), 193 (100); Mr (+CI)
237.123 88 [M+ + 1] (calcd for C12H17N2O3 237.123 92). Anal.
(C12H16N2O3) C, H, N.
Syn th esis of N-(Ben zyloxyca r bon yl)glycin e-N-m eth -
oxy-N-m eth yla m id e (28).38 N,O-Dimethylhydroxylamine was
prepared by stirring N,O-dimethylhydroxylamine hydrochlo-
ride salt (1.57 g, 16.13 mmol), K2CO3 (4.46 g, 32.2 mmol), THF
(30 mL), and H2O (3 mL) at room temperature (3 h). N-
(Benzyloxycarbonyl)glycine (2.81 g, 13.44 mmol), 4-methyl-
morpholine (1.6 mL, 14.78 mmol), isobutyl chloroformate (1.9
mL, 14.78 mmol), the previously prepared N,O-dimethyl-
hydroxylamine solution (33 mL), and THF (70 mL) gave crude
28. The product was purified by column chromatography (SiO2;
3:2, EtOAc:hexanes) and then crystallized from EtOAc (15 mL)
to obtain 2.41 g (71%) of pure 28 as a translucent solid: mp
76-77 °C (lit.38 mp 76-77 °C); Rf 0.31 (3:2, EtOAc:hexanes);
IR (KBr) 3291, 1725, 1661, 1545, 1469, 1252, 1169, 977, 741
1
cm-1; H NMR (CDCl3) δ 3.20 (s, NCH3), 3.71 (s, OCH3), 4.14
(d, J ) 4.8 Hz, CH2C(O)), 5.12 (s, OCH2), 5.61 (br s, NH), 7.30-
7.38 (m, PhH); 13C NMR (CDCl3) 32.0 (NCH3), 41.7 (CH2C(O)),
61.0 (OCH3), 66.4 (OCH2), 127.6 (C4′), 127.7 (2C2′ or 2C3′), 128.1
(2C2′ or 2C3′), 136.2 (C1′), 156.1 (OC(O)NH), 169.5 (C(O)NH)
ppm; MS (+CI) (rel intensity) 253 (M+ + 1, 62), 210 (12), 209
(100), 192 (14), 145 (37), 119 (12); Mr (+CI) 253.119 59 [M+
+
1] (calcd for C12H17N2O4 253.118 83). Anal. (C12H16N2O4) C, H,
N.
Syn th esis of (R,S)-N-(Ben zyloxyca r bon yl)a la n in e-N-
m eth oxy-N-m eth yla m id e ((R,S)-3). N,O-Dimethylhydroxyl-
amine was prepared by stirring N,O-dimethylhydroxylamine
hydrochloride salt (1.57 g, 16.13 mmol), K2CO3 (4.46 g, 32.2
mmol), THF (30 mL), and H2O (3 mL) at room temperature (3
h). (R,S)-N-(Benzyloxycarbonyl)alanine (3.00 g, 13.44 mmol),
4-methylmorpholine (1.6 mL, 14.78 mmol), isobutyl chloro-
formate (1.9 mL, 14.78 mmol), the previously prepared N,O-
dimethylhydroxylamine solution (33 mL), and THF (70 mL)
gave crude 3. The product was purified by column chroma-
tography (SiO2; 1:49, MeOH:CHCl3) to obtain 3.16 g (88%) of
pure 3 as an off-white solid: mp 63-64 °C; Rf 0.42 (1:49,
MeOH:CHCl3); IR (KBr) 3267, 1709, 1650, 1532, 1254, 1071,
981, 740 cm-1; 1H NMR (CDCl3) δ 1.32 (d, J ) 6.9 Hz, CH3CH),
3.18 (s, NCH3), 3.74 (s, OCH3), 4.73 (dq, J ) 8.1, 6.9 Hz,
Syn t h esis of N-(Ben zyloxyca r b on yl)glycin e-N,N-d i-
m et h yla m id e (27). N-(Benzyloxycarbonyl)glycine (5.00 g,
