G. Zhao et al. / Journal of Catalysis 301 (2013) 46–53
53
prepared by impregnating Ni-fiber with Ni(NO3)2 solution (to
Appendix A. Supplementary material
3 wt% NiO), drying at 80 °C overnight, and calcining at 300 °C.
The benzyl alcohol conversion was only 5% at 280 °C over
NiO-3/Ni-fiber. In order to further address this question, two more
contrastive catalysts, NiO-3/Ti-fiber and Au-4/Ti-fiber, were pre-
pared by the same method as for the NiO-3/Ni-fiber catalyst except
using Ti-fiber as support, yielding the benzyl alcohol conversion of
less than 10%. Interestingly, the Au-4/Ti-fiber catalyst after
re-impregnation with Ni(NO3)2 solution (to 3 wt% NiO) followed
by calcination at 300 °C, yielded a sharp promotion of the benzyl
alcohol conversion up to 94% at 280 °C. These results obviously
indicated that the Au–NiO composites play an essential role in con-
tributing the activity for alcohol oxidation, which is consistent
with the reported Au catalysts supported on NiO for CO [39] and
alcohol oxidation [48]. One can thus say that the pre-activation
process over the Au/Ni-fiber catalyst by nature facilitated the
NiCl2-to-NiO transformation to form the Au–NiO composites,
which led sharp promotion of the catalyst activity for alcohol
oxidation.
Supplementary data associated with this article can be found, in
References
[1] R.A Sheldon, J.K Kochi, Metal-Catalyzed Oxidations of Organic Compounds,
Academic Press, New York, 1981.
[2] T. Mallat, A. Baiker, Chem. Rev. 104 (2004) 3037.
[3] A.S.K. Hashmi, Chem. Rev. 107 (2007) 3180.
[4] A. Corma, H. Garcia, Chem. Soc. Rev. 37 (2008) 2096.
[5] J.I. Kroschwitz, Kirk Othmer Encyclopedia of Chemical Technology, vol. 4,
fourth ed., Wiley-Interscience Publications, New York, 1992, pp. 64–72.
[6] D.G. Lee, U.A. Spitzer, J. Org. Chem. 35 (1970) 3589.
[7] F.M. Menger, C. Lee, Tetrahedron Lett. 22 (1981) 1655.
[8] G. Cainelli, G. Cardillo, Chromium Oxidants in Organic Chemistry, Springer,
Berlin, 1984.
[9] U.R. Pillai, E. Sahle-Demessie, Appl. Catal. A 245 (2003) 103.
[10] R.A. Sheldon, M. Wallau, I.W.C.E. Arends, U. Schuchardt, Acc. Chem. Res. 31
(1998) 485.
[11] G.J.T. Brink, I.W.C.E. Arends, R.A. Sheldon, Science 287 (2000) 1636.
[12] H. Tsunoyama, H. Sakurai, Y. Negishi, T. Tsukuda, J. Am. Chem. Soc. 127 (2005)
9374.
[13] J. Shen, W. Shan, Y. Zhang, J. Du, H. Xu, K. Fan, W. Shen, Y. Tang, J. Catal. 237
(2006) 94.
4. Conclusions
[14] J.P. Mao, M.M. Deng, Q.S. Xue, L. Chen, Y. Lu, Catal. Commun. 10 (2009)
1376.
The high-performance gold on Ni-fiber catalysts, which showed
a unique combination of excellent low-temperature activity, high
selectivity, good stability and high heat-transfer ability, were
successfully prepared for the low-temperature gas-phase selective

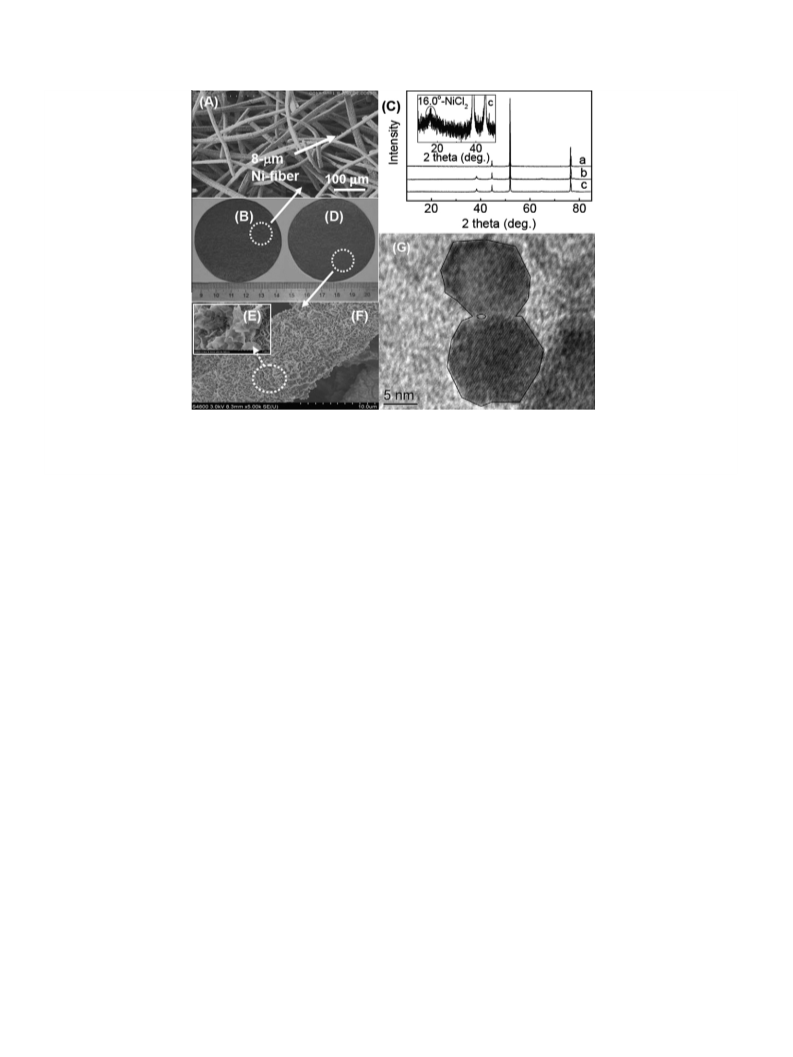

oxidation of various alcohols. The Au/Ni-fiber catalysts were
obtained by galvanic deposition of Au onto a thin-sheet microfi-
[15] J.P. Mao, M.M. Deng, L. Chen, Y. Liu, Y. Lu, AIChE J. 56 (2010) 1545.
[16] S. Biella, M. Rossi, Chem. Commun. (2003) 378.
[17] C.D. Pina, E. Falleta, M. Rossi, J. Catal. 260 (2008) 384.
[18] J. Fan, Y.H. Dai, Y.L. Li, N.F. Zheng, J.F. Guo, X.Q. Yan, G.D. Stucky, J. Am. Chem.
Soc. 131 (2009) 15568.
[19] H. Hayashibara, S. Nishiyama, S. Tsuruya, M. Masai, J. Catal. 153 (1995) 254.
[20] R. Yamamoto, Y. Sawayama, H. Shibahara, Y. Ichihashi, S. Nishiyama, S.
Tsuruya, J. Catal. 234 (2005) 308.
brous structure consisting of 5 vol.% 8-lm Ni-fiber and 95 vol.%
[21] D.K. Harris, D.R. Cahela, B.J. Tatarchuk, Compos. Part A: Appl. Sci. Manuf. 32
(2001) 1117.
voidage. The best catalyst was Au-4/Ni-fiber-300 (Au-loading:
4 wt%; calcined at 300 °C in air), which was effective for acyclic,
benzylic, and polynary (1,2-propanediol) alcohols using a high

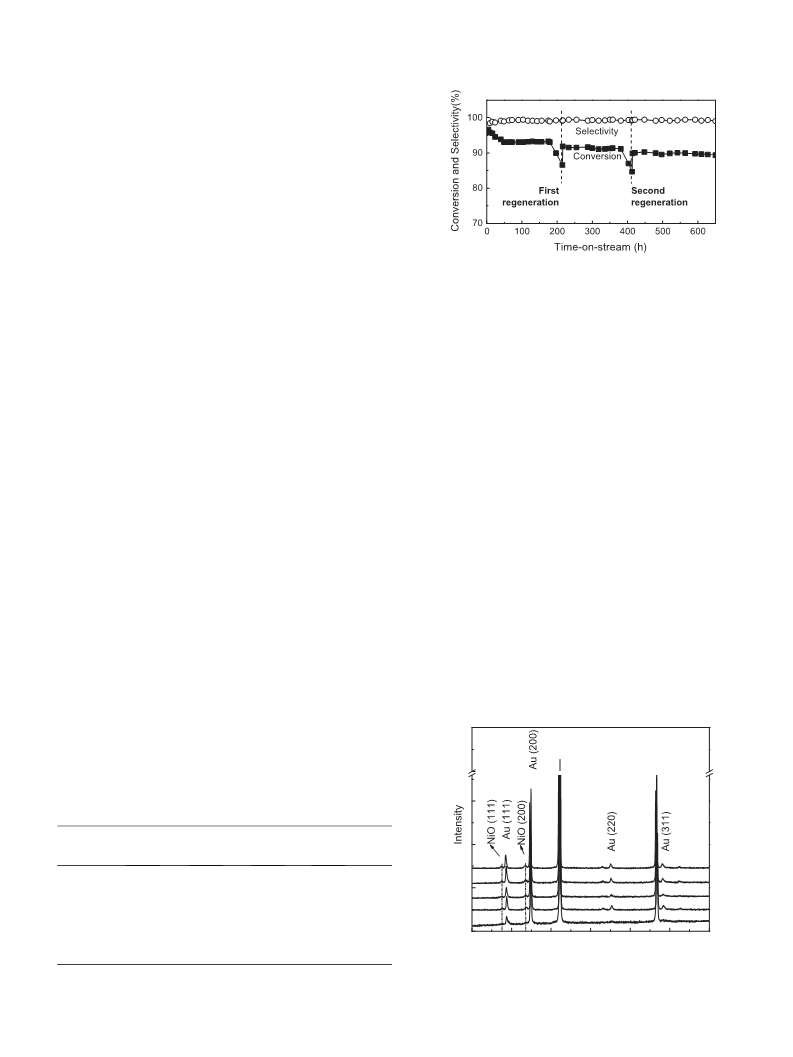

WHSV of 20 hÀ1. For benzyl alcohol, the conversion of ꢀ95% was
achieved and retained with >98% selectivity to benzaldehyde in a
660 h test at 250 °C. The spent catalyst can be recovered to its
as-prepared one exhibiting comparable activity/selectivity by a
[22] Y. Liu, H. Wang, J.F. Li, Y. Lu, Q.S. Xue, J.C. Chen, AIChE J. 53 (2007) 1845.
[23] Y. Lu, H. Wang, Y. Liu, Q.S. Xue, L. Chen, M.Y. He, Lab Chip 7 (2007) 133.
[24] M.M. Wang, J.F. Li, L. Chen, Y. Lu, Int. J. Hydrogen Energy 34 (2009) 1710.
[25] M. Lin, G.F. Zhao, W. Chen, M.M. Wang, Q.S. Xue, Y. Lu, Int. J. Hydrogen Energy
36 (2011) 12833.
[26] M.M. Deng, G.F. Zhao, Q.S. Xue, L. Chen, Y. Lu, Appl. Catal. B 99 (2010) 222.
[27] G.F. Zhao, H.Y. Hu, M.M. Deng, M. Ling, Y. Lu, Green Chem. 13 (2011) 55.
[28] B.K. Chang, Y. Lu, B.J. Tatarchuk, Chem. Eng. J. 115 (2006) 195.
[29] R.R. Kalluri, D.R. Cahela, B.J. Tatarchuk, Appl. Catal. B 90 (2009) 507.
[30] W. Chen, W.Q. Sheng, G.F. Zhao, F.H. Cao, Q.S. Xue, L. Chen, Y. Lu, Int. J.
Hydrogen Energy 37 (2012) 18021.
[31] W. Chen, W.Q. Sheng, G.F. Zhao, F.H. Cao, Q.S. Xue, L. Chen, Y. Lu, RSC Adv. 2
(2012) 3651.
[32] G.F. Zhao, H.Y. Hu, M.M. Deng, M. Ling, Y. Lu, ChemCatChem 3 (2011) 1629.
[33] G.F. Zhao, H.Y. Hu, M.M. Deng, Y. Lu, Chem. Commun. 47 (2011) 9642.
[34] J. Chen, B. Wiley, Z.-Y. Li, D. Campbell, F. Saeki, H. Cang, L. Au, J. Lee, X. Li, Y. Xia,
Adv. Mater. 17 (2005) 2255.
[35] H. Zhang, T. Watanabe, M. Okumura, M. Haruta, N. Toshima, Nat. Chem. 11
(2012) 49.
[36] A. Davidson, J.F. Tempere, M. Che, H. Roulet, G. Dufour, J. Phys. Chem. 100
(1996) 4919.
[37] Q. Fu, H. Saltsburg, M. Flytzani-Stephanopoulos, Science 301 (2003) 935.
[38] A. Abad, P. Concepcion, A. Corma, H. Garcia, Angew. Chem. Int. Ed. 44 (2005)
4066.
[39] M. Haruta, N. Yamada, T. Kobayashi, S. Iijima, J. Catal. 115 (1989) 301.
[40] J.D. Grunwaldt, M. Maciejewski, O.S. Becker, P. Fabrizioli, A. Baiker, J. Catal. 186
(1999) 458.

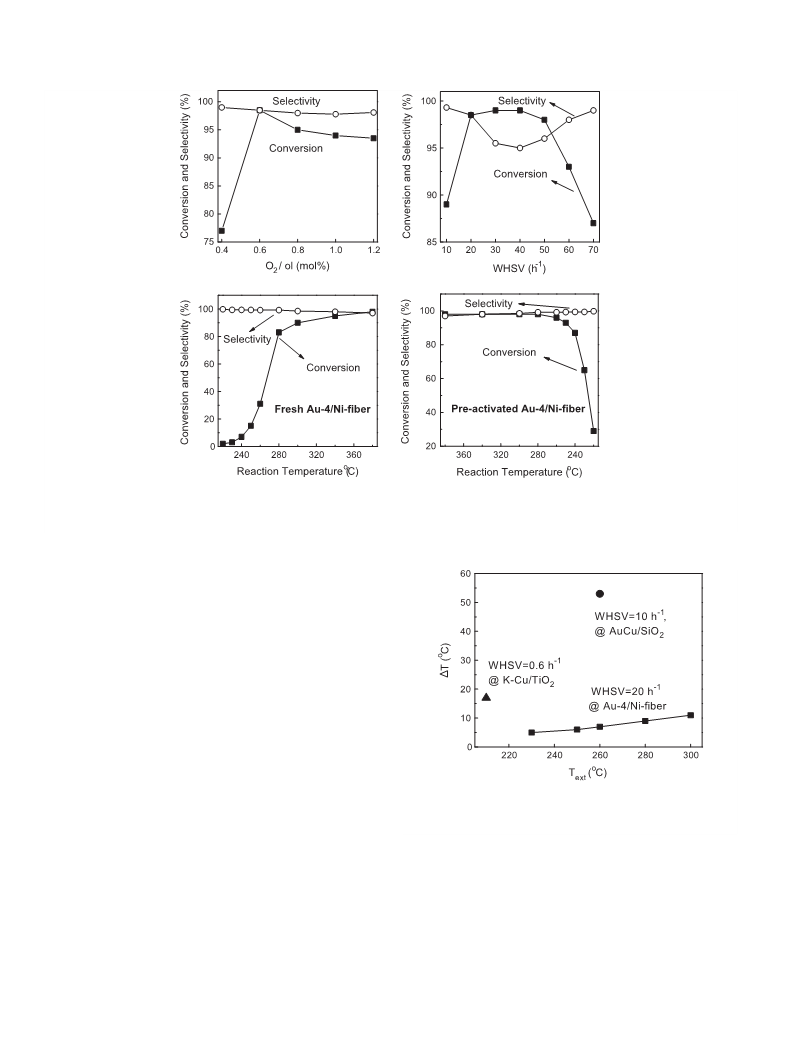

simple heating treatment in air. A low
DT of <10 °C between the
catalyst bed and reactor external wall was observed in the selective
oxidation of benzyl alcohol, owing to the enhanced heat-transfer
ability that permits to rapidly dissipate large quantities of reaction
heat. A significant promotion of the low-temperature activity of
the Au-4/Ni-fiber-300 catalyst took place, which is attributed to
the transformation of NiCl2 (formed at Au galvanic deposition step)
into NiO NPs around Au particles. The pre-activation process (e.g.,
pre-reaction at a high temperature of 380 °C for 1 h) facilitated the
NiCl2-to-NiO transformation. Despite these interesting results,
in-depth investigation of the interaction between NiO and Au
particles with respect to NiO–Au nano-architecture, nature of the
synergistic effect, and active site structure is particularly desirable.
Acknowledgments
[41] D.I. Enache, J.K. Edwards, P. Landon, B. Solsna-Espriu, A.F. Carely, A.A.
Herzing, M. Watanabe, C.J. Kiely, D.W. Knight, G.J. Hutchings, Science 311
(2006) 362.
[42] A.S.K. Hashmi, G.J. Hutchings, Angew. Chem. lnt. Ed. 45 (2006) 7896.
[43] H. Miyamura, R. Matsubara, Y. Miyazaki, S. Kabayashi, Angew. Chem. Int. Ed.
46 (2007) 4151.
This work was funded by the NSF of China (21273075,
21076083, 20973063), the ‘‘973 program’’ (2011CB201403) from
the MOST of China, the Fundamental Research Funds for the
Central Universities, the Shanghai Rising-Star Program
(10HQ1400800), the Specialized Research Fund for the Doctoral
Program of Higher Education (20090076110006), and the Shanghai
Leading Academic Discipline Project (B409). We thank the Electron
Spectroscope Center of the East China Normal University for
assistance with TEM measurements.
[44] F.Z. Su, Y.M. Liu, L.C. Wang, Y. Cao, H.Y. He, K.N. Fan, Angew. Chem. Int. Ed. 47
(2008) 334.
[45] M.S. Chen, D.G. Goodman, Science 306 (2004) 252.
[46] B.K. Min, C.M. Friend, Chem. Rev. 107 (2007) 2709.
[47] B. Zhu, M. Lazar, B.G. Trewyna, R.J. Angelici, J. Catal. 260 (2008) 1.
[48] A. Villa, G.M. Veith, D. Ferri, A. Weidenkaff, K.A. Perry, S. Campisia, L. Prati,
Catal. Sci. Technol. 3 (2013) 394.
