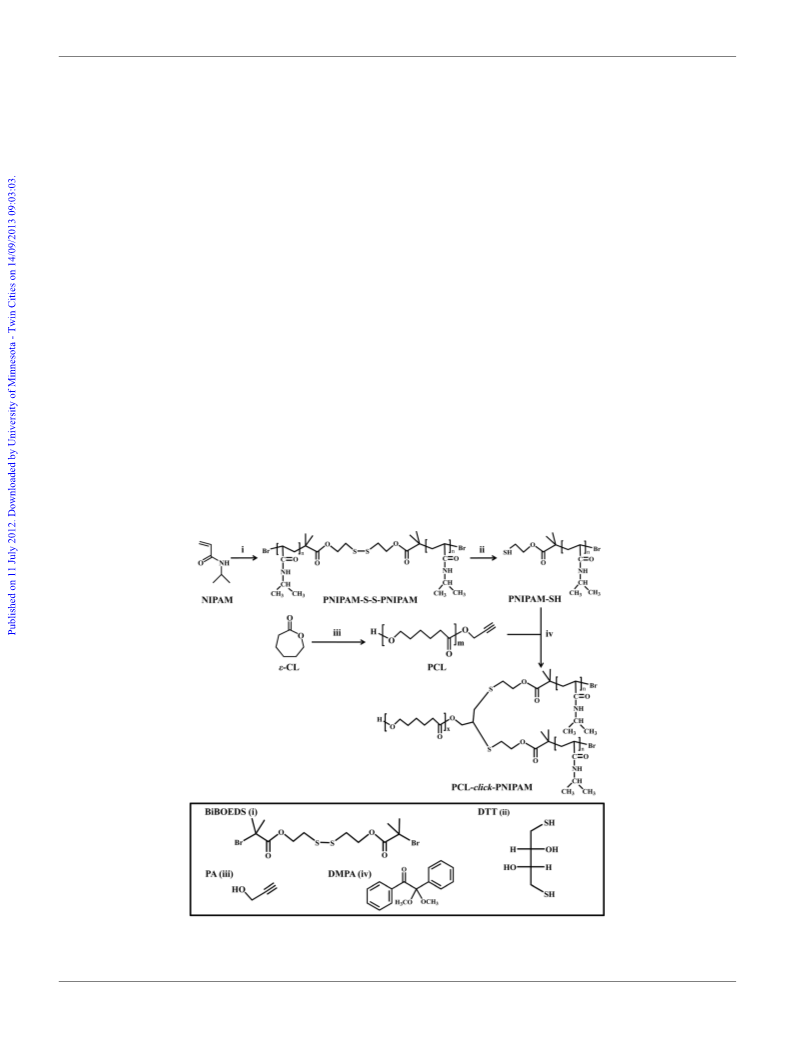

latter underwent thiol–yne click reaction with alkyne-terminated
PCL, prepared by ring-opening polymerization of 3-CL in the
presence of propargyl alcohol, to produce the PCL-click-PNI-
2

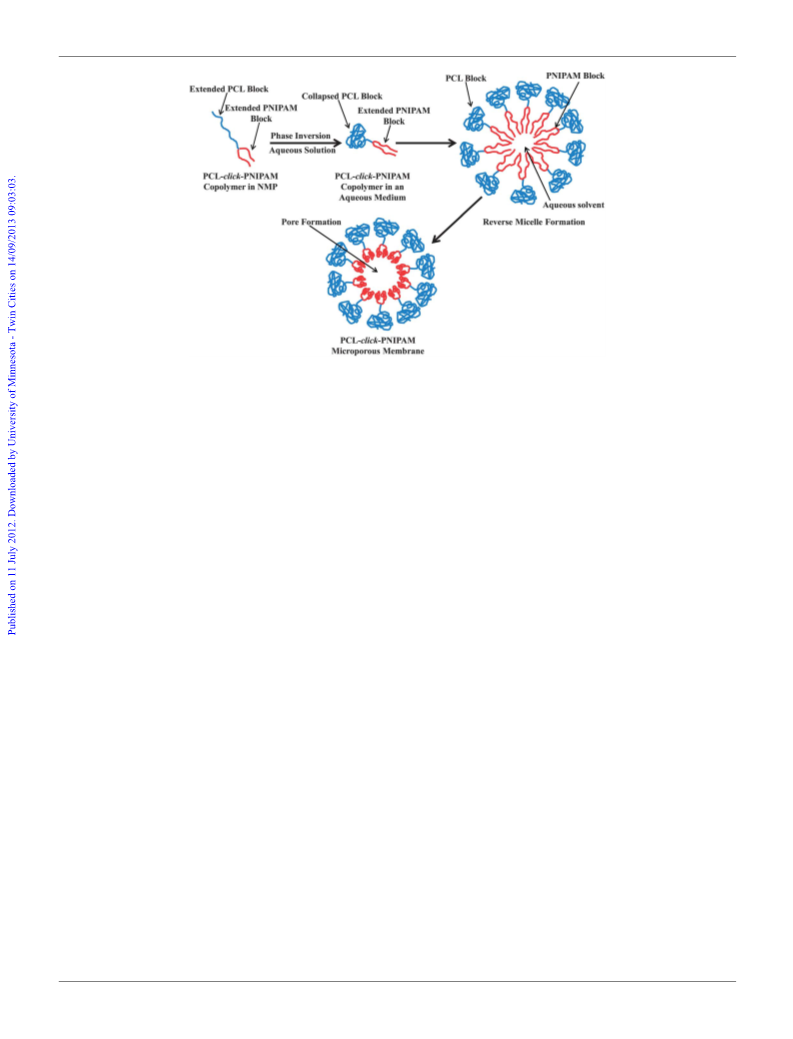

PAM AB -type copolymer. Microporous membranes with
surface-enriched PNIPAM chains were prepared from the NMP
solution of the PCL-click-PNIPAM copolymers by phase
inversion in an aqueous medium. The tertiary C–Br groups of the
PNIPAM chain ends on the PCL-click-PNIPAM membrane and
pore surfaces provide functionalities for the surface-initiated
ATRP of NaSS to produce the PCL-click-PNIPAM-b-PNaSS

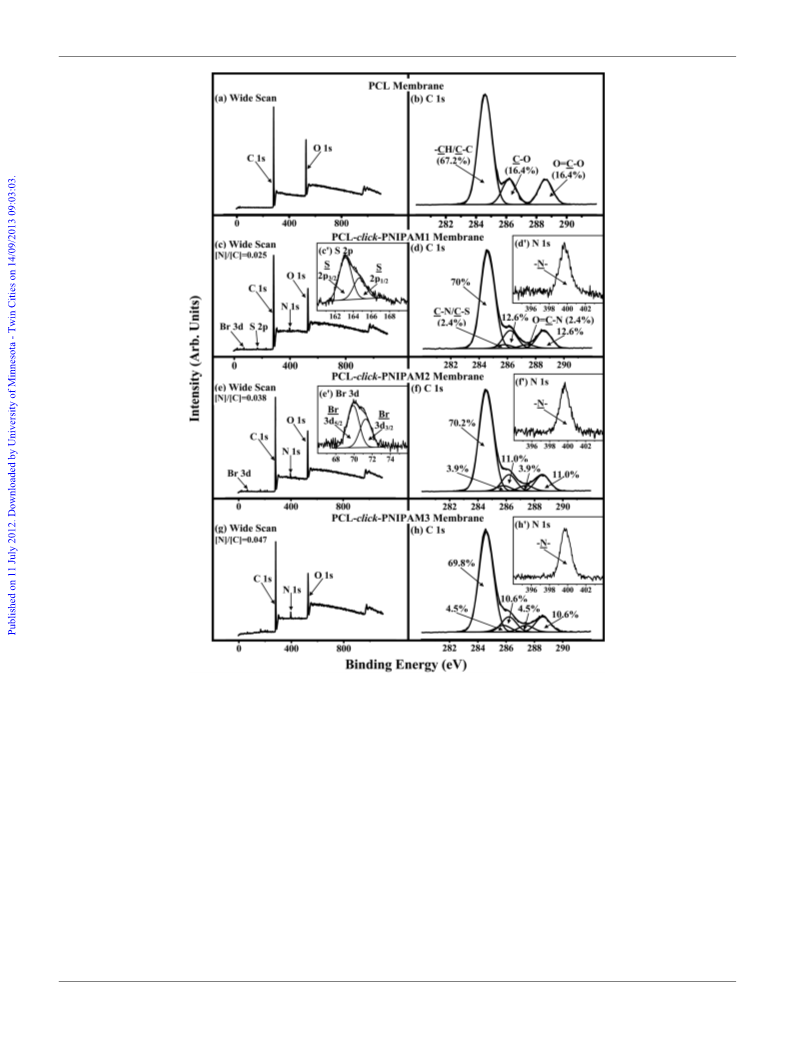

membranes. The temperature and electrolyte responsive char-
acteristics of the PCL-click-PNIPAM and PCL-click-PNIPAM-

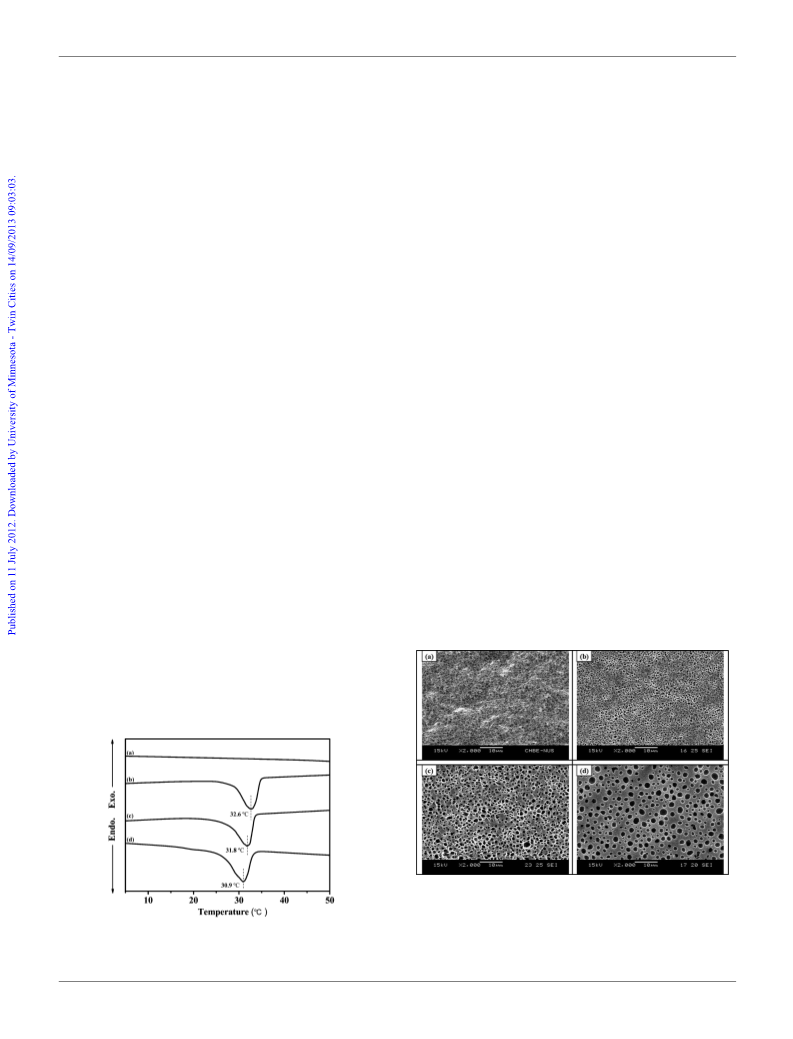

b-PNaSS membranes were illustrated by the swelling experiments
and glucose transport behavior. The stimuli-responsive
membranes with low cytotoxicity, obtained via the present
approach, have potential applications in biomedical areas, such
as drug delivery and tissue engineering.
Fig. 10 Cytotoxicity assays of the (a) PCL, (b) PCL-click-PNIPAM1,
0
(
c) PCL-click-PNIPAM2, (d) PCL-click-PNIPAM3, and (c ) PCL-click-
PNIPAM2-b-PNaSS membranes of 1 cm ꢂ 1 cm in area in 3T3 fibro-
blasts culture medium after 24 h of incubation. Error bars represent the
standard deviation of four measurements.
PCL-click-PNIPAM2-b-PNaSS membranes exhibit higher
permeation rates in 1 M NaCl than in deionized water (Fig. 9). In
deionized water, the strong electrostatic repulsion among the
sulfate anions forces the PNaSS side chains to adopt a highly
extended conformation. On the other hand, due to the electro-
static screening effect, the electrolyte will shield the intrachain
and interchain electrostatic repulsion among sulfate anions. The
PNaSS brushes on the membrane and pore surfaces undergo
association and aggregation as a result of the polyelectrolyte
effect. Steric obstruction to transport through the pores of the
membrane is substantially reduced, resulting in the increase in
permeation rate through the microporous membrane. This
References
1
Y. H. Tao, R. Liu, M. Q. Chen, C. Yang and X. Y. Liu, J. Mater.
Chem., 2012, 22, 373–380.
2 M. A. Rice, J. Sanchez-Adams and K. S. Anseth, Biomacromolecules,
006, 7, 1968–1975.
2
A. Cipitria, A. Skelton, T. R. Dargaville, P. D. Dalton and
D. W. Hutmacher, J. Mater. Chem., 2011, 21, 9419–9453.
3
4 A. Galperin, T. J. Long and B. D. Ratner, Biomacromolecules, 2010,
1, 2583–2592.
J. Brostrom, A. Boss and I. S. Chronakis, Biomacromolecules, 2004, 5,
124–1134.
1
5
6
7
8
1
K. E. Uhrich, S. M. Cannizzaro, R. S. Langer and K. M. Shakesheff,
Chem. Rev., 1999, 99, 3181–3198.
F. J. Xu, J. Li, S. J. Yuan, Z. X. Zhang, E. T. Kang and K. G. Neoh,
Biomacromolecules, 2008, 9, 331–339.
Y. B. Zhu, C. Y. Gao, X. Y. Liu and J. C. Shen, Biomacromolecules,
2002, 3, 1312–1319.
‘‘valve effect’’ helps to account for the permeation behavior in
the present membrane having transmembrane pores with sizes in
the micrometer region and electrolyte-responsive brushes with no
surface aggregation. The D
r
values for the PCL-click-PNIPAM2-
9 K. S. Tiaw, S. W. Goh, M. Hong, Z. Wang, B. Lan and S. H. Teoh,
Biomaterials, 2005, 26, 763–769.
b-PNaSS membranes in deionized water and in 1 M NaCl
solution are 1.38 and 1.47, respectively, indicating that higher
temperature sensitivity of the permeation rate is observed in 1 M
NaCl solution than in deionized water.
1
0 Y. B. Zhu, K. S. Chian, M. B. Chan-Park, P. S. Mhaisalkar and
B. D. Ratner, Biomaterials, 2006, 27, 68–78.
11 W. Mattanavee, O. Suwantong, S. Puthong, T. Bunaprasert,
V. P. Hoven and P. Supaphol, ACS Appl. Mater. Interfaces, 2009,
1
, 1076–1085.
2 D. P. Wu, D. Han and A. J. Steckl, ACS Appl. Mater. Interfaces,
010, 2, 252–258.
Cytotoxicity is one of the most important factors to be
considered in selecting polymeric membranes for biomaterial or
biomedical applications. In this study, we further illustrate the
biocompatibility of all the copolymer membranes. The cytotox-
icity of all the copolymer membranes was evaluated using the
MTT cell-viability assay. The 3T3 fibroblasts were incubated
with copolymer membranes of 1 cm ꢂ 1 cm in area. The viabil-
ities of 3T3 fibroblast cells are higher than 85% for all the
copolymer membranes (Fig. 10), indicating that the introduction
of PNIPAM and PNaSS polymers on the PCL membrane and
pore surfaces has only limited the cytotoxicity effect and the
1
2
13 J. Lindqvist, D. Nystrom, E. Ostmark, P. Antoni, A. Carlmark,
M. Johansson, A. Hult and E. Malmstrom, Biomacromolecules,
2008, 9, 2139–2145.
4 T. Cai, K. G. Neoh and E. T. Kang, Macromolecules, 2011, 44, 4258–
4268.
5 T. Cai, R. Wang, W. J. Yang, S. J. Lu, K. G. Neoh and E. T. Kang,
Soft Matter, 2011, 7, 11133–11143.
6 O. Dechy-Cabaret, B. Martin-Vaca and D. Bourissou, Chem. Rev.,
1
1
1
2004, 104, 6147–6176.
17 M. Bouyahyi, M. P. F. Pepels, A. Heise and R. Duchateau,
Macromolecules, 2012, 45, 3356–3366.
1
8 A. K. Mishra, V. K. Patel, N. K. Vishwakarma, C. S. Biswas,
M. Raula, A. Misra, T. K. Mandal and B. Ray, Macromolecules,
2011, 44, 2465–2473.
49–53
biocompatibility of PCL membranes is largely preserved.
Thus, all the copolymer membranes synthesized in the present
work are potentially useful for biomaterial applications.
19 J. N. Hoskins and S. M. Grayson, Macromolecules, 2009, 42, 6406–
413.
6
2
0 H. Misaka, R. Kakuchi, C. Zhang, R. Sakai, T. Satoh and
T. Kakuchi, Macromolecules, 2009, 42, 5091–5096.
1 T. Cai, W. J. Yang, K. G. Neoh and E. T. Kang, Polym. Chem., 2012,
3, 1061–1068.
4
. Conclusions
2
Narrowly dispersed diblock copolymers of PNIPAM, bearing a
center sulfur–sulfur bridge, can be prepared using a disulfide-
based ATRP initiator at room temperature. The center disulfide
bond in the PNIPAM polymer precursor was then cleaved using
excess DTT to obtain the thiol-terminated PNIPAM chains. The
22 W. Liu and C.-M. Dong, Macromolecules, 2010, 43, 8447–8455.
2
3 D. Konkolewicz, A. Gray-Weale and S. Perrier, J. Am. Chem. Soc.,
009, 131, 18075–18077.
2
4 M. Semsarilar, V. Ladmiral and S. Perrier, Macromolecules, 2010, 43,
1438–1443.
2
This journal is ª The Royal Society of Chemistry 2012
J. Mater. Chem., 2012, 22, 16248–16258 | 16257
