C O M M U N I C A T I O N S
optical microscopy and the isotropic small-angle reflection implied
columnar structures for 1b which are, however, established only
over short-range, whereby 1a and 1c exhibited self-assembly over
long-range.
In conclusion, we have developed a synthetic protocol yielding
2
the novel D symmetric zigzag nanographenes, and allowing a
specific substitution of the ovalene corona. The latter appeared as
a key feature to modify the intracolumnar arrangement in a facile
way. It thus became possible to modify the supramolecular
organization of an extended PAH from helical to a unique staggered
superstructure. It is expected that the variation of the molecular
packing for one system is accompanied by a different performance
in electronic devices.12
Acknowledgment. The authors acknowledge financial support
from the Deutsche Forschungsgemeinschaft (Schwerpunktpro-
gramm: Organische Feldeffekt-Transistoren) and the EU project
NAIMO (Integrated Project Number NMP4-CT-2004-500355).
1
Supporting Information Available: Experimental procedures, H
NMR, UV-vis, and photoluminescence spectra, POM, thermal behav-
ior, and indexed 2D-WAXS patterns. This material is available free of
charge via the Internet at http://pubs.acs.org.

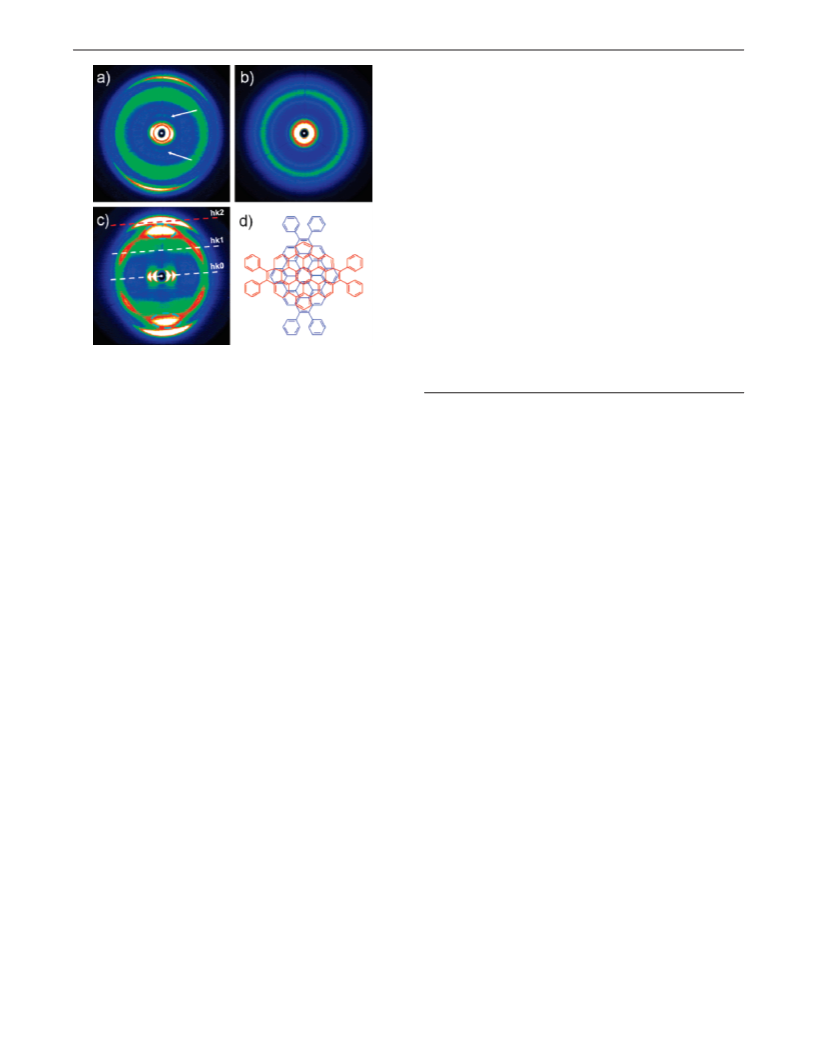

Figure 1. Two-dimensional WAXS patterns of (a) 1a (arrows indicate
intracolumnar periods of 1 nm), (b) 1b, (c) 1c (Miller’s indices for the
intracolumnar stacking and the higher order reflections are indicated), and
(d) illustration of the rotation assigned for 1c.
References
observed for hexaphenyl HBCs and C
3
symmetric zigzag nan-
(1) (a) van de Cratts, A. M.; Warmam, J. M. AdV. Mater. 2001, 13, 130-
133. (b) Pisula, W.; Menon, A.; Stepputat, M.; Lieberwirth, I.; Kolb, U.;
Tracz, A.; Sirringhaus, H.; Pakula, T.; M u¨ llen, K. AdV. Mater. 2005, 17,
684. (c) Xiao, S.; Myers, M.; Miao, Q.; Sanaur, S.; Pang, K.; Steigerwald,
M. L.; Nuckolls, C. Angew. Chem., Int. Ed. 2005, 44, 7390-7394.
ographenes and confirmed by quantum-chemical calculations.10 In
sharp contrast, compound 1c revealed a staggered packing char-
acterized by off-meridional reflections corresponding to a period
of 0.72 nm, being twice the stacking distance and leading to a
correlation of every second molecule along the columns (Figure
(
2) (a) Wu, J.; Pisula, W.; M u¨ llen, K. Chem. ReV. 2007, 107, 718-747. (b)
Xiao, S.; Tang, J.; Beetz, T.; Guo, X.; Tremblay, N.; Siegrist, T.; Zhu,
Y.; Steigerwald, M.; Nuckolls, C. J. Am. Chem. Soc. 2006, 128, 10700-
10701.
1c). Figure 1d illustrates that this molecular packing is in good
(3) (a) Pisula, W.; Tomovi c´ , Z.; Stepputat, M.; Kolb, U.; Pakula, T.; M u¨ llen,
K. Chem. Mater. 2005, 17, 2641. (b) Pisula, W.; Kastler, M.; Wasserfallen,
D.; Nolde, F.; Kohl, C.; Pakula, T.; M u¨ llen, K. Angew. Chem., Int. Ed.
2006, 45, 819. (c) Tracz, A.; Jeszka, J. K.; Watson, M. D.; Pisula, W.;
M u¨ llen, K.; Pakula, T. J. Am. Chem. Soc. 2003, 125, 1682-1683.
accordance with the ovalene architecture of 1c. The lateral rotation
of the ovalenes by 90° to each other is initiated not only by the
hindrance of the phenyl rings at the aromatic core as for 1a but
also, intriguingly enough, by the introduction of alkyl side chains
at the para position. The different lateral rotation angle of the
molecules 1a and 1c is attributed to a different filling of the
peripheral space by side chains. Since compound 1a carries only
four alkyl substituents in comparison to 1c with six chains, the
resulting rotation of 1a is smaller to fill the peripheral space by
the attached phenyls.
(
(
(
4) (a) Adam, D.; Schuhmacher, P.; Simmerer, J.; H a¨ ussling, L.; Siemens-
meyer, K.; Etzbach, K. H.; Ringsdorf, H.; Haarer, D. Nature 1994, 371,
1
41-143. (b) Ikeda, M.; Takeuchi, M.; Shinkai, S. Chem. Commun. 2003,
1
354-1355. (c) Arikainen, E. O.; Boden, N.; Bushby, R. J.; Lozman, O.
R.; Vinter, J. G.; Wood, A. Angew. Chem., Int. Ed. 2000, 39, 2333-
2336.
5) (a) Fechtenk o¨ tter, A.; Saalwachter, K.; Harbison, M. A.; M u¨ llen, K.;
Spiess, H. W. Angew. Chem., Int. Ed. 1999, 38, 3039-3042. (b) Wu, J.;
Fechtenk o¨ tter, A.; Gauss, J.; Watson, M. D.; Kastler, M.; Fechtenk o¨ tter,
C.; Wagner, M.; M u¨ llen, K. J. Am. Chem. Soc. 2004, 126, 11311-11321.
(c) Feng, X.; Wu, J.; Ai, M.; Pisula, W.; Zhi, L.; Rabe, J. P.; M u¨ llen, K.
Cooling samples of 1c to low temperatures (-100 °C) resulted
in a higher supramolecular order as expressed by a higher intensity
of the reflections and the appearance of new doublet reflections at
Angew. Chem., Int. Ed. 2007, 46, 3033-3046.
6) Kastler, M.; Schmidt, J.; Pisula, W.; Sebastiani, D.; M u¨ llen, K. J. Am.
Chem. Soc. 2006, 128, 9526-9534.
(7) Feng, X.; Wu, J.; Enkelmann, V.; M u¨ llen, K. Org. Lett. 2006, 8, 1145-
-
1
1148.
a scattering vector s ) 2.32 nm (Figure 1c), which have been
(8) Yao, T.; Campo, M. A.; Larock, R. C. J. Org. Chem. 2005, 70, 3511-
also observed for discotic triphenylenes with a similar staggered
packing and a plastic crystalline phase.11 We assigned 1a and 1c
3517.
(9) (a) Pisula, W.; Tomovi c´ , Zˇ .; Simpson, C.; Kastler, M.; Pakula, T.; M u¨ llen,
K. Chem. Mater. 2005, 17, 4296-4303. (b) Pisula, W.; Kastler, M.;
Wasserfallen, D.; Mondeshki, M.; Piris, J.; Schnell, I.; M u¨ llen, K. Chem.
Mater. 2006, 18, 3634. (c) Barbera, J.; Cavero, E.; Lehmann, M.; Serrano,
J. L.; Sierra, T.; Vazquez, J. T. J. Am. Chem. Soc. 2003, 125, 4527-
also as plastic crystalline over the whole temperature range
attributable to their waxy/soft state and their above-described
exceptional three-dimensional organization, which can be clearly
distinguished from a typical crystalline and disordered liquid
crystalline phase. On the other hand, poor order was observed only
for 1b caused by the t-butyl groups hindering a stacking of the
molecules (Figure 1b). The weak interaction between the building
blocks of 1b was also reflected by the isotropization temperature
4533.
(10) Pisula, W.; Tomovi c´ , Zˇ .; Watson, M. D.; M u¨ llen, K.; Kussmann, J.;
Ochsenfeld, C.; Metzroth, T.; Gauss, J. J. Phys. Chem. B 2007, 111, 7481-
7487.
(11) (a) Bayer, A.; Zimmermann, S.; Wendorff, J. H. Mol. Cryst. Liq. Cryst.
2
003, 396, 1-22. (b) Glusen, B.; Heitz, W.; Kettner, A.; Wendorff, J. H.
Liq. Cryst. 1996, 20, 627.
(12) (a) Lemaur, V.; da Silva Filho, D. A.; Coropceanu, V.; Lehmann, M.;
Geerts, Y.; Piris, J.; Debije, M. G.; van de Craats, A. M.; Senthilkumar,
K.; Siebbeles, L. D. A.; Warman, J. M.; Bredas, J. L.; Cornil, J. J. Am.
Chem. Soc. 2004, 126, 3271-3279. (b) Cornil, J.; Lemaur, V.; Calbert,
J. P.; Bredas, J. L. AdV. Mater. 2002, 14, 726-729.
(T
i
) of 320 °C. This stood in contrast to 1a and 1c, which failed to
show a T up to 500 °C, thus reflecting the strongly improved
i
stability of the mesophase over a broad temperature range due to
helical packing. It should be noted that birefringence in the polarized
JA075260W
J. AM. CHEM. SOC.
9
VOL. 129, NO. 46, 2007 14117
