60239-18-1

Basic information

• Product Name: DOTA
• Synonyms: 1,4,7,10-TETRAAZACYCLODODECANE-1,4,7,10-TETRAACETIC ACID;1,4,7,10-TETRAAZACYCLODODECANE-1,4,7,10-TETRAACETIC ACID, FREE ACID;1,4,7,10-TETRAAZACYCLODODECANE-N,N',N'',N'''-TETRAACETIC ACID;DOTA;TETRAAZA-12-CROWN-4-1,4,7,10-TETRAACETIC ACID;NSC 681107;TETRAXETAN;1,4,7,10-Tetraazacyclododecane-N,N',N'',N'''-tetraaceticacid,min.98%DOTA
• CAS NO: 60239-18-1
• Molecular Formula: C₁₆H₂₈N₄O₈
• Molecular Weight: 404.42
• EINECS: 1592732-453-0
• Product Categories: Azacrown Ethers;Functional Materials;Macrocycles for Host-Guest Chemistry;Achiral Nitrogen;Cy-N
• Mol File: 60239-18-1.mol
• Article Data: 30

Chemical Properties

• Melting Point: 267 °C
• Boiling Point: 701.6 °C at 760 mmHg
• Flash Point: 378.1 °C
• Appearance: white/Powder
• Density: 1.321
• Vapor Pressure: 1.51E-21mmHg at 25°C
• Refractive Index: 1.531
• Storage Temp.: Sealed in dry,Room Temperature
• Solubility: Water (Slightly, Heated), Methanol (Slightly)
• PKA: 2.16±0.10(Predicted)
• Stability: Hygroscopic
• BRN: 1186987
• CAS DataBase Reference: DOTA(CAS DataBase Reference)
• NIST Chemistry Reference: DOTA(60239-18-1)
• EPA Substance Registry System: DOTA(60239-18-1)

Safety Data

• Hazard Codes: Xi
• Statements: 36/37/38
• Safety Statements: 26-36
• WGK Germany: 3
• F: 3-10-34
• Hazardous Substances Data: 60239-18-1(Hazardous Substances Data)

Usage

Chemical Properties

Colourless crystals

Uses

Different sources of media describe the Uses of 60239-18-1 differently. You can refer to the following data:
1. Bifunctional DOTA aconjugates to peptides and has become an established strategy for constructing target-specific metal containing agents including targeted MRI contrast agents and diagnostic and ther apeutic radiopharmaceuticals.
2. 1,4,7,10-Tetraazacyclododecane-1,4,7,10-tetraacetic acid (DOTA) is a macrocyclic complexing agent.It has been used for radiolabeling of carbon nanotube bioconjugates by chelating 64Cu radioisotope.DOTA can be activated with N-hydroxysulfosuccinimidyl for conjugation with monoclonal antibodies in clinical radioimmunotherapy.It can form complexes with gadolinium for application as MRI contrast agents.Metal complexes of DOTA-peptide conjugates can be used as therapeutic radiopharmaceuticals.

Definition

ChEBI: An azamacrocyle in which four nitrogen atoms at positions 1, 4, 7 and 10 of a twelve-membered ring are each substituted with a carboxymethyl group.

InChI:InChI=1/C16H28N4O8/c21-13(22)9-17-1-2-18(10-14(23)24)5-6-20(12-16(27)28)8-7-19(4-3-17)11-15(25)26/h1-12H2,(H,21,22)(H,23,24)(H,25,26)(H,27,28)

Synthetic route

1,4,7-tris(tert-butoxycarbonylmethyl)-1,4,7,10-tetraazacyclododecane-10-acetic acid (137076-54-1) → 1,4,7,10-tetrakis(carboxymethyl)-1,4,7,10-tetraazacyclododecane (60239-18-1) + tert-butyl alcohol (75-65-0)

Conditions	Yield
With chlorotriisopropylsilane; water; trifluoroacetic acid for 3h; Time; Reagent/catalyst; Solvent;	A 100% B 100%

C43H58N4O8 (1412494-57-5) → 1,4,7,10-tetrakis(carboxymethyl)-1,4,7,10-tetraazacyclododecane (60239-18-1) + 1-methyl-1-phenylethyl alcohol (617-94-7)

Conditions	Yield
With chlorotriisopropylsilane; water; trifluoroacetic acid for 0.833333h; Time; Reagent/catalyst; Solvent;	A 100% B 100%

2-(4,7,10-tris(2-(tert-butoxy)-2-oxoethyl)-1,4,7,10-tetraazacyclododecan-1-yl)acetic acid → 1,4,7,10-tetrakis(carboxymethyl)-1,4,7,10-tetraazacyclododecane (60239-18-1)

Conditions	Yield
With trifluoroacetic acid In dichloromethane for 12h;	89%
With trifluoroacetic acid In dichloromethane at 20℃; for 16h;	85%
With trifluoroacetic acid In dichloromethane at 20℃;

chloroacetic acid (79-11-8) + 1,4,7,10-tetraazacyclododecan (294-90-6) → 1,4,7,10-tetrakis(carboxymethyl)-1,4,7,10-tetraazacyclododecane (60239-18-1)

Conditions	Yield
With sodium hydroxide In water at 70℃; for 30h; pH=9.5 - 10;	88%
With (-)-cycleanine; sodium hydroxide In water at 80 - 85℃; pH=10 - 11; Large scale;	82.7%
With sodium hydroxide In water at 80 - 85℃; pH=10 - 11; Industrial scale;	82.7%

bromoacetic acid (79-08-3) + 1,4,7,10-tetraazacyclododecan (294-90-6) → 1,4,7,10-tetrakis(carboxymethyl)-1,4,7,10-tetraazacyclododecane (60239-18-1)

Conditions	Yield
With lithium hydroxide monohydrate; water at 0 - 30℃; for 24h; Temperature; Reagent/catalyst;	87.8%

tetraethyl 2,2',2'',2'''-(1,4,7,10-tetraazacyclododecane-1,4,7,10-tetrayl)tetraacetate → 1,4,7,10-tetrakis(carboxymethyl)-1,4,7,10-tetraazacyclododecane (60239-18-1)

Conditions	Yield
With water; sodium hydroxide In methanol at 55 - 60℃; for 12h;	80.5%

Iodoacetic acid (64-69-7) + 1,4,7,10-tetraazacyclododecan (294-90-6) → 1,4,7,10-tetrakis(carboxymethyl)-1,4,7,10-tetraazacyclododecane (60239-18-1)

Conditions	Yield
With lithium hydroxide monohydrate; water at 0 - 30℃; for 24h;	72%

chloroacetic acid lithium salt (19326-51-3) + 1,4,7,10-tetraazacyclododecan (294-90-6) → 1,4,7,10-tetrakis(carboxymethyl)-1,4,7,10-tetraazacyclododecane (60239-18-1)

Conditions	Yield
With lithium hydroxide monohydrate; water at 0 - 30℃; for 24h;	43.8%

bromoacetic acid methyl ester (96-32-2) + 1,4,7,10-tetraazacyclododecan (294-90-6) → 1,4,7,10-tetrakis(carboxymethyl)-1,4,7,10-tetraazacyclododecane (60239-18-1)

Conditions	Yield
With lithium hydroxide monohydrate; water at 0 - 30℃; for 24h;	32.5%

ethyl bromoacetate (105-36-2) + 1,4,7,10-tetraazacyclododecan (294-90-6) → 1,4,7,10-tetrakis(carboxymethyl)-1,4,7,10-tetraazacyclododecane (60239-18-1)

Conditions	Yield
With lithium hydroxide monohydrate; water at 0 - 30℃; for 24h;	24.8%

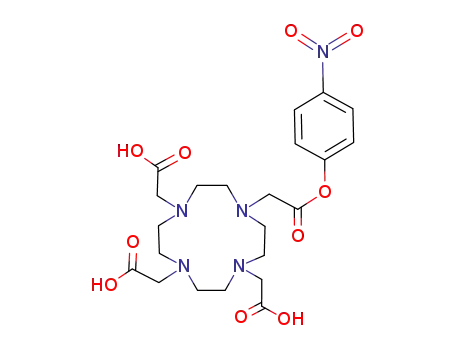

1,4,7,10-tetraazacyclododecane-1,4,7,10-tetraacetic acid mono(4-nitrophenyl) ester (474424-15-2) → 1,4,7,10-tetrakis(carboxymethyl)-1,4,7,10-tetraazacyclododecane (60239-18-1) + 4-nitro-phenol (100-02-7)

Conditions	Yield
In water for 1h; pH=7; Kinetics; Further Variations:; pH-values;

N,N',N'',N'''-tetrakis-(p-tolylsulphonyl)-triethylenetetramine (55442-07-4) → 1,4,7,10-tetrakis(carboxymethyl)-1,4,7,10-tetraazacyclododecane (60239-18-1)

Conditions	Yield
Multi-step reaction with 3 steps 1: 78 percent / K2CO3 / dimethylformamide / 30 h / 100 °C 2: 33 percent / conc. H2SO4 / 28 h / 115 °C 3: 88 percent / NaOH / H2O / 30 h / 70 °C / pH 9.5 - 10 View Scheme

cyclen tetratosylate (52667-88-6) → 1,4,7,10-tetrakis(carboxymethyl)-1,4,7,10-tetraazacyclododecane (60239-18-1)

Conditions	Yield
Multi-step reaction with 2 steps 1: 33 percent / conc. H2SO4 / 28 h / 115 °C 2: 88 percent / NaOH / H2O / 30 h / 70 °C / pH 9.5 - 10 View Scheme

triethylentetramine (112-24-3) → 1,4,7,10-tetrakis(carboxymethyl)-1,4,7,10-tetraazacyclododecane (60239-18-1)

Conditions	Yield
Multi-step reaction with 4 steps 1: 97 percent / Et3N / acetonitrile / 5 h / 20 °C 2: 78 percent / K2CO3 / dimethylformamide / 30 h / 100 °C 3: 33 percent / conc. H2SO4 / 28 h / 115 °C 4: 88 percent / NaOH / H2O / 30 h / 70 °C / pH 9.5 - 10 View Scheme

2Na(1+)*Pb(2+)*(N(CH2COO)C2H4)4(4-)*2H2O=Na2Pb(N(CH2COO)C2H4)4*2H2O → 1,4,7,10-tetrakis(carboxymethyl)-1,4,7,10-tetraazacyclododecane (60239-18-1) + lead(2+) cation

Conditions	Yield
In perchloric acid Kinetics; decompn. of Pb compd. in aq. HClO4 depending from acid concn.;

C46H62N4O8 (1412494-56-4) → 1,4,7,10-tetrakis(carboxymethyl)-1,4,7,10-tetraazacyclododecane (60239-18-1)

Conditions	Yield
Multi-step reaction with 2 steps 1: tetrakis(triphenylphosphine) palladium(0); 4-methyl-morpholine / dichloromethane / 3 h / 20 °C 2: chlorotriisopropylsilane; trifluoroacetic acid; water / 0.83 h View Scheme

(1,4,7,10-tetraaza-cyclododec-1-yl)-acetic acid allyl ester (1023970-58-2) → 1,4,7,10-tetrakis(carboxymethyl)-1,4,7,10-tetraazacyclododecane (60239-18-1)

Conditions	Yield
Multi-step reaction with 3 steps 1: potassium carbonate / acetonitrile / 16 h / 20 °C 2: tetrakis(triphenylphosphine) palladium(0); 4-methyl-morpholine / dichloromethane / 2 h / 20 °C 3: chlorotriisopropylsilane; trifluoroacetic acid; water / 3 h View Scheme
Multi-step reaction with 3 steps 1: potassium carbonate / acetonitrile / 8 h / 20 °C 2: tetrakis(triphenylphosphine) palladium(0); 4-methyl-morpholine / dichloromethane / 3 h / 20 °C 3: chlorotriisopropylsilane; trifluoroacetic acid; water / 0.83 h View Scheme

C31H56N4O8 (1412494-55-3) → 1,4,7,10-tetrakis(carboxymethyl)-1,4,7,10-tetraazacyclododecane (60239-18-1)

Conditions	Yield
Multi-step reaction with 2 steps 1: tetrakis(triphenylphosphine) palladium(0); 4-methyl-morpholine / dichloromethane / 2 h / 20 °C 2: chlorotriisopropylsilane; trifluoroacetic acid; water / 3 h View Scheme

1,4,7,10-tetraazacyclododecan (294-90-6) → 1,4,7,10-tetrakis(carboxymethyl)-1,4,7,10-tetraazacyclododecane (60239-18-1)

Conditions	Yield
Multi-step reaction with 2 steps 1: potassium carbonate / chloroform / 52 h / 20 °C 2: trifluoroacetic acid / dichloromethane / 12 h View Scheme
Multi-step reaction with 2 steps 1: potassium carbonate / acetonitrile / 40 h / Reflux 2: sodium hydroxide; water / methanol / 12 h / 55 - 60 °C View Scheme
Multi-step reaction with 2 steps 1: chloroform / 72 h / 20 °C 2: trifluoroacetic acid / dichloromethane / 20 °C View Scheme

cyclen hydrochloride + chloroacetic acid (79-11-8) → 1,4,7,10-tetrakis(carboxymethyl)-1,4,7,10-tetraazacyclododecane (60239-18-1)

Conditions	Yield
With sodium hydroxide In water at 0 - 75℃; pH=10 - 10.5;
Stage #1: cyclen hydrochloride; chloroacetic acid With hydrogenchloride; sodium hydroxide In water at 0 - 75℃; pH=10 - 10.5; Stage #2: In water pH=2.5 - 3;
With sodium hydroxide In water at 10 - 30℃; for 24h; Reagent/catalyst;

sodium monochloroacetic acid (3926-62-3) + 1,4,7,10-tetraazacyclododecan (294-90-6) → 1,4,7,10-tetrakis(carboxymethyl)-1,4,7,10-tetraazacyclododecane (60239-18-1)

Conditions	Yield
With sodium hydroxide In water for 5h; pH=11; Concentration; Large scale;
With lithium hydroxide monohydrate; water at 0 - 30℃; for 24h;

sodium 2-bromoacetate (1068-52-6) + 1,4,7,10-tetraazacyclododecan (294-90-6) → 1,4,7,10-tetrakis(carboxymethyl)-1,4,7,10-tetraazacyclododecane (60239-18-1)

Conditions	Yield
With lithium hydroxide monohydrate; water at 0 - 30℃; for 24h;

potassium iodoacetate (15973-59-8) + 1,4,7,10-tetraazacyclododecan (294-90-6) → 1,4,7,10-tetrakis(carboxymethyl)-1,4,7,10-tetraazacyclododecane (60239-18-1)

Conditions	Yield
With lithium hydroxide monohydrate; water at 0 - 30℃; for 24h;

monosodium iodoacetate (305-53-3) + 1,4,7,10-tetraazacyclododecan (294-90-6) → 1,4,7,10-tetrakis(carboxymethyl)-1,4,7,10-tetraazacyclododecane (60239-18-1)

Conditions	Yield
With lithium hydroxide monohydrate; water at 0 - 30℃; for 24h;

1,4,7,10-tetrakis(carboxymethyl)-1,4,7,10-tetraazacyclododecane (60239-18-1) + gadolinium(III) chloride hexahydrate → gadoteric acid (72573-82-1)

Conditions	Yield
With potassium hydroxide In water at 60℃; for 24h; pH=5.5 - 7;	100%

1,4,7,10-tetrakis(carboxymethyl)-1,4,7,10-tetraazacyclododecane (60239-18-1) + manganese (II) sulfate monohydrate → Mn(1,4,7,10-tetraazacyclododecane-1,4,7,10-tetraacetic acid(2-))*2H2O

Conditions	Yield
In water MnSO4*H2O dissolved in H2O, ligand added, stirred for 30 min; H2O evapd.; elem. anal.;	99%

1,4,7,10-tetrakis(carboxymethyl)-1,4,7,10-tetraazacyclododecane (60239-18-1) + scandium(III) acetate (3804-23-7) + sodium hydroxide (1310-73-2) → 3(Na[Sc(1,4,7,10-tetra-azacyclododecane-N,N',N'',N'''-tetraacetate)])*NaOH*18H2O

Conditions	Yield
In water to aq. suspn. H4DOTA NaOH was added until pH 5, Sc(acetate)3 was added and heated at 60°C for 12 h at pH 4; soln. was concd., residue was dissolved in water, basified with NaOH at pH 7.0 and evapd. to dryness under reduced pressure;	95%

lanthanum(III) oxide + 1,4,7,10-tetrakis(carboxymethyl)-1,4,7,10-tetraazacyclododecane (60239-18-1) + sodium hydroxide (1310-73-2) → Na(1+)*2La(3+)*C8H16N4(CH2CO2)4(4-)*C8H16N4(CH2CO2)3CH2CO2H(3-)*10H2O=Na[La2(C8H16N4(CH2CO2)4)2H]*10H2O

Conditions	Yield
In water stoich. amts., 85°C, stirring for several d; cooling to room temp., filtration, evapn. (reduced pressure);	93%

gadolinium(III) oxide + 1,4,7,10-tetrakis(carboxymethyl)-1,4,7,10-tetraazacyclododecane (60239-18-1) + 1-deoxy-1-(methylamino)-D-glucitol (6284-40-8) → gadoterate meglumine

Conditions	Yield
Stage #1: 1,4,7,10-tetrakis(carboxymethyl)-1,4,7,10-tetraazacyclododecane; 1-deoxy-1-(methylamino)-D-glucitol In water for 0.05h; Green chemistry; Stage #2: gadolinium(III) oxide In water for 0.283333h; Sonication; Green chemistry;	89%

morpholine (110-91-8) + gadolinium(III) oxide + 1,4,7,10-tetrakis(carboxymethyl)-1,4,7,10-tetraazacyclododecane (60239-18-1) → gadoterate morpholine

Conditions	Yield
Stage #1: morpholine; 1,4,7,10-tetrakis(carboxymethyl)-1,4,7,10-tetraazacyclododecane In water for 0.05h; Sonication; Green chemistry; Stage #2: gadolinium(III) oxide In water for 0.283333h; Sonication; Green chemistry;	85%

gadolinium(III) oxide + 1,4,7,10-tetrakis(carboxymethyl)-1,4,7,10-tetraazacyclododecane (60239-18-1) → Na(1+)*Gd(3+)*(CH2CH2N(CH2COO))4(4-)*H2O*4H2O=Na{Gd(CH2CH2N(CH2COO))4H2O}*4H2O

Conditions	Yield
In water Gd2O3 and tetraazacyclododecanetetraacetic acid soln. was stirred at 368 K for 2 h, NaOH was slowly added at room temp. to pH 7 with stirring; after filtration mixt. was concd. in vac. and pptd. with acetone; recrystn. from hot H2O/acetone; elem. anal.;	83%

gadolinium(III) oxide + 1,4,7,10-tetrakis(carboxymethyl)-1,4,7,10-tetraazacyclododecane (60239-18-1) + 1-deoxy-1-(methylamino)-D-glucitol (6284-40-8) → gadoteric dcid meglumine

Conditions	Yield
In water at 40 - 50℃; for 3h; pH=7 - 9; Industrial scale;	82%

1,4,7,10-tetrakis(carboxymethyl)-1,4,7,10-tetraazacyclododecane (60239-18-1) + nickel(II) → {(CH2CH2)NCH2COOH}2{(CH2CH2)NCH2COO}2Ni (107171-59-5)

Conditions	Yield
In water equimolar amounts of ligand and metal salt; pH 2.5;; crystallization after several days; elem. anal.;;	80%

gadolinium(III) oxide + 1,4,7,10-tetrakis(carboxymethyl)-1,4,7,10-tetraazacyclododecane (60239-18-1) + (2S,3S,4S,5R)-6-(methylamino)hexane-1,2,3,4,5-pentaol → gadoteric dcid meglumine

Conditions	Yield
In water at 40 - 50℃; for 3h; pH=7 - 9; Large scale;	78.5%

1,4,7,10-tetrakis(carboxymethyl)-1,4,7,10-tetraazacyclododecane (60239-18-1) + p-xylylidenediamine (539-48-0) → 2,2',2''-(10-(2-(4-(aminomethyl)benzylamino)-2-oxoethyl)-1,4,7,10-tetraazacyclo-dodecane-1,4,7-triyl)triacetic acid (1314043-15-6)

Conditions	Yield
With pyridine; diisopropyl-carbodiimide In water; acetonitrile	75%

1,4,7,10-tetrakis(carboxymethyl)-1,4,7,10-tetraazacyclododecane (60239-18-1) + zinc(II) cation → (1,4,7,10-tetraazacyclododecane-N,N',N''-N'''-dihydrogentetraacetato)zinc (107171-57-3, 277333-19-4)

Conditions	Yield
In water equimolar amounts of ligand and metal salt; pH 2.5;; crystallization after several days; elem. anal.;;	72%

1,4,7,10-tetrakis(carboxymethyl)-1,4,7,10-tetraazacyclododecane (60239-18-1) + 2-AMINOETHYL TRIMETHYLAMMONIUM CHLORIDE (10256-43-6) → 10-<2-(trimethylammonio)ethylcarbamoylmetyhyl>-1,4,7,10-tetraazacyclododecane-1,4,7-tri(triacetic acid) chloride

Conditions	Yield
With dicyclohexyl-carbodiimide In pyridine; acetonitrile at 20℃; for 48h;	71%

1,4,7,10-tetrakis(carboxymethyl)-1,4,7,10-tetraazacyclododecane (60239-18-1) + copper(II) ion → {(CH2CH2)NCH2COOH}2{(CH2CH2)NCH2COO}2Cu (107171-58-4, 277333-30-9)

Conditions	Yield
In water equimolar amounts of ligand and metal salt; pH 2.5;; crystallization after several days; elem. anal.;;	69%

gadolinium(III) oxide + 1,4,7,10-tetrakis(carboxymethyl)-1,4,7,10-tetraazacyclododecane (60239-18-1) → gadolinium(III) 1,4,7,10-tetraazacyclododecane-1,4,7,10-tetraacetic acid (72573-82-1)

Conditions	Yield
In water for 3h;	67.9%
In water addn. of gadolinium oxide to aq. soln. of tetraazacyclododecane deriv., mixt. heated at 90°C for 12 h; cooling to room temp., addn. of cation-exchange and anion-exchange resins, stirring for 60 min at room temp., filtration, filtrate freeze dried;	61%

1,4,7,10-tetrakis(carboxymethyl)-1,4,7,10-tetraazacyclododecane (60239-18-1) + NO2(C6H4)CH2CH(C(O)NHCH2CH2NH2)NHC(O)(C6H4)((C9BN2)(F)2(CH3)4(CH2CH3)2) → NO2(C6H4)CH2CH(C(O)NHCH2CH2NHC(O)CH2(C8H16N4)(CH2C(O)OH)3)NHC(O)(C6H4)((C9BN2)(F)2(CH3)4(CH2CH3)2)

Conditions	Yield
With triethylamine In N,N-dimethyl-formamide at 20℃; for 12h;	65%

1,4,7,10-tetrakis(carboxymethyl)-1,4,7,10-tetraazacyclododecane (60239-18-1) + 3-bromopropyl biotin (1296869-99-2) → C29H48N6O11S

Conditions	Yield
With 1,8-diazabicyclo[5.4.0]undec-7-ene In acetonitrile at 82℃; for 18h;	65%

1,4,7,10-tetrakis(carboxymethyl)-1,4,7,10-tetraazacyclododecane (60239-18-1) + 3-amino-deoxycombretastatin A4 (162705-07-9) → C34H47N5O11

Conditions	Yield
Stage #1: 1,4,7,10-tetrakis(carboxymethyl)-1,4,7,10-tetraazacyclododecane With thionyl chloride for 4h; Reflux; Stage #2: 3-amino-deoxycombretastatin A4 With N-ethyl-N,N-diisopropylamine In dichloromethane at 30℃; for 3h; Cooling with ice;	65%

1,4,7,10-tetrakis(carboxymethyl)-1,4,7,10-tetraazacyclododecane (60239-18-1) + N,N-bis(ethoxycarbonylmethyl)ethylenediamine → (Ethoxycarbonylmethyl-{2-[2-(4,7,10-tris-{[2-(bis-ethoxycarbonylmethyl-amino)-ethylcarbamoyl]-methyl}-1,4,7,10-tetraaza-cyclododec-1-yl)-acetylamino]-ethyl}-amino)-acetic acid ethyl ester

Conditions	Yield
With (benzotriazo-1-yloxy)tris(dimethylamino)phosphonium hexafluorophosphate; triethylamine In chloroform; N,N-dimethyl-formamide at 20℃; for 30h;	63%

1,4,7,10-tetrakis(carboxymethyl)-1,4,7,10-tetraazacyclododecane (60239-18-1) + copper(ll) sulfate pentahydrate → {(CH2CH2)NCH2COO}4(4-)*2Cu(2+)*5H2O={(CH2CH2)NCH2COO}4Cu2*5H2O

Conditions	Yield
In water pH=4; stochiometric amounts;; after 2-3 days crystallization; elem. anal.;;	60%

1,4,7,10-tetrakis(carboxymethyl)-1,4,7,10-tetraazacyclododecane (60239-18-1) + Met-OMe (10332-17-9) → C40H72N8O12S4

Conditions	Yield
With O-(1H-benzotriazol-1-yl)-N,N,N',N'-tetramethyluronium hexafluorophosphate; N-ethyl-N,N-diisopropylamine In N,N-dimethyl-formamide at 20℃; for 24h;	55%

1,4,7,10-tetrakis(carboxymethyl)-1,4,7,10-tetraazacyclododecane (60239-18-1) + gadolinium(III) trifluoromethanesulfonate → gadolinium 2-[4,7,10-tris(carboxymethyl)-1,4,7,10-tetraazacyclododec-1-yl]acetic acid (783303-01-5, 83678-67-5, 881694-36-6, 881694-49-1)

Conditions	Yield
With triethylamine In methanol at 45℃; for 48h;	55%

Upstream product

• 79-11-8 chloroacetic acid
• 294-90-6 1,4,7,10-tetraazacyclododecan
• 19326-51-3 chloroacetic acid lithium salt
• 96-32-2 bromoacetic acid methyl ester
• 105-36-2 ethyl bromoacetate
• 305-53-3 monosodium iodoacetate
• 15973-59-8 potassium iodoacetate
• 1068-52-6 sodium 2-bromoacetate
• 64-69-7 Iodoacetic acid
• 79-08-3 bromoacetic acid
• 137076-50-7 tetraethyl 2,2',2'',2'''-(1,4,7,10-tetraazacyclododecane-1,4,7,10-tetrayl)tetraacetate
• 3926-62-3 sodium monochloroacetic acid
• 1412494-55-3 C₃₁H₅₆N₄O₈
• 1023970-58-2 (1,4,7,10-tetraaza-cyclododec-1-yl)-acetic acid allyl ester

Downstream Products

• 72573-82-1 gadolinium(III) 1,4,7,10-tetraazacyclododecane-1,4,7,10-tetraacetic acid
• 92943-93-6 gadoterate meglumine
• 72573-82-1 gadoteric acid
