Facile and Chemoselective Cleavage of Allyl
Carboxylic Ester Utilizing NaBH4 in DMSO
Bharati V. Pawar and Pradeep D. Lokhande
Center for Advanced Studies, Department of Chemistry,
University of Pune, Pune, India
Abstract: A new method for deprotection of allyl carboxylic ester has been
observed by using the inexpensive reagent sodium borohydride in dimethyl sulfox-
ide (DMSO). Aliphatic and aromatic allyl carboxylic ester undergo deprotection
smoothly. The allyl ester group can selectively deprotect better than phenol.
Keywords: Allyl aryl ether, allyl ester, chemoselective, deallylation, sodium
borohydride
The allyl group is frequently used as a suitable protecting group for
acids,[1] alcohols,[2] and amines[3] in the synthesis of carbohydrates,[4] pep-
tides,[5] and nucleotides.[6] Because the reaction easily forms allyl ester
and is stabile under different conditions, it is now generally used in the
liquid- or solid-phase synthesis of a wide range of natural products.[7]
The reported method for deallylation is a two-step procedure that
includes isomerization to the more labile 1-propenyl group followed by
either acid hydrolysis or oxidation of the resulting ether. Isomerization
of the allyl to prop-1-enyl group has been classically achieved by potas-
sium tertiary-butoxide base.[8] The most frequently employed conditions
for deallylation are treatment of allyl carboxylic ester with palladium
complexes[9] and the use of a stoichiometric amount of nucleophiles,
including NaBH4,[10] HCOOH,[11] LiAlH4,[12] LiBHEt3,[13] and LiBH4.[14]
Received June 1, 2007.
Address correspondence to Pradeep D. Lokhande, Center for Advanced
Studies, Department of Chemistry, University of Pune, Pune 411007, India.
E-mail: pdlokhande@chem.unipune.ernet.in
2445

2446
B. V. Pawar and P. D. Lokhande
Excess nucleophile is required in this transition-metal-activated
deallylation procedure. In 1980, Hutchins and coworkers reported the
chemoselective cleavage of allylic acetate by hydride transfer from donors
[10]
such as NaBH4
and NaCNBH3 via catalytic activators.[15] The high
cost of transition-metal reagents, partial poisoning of the catalyst, competi-
tive reduction of the allyl to the propyl group, and other side reactions that
may occur during the isomerization process prompt our search for new
reagents. Several other one-step methods have been developed using
sodium borohydride reagent, including NaBH4=I2,[15] ZrCl4=NaBH4,[16]
NaBH4=PdPPh3,[17] NaCNBH3=TMSCl,[18] and NaBH4=EtOH=Ni
complex.[19]
Allylic esters (1) were prepared using conventional techniques (potas-
sium hydroxide [KOH], allyl bromide, dimethyl sulfoxide [DMSO]) in
70–90% yields at room temperature. The deprotection proceeded by the
treatment of the allyl esters (1) with excess of sodium borohydride in
DMSO at room temperature until thin-layer chromatography (TLC)
indicates that no starting material remains in the reaction mixture
(Scheme 1). The reaction was quenched by adding dilute hydrochloric
acid (1 N) to remove excess sodium borohydride. The reaction mixture
was extracted in an organic solvent and dried over anhydrous Na2SO4.
Removal of solvent afforded the desired acids (2). Results are summar-
ized in Table 1. This reaction requires anhydrous condition and an
inexpensive reagent. The reaction is performed at room temperature
and progresses well in all weather conditions. We applied the present
reaction to various types of substituted allylester for conformation of
scope and limitation. The allylesters were readily deprotected because
of the electron-withdrawing group on the benzene ring to give the corre-

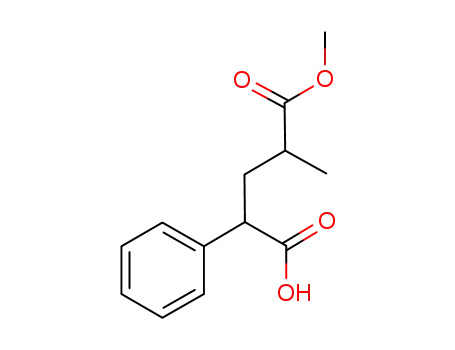

sponding acid (2d, 2e). It is noteworthy that the amide, nitro, chloro,
bromo, and methyl ester groups in the substrates remain intact during
the reaction. In some of the deallylation procedures using NaBH4, it
was reported that some reducible functionality (such as cyanide, ester,
acetonitrile, and tetrahydropyranyl groups) was unaffected.[20]
When the same reaction conditions were applied to cinnamyl ester
deallylation, the reaction proceeded smoothly to give the corresponding
acid in good yield. Allyl cinnamate was deallylated without reducing
Scheme 1. Reagents and conditions: NaBH4 (2 eq), DMSO, rt, 10–25 h.

Cleavage of Allyl Carboxylic Ester
2447
Table 1. Deallylation of allyl esters
Yielda
(%)
No.
Reagent
Product
2a
92
2b
85
2c
2d
91
87
2e
89
2f
84
85
2g
2h
82
2i
2j
80
92
2k
No reaction
—
(Continued )

2448
B. V. Pawar and P. D. Lokhande
Table 1. Continued
Yielda
(%)
No.
Reagent
Product
2l
87
2m
2n
81
76
2o
2p
81
92
aYield of isolated purified product.
the alkene double bond. Aromatic and aliphatic allyl esters undergo
deprotection; however, aliphatic esters are relatively sluggish. All
compounds were isolated in moderate to good yield. Interestingly, in
the reaction of allyl-a-allylphenyl acetate (2p), which has two types of
allyl group, the allylester bond was selectively cleaved to give a-allyl
phenylacetic acid in the presence of NaBH4 at room temperature in 15 h.
The excellent results described here promoted us to examine the
possibility of applying the same cleavage condition to cleave the car-
bon–oxygen bond in allyl aryl ether. Literature search shows that allyl
O, S, and Se bonds are cleaved with various borohydrides such as
NaBH4,[10] NaCNBH3,[18] and LiBHEt3.[13] Also, NaBH4 is used for
regioselective deoxygenation of the allylic benzoates and desulfonation

Cleavage of Allyl Carboxylic Ester
2449
Scheme 2. Reagents and conditions: NaBH4 (3 eq), DMSO, rt, 48 h.
of 2-tosylhomoallylic alcohol using Pd0 complex.[21] Beside this, NaBH4=
MeOH has been used for reductive C-C bond cleavages of norborenyl
esters.[22] It has been reported that allylic ethers are converted to the cor-
responding alcohol by using nucleophile R-Li.[23]
Treatment of allyl salicylaldehyde 3 with sodium borohydride in
DMSO reduces the aldehyde group within 20–30 min. The allyloxy
salicylalcohol 4 was isolated and characterized by 1H NMR. It was
further stirred with NaBH4 for 48 h, but the desired product was not
obtained and compound 4 remained unreacted (Scheme 2). The same
reaction was observed in the cases of allyloxy vanillin and o-vanillin;
results are summarized in Table 2. Similarly, allyloxy p-chlorophenol,
allyloxy p-cresol, and allyloxyphenol ether were not deallylated even with
refluxing at 50–60ꢀC for 10 h. The results of deallylation of ally phenol
ether clearly indicate that NaBH4 in DMSO is a selective reagent for deal-
lylation of the carboxylic allyl ester group and not for the phenolic allyl
ether group. Allyl salicylate was prepared for confirmation of this possi-
bility, which under similar conditions deprotected to give salicylic acid.
Table 2. Deallylation of allyl aryl ethers
No.
Reagent
Product
Yielda (%)
87
3a
3b
3c
82
86
aYield of isolated purified product.

2450
B. V. Pawar and P. D. Lokhande
Although allyloxy allylsalicylate 2b underwent deallylation of only allyl
carboxylic ester and allyl aryl ether remained intact, allyloxy methylsali-
cylate 2g did not undergo the deallylation reaction.
Earlier, we reported our previous results on the deallylation of
2-allyloxychalcones[24] allyl carboxylic ester,[25] and allyl phenol ether
with iodine in DMSO.
In conclusion, this work provides a new deallylation procedure for a
variety of allyl carboxylic esters. Although the reaction is sluggish, it does
not require activation of expensive transition-metal complexes. However,
this methodology is incompatible with electrophilic aldehyde and
ketones. Moreover, the present reaction selectively cleaved the allyl ester
bond in the presence of allyl aryl ether.
GENERAL PROCEDURE FOR SYNTHESIS OF ACIDS (2)
FROM ALLYL ESTERS (1)
A solution of compound 1 (10 mmol) in DMSO (3 mL) was stirred at room
temperature for 30 min, and NaBH4 (20 mmol) was added in two steps.
The reaction mixture was stirred continuously at room temperature for
10–24 h. The excess of NaBH4 was destroyed by addition of HCl (1N),
and stirring continued for 30 min. The solvent was removed, and aqueous
solution was extracted with ether (2 ꢁ 10 mL). The combined organic
extracts were washed with brine and dried over anhydrous Na2SO4. The
crude product was purified by column chromatography on silica gel (60–
120 mesh) [eluent hexane–ethyl acetate (9:1)] to afford the pure product 2.
REFERENCES
1. (a) Bundle, R. D.; Kitov, P. I. Mild oxidative one-pot allyl group cleavage.
Org. Lett. 2001, 3, 2835; (b) Tsukamoto, H.; Yoshihori, K. Facile and selec-
tive cleavage of allyl ethers based on palladium(0)-catalyzed allylic alkylation
of N,N0-dimethylbarbituric acid. Synlett 2003, 7, 1061.
2. (a) Kitamura, M.; Tanaka, S.; Yoshimura, M. (P(C6H5)3)CpRuþ-catalyzed
deprotection of allyl carboxylic esters. J. Org. Chem. 2002, 67, 4975; (b)
Hiromi, M.; Tatsuya, M.; Ozawa, F. Facile and selective deallylation of allyl
ethers using diphosphinidenecyclobutene-coordinated palladium catalysts. J.
Org. Chem. 2004, 69, 4482–4486; (c) Gabriele, B.; Raffaella, M.; Salerno, G.;
Veltri, L. Sequential homobimetallic catalysis: An unprecedented tandem
Pd(0)-catalysed deprotection–Pd(II)-catalysed heterocyclisation reaction
leading to benzofurans. Chem. Commun. 2005, 271.
3. (a) Lemaire-Audoire, S.; Savignac, M.; Genet, J. P.; Bernard, J. M. Selective
deprotection of allyl amines using palladium. Tetrahedron Lett. 1995, 36,

Cleavage of Allyl Carboxylic Ester
2451
´
1267; (b) Victorio, C.; Garcıa-Garrido, S. E.; Gimeno, J.; Noel, N. Ru(IV)-
catalyzed isomerization of allylamines in water: A highly efficient procedure
for the deprotection of N-allylic amines. Chem. Commun. 2005, 4086.
4. (a) Teruyuki, K.; Yashiro, M.; Venoyama, S.; Wada, K.; Mituda, T. First
ruthenium-catalyzed allylation of thiols enables the general synthesis of allylic
sulfides. J. Am. Chem. Soc. 1999, 121, 8657; (b) Bayardon, J.; Sinou, D.
Synthesis of two new chiral fluorous bis(oxazolines) and their applications
as ligands in catalytic asymmetric reactions. Tetrahedron: Asymmetry 2005,
16, 2965; (c) Perali, R. S.; Chandrasekaran, S. Propargyloxycarbonyl (Poc)
as a protective group for the hydroxyl function in carbohydrate synthesis.
Org. Lett. 2002, 4, 4731; (d) Chen, L.; Kong, F. An efficient and practical
synthesis of a(1-3)-linked mannohexaose and mannooctaose. J. Carbohydr.
Chem. 2002, 5, 341.
5. (a) Bochitschek, F. S.; Waldmann, H.; Kune, H. Allyl esters as carboxy
protecting groups in the synthesis of O-glycopeptides. J. Org. Chem. 1989, 54,
751; (b) Goess, B. C.; Hannoush, R. N.; Chan, L. K.; Tomas, K.; Shair, M. D.
Synthesis of a 10,000-membered library of molecules resembling carpanone and
discovery of vesicular traffic inhibitors. J. Am. Chem. Soc. 2006, 128, 5391; (c)
Zuchao, M.; Zhang, J.; Kong, F. A concise synthesis of two isomeric pentasac-
charides, the O repeat units from the lipopolysaccharides of P. syringae pv. Porri
NCPPB 3364 T and NCPPB 3365. Carbohydr. Res. 2004, 339, 43.
6. (a) Green, T. W.; Wuts, G. G. Protective Groups in Organic Synthesis, 3rd ed.;
John Wiley: New York, 1999; (b) Shin, K.; Huo, Z.; Tienan, J.; Kanazawa, C.;
Yamamoto, Y. Facile deallylation protocols for the preparation of N-unsub-
stituted triazoles and tetrazoles. J. Org. Chem. 2005, 70, 6389; (c) Shin, K.;
Huo, Z.; Tienan, J.; Kanazawa, C.; Yamamoto, Y. Synthesis of triazoles from
nonactivated terminal alkynes via the three-component coupling reaction
using a Pd(0)-Cu(I) bimetallic catalys. J. Am. Chem. Soc. 2003, 125, 7786.
7. (a) Schelhaas, M.; Waldmann, H. Protecting group strategies in organic
synthesis. Angew. Chem., Int. Ed. 1996, 35, 2056; (b) Ranu, B. C.; Bhar, S.
Dealkylation of ethers. Org. Prep. Proc. Int. 1996, 28, 371; (c) Ono, N.;
Tsuboi, M.; Okamoto, S.; Tanami, T.; Sato, F. Synthesis of allyl ester of
prostaglandin E and the conversion of the allyl ester moiety into carboxylic
acid by chemical method: A highly practical synthesis of natural PGE1 and
limaprost. Chem. Lett. 1992, 2095; (d) Takano, Y.; Habiro, M.; Masaomi,
S.; Hojo, H; Nakahara, Y. Preparation of core 2 type tetrasaccharide carry-
ing decapeptide by benzyl protection-based solid-phase synthesis strategy.
Tetrahedron Lett. 2002, 43, 8395; (e) Sakamoto, K.; Nakaharaa, Y.; Ito, Y.
Combination of silyl carbamate and amino acid fluoride for solid-phase pep-
tide synthesis. Tetrahedron Lett. 2002, 43, 1515; (f) Takano, Y.; Habiro, K.
N.; Hojo, H.; Nakahara, Y. Tetrahedron 2003, 59, 8415; (g) Nakamura, K.;
lshii, A.; Ito, Y.; Nakahara, Y. A novel silyl linker: Motif for side chain teth-
ered approach to solid-phase glycopeptide synthesis. Tetrahedron 1999, 55,
11253; (h) Grathwohl, M.; Richard, R. S. Solid phase syntheses of oligoman-
nosides and of a lactosamine containing milk trisaccharide using a benzoate
linker. Synthesis 2001, 2263.

2452
B. V. Pawar and P. D. Lokhande
8. Chen, F.-E.; Ling, X.-H.; He, Y.-P.; Peng, X.-H. Tetrabutylammonium
peroxydisulfate in organic synthesis, XI: A novel and selective approach to
the oxidative deprotection of allyl ethers with tetrabutylammonium peroxydi-
sulfate. Synthesis 2001, 1772.
9. Tsuji, J.; Tadakatsu, M. Palladium-catalyzed hydrogenolysis of allylic and
propargylic compounds with various hydrides. Synthesis 1996, 1.
10. Hutchins, R. O.; Learn, K.; Fulton, R. P. Reductive displacement of allylic
acetates by hydride transfer via catalytic activation by palladium(0) com-
plexes. Tetrahedron Lett. 1980, 21, 27.
11. Tsuji, J.; Shimizu, I.; Minami, I. Preparation of 1-alkenes by the
palladium-catalyzed hydrogenolysis of terminal allylic carbonates and acet-
ates with formic acid–triethylamine. Synthesis 1986, 623.
12. Jones, D. N.; Knox, S. D. Stereochemistry of formation and reduction of
p-allyl palladium chloride complexes from steroidal olefins. J. Chem. Soc.,
Chem. Commun. 1975, 165.
13. Hutchins, R. O.; Learn, L. Redo and stereoselective reductive replacement of
allylic oxygen, sulfur, and selenium functional groups by hydride via catalytic acti-
vation by palladium(0) complexes. J. Org. Chem. 1982, 47, 4380; (b) Bois-
Choussy, M.; Neuville, L.; Beugelmans, R.; Zhu, J. Synthesis of modified carboxyl
binding pockets of vancomycin and teicoplanin. J. Org. Chem. 1996, 61, 9309.
14. Kotake, H.; Yamamoto, T.; Kinoshita, H. A convenient method for the
synthesis of homoallyl alcohol using a new desulfonylation method. Chem
Lett. 1982, 1331.
15. Thomas, R. M.; Hari Mohan, G.; Iyengar, D. S. A novel, mild, and facile
reductive cleavage of allyl ethers by NaBH4=I2 system. Tetrahedron Lett.
1997, 38, 4721.
16. Purushothama, K.; Chary, G.; Mohan, H., Iyengar, D. S. A mild and rapid
regeneration of alcohols from allyl ethers by ZrCl4=NaBH4. Chem. Lett.
1999, 28, 1223.
17. Beugelmans, R.; Bourdt, S.; Bigat, A.; Zhu, J. Reductive deprotection of aryl
allyl ethers with Pd(Ph3)4=NaBH4. Tetrahedron Lett. 1994, 35, 4349.
18. Rao, G. V.; Reddy, D. S.; Mohan, G. H.; Iyengar, D. S. A novel simple and
rapid regeneration of alcohols from their allylic esters using NaCNBH3=
TMSCl. Synth. Commun. 2000, 30, 3565.
19. Taniguchi, T.; Ogasawar, K. Extremely facile and selective nickel-catalyzed
allyl ether cleavage. Angew. Chem. Int. 1998, 37 (8), 1136.
20. (a) Bhanu Prasad, A. S.; Bhaskar Kanth, J. V.; Perisamy, M. Convenient
methods for the reduction of amides, nitriles, carboxylic esters, acids and
hydroboration of alkenes using NaBH4=I2 system. Tetrahedron 1992, 48,
4623; (b) Cossy, J.; Ballosta, V.; Miller, M. C. Unusual reactivity of borane
towards tetrahydropyranyl ethers. Tetrahedron Lett. 1992, 33, 5045.
21. Tsuji, J. Palladium Reagents and Catalysis: Inovation in Organic Synthesis;
John Wiley & Sons: Chichester, 1995.
22. Katagiri, N.; Tomura, M.; Haneda, T.; Kaneko, C. Stereospecific synthesis of
carbocyclic analogue of oxazinomycin by retrograde aldol C–C bond fission
under reductive conditions. J. Chem. Soc., Chem. Commun. 1987, 1422.

Cleavage of Allyl Carboxylic Ester
2453
23. Bailey, W. F.; England, M. D.; Mealy, M. J.; Thongsornkleeb, C.; Teng, L.
Facile O-deallylation of allyl ethers via SN2 reaction with tert-butyllithium.
Org. Lett. 2000, 2, 489.
24. Lokhande, P. D.; Sakate, S. S.; Taksande, K. N. Dimethylsulfoxide–iodine
catalysed deprotection of allyl carboxylic esters. Tetrahedron Lett. 2006,
47, 643.
25. Lokhande, P. D.; Sakate, S. S.; Taksande, K. N.; Nawaghare, B. Dimethyl-
sulfoxide–iodine catalysed deprotection of 20-allyloxychalcones: Synthesis of
flavones. Tetrahedron Lett. 2005, 46, 1573.
