Palladium-Catalyzed [4 + 3] or [2 + 2 + 3] Annulation via C-H Activation and Subsequent Decarboxylation: Access to Heptagon-Embedded Polycyclic Aromatic Hydrocarbons

Article abstract of DOI:10.1021/acs.orglett.1c00520

The construction of a seven-membered ring in the polycyclic aromatic hydrocarbon skeleton remains a notoriously difficult but attractive challenge. Herein a novel palladium-catalyzed [4 + 3] decarboxylative annulation of 2-iodobiphenyls with 2-(2-halophenyl)acrylic acids is reported, which provides an efficient approach for assembling various tribenzo[7]annulenes via a C-H activation and decarboxylation process. Moreover, tribenzo[7]annulenes can be also synthesized via a [2 + 2 + 3] decarboxylative annulation strategy by employing readily available 1,2-halobenzenes, phenylboronic acids, and 2-(2-halophenyl)acrylic acids.

Full text of DOI:10.1021/acs.orglett.1c00520

pubs.acs.org/OrgLett
Letter
Palladium-Catalyzed [4 + 3] or [2 + 2 + 3] Annulation via C−H
Activation and Subsequent Decarboxylation: Access to Heptagon-
Embedded Polycyclic Aromatic Hydrocarbons
Xiumei Yang, Xiahong Chen, Yankun Xu, Minghao Zhang, Guobo Deng, Yuan Yang,* and Yun Liang*
Cite This: Org. Lett. 2021, 23, 2610−2615
Read Online
sı
*
Metrics & More
Article Recommendations
Supporting Information
ACCESS
ABSTRACT: The construction of a seven-membered ring in the polycyclic aromatic hydrocarbon skeleton remains a notoriously
difficult but attractive challenge. Herein a novel palladium-catalyzed [4 + 3] decarboxylative annulation of 2-iodobiphenyls with 2-
(2-halophenyl)acrylic acids is reported, which provides an efficient approach for assembling various tribenzo[7]annulenes via a C−H
activation and decarboxylation process. Moreover, tribenzo[7]annulenes can be also synthesized via a [2 + 2 + 3] decarboxylative
annulation strategy by employing readily available 1,2-halobenzenes, phenylboronic acids, and 2-(2-halophenyl)acrylic acids.
eptagon-embedded polycyclic aromatic hydrocarbons
(PAHs) have provoked considerable attention due to
2-Iodobiphenyl has become among the most important
building blocks for assembling diverse cyclic compounds in the
field of transition-metal-catalyzed C−H annulations.8−11
Among them, palladium-catalyzed annulation reactions of 2-
iodobiphenyls have attracted increasing interest owing to the
excellent catalytic activity of palladium catalysts in both C−H
activation and cross-coupling reactions.9−11 So far, the vast
majority of reported methods have focused on [4 + 1] or [4 +
2] annulations of 2-iodobiphenyls with coupling partners to
form five- and six-membered rings (Scheme 1A).9,10 Great
efforts in this field have been made by the groups of Zhang,
Larock, and others. However, methods to build a larger ring,
such as a seven- or eight-membered ring, are still extremely
rare.11,12 Only two examples reported by Zhang11a and Shi11b
realized a [4 + 4] annulation for the synthesis of
tetraphenylenes by homocoupling of 2-iodobiphenyls (Scheme
1A). To the best of our knowledge, the [4 + 3] annulation of
2-iodobiphenyls has been unreported until now. On the basis
H
their unique electronic properties and molecular geometry
resulting from the existence of a seven-membered ring.1−6
Accordingly, some efficient methods for assembling heptagon-
embedded PAHs have been established, and typical strategies
include intramolecular oxidative cyclization (Scholl reaction)2
and the conversion of aromatic ring-fused cycloheptanones,3−5
which can, in turn, be synthesized by the Friedel−Crafts
reaction,3 ring expansion,4 and cyclotrimerization.5 Recently,
palladium-catalyzed cross-coupling annulation has emerged as
a powerful tool for accessing heptagon-embedded PAHs.6,7
Wong and Leowanawat independently reported a palladium-
catalyzed [4 + 3] annulation for the synthesis of dibenzo-
[4,5:6,7]cyclohepta[1,2,3-de]naphthalenes via a double Suzuki
coupling or a decarbonylation/decarboxylation strategy.6c,d In
particular, elegant palladium-catalyzed intermolecular C−H
annulation tactics have been reported by Kwong and Yoshikai.7
Nevertheless, the development of synthetic strategies for
heptagon-embedded PAHs lags far behind on account of the
synthetic challenge caused by constructing a curved seven-
membered ring composed of all sp2 carbon atoms in the π
systems. Therefore, the development of new methods,
especially palladium-catalyzed intermolecular C−H annula-
tions, for the synthesis of heptagon-embedded PAHs is in
urgent demand.
Received: February 12, 2021
Published: March 17, 2021
https://doi.org/10.1021/acs.orglett.1c00520
© 2021 American Chemical Society
Org. Lett. 2021, 23, 2610−2615
2610

Organic Letters
pubs.acs.org/OrgLett
Letter
were pleased to find that the anticipated [4 + 3]
decarboxylative annulation could be efficiently completed
under the optimal catalytic conditions composed of
PdCl2(PPh3)2 and K2CO3 in DMSO at 140 °C, delivering
product 3aa in 85% yield (entry 1). A screening of palladium
catalysts, such as PdCl2(dppf), Pd(OAc)2, PdCl2, and
Pd(dba)2, demonstrated that all of them were inferior to
PdCl2(PPh3)2 in terms of the yield (entries 2−5).
Subsequently, several P ligands, including P(o-tol)3, Pt-Bu3,
PCy3, and dppf, were investigated and were found to have a
negative effect on this [4 + 3] annulation reaction (entries 6−
8). Moreover, attempts to use other bases, namely, Cs2CO3,
K3PO4, NaOAc, and NaHCO3, did not provide a better
outcome (entries 9−11). Notably, we found that the nature of
the solvents was crucial for the reaction: Compared with
DMSO, using DMF as the medium showed similar efficiency
(entry 12), and the substitution of MeCN afforded a lower
yield (entry 13), whereas replacing DMSO with toluene led to
no product formation (entry 14). Finally, the change in
reaction temperature did not improve the yield (entries 15 and
16). Pleasingly, the reaction is applicable to being scaled up to
1 mmol of 1a, affording 78% of 3aa (entry 1).
After identifying the optimal reaction conditions, we set out
to investigate the substrate scope of this transformation
(Scheme 2, top). The reactivity of the halogen atom was
initially checked. Gratifyingly, 2-bromobiphenyl and 2-(2-
chlorophenyl)acrylic underwent [4 + 3] decarboxylative
annulation to afford product 3aa in 50 and 80% yield,
respectively, whereas 2-(2-iodophenyl)acrylic acid was un-
reactive. A wide range of 2-iodobiphenyls 1b−i bearing
symmetrical substituents were then investigated. Delightedly,
this protocol exhibited good functional group tolerance.
Various substituents, such as Me, OMe, F, Cl, CF3, and CN,
could survive under the reaction conditions (3ba−ia). The
regioselective formation of products 3ba−ea revealed that the
C−H activation process was controlled by steric hindrance.
The structure of 3da was unequivocally confirmed by X-ray
crystallography. (See the Supporting Information (SI).)
Several unsymmetrical substrates, such as monosubstituted,
disubstituted, and heterocyclic 2-iodobiaryls, were also ex-
plored to better understand the mechanism. All of them could
proceed smoothly to deliver a mixture of regioisomers 3ja−ma
in good overall yields. These results indicated that intermediate
D/D′ could be generated by the reductive elimination of
intermediate C with poor regioselectivity.

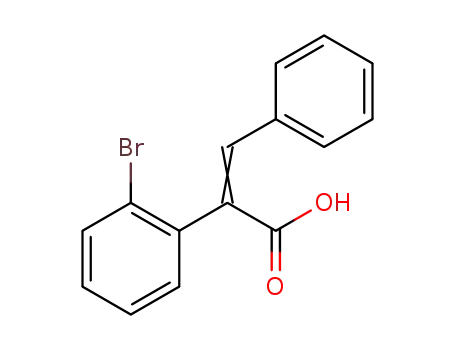

Next, the scope with respect to 2-(2-bromophenyl)acrylic
acids 2 was examined (Scheme 2, bottom). Satisfactorily, a
series of 2-(2-bromophenyl)acrylic acids with different func-
tional groups on the benzene ring were subjected to the
standard conditions, delivering decarboxylative annulation
products 3ab−ag in 55−92% yield. However, substrate 2h
with a phenyl group at the three-position of the acrylic acids
underwent the [4 + 3] annulation to produce product 3ah in
only 15% yield. It is worth noting that 8-bromo-1-naphthoic
acid was also a viable coupling partner, leading to the
formation of product 3ai in a 45% yield.
The Suzuki−Miyaura reaction has become a powerful tool
for the assembly of biphenyl derivatives. We envision that a [2
+ 2 + 3] decarboxylative annulation for the synthesis of
tribenzo[7]annulenes could be realized by the Suzuki coupling
of 1,2-halobenzenes and phenylboronic acids followed by the
reaction with acrylic acids 2. To verify our hypothesis, we
performed the reaction of 1-bromo-2-iodobenzene 4a, phenyl-
Scheme 1. [4 + x] Annulations of 2-Iodobiphenyls
of our ongoing interest in the palladium-catalyzed C−H
functionalization of aryl iodides,13 we herein report a new
palladium-catalyzed [4 + 3] annulation of 2-iodobiphenyls with
2-(2-halophenyl)acrylic acids for assembling tribenzo[7]-
annulenes via C−H activation and subsequent decarboxylation
(Scheme 1B). Moreover, tribenzo[7]annulenes can also be
synthesized via a [2 + 2 + 3] decarboxylative annulation of 1,2-
halobenzenes, phenylboronic acids, and 2-(2-halophenyl)-
acrylic acids. Notably, this unique seven-membered carbon
ring framework has rarely been reported to date.14
We began our studies by investigating the reaction of 2-
iodobiphenyl (1a) with 2-(2-bromophenyl)acrylic acid (2a)
(Table 1). After a general survey of the reaction parameters, we
a
Table 1. Optimization of the Reaction Conditions
b
entry
variation from the standard conditions
yield (%)
c
1
2
3
4
5
6
7
8
none
85 (78)
66
50
47
56
69
83
67
63
76
81
81
60
trace
77
82
PdCl2(dppf) instead of PdCl2(PPh3)2
Pd(OAc)2 instead of PdCl2(PPh3)2
PdCl2 instead of PdCl2(PPh3)2
Pd(dba)2 instead of PdCl2(PPh3)2
P(o-tol)3 (10 mol %) was added
Pt-Bu3 or PCy3 (10 mol %) was added
dppf (5 mol %) was added
Cs2CO3 instead of K2CO3
K3PO4 or NaOAc instead of K2CO3
NaHCO3 instead of K2CO3
DMF instead of DMSO
9
10
11
12
13
14
15
16
MeCN instead of DMSO
toluene instead of DMSO
at 130 °C
at 150 °C
a
Reaction conditions: 1a (0.2 mmol), 2a (1.1 equiv), PdCl2(PPh3)2
(5 mol %), K2CO3 (3 equiv), and DMSO (2 mL) at 140 °C under N2
b
c
for 2 h. Isolated yield. 1a (1 mmol) and DMSO (8 mL) were used.
2611
https://doi.org/10.1021/acs.orglett.1c00520
Org. Lett. 2021, 23, 2610−2615

Organic Letters
pubs.acs.org/OrgLett
Letter
a
a
Scheme 2. [4 + 3] Decarboxylative Annulation
Scheme 3. [2 + 2 + 3] Decarboxylative Annulation
a
Reaction conditions: 4 (0.2 mmol), 5 (1.1 equiv), 2 (1.2 equiv)
PdCl2(PPh3)2 (5 mol %), K2CO3 (3 equiv), and DMSO (2 mL) at
b
c
140 °C. 1,2-Diiodobenzene instead of 1-bromo-2-iodobenzene. 2-
(2-Chlorophenyl)acrylic acid instead of 2-(2-bromophenyl)acrylic
acid.
Scheme 4. Control Experiment and Possible Reaction
Mechanism
a
b
c
Reaction conditions: See entry 1, Table 1. 2-Bromobiphenyl. 2-(2-
d
e
Chlorophenyl)acrylic acid. 2-Iodo-4-methylbiphenyl. 2-Iodo-4′-
f
g
methylbiphenyl. 2-Iodo-4′,5-dimethylbiphenyl. 4′-Chloro-2-iodo-4-
h
methylbiphenyl. 2-(2-Iodophenyl)-1-methyl-1H-indole
boronic acid 5a, and 2a (Scheme 3). Gratifyingly, product 3aa
could be afforded in 61% yield. Inspired by this result, we
systematically tested three components of the [2 + 2 + 3]
annulation. Intriguingly, this protocol showed superior
applicability. Both 1,2-diiodobenzene and 2-(2-chlorophenyl)-
acrylic acid were reactive, providing product 3aa in 71 and 74%
yield. Various functional groups on the three coupling partners
were also well tolerated, and moderate to good yields were
isolated.
To gain insights into the reaction mechanism, we prepared
palladacycle B-Int to perform the reaction with 2a, delivering
product 3aa in 40% yield (eq 1 in Scheme 4). The result
demonstrated that palladacycle B was probably generated in
the reaction process. On the basis of the experimental results as
well as previous reports,7a,15 a possible mechanism for this
transformation is illustrated as Scheme 4. Initially, 2-
halobiphenyls, which could be generated from either 1,2-
halobenzenes with arylboronic acids or iodobenzene with (2-
bromophenyl)boronic acid, undergo an oxidative addition to
generate intermediate A under the initiation of Pd(0).
Subsequently, a C−H activation of intermediate A affords
palladacycle(II) B, which forms palladacycle(IV) C via an
oxidative addition to the C−Br bond of acrylic acid 2a. Finally,
the sequential reductive elimination and decarboxylation of
palladacycle(IV) C takes place, delivering intermediate D/D′,
which was further reductively eliminated to furnish product 3
and regenerate Pd(0).
In summary, we have established an efficient palladium-
catalyzed [4 + 3] decarboxylative annulation of 2-iodobiphen-
yls with 2-(2-halophenyl)acrylic acids to assemble interesting
tribenzo[7]annulenes. The approach realizes the construction
of a seven-membered ring via a C−H activation and
decarboxylation in moderate to excellent yields. Importantly,
readily available starting materials, such as 1,2-halobenzenes,
phenylboronic acids, and 2-(2-halophenyl)acrylic acids, are
2612
https://doi.org/10.1021/acs.orglett.1c00520
Org. Lett. 2021, 23, 2610−2615

Organic Letters
pubs.acs.org/OrgLett
Letter
also employed to afford various tribenzo[7]annulenes through
a palladium-catalyzed [2 + 2 + 3] decarboxylative annulation.
It is particularly noteworthy that six reaction sites were orderly
activated in this [2 + 2 + 3] annulation protocol.
of Organic Functional Molecules of Hunan Province, Hunan
Normal University, Changsha, Hunan 410081, China
Minghao Zhang − National & Local Joint Engineering
Laboratory for New Petro-chemical Materials and Fine
Utilization of Resources, Key Laboratory of Chemical Biology
and Traditional Chinese Medicine Research, Ministry of
Education, Key Laboratory of the Assembly and Application
of Organic Functional Molecules of Hunan Province, Hunan
Normal University, Changsha, Hunan 410081, China
Guobo Deng − National & Local Joint Engineering
Laboratory for New Petro-chemical Materials and Fine
Utilization of Resources, Key Laboratory of Chemical Biology
and Traditional Chinese Medicine Research, Ministry of
Education, Key Laboratory of the Assembly and Application
of Organic Functional Molecules of Hunan Province, Hunan
Normal University, Changsha, Hunan 410081, China;
orcid.org/0000-0002-5470-5706
ASSOCIATED CONTENT
■
sı
* Supporting Information
The Supporting Information is available free of charge at
https://pubs.acs.org/doi/10.1021/acs.orglett.1c00520.
Experimental procedures, full characterization of prod-
ucts, and NMR spectra (PDF)
Accession Codes
CCDC 2042467 contains the supplementary crystallographic
data for this paper. These data can be obtained free of charge
via www.ccdc.cam.ac.uk/data_request/cif, or by emailing
data_request@ccdc.cam.ac.uk, or by contacting The Cam-
bridge Crystallographic Data Centre, 12 Union Road,
Cambridge CB2 1EZ, UK; fax: +44 1223 336033.
Complete contact information is available at:
https://pubs.acs.org/10.1021/acs.orglett.1c00520
Notes
AUTHOR INFORMATION
The authors declare no competing financial interest.
■
Corresponding Authors
ACKNOWLEDGMENTS
■
Yuan Yang − National & Local Joint Engineering Laboratory
for New Petro-chemical Materials and Fine Utilization of
Resources, Key Laboratory of Chemical Biology and
Traditional Chinese Medicine Research, Ministry of
Education, Key Laboratory of the Assembly and Application
of Organic Functional Molecules of Hunan Province, Hunan
Normal University, Changsha, Hunan 410081, China;
orcid.org/0000-0002-9061-1758; Email: yuanyang@
hunnu.edu.cn
Yun Liang − National & Local Joint Engineering Laboratory
for New Petro-chemical Materials and Fine Utilization of
Resources, Key Laboratory of Chemical Biology and
Traditional Chinese Medicine Research, Ministry of
Education, Key Laboratory of the Assembly and Application
of Organic Functional Molecules of Hunan Province, Hunan
Normal University, Changsha, Hunan 410081, China;
orcid.org/0000-0002-2550-9220; Email: yliang@
hunnu.edu.cn
This work was supported by the National Natural Science
Foundation of China (21901071 and 21971061), the Natural
Science Foundation of Hunan Province (2020JJ5350), the
Scientific Research Fund of Hunan Provincial Education
Department (18A002 and 19B359), and the Science and
Technology Planning Project of Hunan Province
(2018TP1017).
REFERENCES
■
(1) (a) Chaolumen, C.; Stepek, I. A.; Yamada, K. E.; Ito, H.; Itami,
K. Construction of Heptagon-Containing Molecular Nanocarbons.
Angew. Chem., Int. Ed. 2021, DOI: 10.1002/anie.202100260.
̂
̧ as, E.; Millán, A.;
(b) Cruz, C. M.; Castro-Fernández, S.; Maco
Campana, A. G. Combining Defects in a Single Nanographene: A
Fully Helical Saddle Ribbon. Synlett 2019, 30, 997. (c) Márquez, I. R.;
Castro-Fernández, S.; Millán, A.; Campana, A. G. Synthesis of
̃
̃
distorted nanographenes containing seven- and eight-membered
carbocycles. Chem. Commun. 2018, 54, 6705. (d) Pun, S. H.; Miao,
Q. Toward Negatively Curved Carbons. Acc. Chem. Res. 2018, 51,
1630. (e) Miao, Q. Heptagons in Aromatics: From Monocyclic to
Polycyclic. Chem. The Chemical Record 2015, 15, 1156.
Authors
Xiumei Yang − National & Local Joint Engineering
Laboratory for New Petro-chemical Materials and Fine
Utilization of Resources, Key Laboratory of Chemical Biology
and Traditional Chinese Medicine Research, Ministry of
Education, Key Laboratory of the Assembly and Application
of Organic Functional Molecules of Hunan Province, Hunan
Normal University, Changsha, Hunan 410081, China
Xiahong Chen − National & Local Joint Engineering
Laboratory for New Petro-chemical Materials and Fine
Utilization of Resources, Key Laboratory of Chemical Biology
and Traditional Chinese Medicine Research, Ministry of
Education, Key Laboratory of the Assembly and Application
of Organic Functional Molecules of Hunan Province, Hunan
Normal University, Changsha, Hunan 410081, China
Yankun Xu − National & Local Joint Engineering Laboratory
for New Petro-chemical Materials and Fine Utilization of
Resources, Key Laboratory of Chemical Biology and
Traditional Chinese Medicine Research, Ministry of
(2) For selected examples, see: (a) Ito, H.; Segawa, Y.; Murakami,
K.; Itami, K. Polycyclic Arene Synthesis by Annulative π-Extension. J.
Am. Chem. Soc. 2019, 141, 3. (b) Lin, H.-A.; Kato, K.; Segawa, Y.;
Scott, L. T.; Itami, K. Synthesis and structural features of thiophene-
fused analogues of warped nanographene and quintuple helicene.
Chem. Sci. 2019, 10, 2326. (c) Kawasumi, K.; Zhang, Q.; Segawa, Y.;
Scott, L. T.; Itami, K. A grossly warped nanographene and the
consequences of multiple odd-memberedring defects. Nat. Chem.
2013, 5, 739. (d) Fujikawa, T.; Segawa, Y.; Itami, K. Laterally π-
Extended Dithia[6]helicenes with Heptagons: Saddle-Helix Hybrid
Molecules. J. Org. Chem. 2017, 82, 7745. (e) Ma, J.; Fu, Y.; Dmitrieva,
E.; Liu, F.; Komber, H.; Hennersdorf, F.; Popov, A. A.; Weigand, J. J.;
Liu, J.; Feng, X. Helical Nanographenes Containing an Azulene Unit:
Synthesis, Crystal Structures, and Properties. Angew. Chem., Int. Ed.
2020, 59, 5637. (f) Han, Y.; Xue, Z.; Li, G.; Gu, Y.; Ni, Y.; Dong, S.;
Chi, C. Formation of Azulene-Embedded Nanographene: Naphtha-
lene to Azulene Rearrangement During the Scholl Reaction. Angew.
Chem., Int. Ed. 2020, 59, 9026. (g) Qiu, Z.; Asako, S.; Hu, Y.; Ju, C.-
W.; Liu, T.; Rondin, L.; Schollmeyer, D.; Lauret, J.-S.; Mullen, K.;
̈
Narita, A. Negatively Curved Nanographene with Heptagonal and
Education, Key Laboratory of the Assembly and Application
2613
https://doi.org/10.1021/acs.orglett.1c00520
Org. Lett. 2021, 23, 2610−2615

Organic Letters
pubs.acs.org/OrgLett
Letter
[5]Helicene Units. J. Am. Chem. Soc. 2020, 142, 14814. (h) Yang, X.;
Rominger, F.; Mastalerz, M. Contorted Polycyclic Aromatic Hydro-
carbons with Two Embedded Azulene Units. Angew. Chem., Int. Ed.
1932. (c) Li, X.; Han, J.-W.; Zhang, Y.-X.; Wong, H. N. C. Palladium-
Catalyzed Double Suzuki Reactions: Synthesis of Dibenzo[4,5:6,7]-
cyclohepta[1,2,3-de]naphthalenes. Asian J. Org. Chem. 2017, 6, 1876.
(d) Kantarod, K.; Worakul, T.; Soorukram, D.; Kuhakarn, C.;
Reutrakul, V.; Surawatanawong, P.; Wattanathana, W.; Leowanawat,
P. Dibenzopleiadiene-embeded polyaromatics via [4 + 3] annulative
decarbonylation/decarboxylation. Org. Chem. Front. 2021, 8, 522.
(7) (a) Fu, W. C.; Wang, Z.; Chan, W. T. K.; Lin, Z.; Kwong, F. Y.
Regioselective Synthesis of Polycyclic and Heptagon-embedded
Aromatic Compounds through a Versatile π-Extension of Aryl
Halides. Angew. Chem., Int. Ed. 2017, 56, 7166. (b) Yan, J.;
Rahman, M. S.; Yoshikai, N. Pd-Catalyzed Annulation of 1-Halo-8-
arylnaphthalenes and Alkynes Leading to Heptagon-Embedded
Aromatic Systems. Chem. - Eur. J. 2019, 25, 9395.
(8) (a) Furusawa, T.; Morimoto, T.; Nishiyama, Y.; Tanimoto, H.;
Kakiuchi, K. RhI-Catalyzed Intramolecular Carbonylative C-H/C-I
Coupling of 2-Iodobiphenyls Using Furfural as a Carbonyl Source.
Chem. - Asian J. 2016, 11, 2312. (b) Ou, Y.; Jiao, N. Recyclable
copper catalyzed nitrogenation of biphenyl halides: a direct approach
to carbazoles. Chem. Commun. 2013, 49, 3473.
(9) (a) Tan, B.; Liu, L.; Zheng, H.; Cheng, T.; Zhu, D.; Yang, X.;
Luan, X. Two-in-one strategy for fluorene-based spirocycles via
Pd(0)-catalyzed spiroannulation of o-iodobiaryls with bromonaph-
thols. Chem. Sci. 2020, 11, 10198. (b) Liu, X.; Sheng, H.; Zhou, Y.;
Song, Q. Palladium-catalyzed C-H bond activation for the assembly of
N-aryl carbazoles with aromatic amines as nitrogen sources. Chem.
Commun. 2020, 56, 1665. (c) Ma, D.; Shi, G.; Wu, Z.; Ji, X.; Zhang, Y.
Synthesis of 9,9-Disubstituted Fluorenes from 2-Iodobiphenyls and α-
Diazoesters under Palladium Catalysis. J. Org. Chem. 2018, 83, 1065.
(d) Shao, C.; Zhou, B.; Wu, Z.; Ji, X.; Zhang, Y. Synthesis of
Carbazoles from 2-Iodobiphenyls by Palladium-Catalyzed C-H
Activation and Amination with Diaziridinone. Adv. Synth. Catal.
2018, 360, 887. (e) Shi, G.; Chen, D.; Jiang, H.; Zhang, Y.; Zhang, Y.
Synthesis of Fluorenes Starting from 2-Iodobiphenyls and CH2Br2
through Palladium-Catalyzed Dual C-C Bond Formation. Org. Lett.
2016, 18, 2958. (f) Konishi, H.; Futamata, S.; Wang, X.; Manabe, K.
Rapid Formation of Fluoren-9-ones via Palladium-Catalyzed External
Carbon Monoxide-Free Carbonylation. Adv. Synth. Catal. 2018, 360,
1805. (g) Tobisu, M.; Imoto, S.; Ito, S.; Chatani, N. Palladium-
Catalyzed Cyclocoupling of 2-Halobiaryls with Isocyanides via the
Cleavage of Carbon-Hydrogen Bonds. J. Org. Chem. 2010, 75, 4835.
(h) Campo, M. A.; Larock, R. C. Synthesis of Fluoren-9-ones by the
Palladium-Catalyzed Cyclocarbonylation of o-Halobiaryls. J. Org.
Chem. 2002, 67, 5616. (i) Campo, M. A.; Larock, R. C. Synthesis of
Fluoren-9-ones via Palladium-Catalyzed Cyclocarbonylation of o-
Halobiaryls. Org. Lett. 2000, 2, 3675.
́
2019, 58, 17577. (i) Fernandez-García, J. M.; Evans, P. J.; Medina
́
Rivero, S.; Fernandez, I.; García-Fresnadillo, D.; Perles, J.; Casado, J.;
Martín, N. π-Extended Corannulene-Based Nanographenes: Selective
Formation of Negative Curvature. J. Am. Chem. Soc. 2018, 140, 17188.
(j) Pradhan, A.; Dechambenoit, P.; Bock, H.; Durola, F. Twisted
Polycyclic Arenes by Intramolecular Scholl Reactions of C3-
Symmetric Precursors. J. Org. Chem. 2013, 78, 2266.
(3) (a) Cheung, K. Y.; Xu, X.; Miao, Q. Aromatic Saddles
Containing Two Heptagons. J. Am. Chem. Soc. 2015, 137, 3910.
(b) Yang, X.; Shi, X.; Aratani, N.; Gonca̧ lves, T. P.; Huang, K.-W.;
Yamada, H.; Chi, C.; Miao, Q. Benzo[4,5]cyclohepta[1,2-b]fluorene:
an isomeric motif for pentacene containing linearly fused five-, six-
and seven-membered rings. Chem. Sci. 2016, 7, 6176. (c) Gu, X.; Li,
H.; Shan, B.; Liu, Z.; Miao, Q. Synthesis, Structure, and Properties of
Tetrabenzo[7]circulene. Org. Lett. 2017, 19, 2246. (d) Fu, X.; Han,
H.; Zhang, D.; Yu, H.; He, Q.; Zhao, D. A polycyclic aromatic
hydrocarbon diradical with pH-responsive magnetic properties. Chem.
Sci. 2020, 11, 5565. (e) Liu, J.; Mishra, S.; Pignedoli, C. A.; Passerone,
D.; Urgel, J. I.; Fabrizio, A.; Lohr, T. G.; Ma, J.; Komber, H.;
Baumgarten, M.; Corminboeuf, C.; Berger, R.; Ruffieux, P.; Mullen,
̈
K.; Fasel, R.; Feng, X. Open-Shell Nonbenzenoid Nanographenes
Containing Two Pairs of Pentagonal and Heptagonal Rings. J. Am.
Chem. Soc. 2019, 141, 12011. (f) Konishi, A.; Horii, K.; Shiomi, D.;
Sato, K.; Takui, T.; Yasuda, M. Open-Shell and Antiaromatic
Character Induced by the Highly Symmetric Geometry of the Planar
Heptalene Structure: Synthesis and Characterization of a Non-
alternant Isomer of Bisanthene. J. Am. Chem. Soc. 2019, 141, 10165.
(4) (a) Pun, S. H.; Wang, Y.; Chu, M.; Chan, C. K.; Li, Y.; Liu, Z.;
Miao, Q. Synthesis, Structures, and Properties of Heptabenzo[7]-
circulene and Octabenzo[8]circulene. J. Am. Chem. Soc. 2019, 141,
9680. (b) Pun, S. H.; Chan, C. K.; Luo, J.; Liu, Z.; Miao, Q. A
Dipleiadiene-Embedded Aromatic Saddle Consisting of 86 Carbon
Atoms. Angew. Chem., Int. Ed. 2018, 57, 1581. (c) Yang, X.; Miao, Q.
Studies toward the Synthesis of Hepta-peri-heptabenzo-[7]circulene.
Synlett 2016, 27, 2091.
(5) (a) Jiménez, V. G.; David, A. H. G.; Cuerva, J. M.; Blanco, V.;
̃
Campana, A. G. A Macrocycle Based on a Heptagon-Containing
Hexa-peri-hexabenzocoronene. Angew. Chem., Int. Ed. 2020, 59,
15124. (b) Castro-Fernández, S.; Cruz, C. M.; Mariz, I. F. A.;
Márquez, I. R.; Jiménez, V. G.; Palomino-Ruiz, L.; Cuerva, J. M.;
̃
Macó̧ as, E.; Campana, A. G. Two-Photon Absorption Enhancement
by the Inclusion of a Tropone Ring in Distorted Nanographene
Ribbons. Angew. Chem., Int. Ed. 2020, 59, 7139. (c) Cruz, C. M.;
̂
Márquez, I. R.; Castro-Fernández, S.; Cuerva, J. M.; Maco
̧
as, E.;
(10) (a) Tang, B.-C.; He, C.; Chen, X.-L.; Ma, J.-T.; Wang, M.; Wu,
Y.-D.; Wu, A.-X. Palladium Catalyzed Annulation of 2-Iodobiphenyl
with Nonterminal Alkene Enabled by Neighboring Group Assistance.
Chem. Commun. 2021, 57, 121−124. (b) Jang, J. H.; Ahn, S.; Park, S.
E.; Kim, S.; Byon, H. R.; Joo, J. M. Synthesis of Redox-Active
Phenanthrene-Fused Heteroarenes by Palladium-Catalyzed C-H
Annulation. Org. Lett. 2020, 22, 1280. (c) Koga, Y.; Kaneda, T.;
Saito, Y.; Murakami, K.; Itami, K. Synthesis of partially and fully fused
polyaromatics by annulative chlorophenylene dimerization. Science
2018, 359, 435. (d) Zhu, C.; Wang, D.; Wang, D.; Zhao, Y.; Sun, W.-
Y.; Shi, Z. Bottom-up Construction of π-Extended Arenes by a
Palladium-Catalyzed Annulative Dimerization of o-Iodobiaryl Com-
pounds. Angew. Chem., Int. Ed. 2018, 57, 8848. (e) Wu, X.; Han, J.;
Wang, L. Palladium Catalyzed C-I and Vicinal C-H Dual Activation of
Diaryliodonium Salts for Diarylations: Synthesis of Triphenylenes. J.
Org. Chem. 2018, 83, 49. (f) Pan, S.; Jiang, H.; Zhang, Y.; Chen, D.;
Zhang, Y. Synthesis of Triphenylenes Starting from 2-Iodobiphenyls
and Iodobenzenes via Palladium-Catalyzed Dual C-H Activation and
Double C-C Bond Formation. Org. Lett. 2016, 18, 5192. (g) Li, J.-Y.;
Chang, H.-I.; Feng, C.-N.; Wu, Y.-T. Rotation of Aryl Groups in 9,10-
Diarylphenanthrenes: Does the Rotational Barrier Become Lower as
the Backbone Becomes More Crowded? Org. Lett. 2016, 18, 6444.
(h) Iwasaki, M.; Araki, Y.; Iino, S.; Nishihara, Y. Synthesis of
Campana, A. G. A Triskelion-Shaped Saddle-Helix Hybrid Nano-
̃
graphene. Angew. Chem., Int. Ed. 2019, 58, 8068. (d) Cruz, C. M.;
Márquez, I. R.; Mariz, I. F. A.; Blanco, V.; Sánchez- Sánchez, C.;
̂
̧ as, E.;
Sobrado, J. M.; Martín Gago, J. A.; Cuerva, J. M.; Maco
Campana, A. G. Enantiopure distorted ribbon-shaped nanographene
̃
combining two-photon absorption-based upconversion and circularly
polarized luminescence. Chem. Sci. 2018, 9, 3917. (e) Cruz, C. M.;
̂
Castro-Fernández, S.; Maco̧ as, E.; Cuerva, J. M.; Campana, A. G.
̃
Undecabenzo[7]superhelicene: A Helical Nanographene Ribbon as a
Circularly Polarized Luminescence Emitter. Angew. Chem., Int. Ed.
2018, 57, 14782. (f) Márquez, I. R.; Fuentes, N.; Cruz, C. M.; Puente-
Mun
B.; Crovetto, L.; Gómez-Bengoa, E.; González, M. T.; Martin, R.;
Cuerva, J. M.; Campana, A. G. Versatile synthesis and enlargement of
̃
oz, V.; Sotorrios, L.; Marcos, M. L.; Choquesillo-Lazarte, D.; Biel,
̃
functionalized distorted heptagon-containing nanographenes. Chem.
Sci. 2017, 8, 1068.
(6) (a) Farrell, J. M.; Grande, V.; Schmidt, D.; Wurthner, F. A
̈
Highly Warped Heptagon-Containing sp2 Carbon Scaffold via
Vinylnaphthyl π-Extension. Angew. Chem., Int. Ed. 2019, 58, 16504.
(b) Kawai, K.; Kato, K.; Peng, L.; Segawa, Y.; Scott, L. T.; Itami, K.
Synthesis and Structure of a Propeller-Shaped Polycyclic Aromatic
Hydrocarbon Containing Seven-Membered Rings. Org. Lett. 2018, 20,
2614
https://doi.org/10.1021/acs.orglett.1c00520
Org. Lett. 2021, 23, 2610−2615

Organic Letters
pubs.acs.org/OrgLett
Letter
Multisubstituted Triphenylenes and Phenanthrenes by Cascade
Reaction of o-Iodobiphenyls or (Z)-β-Halostyrenes with o-Bromo-
benzyl Alcohols through Two Sequential C-C Bond Formations
Catalyzed by a Palladium Complex. J. Org. Chem. 2015, 80, 9247.
(i) Iwasaki, M.; Iino, S.; Nishihara, Y. Palladium-Catalyzed
Annulation of o-Iodobiphenyls with o-Bromobenzyl Alcohols: Syn-
thesis of Functionalized Triphenylenes via C-C and C-H Bond
Cleavages. Org. Lett. 2013, 15, 5326. (j) Liu, Z.; Larock, R. C. Highly
Efficient Route to Fused Polycyclic Aromatics via Palladium-
Catalyzed Aryne Annulation by Aryl Halides. J. Org. Chem. 2007,
72, 223. (k) Liu, Z.; Zhang, X.; Larock, R. C. Synthesis of Fused
Polycyclic Aromatics by Palladium-Catalyzed Annulation of Arynes
Using 2-Halobiaryls. J. Am. Chem. Soc. 2005, 127, 15716.
2018, 57, 3381. (b) Gu, Y.; Sun, X.; Wan, B.; Lu, Z.; Zhang, Y.
C(sp3)-H activation-enabled cross-coupling of two aryl halides: an
approach to 9,10-dihydrophenanthrenes. Chem. Commun. 2020, 56,
10942.
(11) (a) Jiang, H.; Zhang, Y.; Chen, D.; Zhou, B.; Zhang, Y. An
Approach to Tetraphenylenes via Pd-Catalyzed C-H Functionaliza-
tion. Org. Lett. 2016, 18, 2032. (b) Zhu, C.; Zhao, Y.; Wang, D.; Sun,
W.-Y.; Shi, Z. Palladium-catalyzed direct arylation and cyclization of
o-iodobiaryls to a library of tetraphenylenes. Sci. Rep. 2016, 6, 33131.
(12) During the submission of our manuscript, the synthesis of
seven- and eight-membered nitrogen heterocycles from 2-iodobi-
phenyls was reported by Zhang. See: (a) Cheng, C.; Tu, D.; Zuo, X.;
Wu, Z.; Wan, B.; Zhang, Y. Palladium-Catalyzed Dual Coupling
Reaction of 2-Iodobiphenyls with o-Bromoanilines through C-H
Activation: An Approach for the Synthesis of Tribenzo[b,d,f]azepines.
Org. Lett. 2021, 23, 1239. (b) Cheng, C.; Zuo, X.; Tu, D.; Wan, B.;
Zhang, Y. Palladium-catalyzed diastereoselective cross-coupling of two
aryl halides via C-H activation: synthesis of chiral eight-membered
nitrogen heterocycles. Chem. Commun. 2021, DOI: 10.1039/
D1CC00398D.
(13) (a) Yang, Y.; Zhou, B.; Zhu, X.; Deng, G.; Liang, Y.; Yang, Y.
Palladium-Catalyzed Synthesis of Triphenylenes via Sequential C-H
Activation and Decarboxylation. Org. Lett. 2018, 20, 5402. (b) Luo,
X.; Xu, Y.; Xiao, G.; Liu, W.; Qian, C.; Deng, G.; Song, J.; Liang, Y.;
Yang, C. Palladium-Catalyzed Tandem Reaction of Three Aryl
Iodides Involving Triple C-H Activation. Org. Lett. 2018, 20, 2997.
(c) Li, W.; Xiao, G.; Deng, G.; Liang, Y. Pd-Catalyzed disilylation: an
efficient route to 2,2′-bis(trimethylsilyl)biphenyls via trapping
transient dibenzopalladacyclopentadienes with hexamethyldisilane.
Org. Chem. Front. 2018, 5, 1488. (d) Xu, Y.; Liu, X.; Chen, W.;
Deng, G.; Liang, Y.; Yang, Y. Palladium/Norbornene Chemistry:
Synthesis of Norbornene-Containing Arylsilanes Involving Double C-
Si Bond Formation. J. Org. Chem. 2018, 83, 13930. (e) Luo, X.; Zhou,
L.; Lu, H.; Deng, G.; Liang, Y.; Yang, C.; Yang, Y. Palladium-
Catalyzed Domino Heck/C−H Activation/Decarboxylation: A Rapid
Entry to Fused Isoquinolinediones and Isoquinolinones. Org. Lett.
2019, 21, 9960. (f) Li, W.; Chen, W.; Zhou, B.; Xu, Y.; Deng, G.;
Liang, Y.; Yang, Y. NBE-Controlled Palladium-Catalyzed Interannular
Selective C-H Silylation: Access to Divergent Silicon-Containing 1,1’-
Biaryl-2-Acetamides. Org. Lett. 2019, 21, 2718. (g) Yang, X.; Lu, H.;
Zhu, X.; Zhou, L.; Deng, G.; Yang, Y.; Liang, Y. Palladium-Catalyzed
Cascade Cyclization of Alkene-Tethered Aryl Halides with o-
Bromobenzoic Acids: Access to Diverse Fused Indolo[2,1-a]-
isoquinolines. Org. Lett. 2019, 21, 7284. (h) Lu, H.; Yang, X.;
Zhou, L.; Li, W.; Deng, G.; Yang, Y.; Liang, Y. Palladium-catalyzed
domino Heck-disilylation and -borylation of alkene-tethered 2-(2-
halophenyl)-1H-indoles: access to diverse disilylated and borylated
indolo[2,1-a]isoquinolines. Org. Chem. Front. 2020, 7, 2016. (i) Li,
W.; Zhang, C.; Lu, H.; Wang, Y.; Deng, G.; Liang, Y.; Yang, Y. Pd-
Catalyzed one-pot synthesis of vinylsilanes via a three-component
tandem reaction. Org. Chem. Front. 2020, 7, 2075.
(14) (a) Carreras, J.; Gopakumar, G.; Gu, L.; Gimeno, A.; Linowski,
̌
P.; Petuskova, J.; Thiel, W.; Alcarazo, M. Polycationic Ligands in Gold
Catalysis: Synthesis and Applications of Extremely π-Acidic Catalysts.
J. Am. Chem. Soc. 2013, 135, 18815. (b) Luo, J.; Song, K.; Gu, F.;
Miao, Q. Switching of non-helical overcrowded tetrabenzoheptafulva-
lene derivatives. Chem. Sci. 2011, 2, 2029.
(15) (a) Zhao, Q.; Fu, W. C.; Kwong, F. Y. Palladium-Catalyzed
Regioselective Aromatic Extension of Internal Alkynes through a
Norbornene-Controlled Reaction Sequence. Angew. Chem., Int. Ed.
2615
https://doi.org/10.1021/acs.orglett.1c00520
Org. Lett. 2021, 23, 2610−2615
