476
T. P. Kumar, S. V. Balaji / Tetrahedron: Asymmetry 25 (2014) 473–477
O
was added and stirred at room temperature for 8 h. The reaction
was diluted with water and the aqueous layer was separated.
The organic layer was washed with water (2 ꢁ 25 mL), dried over
Na2SO4, and concentrated under vacuum. The crude product was
purified by silica gel column chromatography (hexane/ethyl ace-
tate—1:1) to give amide 5a (0.77 g, 81% yield) as a thick liquid;
O
N
H
N
O
O
H
O
O
N
O
½
a 2D5
ꢂ
¼ ꢃ42:8 (c 0.25, CHCl3); 1H NMR (CDCl3, 300 MHz): d 7.51
Ar
Figure 2. Proposed transition state.
(br s, 1H), 7.41–7.28 (m, 5H), 6.05–5.92 (m, 1H), 5.28–5.08 (m,
2H), 4.79–4.68 (m, 1H), 4.65–4.53 (m, 1H), 4.38 (d, J = 3.2 Hz,
1H), 4.07–3.93 (m, 1H), 3.70–3.25 (m, 4H), 2.08–1.60 (m, 4H),
1.49 (s, 3H), 1.33 (s, 3H); 13C NMR (CDCl3, 75 MHz): d 167.4,
144.1, 136.6, 129.6, 128.4, 127.9, 115.8, 114.2, 105.2, 83.1, 79.6,
66.4, 67.0, 66.8, 57.4, 55.3, 46.8, 43.0, 29.1, 26.7, 26.3, 23.8; ESIMS:
m/z 446 [M+H]+; HRMS Calcd for C21H28N5O6: 446.2034, found:
446.2030.
ity and enantioselectivity. The reaction of b-nitrostyrene with
cyclopentanone (Table 4, entry 9) was comparatively less produc-
tive, while the reaction with acetone was very slow and afforded
the desired product in low yield and with low selectivity even after
a prolonged reaction time (Table 4, entry 10).
We propose the following transition state16 (Fig. 2) to account
for the stereochemical outcome of the Michael reaction performed
by catalyst 2. The secondary amine of the pyrrolidine ring activates
the ketone via the formation of an enamine intermediate, whereas
the carbohydrate template acts as the steric controller, contribut-
ing towards the facial selectivity. Furthermore it also provides an
additional hydrogen bonding site (free hydroxyl group) along with
the amide group, thereby stabilizing the nitroolefin through hydro-
gen bonding interactions leading to the Michael products with
high selectivities. The observed low efficacy of catalyst 1 may be
due to problems in the formation of an enamine due to the pres-
ence of a primary amine group in the carbohydrate template,
which also activates the ketone along with the secondary amine
of the pyrrolidine ring.

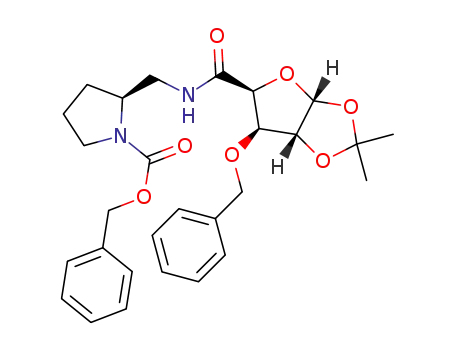

4.1.2. (S)-Benzyl 2-(((3aR,5S,6R,6aR)-6-(benzyloxy)-2,2-dimeth-
yltetrahydrofuro[2,3-d][1,3]dioxole-5-carbox amido)methyl)-
pyrrolidine-1-carboxylate 5b
To a stirred solution of acid 4b (0.49 g, 2.13 mmol) in CH2Cl2
(10 mL) were added EDCꢀHCl (0.5 g, 2.6 mmol) and HOBt (0.35 g,
2.6 mmol) at 0 °C and stirred for 15 min. A solution of amine 3
(0.63 g, 2.13 mmol) in CH2Cl2 was added and stirred at room tem-
perature for 10 h. Water (25 mL) was then added to the reaction
mixture and stirred. The layers were separated and the organic
layer was washed with water (2 ꢁ 25 mL), dried over Na2SO4,
and concentrated under vacuum. The crude was purified by silica
gel column chromatography (hexane/ethyl acetate—1:1) to give
amide 5b (0.84 g, 77% yield) as a thick liquid; ½a D25
¼ ꢃ31:6 (c
ꢂ
0.2, CHCl3); 1H NMR (CDCl3, 300 MHz): d 7.38–7.18 (m, 10H),
6.01 (d, J = 2.6 Hz, 1H), 5.23–5.0 (m, 2H), 4.76–4.67 (m, 1H),
4.61–4.51 (m, 3H), 4.35–4.28 (m, 1H), 3.93–3.81 (m, 1H), 3.55–
3.24 (m, 4H), 1.93–1.61 (m, 4H), 1.44 (s, 3H), 1.28 (s, 3H); 13C
NMR (CDCl3, 75 MHz): d 167.4, 154.9, 136.7, 136.1, 127.9, 127.7,
127.3, 127.2, 127.0, 118.8, 104.9, 81.6, 80.5, 72.2, 66.2, 56.9, 46.2,
41.5, 28.1, 26.4, 25.7, 23.1; ESIMS: m/z 511 [M+H]+; HRMS Calcd
for C28H35N2O7: 511.2439, found: 511.2441.
3. Conclusion
In conclusion, we have developed new sugar amide-pyrrolidine
organocatalysts using
a simple protocol for the asymmetric
Michael addition of ketones to nitroolefins. The reactions were per-
formed under solvent-free and additive-free conditions leading to
the corresponding Michael adducts in good yield and with high
selectivity. Further investigations to extend the scope of these
sugar derived catalysts are currently underway in our laboratory.
4.1.3. (3aR,5S,6R,6aR)-6-Amino-2,2-dimethyl-N-((S)-pyrrolidin-
2-lmethyl)tetrahydrofuro[2,3-d][1,3]dioxole-5-carboxamide 1
At first, Pd/C (0.20 g) was added to a solution of amide 5a
(0.70 g, 1.5 mmol) in methanol and the resulting suspension was
stirred under H2 atmosphere for 12 h. The reaction mass was fil-
tered through a pad of Celite and washed with ethyl acetate. The
filtrate was concentrated under reduced pressure to afford 1
4. Experimental
4.1. General
(0.54 g, 84% yield) as a white solid; ½a D25
¼ ꢃ39:6 (c 1.4, CHCl3);
ꢂ
All solvents and reagents were purified by standard techniques.
Crude products were purified by column chromatography on silica
gel of 60–120 mesh. IR spectra were recorded on Perkin–Elmer 683
spectrometer. Optical rotations were obtained on a Jasco Dip 360
digital polarimeter. 1H and 13C NMR spectra were recorded in
CDCl3 solution on a Varian Gemini 200 and Brucker Avance 300.
Chemical shifts were reported in parts per million with respect
to internal TMS. Coupling constants (J) are quoted in Hz. Mass
spectra were obtained on an Agilent Technologies LC/MSD Trap
SL. Chiral HPLC analysis was carried out on chiral pak OD-H, IC,
or IA columns using a mixture of isopropanol and hexanes as the
eluent.
1H NMR (CDCl3, 300 MHz): d 7.54 (s, 1H) 5.96 (d, J = 3.4 Hz, 1H),
4.64 (d, J = 3.4 Hz, 1H), 4.36 (d, J = 3.4 Hz, 1H), 3.74 (d, J = 3.4 Hz,
1H), 3.60–3.35 (m, 5H), 3.23–2.91 (m, 3H), 1.98–1.66 (m, 3H),
1.51–1.38 (m, 4H), 1.30 (s, 3H); 13C NMR (CDCl3, 75 MHz): d
169.9, 112.0, 105.0, 85.6, 81.2, 58.8, 51.2, 44.8, 40.5, 27.9, 26.7,
26.1, 23.8; ESIMS: m/z 286 [M+H]+; HRMS Calcd for C13H24N3O4:
286.1761, found: 286.1758.
4.1.4. (3aR,5S,6R,6aR)-6-Hydroxy-2,2-dimethyl-N-((S)-pyrroli-
din-2-ylmethyl)tetrahydrofuro[2,3-d][1,3]dioxole-5-carbox-
amide 2
To a stirred solution of amide 5b (0.80 g, 1.57 mmol) in metha-
nol, Pd/C (0.20 g) was added and the resulting suspension was stir-
red under H2 atmosphere for 15 h. The reaction mass was filtered
through a pad of Celite and washed with ethyl acetate. The filtrate
was concentrated under reduced pressure to afford 2 (0.37 g, 82%
4.1.1. (S)-Benzyl 2-(((3aR,5S,6R,6aR)-6-azido-2,2-dimethyltetra-
hydrofuro[2,3-d][1,3]dioxole-5-carbox amido) methyl) pyrroli-
dine-1-carboxylate 5a
To a stirred solution of acid 4a (0.49 g, 2.13 mmol) in CH2Cl2
(10 mL) was were added EDCꢀHCl (0.5 g, 2.6 mmol) and HOBt
(0.35 g, 2.6 mmol) at 0 °C and the resultant mixture was stirred
for 15 min. A solution of amine 3 (0.5 g, 2.13 mmol) in CH2Cl2
yield) as a white solid; ½a D25
ꢂ
¼ ꢃ33:2 (c 1.1, CHCl3); 1H NMR (CDCl3,
300 MHz): d 6.89 (br s, 1H), 6.03 (d, J = 3.2 Hz, 1H), 4.68 (d,
J = 2.6 Hz, 1H), 4.53 (d, J = 3.2 Hz, 1H), 4.48 (d, J = 2.4 Hz, 1H),
3.90–3.78 (m, 1H), 3.31–3.20 (m, 1H), 3.05–2.79 (m, 3H), 2.60 (br
