J. Am. Chem. Soc. 2001, 123, 9166-9167
Parallel (Face-to-Face) Versus Perpendicular
(Edge-to-Face) Alignment of Electron Donors and
Acceptors in Fullerene Porphyrin Dyads: The
Importance of Orientation in Electron Transfer
Dirk M. Guldi,*,† Chuping Luo,† Maurizio Prato,*,‡
Alessandro Troisi, Francesco Zerbetto,*, Michael Scheloske,§
Elke Dietel,§ Walter Bauer,§ and Andreas Hirsch*,§
Radiation Laboratory, UniVersity of Notre Dame
Notre Dame, Indiana 46556
Figure 1.
Dipartimento di Scienze Farmaceutiche
UniVersita` di Trieste, Trieste, Italy
Dipartimento di Chimica “G. Ciamician”
UniVersita` di Bologna, Bologna, Italy
Institut fu¨r Organische Chemie
UniVersita¨t Erlangen-Nu¨rnberg
Henkestrasse 42, 91054 Erlangen, Germany
benzaldehyde and pyrrole under Lindsey conditions7 and subse-
quent chromatographic separation from the constitutional isomer
5 (Scheme 1).
Irradiation of 2 with a short 532 nm laser pulse resulted in the
immediate Q-band bleaching of the porphyrin and the concomitant
formation of broad absorption characteristics, especially in the
region between 550 and 750 nm. These spectral features are
representative of the porphyrin singlet excited state. In contrast
ReceiVed NoVember 28, 2000
ReVised Manuscript ReceiVed March 23, 2001
1
to the slow intersystem crossing dynamics in ZnTPP 3, the *-
(π-π)ZnTPP absorption decays rapidly and monoexponentially
in dyad 2 (Table 1). The singlet lifetimes and the fluorescence
quantum yields in 2 are subject to a marked solvent dependence.
Particularly interesting are the strong solvent effects of dichloro-
methane. In analogy with previous work,9 such variations may
hint at an ET mechanism mediated by a solvent molecule situated
The role of the spatial arrangement of donor-acceptor couples
in electron transfer is a subject of primary interest to understand
the properties of fundamental systems such as those generating
the natural photosynthetic process1-3 and the one-dimensional
array of DNA base pairs aligned face-to-face to make π-π
stacks.4 The rates of electron transfer (ET) depend considerably
on the wave function mixing, which is gauged by the electronic
coupling |V| between the electron donor and the electron
acceptor.1-3 Despite the qualitative understanding reached in
recent years, the challenge to directly tune π-π interactions to
modify |V| awaits in depth exploration.
in the cavity between ZnP and C60.
•-
Formation of the charge-separated radical pair (i.e., C60
-
ZnTPP•+) was confirmed by transient absorption spectroscopy.
The one-electron reduced form of C60 displayed its fingerprint
absorption in the NIR (1060 nm), in good agreement with an
equatorial reference. The π-radical cation of ZnTPP was seen
with its strongest absorption in the visible (700 nm).
Here we report the ET rates due to two fundamentally different
orientations of a zinc tetraphenyl porphyrin (ZnTPP) and a
fullerene moiety. A full and comprehensive account will be given
of the effects of the face-to-face versus edge-to-face alignment
on the intramolecular ET rates. In particular, we are able to
determine that the magnitude of π-π interactions is the crucial
parameter that controls rates, efficiencies, and mechanisms of ET.
As model compounds for this investigation we chose the
previously reported dyad 1,5 where ZnTPP is attached in the
trans-2 position, and the new dyad 2, with an equatorial bridging
of ZnTPP.
In general, the ET rates in the equatorial dyad 2 are ca. 10
times slower than those reported for the trans-2 dyad 1. In an
effort to correlate the different ET kinetics with the structure of
the dyad and to assess the location of possible solvent molecules,
we carried out molecular dynamics investigations.8 Six randomly
selected and superimposed conformers of each dyad (Figure S2)
support three critical aspects: (1) Due to the double linkage, the
variability of relative orientation of the two chromophores within
each dyad is very limited. In 1, the face-to-face alignment is
completely locked. In 2, only two types of face-to-edge orienta-
tions (Vertical and horizontal) were found. NOE measurements
(S3) further showed that the “horizontal” conformation has a very
low population (0.2%) relative to the preferred “vertical” con-
formation (99.8%). Both systems have therefore strong confor-
mational rigidity. (2) The face-to-face alignment in 1 with the
shortest interplanar distance (3 Å) leads to an appreciable π-π
stacking, whereas the edge-to-face alignment in 2 prohibits
effective π-π interactions (Figure 1). (3) 2 can accommodate
between the two moieties a solvent molecule such as toluene.
The red shift of the Soret-/Q-band transitions and the lower
extinction coefficients, relative to ZnTPP 3, are good fingerprints
of the presence of electronic coupling (Table S4). Unquestionably,
the interactions in the π-π stacked dyad 1 are significantly
stronger than those noted for 2.

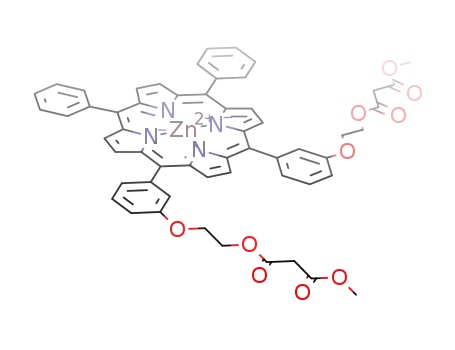

The regioselective synthesis of 2 was accomplished via a tether
directed,6 2-fold cyclopropanation of C60 with bismalonate 3. The
latter was obtained from the statistical co-condensation of 4 with
* To whom correspondence should be addressed: Fax: (+01) 219 631
8068. E-mail: guldi.1@nd.edu, hirsch@organik.uni-erlangen.de
† University of Notre Dame.
‡ Universita´ di Trieste.
Universita´ di Bologna.
§ Universita¨t Erlangen-Nu¨rnberg.
(1) (a) Carter, F. L. Molecular Electronic DeVices; Dekker: New York,
1987. (b) Fox, M. A.; Channon, M. Photoinduced Electron Transfer,
Elsevier: Amsterdam, The Netherlands, 1988.
(2) (a) Piotrowiak, P. Chem. Soc. ReV. 1999, 28, 143. (b) Willner, I. Acc.
Chem. Res. 1997, 30, 347. (c) Gould, I. R.; Farid, S. Acc. Chem. Res. 1996,
29, 522. (d) Balzani, V.; Juris, A.; Venturi, M.; Campagna, S.; Serroni, S.
Chem. ReV. 1996, 96, 759. (e) Paddon-Row, M. N. Acc. Chem. Res. 1994,
27, 18. (f) Gust, D.; Moore, T. A.; Moore, A. L. Acc. Chem. Res. 1993, 26,
198. (g) Wasielewski, M. R. Chem. ReV. 1992, 92, 435.
(3) For orientation effects see: (a) Staab, H. A.; Nikolic, S.; Krieger, C.
Eur. J. Org. Chem. 1999, 1459. (b) Brun, A. M.; Harriman, A.; Heitz, V.;
Sauvage J. P. J. Am. Chem. Soc. 1991, 113, 8657. (c) Helms, A.; Heiler, D.;
McLendon, G. J. Am. Chem. Soc. 1991, 113, 4325. (d) Sakata, Y.; Nakashima,
S.; Goto, Y.; Asahi, T.; Hagihara, M.; Nishikawa, S.; Okada, T.; Mataga, N.
J. Am. Chem. Soc. 1989, 111, 8979. (e) Sessler, J. L.; Johnson, M. R.; Lin,
T.-Y.; Creager, S. E. J. Am. Chem. Soc. 1988, 110, 3659.
(4) Leading references: (a) Grinstaff, M. W. Angew. Chem., Int. Ed. 1999,
38, 3629. (b) Ratner, M. Nature 1999, 397, 480. (c) Turro, N. J.; Barton, J.
K. J. Biol. Inorg. Chem. 1998, 3, 201. (d) Lewis, F. D.; Wu, T.; Zhang, Y.;
Letsinger, R. L.; Greenfield, S. R.; Wasielewski, M. R. Science 1997, 277,
673.
(5) (a) Dietel, E.; Hirsch, A.; Eichhorn, E.; Rieker, A.; Hackbarth, S.; Ro¨der,
B. Chem. Commun. 1998, 1981. (b) Guldi, D. M.; Luo, C.; Prato, M.; Dietel,
E.; Hirsch, A. Chem. Commun. 2000, 373.
(6) Diederich, F.; Kessinger, R. Acc. Chem. Res. 1999, 32, 537.
(7) Lindsey, J. S.; Schreiman, I. C.; Hsu, H. C.; Kearney, P. C.;
Marguerettaz, A. M. J. Org. Chem. 1987, 52, 827.
(8) (a) Kaplan, R. W.; Napper, A. M.; Waldeck, D. H.; Zimmt, M. B. J.
Am. Chem. Soc. 2000, 122, 12039. (b) Lokan, N. R.; Paddon-Row, M. N.
Koeberg, M.; Verhoeven, J. W. J. Am. Chem. Soc. 2000, 112, 5075. (c) Tsue,
H.; Imahori, H.; Kaneda, T.; Tanaka, Y.; Okada, T.; Tamaki, K.; Sakata, Y.
J. Am. Chem. Soc. 2000, 122, 2279.
(9) HyperChem 5.0; Hypercube, Inc., Waterloo, Ontario N2L 2X2.
10.1021/ja004104l CCC: $20.00 © 2001 American Chemical Society
Published on Web 08/23/2001
