New Insight on the Study of the Kinetic of Biobased
Polyurethanes Synthesis Based on Oleo-Chemistry
Julien Peyrton , Clémence Chambaretaud 1,2 and Luc Avérous 1,*
1
1
BioTeam/ICPEES-ECPM, UMR CNRS 7515, Université de Strasbourg, 25 rue Becquerel, CEDEX 2,
6
7087 Strasbourg, France; julien.peyrton@etu.unistra.fr (J.P.); clemence.chambaretaud@uha.fr (C.C.)
2
Soprema, 14 rue de Saint-Nazaire, CEDEX 1, 67025 Strasbourg, France
*
Correspondence: luc.averous@unistra.fr; Tel.: +33-3-6885-2784
Academic Editor: Sylvain Caillol PhD
Received: 11 November 2019; Accepted: 24 November 2019; Published: 27 November 2019
ꢀ
ꢁꢂꢀꢃꢄꢅꢆꢇ
ꢀ
ꢁꢂꢃꢄꢅꢆ
Abstract: Nowadays, polyols are basic chemicals for the synthesis of a large range of polymers,
such as polyurethane foams (PUF), which are produced with several other compounds, such as
polyisocyanates. During the last decades, the oleo-chemistry has developed several routes from
glycerides to polyols for the polyurethanes (PU) industry to replace mainly conventional fossil-based
polyols. A large range of biobased polyols can be now obtained by epoxidation of the double bonds
and ring-opening (RO) of the subsequent epoxides with different chemical moieties. In preliminary
studies, the RO kinetics of an epoxidized model molecule (methyl oleate) with ethanol and acetic
acid were investigated. Subsequently, polyols that were derived from unsaturated triglycerides
were explored in the frame of e.g., PUF formulations. Different associations were studied with
different mono-alcohols derived from epoxidized and ring-opened methyl oleate while using several
ring-openers to model such systems and for comparison purposes. Kinetic studies were realized
with the pseudo-first-order principle, meaning that hydroxyls are in large excess when compared
to the isocyanate groups. The rate of isocyanate consumption was found to be dependent on the
moiety located in
β-position of the reactive hydroxyl, following this specific order: tertiary amine >>
ether > ester. The tertiary amine in
β-position of the hydroxyl tremendously increases the reactivity
toward isocyanate. Consequently, a biobased reactive polyurethane catalyst was synthesized from
unsaturated glycerides. These approaches offer new insights regarding the replacement of current
catalysts often harmful, pungent, and volatile used in PU and PUF industry, in order to revisit
this chemistry.
Keywords: kinetics; epoxide; ring-opening; biobased; polyurethane foam; catalyst
1
. Introduction
The polyurethane (PU) is a very versatile family of polymer that is mainly obtained by polyaddition
between polyols and polyisocyanates [1]. PUs can be used in various forms to fulfill different
applications for a worldwide market of $50 Billion in 2016 due to the multiplicity of their structures.
With more than 60%, foams are the largest part of this market, with segments including the furniture,
bedding, insulation, building, or construction materials. Foams are elaborated through a complex
formulation that is based on polyols, polyisocyanates, blowing agent, and several other additives [2,3].
Commercial foams are mainly formulated with fossil-based components. However, increasing foams
are obtained from renewable resources nowadays.
The abundance and versatility of vegetable oils are the key points for replacing petrochemical
products in polymer synthesis and developing very promising renewable compounds while using
a well-established oleo-chemistry. During the last decades, starting from unsaturated triglycerides,
Molecules 2019, 24, 4332; doi:10.3390/molecules24234332
www.mdpi.com/journal/molecules

Molecules 2019, 24, 4332
2 of 20
extensive research [
4–
6] has been performed to obtain new macromolecular architectures. Multiple
strategies were developed to obtain polyols from unsaturated glycerides for the PU industry [7] (i) the
hydroformylation and ozonolysis, followed by a catalytic reduction is developed at an industrial
scale, (ii) the transesterification, (iii) the introduction of hydroxyl groups via double-bonds with
microorganisms is promising [8], and (iv) the epoxidation of the double bonds and subsequent
the ring-opening (RO) of the epoxides. The last way keeps the initial glyceride structure, and the
opportunity to synthetized different polyols structures, even at an industrial level.
In the case of vegetable oils and fats, the epoxide is mainly di-substituted and, consequently, less
reactive than a terminal one. Nevertheless, several different types of reagents can be considered for the
RO, such as amines [9–11], alcohols [12–14], carboxylic acids [15,16], or hydrogen halides [17,18]. The
epoxidation procedure is carried out while using a short carboxylic acid [19]. Although it is not fully
new, for instance, few publications are focused on the study of the RO kinetics of epoxide by acetic or
formic acid [20,21].
The presently studied way to obtain PUs from poly-unsaturated triglycerides contains three steps:
1. Epoxidation of double bonds, 2. RO reaction, and 3. Polymerization with polyisocyanate. In our
study, the polyunsaturated triglycerides were modeled by a fatty ester only containing one double-bond:
methyl oleate. The double bond was chemically converted into epoxide by a peracetic acid that was
formed in situ. The objective of this preliminary study was to understand the acid-catalyzed RO of
disubstituted epoxide. To do so, a new kinetic method that was based on Nuclear magnetic resonance
(
NMR) was developed to monitor the epoxide RO reaction. Subsequently, it was applied to the kinetic
study of acid-catalyzed RO reactions of epoxidized methyl oleate. In the second part of this paper, the
reactivity of different alcohols (models) that were obtained from RO of epoxidized fatty esters with
various conditions was compared in the frame of PU synthesis. The model-alcohols were synthesized
by the RO of the epoxide, with acetic acid, ethanol, hydrogen halide, or diethylamine.
2
. Materials and Methods
2
.1. Materials
Fatty Acid Methyl Ester of Very High Oleic Sunflower Oil (FAMEVHOSO) with 3.32 mmol double
bond/g was kindly supplied by the ITERG group (Can
3% of oleic acid. Table S1 presents the distribution of fatty methyl esters of unsaturated FAMEVHOSO.
Glacial acetic acid (AA), toluene (99%), H O 30%, ethyl acetate (99%), and ethanol (99.9%) were
éjan, France). The FAMEVHOSO is composed of
8
2
2
®
obtained from Fisher Scientific (Illkirch-Graffenstaden, France). Amberlyst 15H (strongly acidic
cation exchanger dry), Amberlite IR120H (strongly acidic hydrogen form), CDCl , phenylisocyanate
®
3
(
(
98%), dibutylamine (DBA) (99.5%), HBr (48% in water), HCl (37% in water), and diethylamine (99%)
DEA) were provided by Sigma-Aldrich (Saint-Quentin-Fallavier, France). Ethanol absolute (EtOH)
was purchased from VWR (Briare, France). All of the chemicals were used without any purification.
2
.2. Epoxidation of FAMEVHOSO
According to a previously described protocol [22], 200 g of FAMEVHOSO (0.66 mol, 1 eq), 50 g
of Amberlite® IR 120H (25 wt% of FAMEVHOSO) were introduced in a 1 L three-neck flask that was
equipped with a reflux condenser, a magnetic stirrer, and a dropping funnel. 20 mL of acetic acid
◦
(
0.35 mol, 0.5 eq) and 200 mL of toluene were added. The mixture was heated to 70 C under vigorous
magnetic stirring. Afterwards, 90 mL of H O 30% (1.15 mmol, 1.7 eq) was added dropwise by the
2
2
dropping funnel for 30 min. to prevent overheating and epoxide RO. The mixture was heated at
◦
7
0 C for 7 h additional hours. At the end, the mixture was recovered in 500 mL of ethyl acetate. The
®
Amberlite IR 120H was filtered off. The organic phase was washed with saturated NaHCO solution
3
until neutral pH. Afterwards, it was washed with brine solution, dried with anhydrous sodium sulfate,
and then filtered. The solvent was evaporated under reduced pressure. The epoxidized FAMEVHSOSO
◦
(
EVHOSO) was dried overnight in a vacuum oven at 40 C. The yield was 90 mol%.

Molecules 2019, 24, 4332
3 of 20
2
.3. Ring-Opening of EVHOSO with Acetic Acid
The reaction was carried out in a round bottom flask that was equipped with a reflux condenser
and a magnetic stirrer. The flask was filled with 50 g of EVHOSO 3.05 mmol epoxide/g, (0.24 mol,
◦
1
eq) and 100 mL of acetic acid (2.8 mol, 11.5 eq). The mixture was stirred at 90 C for 7 h. At the end,
the mixture was recovered in 300 mL of ethyl acetate. The organic phase was washed with saturated
NaHCO solution until neutral pH. Subsequently, it was washed with brine solution, dried with
3
anhydrous sodium sulfate, and then filtered. The solvent was evaporated under reduced pressure.
The ring-opened EVHOSO with acetic acid (EVHOSO-AA) was dried overnight in a vacuum oven at
◦
4
0 C. The yield was 82 mol%.
2
.4. Ring-Opening of EVHOSO with Ethanol
The protocol was adapted from a previously published work [23]. The reaction was carried out in a
round bottom flask that was equipped with a reflux condenser and a magnetic stirrer. The flask was
®
filled with 50 g of EVHOSO 3.05 mmol epoxide/g, (0.15 mol, 1 eq) and 2 g of Amberlyst 15 H. 100 mL of
◦
ethanol (1.7 mol, 11.5 eq). The mixture was stirred at 70 C for 9 h. At the end the mixture was recovered
in 300 mL of ethyl acetate. The organic phase was washed with saturated NaHCO solution until neutral
3
pH. Subsequently, it was washed with brine solution, dried with anhydrous sodium sulfate, and then
filtered. The solvent was evaporated under reduced pressure. The ring-opened EVHOSO with ethanol
◦
(
EVHOSO-EtOH) was dried overnight in a vacuum oven at 40 C. The yield was 92 mol%.
2
.5. Ring-Opening of EVHOSO with Diethylamine
The protocol was adapted from a previously published work [24]. The reaction was carried out
in a round bottom flask that was equipped with a reflux condenser and a magnetic stirrer. The flask
was filled with 5 g of anhydrous ZnCl (0.5 eq). 25 g of EVHOSO 3.05 mmol epoxide/g (76 mmol,
2
1
eq) was dissolved in 20 mL of diethylamine (193 mmol, 2.5 eq). The solution was added in the flask.
The mixture was stirred at reflux for 15 h. At the end, the mixture was recovered in 300 mL of ethyl
acetate and deionized water. The organic phase was washed with saturated NaHCO solution until
3
neutral pH. Afterwards, it was washed with brine solution, dried with anhydrous sodium sulfate, and
then filtered. The solvent was evaporated under reduced pressure. The ring-opened EVHOSO with
◦
diethylamine (EVHOSO-DEA) was dried overnight in a vacuum oven at 40 C. The yield was 90 mol%.
2
.6. Ring-Opening of EVHOSO with Different Hydrogen Halides
The reaction was carried out in a round bottom flask that was equipped with a reflux condenser
and a magnetic stirrer. The flask was filled with 25 g of EVHOSO 3.05 mmol epoxide/g (76 mmol,
eq) dissolved in 15 mL of acetone. The halogen halide (1.5 eq) was added dropwise for 15 min.
1
to avoid overheating. The mixture was stirred at room temperature for 30 min. At the end, the
mixture was recovered in 300 mL of ethyl acetate and deionized water. The organic phase was washed
with saturated NaHCO solution until neutral pH. Subsequently, it was washed with brine solution,
3
dried over anhydrous sodium sulfate, and then filtered. The solvent was evaporated under reduced
pressure. The ring-opened EVHOSO with hydrochloric acid (EVHOSO-HCl) or hydrobromic acid
◦
(
EVHOSO-HBr) was dried overnight in a vacuum oven at 40 C. The yield was 99 mol%.
2
.7. Kinetic Study of Epoxide Ring Opening with Ethanol
In a typical procedure, 0.5 g of EVHOSO (1.7 mmol, 1 eq) and between 4 to 20 wt% (depending
®
on the experiment) of Amberlyst 15H in a 50 mL round bottom flask was heated to the desired
temperature while using a hot plate that was equipped with magnetic stirring. When the temperature
was attained, 3.8 mL of absolute ethanol was added (65 mmol, 38 eq). A few drops of the reaction
mixture were taken at different reaction times and recovered in ethyl acetate and washed two times
with water to remove any trace of acid. The solvent was evaporated on a rotary evaporator. The drops
of oil were recovered with CDCl and analyzed by NMR.
3

Molecules 2019, 24, 4332
4 of 20
2
.8. Kinetic Study of Urethane Formation
In a typical procedure, 3 g of VHOSO-AA (7.2 mmol, 11.5 eq) was introduced in a round bottom
flask that was equipped with a magnetic stirrer. The flask was heated to the desired temperature. The
flask was put under vacuum for 15 min. and then flushed with argon. 1 mL of a 0.62 mol/L solution
of phenyl isocyanate in toluene was introduced. The conditions were set to avoid any contact with
humidity or another nucleophile. The isocyanate content ([NCO]) over time was determined by taking
aliquots of 0.4 mL quenched by a DBA solution. [NCO] was determined by potential titration of the
excess of DBA by an acid.
2
.9. Kinetic Model of Ring-Opening
2
.9.1. Mechanism of Ring-Opening
The RO of the epoxide is catalyzed by acid [25], as shown in Scheme 1. The nucleophilic attack is
favored by the enhancement of the electrophilic character of epoxide group carbons. The nucleophilic
species can be alcohol, carboxylic acid, water, hydrogen halide, etc.
Scheme 1. General mechanism of an acidic catalyzed nucleophile ring-opening (RO).
The reaction forms a secondary hydroxyl and another group, depending on the nature of the
nucleophile. Reactions with acid groups, such as carboxylic acid or halogen halide, are self-catalyzed.
2
.9.2. Kinetic Equations
The activation step that is presented in Scheme 1 is considered to be fast. Subsequently, the
nucleophilic attack is the rate-determining step. The acid catalyzed RO rate is described by Equation (1):
α
β
δ
r = k ∗ [Ep] ∗ [B] ∗ [Cat]
(1)
where k is the reaction rate constant, [Ep] is the epoxide concentration, [B] the RO reagent concentration,
[
Cat] the catalyst concentration, and and are the respective partial orders. The consummation of
α
,
β
δ
epoxide over time, depending on the reaction rate, is written as Equation (2):
d[Ep]
dt
α
β
δ
−
= k ∗ [Ep] ∗ [B] ∗ [Cat]
(2)
The kinetic parameters were determined while using a pseudo-first order assumption [26]. The
nucleophile (B) was in large excess as compared to the epoxide groups (Ep). Subsequently, the
concentration of the nucleophile ([B]) was considered to be constant during the reaction. Furthermore,
the catalyst is regenerated along the reaction, [Cat] is a constant over time. When considering these
hypotheses, the rate of reaction that is expressed in Equation (2) is transformed in Equation (3):

Molecules 2019, 24, 4332
5 of 20
[
Ep]
dt
α
−
d
= kapp ∗ [Ep]
(3)
(4)
where kapp is a constant, as expressed in Equation (4):
β
δ
kapp = k ∗ [B] ∗ [Cat]
2
.10. NMR
The NMR analyses were realized on a 400 MHz Bruker spectrometer. The H number of scans
was set to 32. Each spectrum was calibrated with the CDCl signals, being set at 7.26 ppm.
1
3
2
.11. NCO Concentration Measurement
The isocyanate content [NCO] was determined by the adaptation of ISO 14896:2009. Aliquots
−
3
were dissolved in a 20 mL solution of 5
×
10 mol/L dibutylamine in toluene. The resulting mixture
was stirred for 20 min. Afterwards, 20 mL of acetone was added to avoid a dephasing of the solution
and the excess of dibutylamine was titrated with an automatic titrator by a 4.6
solution of HCl. The equivalence was determined by a potential leap. [NCO] was calculated with
−3
×
10 mol/L molar
Equation (5):
(
(V − Veq) ∗ [HCl]
Bl
[
NCO] =
(5)
V
Aliquot
with VBl the equivalence volume of 20 mL of dibutylamine solution, Veq the equivalence volume of the
aliquot, [HCl] the chlorhydric acid concentration, and Valiquot the volume of solution taken from the
solution for each kinetic measurement.
3
. Results
3
.1. Synthesis of EVHOSO
Table S1 presents FAMEVHOSO data. The average double bond per molecule is 1 by calculation.
It is well known that unsaturated fatty acids are sensitive to UV oxidation [27]. An NMR measurement
was undertaken to control the double bond quantity before the epoxidation. 0.93 double bonds per
molecule were calculated by the integration of the proton of the double bond on the NMR spectrum
(Figure S1). The FAMEVHOSO was in-situ epoxidized with peracid in a biphasic system. The reaction
converts 90 % of the double bonds in epoxides (Figure S2). Side reactions, such as RO by acetic acid,
limit the reaction yield. The number of epoxides per molecule is only 0.83.
3
.2. Kinetics of Epoxide Ring-Opening by Ethanol
The NMR method that is described in Appendix A.1 on the RO with acetic acid was applied to
the RO with ethanol.
3
.2.1. Determination of the Epoxide Partial Order
The epoxide partial order was determined at three temperatures, with all other parameters
remaining equal. The pseudo-first order was applied by introducing a large excess (11 eq) of ethanol
and constant catalyst content. Integrating Equation (3) with α = 1 gives Equation (6):
[
Ep]0
1
ln(
) = ln(
) = kapp_EtOH ∗ t
(6)
[
Ep]
1 − χ
where
χ is the yield of the reaction, t the time in minute, and kapp_EtOH the pseudo-reaction rate constant.
ln[Ep] /[Ep] was presented as a function of time in Figure 1.
0

Molecules 2019, 24, 4332
6 of 20
Figure 1. Determination of the epoxide partial order. Representation of ln([Ep] /[Ep]) as a function of
0
◦
◦
◦
time at 30 C (ꢀ), 50 C (N), and 70 C (ꢀ).
The model of a partial order of 1 for the epoxide is well confirmed by experiments at 30, 50, and
◦
0 C, respectively. The range of validity of the method is between 20–95 % of conversion due to the
7
exponential character of the conversion against time, as demonstrated with the acetic acid kinetic
experiment (Appendix A.2).
3
.2.2. Determination of the Catalyst Partial Order
Experiments with catalyst content variations from 4 to 20 wt% were performed at 30, 50, and
◦
7
0 C to determine the partial order of [Cat]. k
were determined by the linear regression of
app_EtOH
ln([Ep] /[Ep]) as a function of time, and Table S2 presents the results. The catalyst is an acidic resin of
0
+
divinylbenzene and styrene sulfonated [28]. The correlation between [H ] and the mass of catalyst was
determined by the pH measurement of 49 mg to 1 g of resin in 20 mL of water (Figure S3). Equation (7)
expresses the application of Equation (4) in the ethanol RO:
h
i
δ
β
+
kapp_EtOH = kEtOH ∗ [EtOH] ∗ H
(7)
+
where [EtOH] and [H ] are the concentration of ethanol and acid, respectively. The partial order of
catalyst was determined by the slope of the linear regression of ln(kapp_EtOH) as a function of ln([Cat]),
as presented in Figure 2.
Figure 2. Determination of the catalyst partial order. Representation of ln(kapp_EtOH) as a function of
+
◦
ln(H ) at 30 (ꢀ), 50 (N), and 70 C (ꢀ).

Molecules 2019, 24, 4332
7 of 20
The coefficients of determination are between 0.93 and 0.98 and the three slopes are tending toward
0
.5, which represent the catalyst partial order. It was expected that the catalyst would have a higher
influence on the reaction rate. The catalyst is decreasing the activation energy in the thermodynamic
side of the reaction, but it has less influence on the kinetics. The right amount of catalyst can be selected,
depending on the thermal sensibility of the epoxidized studied molecule.
3
.2.3. Determination of the Ethanol Partial Order
Experiments with [EtOH] variations from 15 to 4.5 mol/L were performed at 70 C to determine
the partial order of [EtOH]. The catalyst loading was kept constant then, with the volume variation,
◦
+
[
H ] was varying along experiments. kapp_EtOH, as expressed in Equation (7), can be expressed as a
function of the total volume of solution, giving Equation (8):
!
!
β
δ
mcat ∗ IAeq
VEtOH ∗ dEtOH
kapp_EtOH = kEtOH
∗
∗
(8)
Vt
Vt
where VEtOH is the volume of ethanol introduced in the solution, mcat, the mass of catalyst, and
IAeq is the acid equivalent of the resin determined by Figure S3. By logarithmic transformation and
rearrangement, ln(kapp_EtOH) is expressed in Equation (9) as a linear function of ln(1/V
t
), with the sum
of partial order as the slope.
ꢀ
ꢁ
1
Vt
ln(kapp_EtOH) = K + (β + δ) ∗ ln
(9)
where K is a constant, including VEtOH, dEtOH, mcat, IA , and kEtOH. Figure 3 represents the experimental
Eq
results.

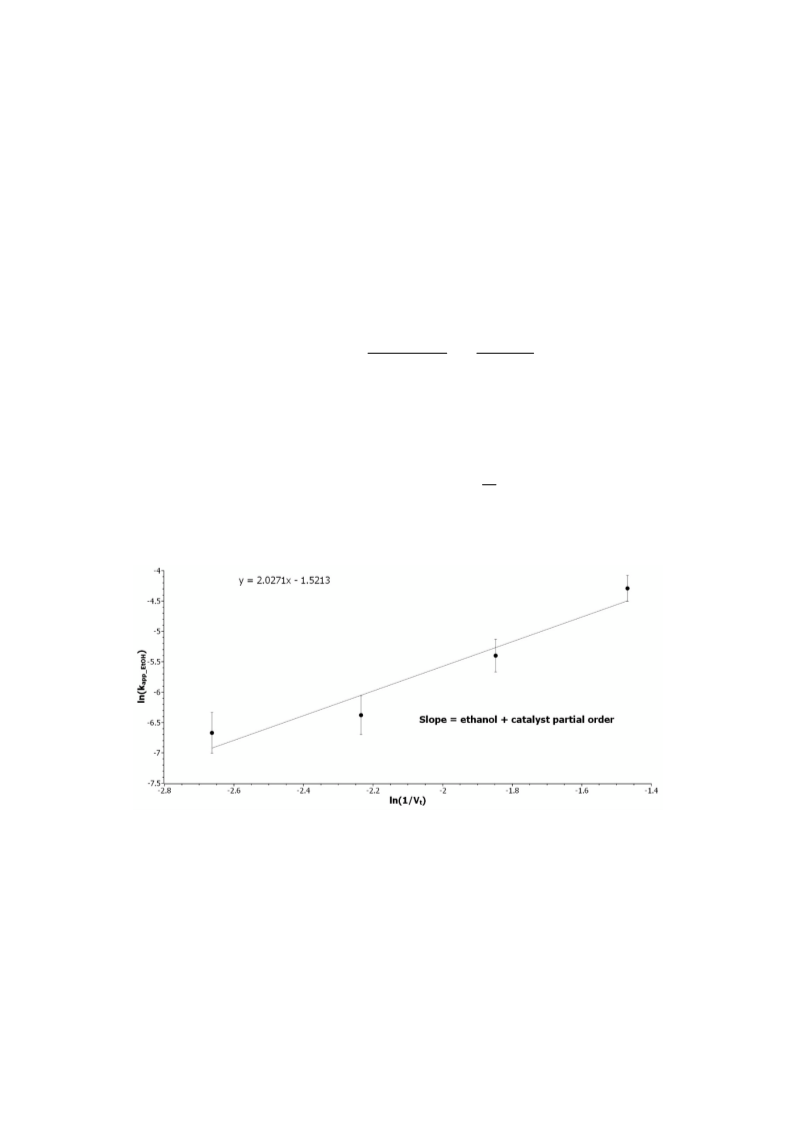

Figure 3. Determination of the sum of the ethanol and catalyst partial order. Representation of
◦
ln(kapp_EtOH) as a function of ln(1/Vt) at 70 C with 12 wt% catalyst loading.
+
+
The sum of the partial order of [H ] and [EtOH] is 2, as the partial order of [H ] was determined
to be 0.5, the partial order with respect to [EtOH] is 1.5. These results were confirmed by an experiment
design to compensate for the dilution of catalyst that was induced by the change of concentration.
Equation (10) describes the final equation rate:
h
i
0.5
r = kEtOH ∗ [Ep] ∗ [EtOH] H+
1
1.5
(10)

Molecules 2019, 24, 4332
8 of 20
The major factor impacting the reaction rate is the [EtOH], followed by the [Ep], and then the [H+].
This order is only accurate if the catalyst is present; otherwise, the reaction is slower. In this case, there
is no activation step when compared to the mechanism presented in Scheme 1.
3
.2.4. Thermodynamics Data
Once the reaction rate determined, the thermodynamic constants were calculated and are
summarized in Table 1. The sum of the catalyst partial order and the ethanol is the same as the partial
order of [AA]. It can also confirm hypotheses that are given in the literature [20 21] regarding the
,
autocatalysis of the acetic acid due to its acidic properties. The separation between the catalysis and
the reagent action in the acetic acid case would be possible by the isolation of the reaction intermediate.
Overall, the order of the reaction is the same for both reactions: third order.
Table 1. Thermodynamics data of the epoxidized Fatty Acid Methyl Ester of Very High Oleic Sunflower
Oil (EVHOSO) ring-opening reaction with acetic acid and ethanol.
Acetic Acid
Thermodynamics Data
Acetic Acid
Ethanol
1
[19]
1
2
1
1.5
+ 0.5
Equation rate
r = kAA ∗ [Ep] ∗ [AA]
r = kEtOH ∗ [Ep] ∗ [EtOH] ∗ [H ]
◦
k (70 C)
3
.3 × 10−
5
(2 ± 0.2) × 10
(8.8 ± 0.8) × 10
−5
(7.8 ± 0.4) × 10
−3
2
−2
−1
)
(
L ·mol ·min
7
4
6
Frequency factor (min)
2.31 × 10
(1.28 ± 0.06) × 10
Ea (kJ/mol)
66
63 ± 6
54 ± 3
51 ± 3
‡
◦
∆
∆
∆
H (70 C) (kJ/mol)
63
60 ± 5
‡
◦
S (70 C) (J/mol/K)
−182
−160 ± 10
120 ± 10
−138 ± 7
98 ± 5
‡
◦
G (70 C) (kJ/mol)
126
1
RO kinetic study made on epoxidized soybean oil by measuring the epoxide function concentration.
◦
◦
The rate constant at 70 C, k (70 C), is an indication of the rate of a chemical reaction at this
specified temperature [29]. The corresponding unit depends on the reaction order. From a kinetic point
of view, the ethanol RO is faster when compared to the case with acetic acid due to the two decades
◦
difference in terms of k (70 C). The reaction constant is a function of the temperature following an
Arrhenius law, as described by Equation (11):
ꢀ
ꢁ
EA
R ∗ T
k(T) = A ∗ exp
(11)
where A is the frequency factor, E
temperature in Kelvin. E is determined by the slope of the linear regression of ln(k) as a function
of the inverse of the temperature (Figure S4). It represents the energy barrier to overcome to form
the intermediate state. E can be decreased while using a catalyst, but the catalyst loading does not
a
the activation energy of the reaction, R the gas constant, and T the
a
a
affect it (Figure S4). The EVHOSO-EtOH intermediate state requires less energy to be formed than
‡
EVHOSO-AA. The enthalpy of activation (
∆
H ) is the energy difference between the reagents and the
intermediate state [30]. It was calculated according to Equation (12)
,
∆
H = E − RT
(12)
A
‡
An exothermic reaction has a negative
∆
H and both intermediate RO reactions are endothermic.
They absorb energy from the environment to reach an intermediate state. The entropy of activation
‡
‡
variation (
∆
S ) is a measurement of the disorders of the reaction. Negative
∆
S represents the loss of
‡
freedom or an order increase [30]. Kinetics data ∆S is calculated via Equation (13):
"
!
#
∆H,
RT
h ∗ kb
,
∆
S = R ∗ ln
+
(13)
k ∗ T

Molecules 2019, 24, 4332
9 of 20
where h is the Planck constant, k the Boltzman constant, k the rate constant, T the temperature, and
b
R the gas constant. In RO, by acetic acid or ethanol, the intermediate states have fewer degrees of
freedom than the reactants. The entropy variation is more important in a previous publication [20],
because the model molecule studied is based on epoxidized soybean oil with more than one epoxide.
‡
The loss of freedom degree is then higher and can explain the gaps in ∆S and Ea.
‡
The sign of the free enthalpy of activation
∆
G is the combination of the entropic and enthalpic
contribution, representing the spontaneity of the reaction (Equation (14)).
,
,
,
∆
G = ∆H − T∆S
‡
∆G indicates a spontaneous reaction [30]. From the thermodynamic point of view,
(14)
A negative
both RO intermediates are not spontaneously formed. Thermodynamics is then not favorable to reach
the intermediate of the RO of epoxide with acetic acid or ethanol, but the temperature and the kinetic
are making the reaction possible in less than 10 h.
3
.3. Kinetic Study of Urethane Formation from Fatty Acid
The kinetics of the reaction between an isocyanate and an alcohol derived from a fatty acid
was investigated. The phenyl isocyanate was chosen to model the methylene diphenyl diisocyanate
MDI) that was used in foaming processes. EVHOSO-AA was the alcohol used for this study. The
(
measurements were made while using the pseudo first order principle [30] by putting the hydroxyl
moieties in large excess and measuring the concentration of isocyanate [NCO] over time. The same
model as for the RO kinetic can be applied. The reaction proceeds without catalyst, and Equations (15)
and (16) are then expressed.
[
NCO]
dt
α
−
d
= kapp_U ∗ [NCO]
(15)
where α is the partial order of the isocyanate concentration ([NCO]) and kapp_U is:
β
kapp_U = k ∗ [OH]
(16)
The determination of isocyanate content method was tested with known phenylisocyanate
contents before starting the kinetics measurement (Figure S5). The precision of the method was around
−3
9
6% and the studied concentration range was from 7 × 10 to 0.6 mol/L.
3
.3.1. Determination of the Isocyanate Partial Order
The isocyanate partial order was determined by variation of the temperature, with all other
parameters being equal. The pseudo first order was applied by introducing a large excess (11 eq) of
VHOSO-AA. While considering Equation (15), the logarithm of [NCO] /[NCO] was represented as a
0
function of time on Figure 4.
The partial order of 1 for the isocyanate is well confirmed by experiments at different temperatures,
◦
which are 42, 53, 62, and 74 C. For the conversion above 99 %, the limit of the titration techniques was
attained. The back titration of the [NCO] is determined by Equation (5) and a 1% difference between
Veq and V is the limit of detection of the titration method.
bl
3
.3.2. Determination of the Hydroxyl Partial Order
The determination of the hydroxyl partial order is made by varying the concentration of hydroxyl,
while maintaining the great excess as compared to the isocyanate group. The variation of concentration
was made by diluting the solution with toluene. The determination of kapp_U with 0.51, 0.72, 1.24,
1.51, 1.73, and 1.98 mol/L of hydroxyl are, respectively, presented in Figure S6. The slope of the linear
regression of ln(kapp_U) in function of ln([OH]) that is represented in Figure 5 is able to establish the
partial order of hydroxyl.

Molecules 2019, 24, 4332
10 of 20

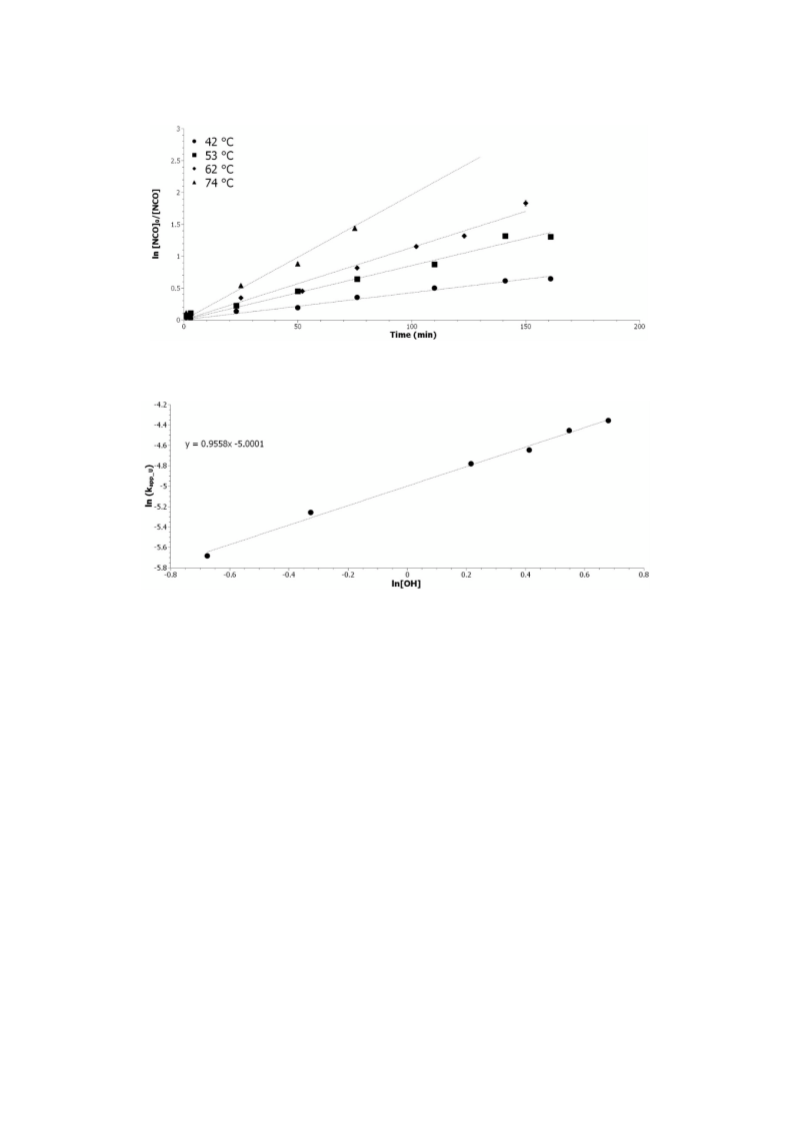

Figure 4. Determination of the [NCO] partial order. Variation of ln([NCO] /[NCO]) in function of time
0
◦
◦
◦
◦
at 42 C (ꢀ), 53 C (ꢁ), 62 C (ꢀ), and 74 C (N).
Figure 5. Determination of hydroxyl partial order. Linear regression of ln(kapp_U) as a function of
ln([OH]).
The coefficient of determination is 0.995. The partial order of [OH] can be round up to 1. Table 2
presents the final rate equation with the thermodynamic data of the intermediate state. The partial
order of hydroxyl and isocyanate were both equal to 1. This result is in perfect agreement with the
results that were found in the literature [31,32].
The energy of activation (44 kJ/mol) is in good agreement with the results from the literature. The
energy of activation reported for a reaction between phenyl isocyanate and 2-butanol is 41 kJ/mol [32
]
and 52 kJ/mol [33] for a reaction with or without xylene as solvent, respectively. The reaction rate
− −1 −1
3
constant that is presented in Table 2 (1.0
×
10 L mol min ) is six times smaller than data from
the literature [32] for the reaction between secondary alcohol and phenylisocyanate. The 2-butanol is
less sterically hindered than the mono-alcohols that were derived from methyl oleate. For instance,
the reaction rate constant ratio between 2-hexanol and 3-hexanol was recently proved to be 1.5 for a
reaction with an isocyanate [34].
−
3
−1
−1
From the value of the activation energy and the reaction constant of 6.0
×
10 L mol min
enthalpy, entropy, and free energy were calculated with Equations (12)–(14), respectively. The large
negative entropy of activation is an indication of the dissociation of the charged centers in the activation
complex [33]. The difference of free energy of activation can be explained by better stabilization of the
intermediate complex by toluene when compared to xylene [35].
◦
The rate constant is similar to the one that was found for EVHOSO-EtOH with 20 C of difference.
◦
−2
L
By applying the Arrhenius Equation (11), the reaction rate at 70 C for urethane formation is 1
×
10
−1
−1
mol min . The reaction between hydroxyl and aromatic isocyanate is faster than the RO by ethanol
of a di-substituted epoxide. The urethane formation is not catalyzed. Catalysts, such as tertiary amine

Molecules 2019, 24, 4332
11 of 20
or tin salt, substantially reduce the E
a
, which increases the reaction rate by several orders of magnitude.
The frequency factor makes the rate of the RO with ethanol faster with temperature, despite the
‡
difference of activation energies (Figure S7). The
∆
S of the urethane formation is higher than the one
of RO with ethanol. The transition state has fewer degrees of freedom in urethane formation.
Table 2. Thermodynamics data of urethane formation by the reaction between phenyl isocyanate and
EVHOSO with acetic acid (EVHOSO-AA).
Ref [32] 1
PIC /EVHOSO-AA
2
Thermodynamics Data
1
1
Equation rate
r = kAA ∗ [OH] ∗ [NCO]
◦
k (25 C)
L mol min )
.0 × 10−
3
(1.0 ± 0.05) × 10
(5.3 ± 0.3) × 10
−3
6
−
1
−1
(
4
Frequency factor (min)
Ea (kJ/mol)
41
39
−198
44 ± 2
‡ ◦
H (50 C) (kJ/mol)
∆
∆
∆
41 ± 2
‡
◦
S (50 C) (J/mol/K)
−160 ± 8
92 ± 5
‡
◦
G (50 C) (kJ/mol)
103
1
Reaction between 2-propanol and phenylisocyanate in xylene, 2 Phenylisocyanate.
The kinetics and thermodynamics parameters of the reaction between a fatty ester alcohol and an
aromatic isocyanate were determined. These parameters are specific to the studied reaction and they
cannot be generalized to all isocyanates and hydroxyl substrates.
3
.4. Study of the Reactivity with Different Isocyanates Structures
This section aims to compare the reactivity of different isocyanate and fatty ester alcohol, since
different chemical architectures are available for polyols and/or polyisocyanates to produce a broad
range of materials for the polyurethane industry. The reactivity of the system is an important factor,
especially for foam, where the polyaddition must be fast.
Different isocyanate structures were compared in terms of reactivity with our model EVHOSO-AA:
aromatic, aliphatic, and cycloaliphatic. The results are presented in Figure 6 once again demonstrated
the higher reactivity of the aromatic isocyanate on agreement with previous results [36,37].

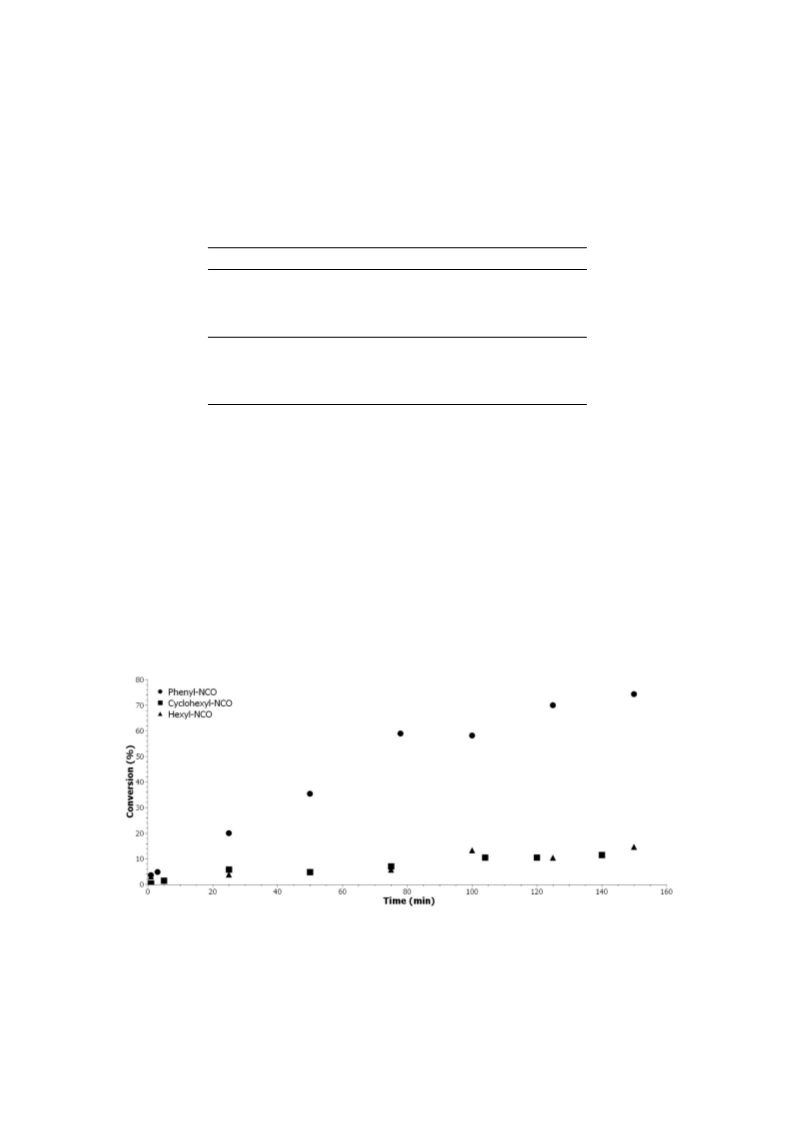

Figure 6. Reactivity comparison in urethane formation with EVHOSO-AA of different isocyanate
structure: aromatic (ꢀ), aliphatic (N), and cyclo-aliphatic (ꢁ).
The reactions from Figure 6 were performed in the same conditions with an excess of hydroxyl
moiety. Both aliphatic isocyanates have the same reactivity toward hydroxyl. The steric hindrance due
to the cycle (cyclo-aliphatic chemical) does not influence the beginning of the reaction (less than 15%

Molecules 2019, 24, 4332
12 of 20
of conversion) with a secondary alcohol. The higher reactivity of aromatic isocyanate is due to the
tautomer conformation that is presented in Figure 7.

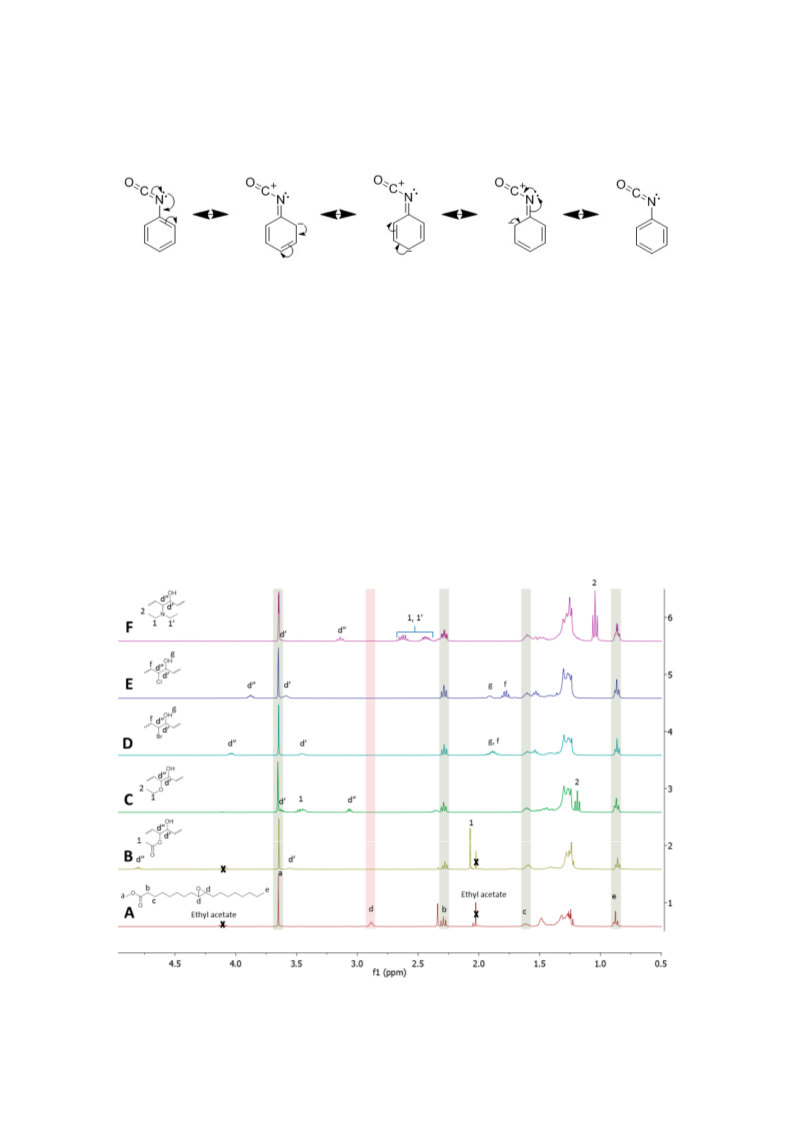

Figure 7. Tautomer conformation of phenyl isocyanate.
The delocalization of the lone pair of electrons of the nitrogen atom on the aromatic cycle is
increasing the electrophile character of the carbon [36,37]. It can be easily attacked by nucleophile like
hydroxyl moieties. Our model that is based on fatty ester hydroxyl confirms this trend. For foams,
the necessary fast polyaddition can be reached by the use of p-MDI, due to its aromatic character,
which also leads to higher mechanical properties. Our model reaction confirms that, despite the
steric hindrance of the aromatic moieties and the secondary character of the corresponding hydroxyl,
aromatic isocyanates are the most suitable chemical for foam formulation with hydroxyl that is derived
from fatty esters.
3
.5. Synthesis of a Mono-Alcohol Model from Epoxidized Fatty Ester
RO can be conducted with alcohol, carboxylic acid, hydrogen halide, and secondary amine
leading, respectively, to ether, ester, halide, and tertiary amine groups plus a secondary hydroxyl group.
A series of different alcohols that were derived from fatty ester were synthesized by epoxide RO, with
ethanol, acetic acid, HCl, HBr, and DEA (Figure 8).
Figure 8. NMR Spectrum of the initial epoxidized fatty methyl ester (
A) and after the RO with acetic
acid (B), ethanol (C), hydrobromic acid (D), hydrochloric acid (E), and diethylamine (F).

Molecules 2019, 24, 4332
13 of 20
There is a clear disappearance of the epoxide signal (d) located at 2.8 ppm on the NMR spectrum
for all the RO reagents. Signals that are characteristic of the proton located in alpha position to the
newly created hydroxyl (d’) are located in the 3.2–3.7 ppm zone. The signal located at 3.7 ppm, which
is characteristic of the methyl close to the fatty ester bond (a), is constant in all products indicating
non-significant ester breaking by transesterification, hydrolysis, or amidation. The RO protocols
that were developed with the EVHOSO model molecule are efficient and they cause no significant
ester bond breaking. These characteristics are important for the RO of more complex oils, such as
triglycerides bearing several epoxide groups.
3
.6. Evaluation of the Potential from Alcohols Derived from Fatty Acid in Polyurethane Application
The reactivity toward isocyanate of different models based on hydroxyl groups was investigated.
The potential of the previously synthesized model alcohol in a urethane material was investigated
through the scope of the reactivity. The reactions were carried out with a constant concentration of
hydroxyl and isocyanate. The phenyl isocyanate concentration was followed over time by taking
aliquots of the reaction. The results that are presented in Figure 9 show a clear tendency of reactivity with
this evolution from the lowest to the highest, EVHOSO-HCl/HBr < EVHOSO-AA < EVHOSO-EtOH
<< EVHOSO-DEA.

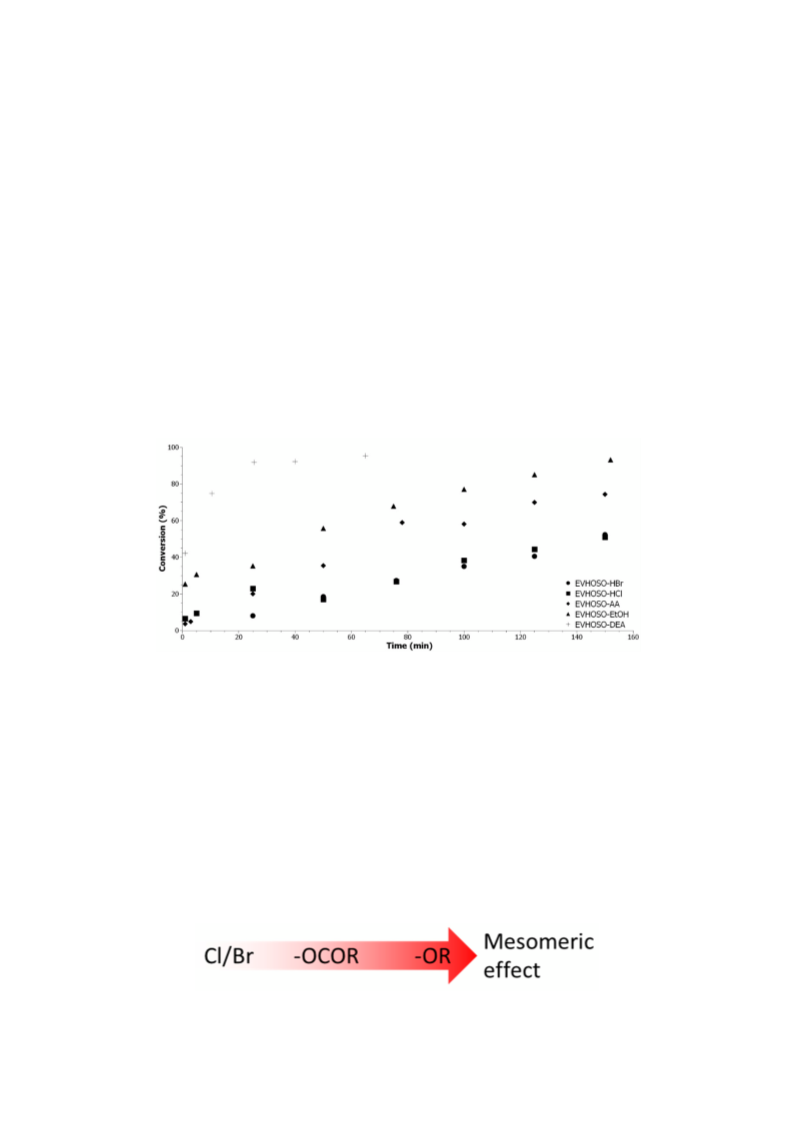

Figure 9. Reactivity comparison in urethane formation with phenyl isocyanate with different RO
FAMEVHOSO: EVHOSO-HBr (ꢀ), EVHOSO-HCl (ꢁ), EVHOSO-AA (ꢀ), EVHOSO-EtOH (N), and
EVHOSO-DEA (+).
As clearly demonstrated, the aromatic isocyanates are very reactive toward nucleophilic attack.
The surrounding of the active hydrogen group impacts the reactivity. The electron releasing groups
increase the electron density of the hydroxyl by mesomeric or inductive effect. The studied groups
have an inductive withdrawing effect. Except for tertiary amine, they are all electron releasing groups
by mesomeric effect [38]. In general, the mesomeric effect is predominant. Furthermore, the inductive
effect is decreasing with distance [39]. In our case, the two carbons distance between the inductive
electron withdrawing group and the hydroxyl decreased the effect. The reactivity is then explained
by the difference in strength of electron releasing groups according to the evolution that is presented
in Figure 10. The EVHOSO-EtOH has a richer electron density around the hydroxyl group when
compared to EVHOSO-AA and EVHOSO-Cl/Br.
Figure 10. Electron releasing effect by mesomeric effect.

Molecules 2019, 24, 4332
14 of 20
When considering the tertiary amine, the inductive effect reduced by the two carbons distance
is counterbalanced by a catalytic effect. In the polyurethane industry, the catalytic activity of the
amine by complexation with the isocyanate or by alcohol deprotonation is well established [40–42].
Afterwards, the experiments confirmed the catalytic activity of the EVHOSO-DEA with aromatic
or aliphatic isocyanate (Figure S8). The proximity of the reactive hydroxyl and tertiary amine must
increase the corresponding catalytic activity.
4
. Conclusions
This paper leads to different main and new results while considering the literature. An innovative
NMR method was developed and successfully applied to determine the complete kinetic parameters
of the EVHOSO RO reaction with ethanol. The calculated activation energy was determined, with 54
and 63 kJ/mol for the RO reaction with ethanol and acetic acid, respectively. This study led to a better
understanding of the acid catalyzed RO reaction of epoxides.
Model-alcohols were successfully synthetized by epoxide RO reaction with acetic acid, ethanol,
hydrogen halide, and diethylamine. The reactivity comparison with the phenyl isocyanate shows a clear
tendency, with a clear evolution from the lowest to the highest, EVHOSO-HCl/HBr < EVHOSO-AA <
EVHOSO-EtOH << EVHOSO-DEA.
This work can be considered as a model to better understand the oleo-chemistry approaches
leading to biobased polyols. In this frame, the RO of multi-epoxidized oil with hydrogen halide,
ethanol and acetic acid, or diethylamine is leading to biobased reactive additives, polyols or catalysts,
respectively. The transition from model to practical application is often complex due to the limitations
of the model. However, these approaches offer new insights on the replacement of current catalysts,
additives, and polyols often fossil-based, used in the PUF industry, in order to revisit this chemistry.
In the future, the accuracy of the kinetic model for the RO reaction needs to be tested on more complex
oils. The reactivity of future triglyceride based polyols could be adjusted, depending on the RO reagent
used. The potential of each RO reaction to provide a biobased substitute for the actual additives or
polyols in the PUF industry could be investigated.
Supplementary Materials: The following are available online at http://www.mdpi.com/1420-3049/24/23/4332/s1.
−
1
Table S1: Lipid profile. Fatty acids distribution in unsaturated FAMEVHOSO. Table S2: k
5
(min ) with 30,
app_EtOH
◦
0 and 70 C and 4, 12 and 20 wt % of amberlyst. Figure S1: NMR Spectra of the FAMEVHOSO unsaturated.
®
Figure S2: NMR spectra of epoxidized FAMEVHOSO. Figure S3: Correlation between the mass of Amberlyst
5H and the proton quantity. Figure S4: Arrhenius law for the RO of FAMEVHOSO with ethanol at 4 ( ), 12 (
and 20 ( ) wt% of catalyst loading. Figure S5: Representation of the gap between theoretical and experimental
dosage of the NCO concentration. Figure S6: Determination of the kaap_U. Variation of ln([NCO] /[NCO]) in
1
ꢀ
N)
ꢀ
0
function of time at 1.24 (
Arrhenius equation to determine the temperature dependency of reaction rate for the urethane formation (
the RO with ethanol ( ). Figure S8: Conversion as a function of time for the reaction between phenyl isocyanate
and VHOSO-AA (ꢀ), Hexyl isocyanate and VHOSO-AA (ꢁ) and Hexyl isocyanate and VHOSO-DEA (ꢀ).
ꢀ
), 1.51 (
ꢁ
), 1.73 (
ꢀ
), 1.98 (
N
), 0.51 (
H
) and 0.72 (+)mol/L. Figure S7: Application of the
ꢀ
) and
ꢁ
Author Contributions: The following statements should be used “conceptualization, L.A. and J.P.; methodology,
J.P.; validation, L.A. and J.P.; formal analysis, J.P. and C.C.; investigation, J.P. and C.C.; resources, L.A.;
writing—original draft preparation, J.P.; writing—review and editing, Pr L.A., J.P. and C.C.; visualization,
J.P.; supervision, L.A. and J.P.; project administration, L.A.; funding acquisition, L.A.
Funding: This study was funded by the Programme d’investissements d’avenir (PIA) of Bpifrance.
Conflicts of Interest: The authors declare no conflict of interest.
Appendix A Method Development: Kinetics of Epoxide Ring-Opening by Acetic Acid
Appendix A.1 NMR Method for the Yield Determination
In the literature, the acetic acid rate law was determined by chemical dosage [20,21], and never by
NMR. A new NMR method was developed to determine the kinetic of RO reactions. The reaction
between EVHOSO and an excess of acetic acid was carried out in bulk. Aliquots were washed to

Molecules 2019, 24, 4332
15 of 20
remove the excess of acetic acid and then analyzed by NMR spectroscopy. The chemical shifts between
the EVHOSO and the ring-opened are defined and detectable (Figure A1).
Figure A1. NMR analysis of epoxidized FAMEVHOSO (T ) and the oil after 15, 35, 60, 120, 180, 240
0
◦
and 300 min. of reaction at 90 C with acetic acid.
The absence of singlet at 2.10 ppm indicates the efficiency of the aliquots washing. The signals of
the backbone’s protons of the methyl fatty ester were constant while the integration of the protons d
adjacent to the epoxide was decreased over time. Signals of protons characteristic of the VHOSO-AA
d’, d” and 1 were increased over time indicating a progression of the reaction until completion. Among
the three signals indicating the progress of the reaction, the signal 1 is not specific to the RO reaction
because it can be the result of transesterification. The signals of free acetic and ethyl acetate are close.
The signal d” is too close to the signal of the methyl ester to be quantitative. The signal d’ was chosen
to calculate the yield by comparison with the d signal, according to Equation (A1):
I
0
d
Yield(%) = χ = 1
(A1)
.66
2
where I is the integration of the d’ signal, 1.66 is the integration of the d signal on the EVHOSO. Based
d’
on this calculation the determination of the different partial orders and the activation energy were
accomplished and compared to the literature for a validation method.
Appendix A.2 Determination of the Epoxide Partial Order
The reaction is done without catalyst, the Equations (3) and (4) applied to the acetic acid become
Equation (A2):
[
Ep]
dt
α
−
d
= kapp_AA ∗ [Ep]
(A2)

Molecules 2019, 24, 4332
16 of 20
where [Ep] is the concentration of epoxide over time,
α
the partial order of [Ep]. kapp_AA is detailed by
Equation (A3):
β
kapp_AA = kAA ∗ [AA]
(A3)
where kAA is the rate constant of the reaction, [AA] the concentration of acetic acid and
order of [AA].
β
the partial
The epoxide partial order was determined by variation of the temperature with an excess of acetic
acid. The pseudo first order was applied by introducing a large excess (11 eq) of acetic acid.
The integration of the Equation (A2) with α = 1 gives Equation (A4):
[
Ep]0
1
ln(
) = ln(
) = kapp_AA ∗ t
(A4)
[
Ep]
1 − χ
where
χ is the yield of the reaction and t the time in minute. The logarithm of [Ep] /[Ep] was represented
0
as a function of time in Figure A2. The linear regression fit the experimental data with a correlation
◦
◦
coefficient of 0.85 for 110 C, 0.99 for 90 and 70 C, respectively. The lack of correlation at high
temperature is the result of the fast rates of reaction and so an increased error and the side reactions.

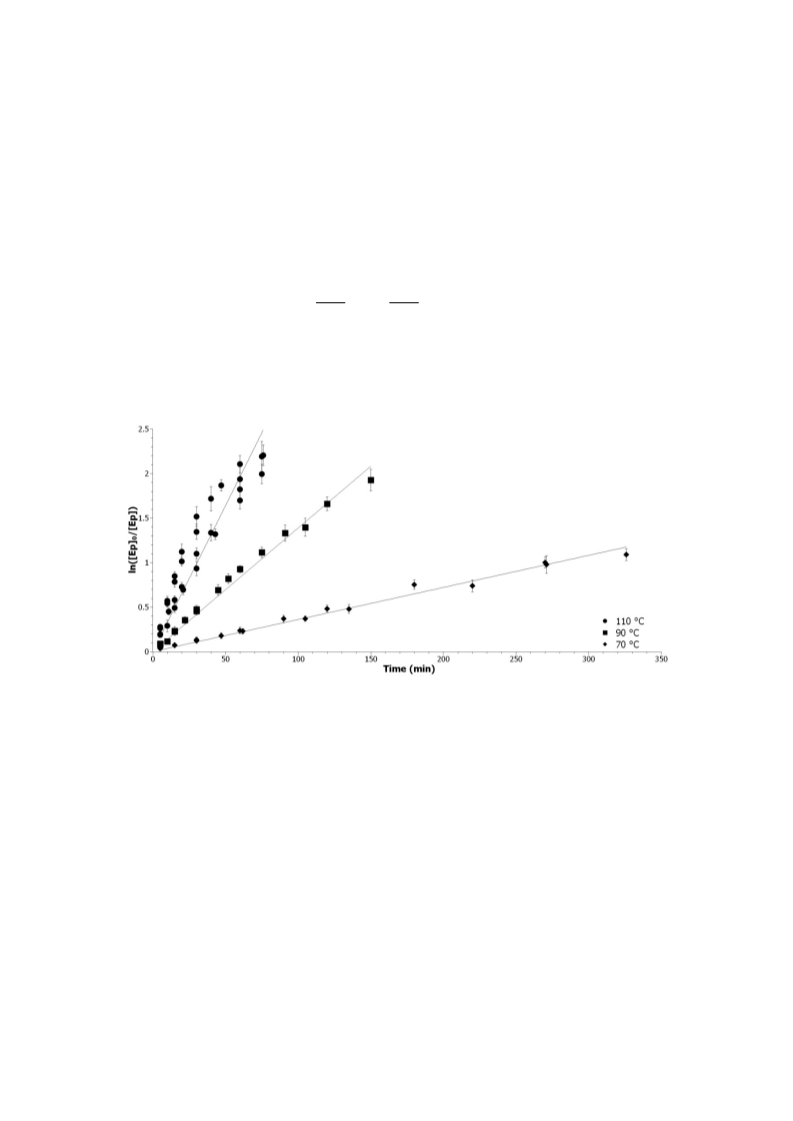

Figure A2. Determination of the epoxide partial order. Representation of ln([Ep]/[Ep] ) as a function of
0
◦
◦
◦
time at 70 C (ꢀ), 90 C (N) and 110 C (ꢀ).
The model of a partial order of 1 for the epoxide is well confirmed by experiments at different
temperatures. The precision diminishes when the conversion is less than 20% due to the noise on the
NMR spectra. The average NMR precision on the conversion is around 5% on the 20–95% interval.
The precision is similar to the one obtained in previous studies [20,21].
Appendix A.3 Determination of the Acetic Acid Partial Order
The determination of the acetic acid partial order is performed by varying the concentration of
acetic acid while maintaining the great excess compared to epoxide. The acetic acid concentration
was set at 8.6, 12.8 or 16.6 mol/L, by diluting with ethyl acetate. To determined kapp_AA, the linear
regression of ln([Ep] /[Ep]) in function of time was plotted (Figure A3).
0

Molecules 2019, 24, 4332
17 of 20

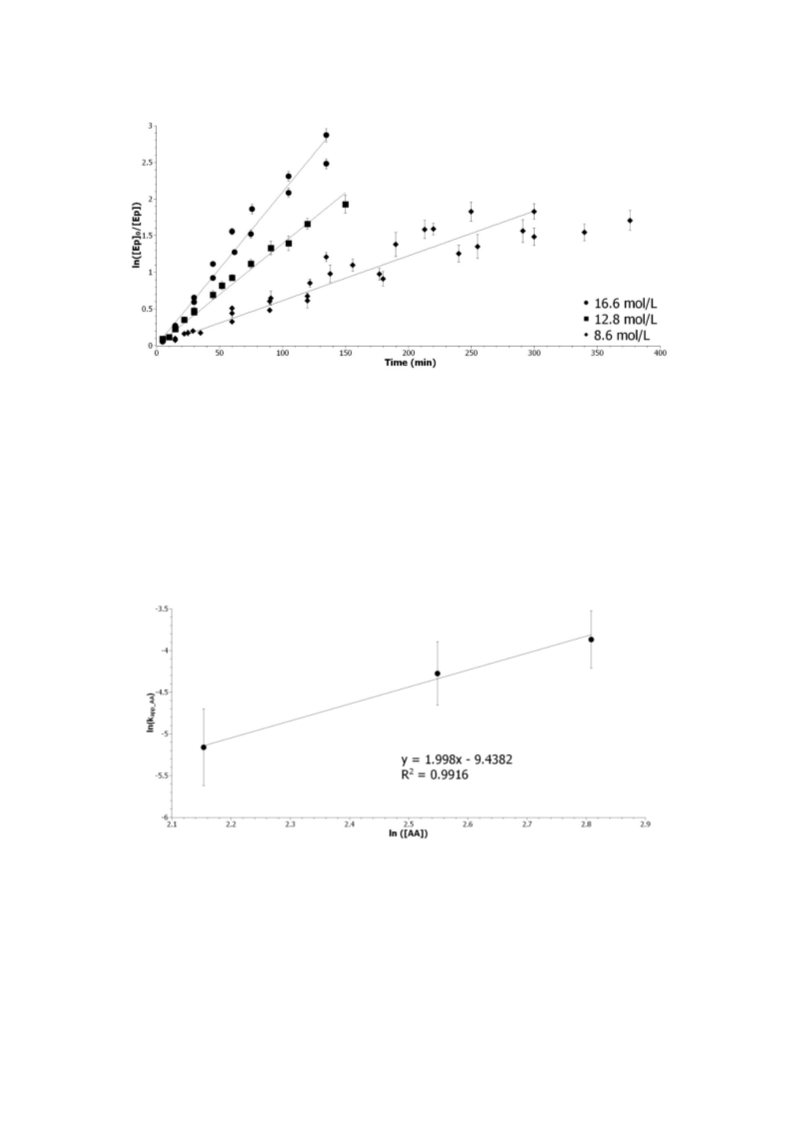

Figure A3. Determination of the kapp_AA with 8.6 mol/L (
acetic acid.
ꢀ), 12.8 mol/L (N) and 16.6 mol/L (ꢀ) of
For the highest concentration, the coefficient of correlation is superior to 0.97. For the smallest
concentration, the data points are sparser, due to the logarithm character of the model. The rate of
reaction decreases at the end and reaches a plateau. In Equation A2, kapp_AA depends only on [AA], the
other factors are constant. The logarithm of Equation A2 gives the Equation (A5).
ln(kapp_AA) = ln(kAA) + β ∗ ln([AA]),
(A5)
The combination of Equation A5 and the kapp_AA obtained at different [AA], linear regression of
the logarithm of kapp_AA as a function of the [AA] was presented in Figure A4, in order to determine β.
Figure A4. Determination of the acetic acid partial order. Representation of ln(kapp_AA) as a function
of ln ([AA]).
The partial order for [AA] was determined to be 2. The overall kinetic rate is expressed as
Equation (A6):
2
r = k ∗ [Ep] ∗ [AA] ,
(A6)
which is in agreement with the previous results found in the literature [20
,
21]. The rate constant k can
2
be calculated from all the k
by dividing them by [AA] . The average k was calculated at 70,
app_AA
◦
90 and 110 C. The temperature dependence of k was modeled with an Arrhenius law described by

Molecules 2019, 24, 4332
18 of 20
Equation (11). The linear regression of ln(kAA) in function of 1/T (Figure A5) was used to determined
EA_AA
.

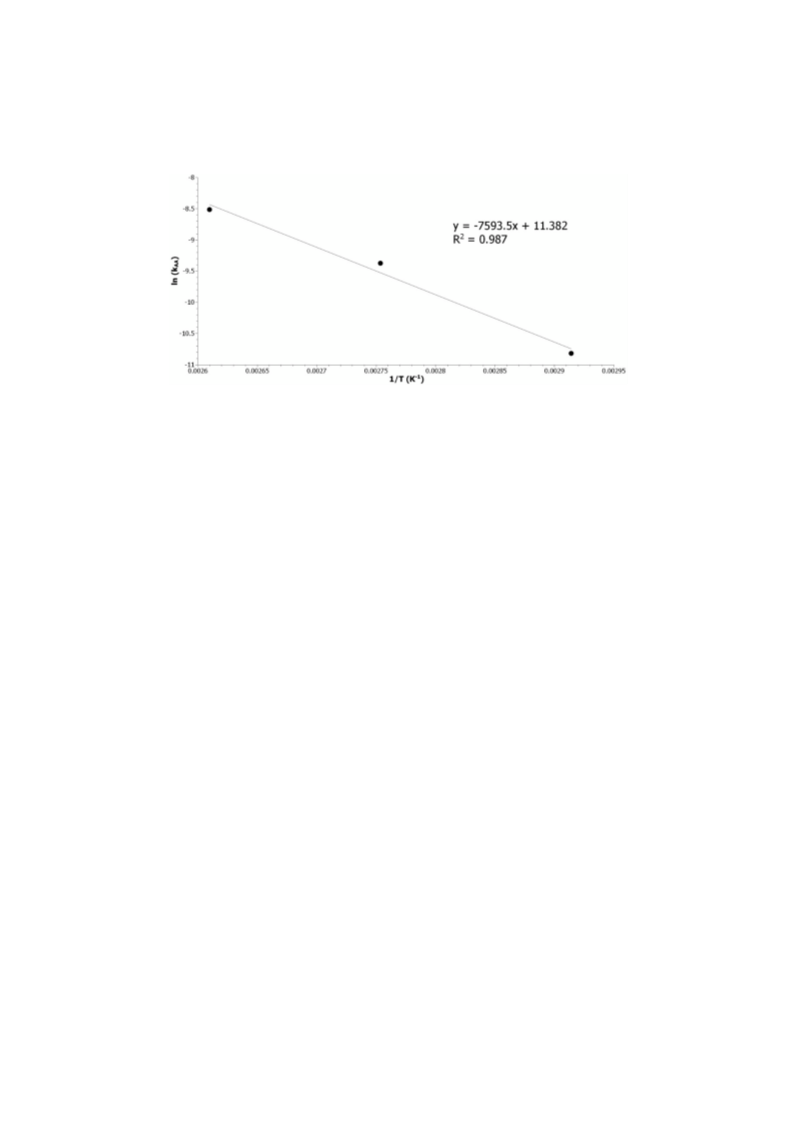

Figure A5. Determination of EA_AA by plotting the ln(kAA) as a function of the inverse of
the temperature.
The energy of activation (63 kJ/mol) is in good agreement with results from the literature.
The energies of activation reported are 66 kJ/mol [20] and 73 kJ/mol [21] for the RO with acetic acid of
epoxidized soybean oil or epoxidized methyl ester of palm oil, respectively. The RO of disubstituted
epoxide by acetic acid was studied. Despite the difference in systems and methods, the kinetic rate
was found to be the same as the one in the literature and the calculated activation energy is close to the
one matching our system. This is validating our NMR method for the determination of the reaction
rate. Thus, it can be applied to the study of the RO of ethanol with acid catalysis.
References
1.
2.
3.
4.
Bayer, O. Das Di-Isocyanat-Polyadditionsverfahren (Polyurethane). Angew. Chem. 1947, 59, 257–272.
CrossRef]
Furtwengler, P.; Boumbimba, R.M.; Av
Polyurethane Foams Presenting Anisotropic Behavior. Macromol. Mater. Eng. 2018, 303, 1700501. [CrossRef]
Obi, B.E. Fundamentals of Polymeric Foams and Classification of Foam Types. In Polymeric Foams Structure-
Property-Performance; Elsevier: Amsterdam, The Netherlands, 2018; pp. 93–129. ISBN 978-1-4557-7755-6.
Zhang, C.; Garrison, T.F.; Madbouly, S.A.; Kessler, M.R. Recent advances in vegetable oil-based polymers
and their composites. Prog. Polym. Sci. 2017, 71, 91–143. [CrossRef]
[
é
rous, L. Elaboration and Characterization of Advanced Biobased
5
6
.
.
Petrovic, Z. Polyurethanes from Vegetable Oils. Polym. Rev. 2008, 48, 109–155. [CrossRef]
Maisonneuve, L.; Chollet, G.; Grau, E.; Cramail, H. Vegetable oils: A source of polyols for polyurethane
materials. OCL 2016, 23, D508. [CrossRef]
7
8
9
1
1
1
.
.
.
Pfister, D.P.; Xia, Y.; Larock, R.C. Recent Advances in Vegetable Oil-Based Polyurethanes. ChemSusChem
2
011, 4, 703–717. [CrossRef]
Takeuchi, M.; Kishino, S.; Tanabe, K.; Hirata, A.; Park, S.-B.; Shimizu, S.; Ogawa, J. Hydroxy fatty acid
production by Pediococcus sp. Eur. J. Lipid Sci. Technol. 2013, 115, 386–393. [CrossRef]
Dur
án Pachón, L.; Gamez, P.; van Brussel, J.J.M.; Reedijk, J. Zinc-catalyzed aminolysis of epoxides. Tetrahedron
Lett. 2003, 44, 6025–6027. [CrossRef]
0. Biswas, A.; Adhvaryu, A.; Gordon, S.H.; Erhan, S.Z.; Willett, J.L. Synthesis of Diethylamine-Functionalized
Soybean Oil. J. Agric. Food Chem. 2005, 53, 9485–9490. [CrossRef]
1. Yang, L.-T.; Zhao, C.-S.; Dai, C.-L.; Fu, L.-Y.; Lin, S.-Q. Thermal and Mechanical Properties of Polyurethane
Rigid Foam Based on Epoxidized Soybean Oil. J. Polym. Environ. 2012, 20, 230–236. [CrossRef]
2. Dai, H.; Yang, L.; Lin, B.; Wang, C.; Shi, G. Synthesis and Characterization of the Different Soy-Based Polyols
by Ring Opening of Epoxidized Soybean Oil with Methanol, 1,2-Ethanediol and 1,2-Propanediol. J. Am. Oil
Chem. Soc. 2009, 86, 261–267. [CrossRef]

Molecules 2019, 24, 4332
19 of 20
1
1
1
3. Chen, R.; Zhang, C.; Kessler, M.R. Polyols and polyurethanes prepared from epoxidized soybean oil
ring-opened by polyhydroxy fatty acids with varying OH numbers. J. Appl. Polym. Sci. 2015, 132. [CrossRef]
4. Turco, R.; Tesser, R.; Vitiello, R.; Russo, V.; Andini, S.; Serio, M.D. Synthesis of Biolubricant Basestocks from
Epoxidized Soybean Oil. Catalysts 2017, 7, 309. [CrossRef]
5. Shuo, X.; Ligong, C.; Lan, X.; Liang, L.; Xin, Y.; Liye, Z. Diester Derivatives from Chemically Modified Waste
Cooking Oil as Substitute for Petroleum Based Lubricating Oils. China Pet. Process. Petrochem. Technol. 2015
,
1
7, 76–83.
1
1
1
1
6. Schuster, H.; Rios, L.A.; Weckes, P.P.; Hoelderich, W.F. Heterogeneous catalysts for the production of new
lubricants with unique properties. Appl. Catal. A Gen. 2008, 348, 266–270. [CrossRef]
7. Durbetaki, A.J. Direct Titration of Oxirane Oxygen with Hydrogen Bromide in Acetic Acid. Anal. Chem.
1
956, 28, 2000–2001. [CrossRef]
8. Guo, A.; Cho, Y.; Petrovi c´ , Z.S. Structure and properties of halogenated and nonhalogenated soy-based
polyols. J. Polym. Sci. Part A Polym. Chem. 2000, 38, 3900–3910. [CrossRef]
9. Petrovi c´ , Z.S.; Zlatani c´ , A.; Lava, C.C.; Sinadinovi c´ -Fišer, S. Epoxidation of soybean oil in toluene with
peroxoacetic and peroxoformic acids—kinetics and side reactions. Eur. J. Lipid Sci. Technol. 2002, 104,
2
93–299. [CrossRef]
2
2
2
2
0. Zaher, F.A.; El-Mallah, M.H.; El-Hefnawy, M.M. Kinetics of oxirane cleavage in epoxidized soybean oil. J. Am.
Oil Chem. Soc. 1989, 66, 698–700. [CrossRef]
1. Gan, L.H.; Goh, S.H.; Ooi, K.S. Kinetic studies of epoxidation and oxirane cleavage of palm olein methyl
esters. J. Am. Oil Chem. Soc. 1992, 69, 347–351. [CrossRef]
2. Arbenz, A.; Perrin, R.; Avérous, L. Elaboration and Properties of Innovative Biobased PUIR Foams from
Microalgae. J. Polym. Environ. 2017, 26, 254–262. [CrossRef]
3. Palaskar, D.V.; Boyer, A.; Cloutet, E.; Le Meins, J.-F.; Gadenne, B.; Alfos, C.; Farcet, C.; Cramail, H. Original
diols from sunflower and ricin oils: Synthesis, characterization, and use as polyurethane building blocks.
J. Polym. Sci. Part A Polym. Chem. 2012, 50, 1766–1782. [CrossRef]
2
4. Harry-O’kuru, R.E.; Tisserat, B.; Gordon, S.H.; Gravett, A. Osage Orange (Maclura pomifera L.) Seed Oil
Poly(
α-hydroxydibutylamine) Triglycerides: Synthesis and Characterization. J. Agric. Food Chem. 2015, 63,
6
588–6595. [CrossRef]
2
2
5. Parker, R.E.; Isaacs, N.S. Mechanisms of Epoxide Reactions. Chem. Rev. 1959, 59, 737–799. [CrossRef]
6. Espenson, J.H. Chemical Kinetics and Reaction Mechanisms, 2nd ed.; McGraw Hill series in advanced chemistry;
McGraw Hill: New York, NY, USA, 1995; ISBN 978-0-07-020260-3.
2
2
2
7. Kenaston, C.B.; Wilbur, K.M.; Ottolenghi, A.; Bernheim, F. Comparison of methods for determining fatty
acid oxidation produced by ultraviolet irradiation. J. Am. Oil Chem. Soc. 1955, 32, 33–35. [CrossRef]
8. Rios, L.A. Heterogeneously Catalyzed Reactions with Vegetable Oils: Epoxidation and Nucleophilic Epoxide
Ring-Opening with Alcohols; Technology RWTH-Aachen: Aachen, Germany, 2003.
9. Menzinger, M.; Wolfgang, R. The Meaning and Use of the Arrhenius Activation Energy. Angew. Chem. Int.
Ed. Eng. 1969, 8, 438–444. [CrossRef]
3
3
0. Avery, H.E. Basic Reaction Kinetics and Mechanisms; Macmillan: London, UK, 1974; ISBN 978-0-333-15381-9.
1. Burkus, J.; Eckert, C.F. The Kinetics of the Triethylamine-catalyzed Reaction of Diisocyanates with 1-Butanol
in Toluene. J. Am. Chem. Soc. 1958, 80, 5948–5950. [CrossRef]
3
3
3
2. Dyer, E.; Taylor, H.A.; Mason, S.J.; Samson, J. The Rates of Reaction of Isocyanates with Alcohols. I. Phenyl
Isocyanate with 1- and 2-Butanol. J. Am. Chem. Soc. 1949, 71, 4106–4109. [CrossRef]
3. Lovering, E.G.; Laidler, K.J. Kinetic Studies of Some Alcohol-Isocyanate Reactions. Can. J. Chem. 1962, 40,
3
1–36. [CrossRef]
0
.; Purgel, M.; Zsuga, M.; Kéki, S. Kinetics of Uncatalyzed Reactions of 2,4 - and
4. Nagy, L.; Nagy, T.; Kuki,
Á
0
4
6
,4 -Diphenylmethane-Diisocyanate with Primary and Secondary Alcohols. Int. J. Chem. Kinet. 2017, 49,
43–655. [CrossRef]
3
3
5. SATO, M. The Rate of the Reaction of Isocyanates with Alcohols. II. J. Org. Chem. 1962, 27, 819–825.
CrossRef]
6. Baker, J.W.; Holdsworth, J.B. 135. The mechanism of aromatic side-chain reactions with special reference
to the polar effects of substituents. Part XIII. Kinetic examination of the reaction of aryl isocyanates with
methyl alcohol. J. Chem. Soc. (Resumed) 1947, 713. [CrossRef]
[

Molecules 2019, 24, 4332
20 of 20
3
3
7. Sato, M. The Rates of Reaction of 1-Alkenyl Isocyanates with Methanol. J. Am. Chem. Soc. 1960, 82, 3893–3897.
CrossRef]
8. Taft, R.W.; Ehrenson, S.; Lewis, I.C.; Glick, R.E. Evaluation of Resonance Effects on Reactivity by Application
of the Linear Inductive Energy Relationship.1,2 VI. Concerning the Effects of Polarization and Conjugation
on the Mesomeric Order. J. Am. Chem. Soc. 1959, 81, 5352–5361. [CrossRef]
[
3
4
9. Stock, L.M. The origin of the inductive effect. J. Chem. Educ. 1972, 49, 400. [CrossRef]
0. Ionescu, M. Chemistry and Technology of Polyols for Polyurethanes; Rapra Technology: Shawbury, Shropshire,
UK, 2005; ISBN 978-1-60119-664-4.
4
4
1. Van Maris, R.; Tamano, Y.; Yoshimura, H.; Gay, K.M. Polyurethane Catalysis by Tertiary Amines. J. Cell. Plast.
2
005, 41, 305–322. [CrossRef]
2. Silva, A.L.; Bordado, J.C. Recent Developments in Polyurethane Catalysis: Catalytic Mechanisms Review.
Catal. Rev. 2004, 46, 31–51. [CrossRef]
Sample Availability: Not available.
©
2019 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access
article distributed under the terms and conditions of the Creative Commons Attribution
(CC BY) license (http://creativecommons.org/licenses/by/4.0/).
