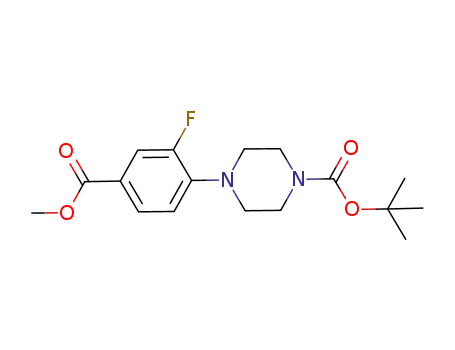

1-Piperazinecarboxylic acid, 4-[2-fluoro-4-(methoxycarbonyl)phenyl]-, 1,1-dimethylethyl ester

Base Information

• Chemical Name: 1-Piperazinecarboxylic acid, 4-[2-fluoro-4-(methoxycarbonyl)phenyl]-, 1,1-dimethylethyl ester
• CAS No.: 570408-10-5
• Molecular Formula: C17H23FN2O4
• Molecular Weight: 338.379
• Mol file: 570408-10-5.mol

Synonyms:tert-butyl 4-[2-fluoro-4-(methoxycarbonyl)phenyl]piperazine-1-carboxylate;tert-butyl 4-(2-fluoro-4-(methoxycarbonyl)phenyl)piperazine-1-carboxylate;

Chemical Property of 1-Piperazinecarboxylic acid, 4-[2-fluoro-4-(methoxycarbonyl)phenyl]-, 1,1-dimethylethyl ester

Chemical Property:

• Boiling Point: 454.0±45.0 °C(Predicted)
• PSA: 59.08000
• Density: 1.199±0.06 g/cm3(Predicted)
• LogP: 2.67230

Purity/Quality:

Safty Information:

• Pictogram(s):
• Hazard Codes:

MSDS Files:

SDS file from LookChem

Useful:

Technology Process of 1-Piperazinecarboxylic acid, 4-[2-fluoro-4-(methoxycarbonyl)phenyl]-, 1,1-dimethylethyl ester

There total 5 articles about 1-Piperazinecarboxylic acid, 4-[2-fluoro-4-(methoxycarbonyl)phenyl]-, 1,1-dimethylethyl ester which guide to synthetic route it. The literature collected by LookChem mainly comes from the sharing of users and the free literature resources found by Internet computing technology. We keep the original model of the professional version of literature to make it easier and faster for users to retrieve and use. At the same time, we analyze and calculate the most feasible synthesis route with the highest yield for your reference as below:

synthetic route:

Reference yield: 44.9%

methyl 3,4-difluorobenzoate (369-25-5) + 1-t-Butoxycarbonylpiperazine (57260-71-6) → tert-butyl 4-(2-fluoro-4-(methoxycarbonyl)phenyl)piperazine-1-carboxylate (570408-10-5)

Guidance literature:

With potassium carbonate; at 90 ℃; for 24h; Inert atmosphere;

Reference yield:

methyl 3-fluoro-4-(piperazin-1-yl)benzoate (234082-10-1) + di-tert-butyl dicarbonate (24424-99-5) → tert-butyl 4-(2-fluoro-4-(methoxycarbonyl)phenyl)piperazine-1-carboxylate (570408-10-5)

Guidance literature:

With dmap; In 1,2-dichloro-ethane; at 20 ℃; for 0.166667h;

Reference yield:

1,1-dimethylethyl 4-(4-((Z)-1-aminoethylideneaminooxycarbonyl)-2-fluorophenyl)piperazine-1-carboxylate (1164139-98-3) + diazomethyl-trimethyl-silane (18107-18-1) → tert-butyl 4-(2-fluoro-4-(methoxycarbonyl)phenyl)piperazine-1-carboxylate (570408-10-5)

Guidance literature:

1,1-dimethylethyl 4-(4-((Z)-1-aminoethylideneaminooxycarbonyl)-2-fluorophenyl)piperazine-1-carboxylate; diazomethyl-trimethyl-silane; In methanol; hexane; benzene;

With acetic acid; In methanol; hexane; benzene;

upstream raw materials:

methyl 3-fluoro-4-(piperazin-1-yl)benzoate

di-tert-butyl dicarbonate

1,1-dimethylethyl 4-(4-((Z)-1-aminoethylideneaminooxycarbonyl)-2-fluorophenyl)piperazine-1-carboxylate

diazomethyl-trimethyl-silane

Downstream raw materials:

tert-butyl 4-[2-chloro-6-fluoro-4-(methoxycarbonyl)phenyl]piperazine-1-carboxylate

4-(4-(tert-butoxycarbonyl)piperazin-1-yl)-3-fluorobenzoic acid
