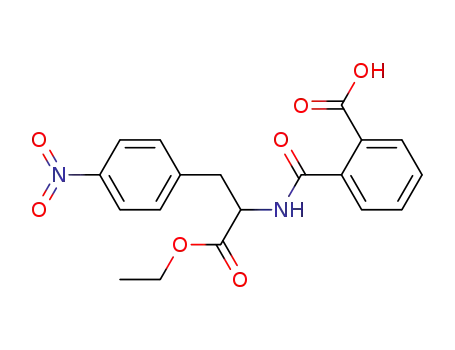

alpha-ethyl N-(2-carboxybenzoyl)-4-nitro-3-phenyl-L-alaninate

Base Information

• Chemical Name: alpha-ethyl N-(2-carboxybenzoyl)-4-nitro-3-phenyl-L-alaninate
• CAS No.: 93963-19-0
• Molecular Formula: C19H18 N2 O7
• Molecular Weight: 386.361
• Hs Code.: 2924299090
• Mol file: 93963-19-0.mol

Synonyms:Hippuricacid, o-carboxy-a-p-nitrobenzyl-,ethyl ester (6CI); Phthalamic acid, N-(a-carboxy-p-nitrophenethyl)-, a-ethyl ester (7CI)

Chemical Property of alpha-ethyl N-(2-carboxybenzoyl)-4-nitro-3-phenyl-L-alaninate

Chemical Property:

• Melting Point: 180-182 °C (acetone/ligroine)
• Boiling Point: 653.0±55.0 °C (760 mmHg)
• PSA: 138.52000
• Density: 1.356±0.06 g/cm3 (20 °C, 760 mmHg)
• LogP: 3.11130

Purity/Quality:

99% ^*data from raw suppliers

Safty Information:

• Pictogram(s):
• Hazard Codes:

MSDS Files:

SDS file from LookChem

Useful:

Technology Process of alpha-ethyl N-(2-carboxybenzoyl)-4-nitro-3-phenyl-L-alaninate

There total 3 articles about alpha-ethyl N-(2-carboxybenzoyl)-4-nitro-3-phenyl-L-alaninate which guide to synthetic route it. The literature collected by LookChem mainly comes from the sharing of users and the free literature resources found by Internet computing technology. We keep the original model of the professional version of literature to make it easier and faster for users to retrieve and use. At the same time, we analyze and calculate the most feasible synthesis route with the highest yield for your reference as below:

synthetic route:

Reference yield:

→ N-(2-carboxy-benzoyl)-4-nitro-DL-phenylalanine ethyl ester (93963-19-0)

Guidance literature:

/BRN= 3227576/;

DOI:10.1039/jr9540002409

Reference yield:

phthalic anhydride (85-44-9) → N-(2-carboxy-benzoyl)-4-nitro-D-phenylalanine ethyl ester (93963-19-0)

Guidance literature:

With benzene;

DOI:10.1039/jr9540002409

Reference yield:

→ N-(2-carboxy-benzoyl)-4-nitro-L-phenylalanine ethyl ester (93963-19-0)

Guidance literature:

/BRN= 3227576/;

DOI:10.1039/jr9540002409

upstream raw materials:

phthalic anhydride

Downstream raw materials:

4-nitro-N,N-phthaloyl-D-phenylalanin-ethyl ester

N-phthalimido-4-nitro-L-phenylalanine ethyl ester

4-nitro-N,N-phthaloyl-DL-phenylalanin-ethyl ester

4-amino-N,N-phthaloyl-DL-phenylalanin-ethyl ester
