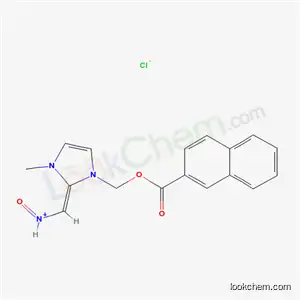

(E)-(1-methyl-3-{[(naphthalen-2-ylcarbonyl)oxy]methyl}-1,3-dihydro-2H-imidazol-2-ylidene)-N-oxomethanaminium chloride

Base Information

• Chemical Name: (E)-(1-methyl-3-{[(naphthalen-2-ylcarbonyl)oxy]methyl}-1,3-dihydro-2H-imidazol-2-ylidene)-N-oxomethanaminium chloride
• CAS No.: 117941-66-9
• Molecular Formula: C17H16ClN3O3
• Molecular Weight: 345.7802
• Mol file: 117941-66-9.mol

Synonyms:

Chemical Property of (E)-(1-methyl-3-{[(naphthalen-2-ylcarbonyl)oxy]methyl}-1,3-dihydro-2H-imidazol-2-ylidene)-N-oxomethanaminium chloride

Chemical Property:

• Vapor Pressure: 5.06E-09mmHg at 25°C
• Boiling Point: 470.4°Cat760mmHg
• Flash Point: 238.3°C
• Density: g/cm³

Purity/Quality:

Safty Information:

• Pictogram(s):
• Hazard Codes:

MSDS Files:

SDS file from LookChem

Useful:

Technology Process of (E)-(1-methyl-3-{[(naphthalen-2-ylcarbonyl)oxy]methyl}-1,3-dihydro-2H-imidazol-2-ylidene)-N-oxomethanaminium chloride

There total 4 articles about (E)-(1-methyl-3-{[(naphthalen-2-ylcarbonyl)oxy]methyl}-1,3-dihydro-2H-imidazol-2-ylidene)-N-oxomethanaminium chloride which guide to synthetic route it. The literature collected by LookChem mainly comes from the sharing of users and the free literature resources found by Internet computing technology. We keep the original model of the professional version of literature to make it easier and faster for users to retrieve and use. At the same time, we analyze and calculate the most feasible synthesis route with the highest yield for your reference as below:

synthetic route:

Reference yield:

2-<(hydroxyimino)methyl>-3-methyl-2-<(2'-naphthoyloxy)methyl>imidazolium iodide → 2-<(hydroxyimino)methyl>-3-methyl-2-<(2'-naphthoyloxy)methyl>imidazolium chloride (117941-66-9)

Guidance literature:

With Amberlite IRA-400 Cl(-) exchange resin; In water; Yield given;

DOI:10.1021/jm00122a034

Reference yield:

chloromethyl 2-naphthoate (49598-76-7) → 2-<(hydroxyimino)methyl>-3-methyl-2-<(2'-naphthoyloxy)methyl>imidazolium chloride (117941-66-9)

Guidance literature:

Multi-step reaction with 3 steps

1: NaI / acetone / 4 h

2: tetrahydrofuran

3: Amberlite IRA-400 Cl(-) exchange resin / H₂O

With Amberlite IRA-400 Cl(-) exchange resin; sodium iodide; In tetrahydrofuran; water; acetone;

DOI:10.1021/jm00122a034

Reference yield:

iodomethyl 2-naphthoate (117941-79-4) → 2-<(hydroxyimino)methyl>-3-methyl-2-<(2'-naphthoyloxy)methyl>imidazolium chloride (117941-66-9)

Guidance literature:

Multi-step reaction with 2 steps

1: tetrahydrofuran

2: Amberlite IRA-400 Cl(-) exchange resin / H₂O

With Amberlite IRA-400 Cl(-) exchange resin; In tetrahydrofuran; water;

DOI:10.1021/jm00122a034

upstream raw materials:

chloromethyl 2-naphthoate

iodomethyl 2-naphthoate

2-naphthaloyl chloride
