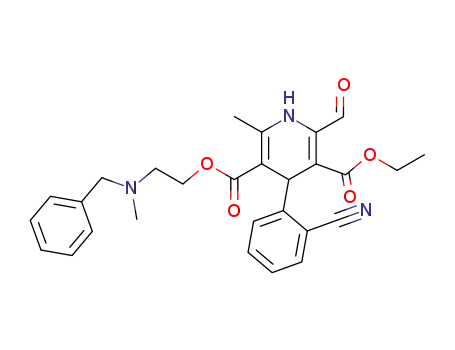

4-(2-Cyano-phenyl)-2-formyl-6-methyl-1,4-dihydro-pyridine-3,5-dicarboxylic acid 5-[2-(benzyl-methyl-amino)-ethyl] ester 3-ethyl ester

Base Information

• Chemical Name: 4-(2-Cyano-phenyl)-2-formyl-6-methyl-1,4-dihydro-pyridine-3,5-dicarboxylic acid 5-[2-(benzyl-methyl-amino)-ethyl] ester 3-ethyl ester
• CAS No.: 75206-40-5
• Molecular Formula: C₂₈H₂₉N₃O₅
• Molecular Weight: 487.555
• Mol file: 75206-40-5.mol

Synonyms:4-(2-Cyano-phenyl)-2-formyl-6-methyl-1,4-dihydro-pyridine-3,5-dicarboxylic acid 5-[2-(benzyl-methyl-amino)-ethyl] ester 3-ethyl ester

Chemical Property of 4-(2-Cyano-phenyl)-2-formyl-6-methyl-1,4-dihydro-pyridine-3,5-dicarboxylic acid 5-[2-(benzyl-methyl-amino)-ethyl] ester 3-ethyl ester

Chemical Property:

Purity/Quality:

Safty Information:

• Pictogram(s):
• Hazard Codes:

MSDS Files:

Useful:

Technology Process of 4-(2-Cyano-phenyl)-2-formyl-6-methyl-1,4-dihydro-pyridine-3,5-dicarboxylic acid 5-[2-(benzyl-methyl-amino)-ethyl] ester 3-ethyl ester

There total 4 articles about 4-(2-Cyano-phenyl)-2-formyl-6-methyl-1,4-dihydro-pyridine-3,5-dicarboxylic acid 5-[2-(benzyl-methyl-amino)-ethyl] ester 3-ethyl ester which guide to synthetic route it. The literature collected by LookChem mainly comes from the sharing of users and the free literature resources found by Internet computing technology. We keep the original model of the professional version of literature to make it easier and faster for users to retrieve and use. At the same time, we analyze and calculate the most feasible synthesis route with the highest yield for your reference as below:

synthetic route:

Reference yield: 80.4%

4-(2-Cyano-phenyl)-2-diethoxymethyl-6-methyl-1,4-dihydro-pyridine-3,5-dicarboxylic acid 5-[2-(benzyl-methyl-amino)-ethyl] ester 3-ethyl ester (75206-33-6) → 4-(2-Cyano-phenyl)-2-formyl-6-methyl-1,4-dihydro-pyridine-3,5-dicarboxylic acid 5-[2-(benzyl-methyl-amino)-ethyl] ester 3-ethyl ester (75206-40-5)

Guidance literature:

With hydrogenchloride; In acetone; for 1.5h; Ambient temperature;

DOI:10.1248/cpb.40.912

Reference yield:

2-chloroethyl acetoacetate (54527-68-3) → 4-(2-Cyano-phenyl)-2-formyl-6-methyl-1,4-dihydro-pyridine-3,5-dicarboxylic acid 5-[2-(benzyl-methyl-amino)-ethyl] ester 3-ethyl ester (75206-40-5)

Guidance literature:

Multi-step reaction with 4 steps

1: piperidine, AcOH / benzene / 9.5 h / Heating

2: 3 h / 100 °C

3: 74.5 percent / Et₃N / ethanol / 56 h / Heating

4: 80.4 percent / aq. HCl / acetone / 1.5 h / Ambient temperature

With piperidine; hydrogenchloride; acetic acid; triethylamine; In ethanol; acetone; benzene;

DOI:10.1248/cpb.40.912

Reference yield:

2-[1-(2-Cyano-phenyl)-meth-(E)-ylidene]-3-oxo-butyric acid 2-chloro-ethyl ester (75206-24-5,75206-25-6) → 4-(2-Cyano-phenyl)-2-formyl-6-methyl-1,4-dihydro-pyridine-3,5-dicarboxylic acid 5-[2-(benzyl-methyl-amino)-ethyl] ester 3-ethyl ester (75206-40-5)

Guidance literature:

Multi-step reaction with 3 steps

1: 3 h / 100 °C

2: 74.5 percent / Et₃N / ethanol / 56 h / Heating

3: 80.4 percent / aq. HCl / acetone / 1.5 h / Ambient temperature

With hydrogenchloride; triethylamine; In ethanol; acetone;

DOI:10.1248/cpb.40.912

upstream raw materials:

4-(2-Cyano-phenyl)-2-diethoxymethyl-6-methyl-1,4-dihydro-pyridine-3,5-dicarboxylic acid 5-[2-(benzyl-methyl-amino)-ethyl] ester 3-ethyl ester

2-chloroethyl acetoacetate

2-[1-(2-Cyano-phenyl)-meth-(E)-ylidene]-3-oxo-butyric acid 2-chloro-ethyl ester

4-(2-Cyano-phenyl)-2-diethoxymethyl-6-methyl-1,4-dihydro-pyridine-3,5-dicarboxylic acid 5-(2-chloro-ethyl) ester 3-ethyl ester
