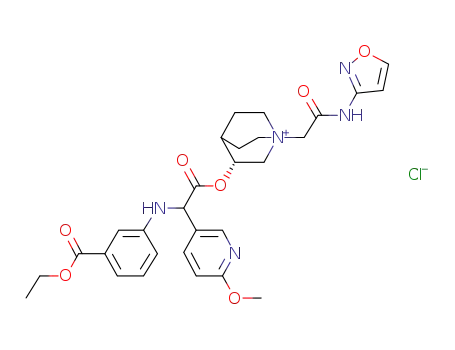

(3R)-3-(2-(3-(ethoxycarbonyl)phenylamino)-2-(6-methoxypyridin-3-yl)acetoxy)-1-(2-(isoxazol-3-ylamino)-2-oxoethyl)-1-azoniabicyclo[2.2.2]octane chloride

Base Information

• Chemical Name: (3R)-3-(2-(3-(ethoxycarbonyl)phenylamino)-2-(6-methoxypyridin-3-yl)acetoxy)-1-(2-(isoxazol-3-ylamino)-2-oxoethyl)-1-azoniabicyclo[2.2.2]octane chloride
• CAS No.: 1352450-64-6
• Molecular Formula: C₂₉H₃₄N₅O₇*Cl
• Molecular Weight: 600.071
• Mol file: 1352450-64-6.mol

Synonyms:(3R)-3-(2-(3-(ethoxycarbonyl)phenylamino)-2-(6-methoxypyridin-3-yl)acetoxy)-1-(2-(isoxazol-3-ylamino)-2-oxoethyl)-1-azoniabicyclo[2.2.2]octane chloride

Chemical Property of (3R)-3-(2-(3-(ethoxycarbonyl)phenylamino)-2-(6-methoxypyridin-3-yl)acetoxy)-1-(2-(isoxazol-3-ylamino)-2-oxoethyl)-1-azoniabicyclo[2.2.2]octane chloride

Chemical Property:

Purity/Quality:

Safty Information:

• Pictogram(s):
• Hazard Codes:

MSDS Files:

Useful:

Technology Process of (3R)-3-(2-(3-(ethoxycarbonyl)phenylamino)-2-(6-methoxypyridin-3-yl)acetoxy)-1-(2-(isoxazol-3-ylamino)-2-oxoethyl)-1-azoniabicyclo[2.2.2]octane chloride

There total 4 articles about (3R)-3-(2-(3-(ethoxycarbonyl)phenylamino)-2-(6-methoxypyridin-3-yl)acetoxy)-1-(2-(isoxazol-3-ylamino)-2-oxoethyl)-1-azoniabicyclo[2.2.2]octane chloride which guide to synthetic route it. The literature collected by LookChem mainly comes from the sharing of users and the free literature resources found by Internet computing technology. We keep the original model of the professional version of literature to make it easier and faster for users to retrieve and use. At the same time, we analyze and calculate the most feasible synthesis route with the highest yield for your reference as below:

synthetic route:

Reference yield: 38.4%

2-chloro-N-(isoxazol-3-yl)acetamide (92981-84-5) + ethyl 3-(1-(6-methoxypyridin-3-yl)-2-oxo-2-((R)-quinuclidin-3-yloxy)ethylamino)benzoate (C65) → (3R)-3-(2-(3-(ethoxycarbonyl)phenylamino)-2-(6-methoxypyridin-3-yl)acetoxy)-1-(2-(isoxazol-3-ylamino)-2-oxoethyl)-1-azoniabicyclo[2.2.2]octane chloride (1352450-64-6)

Guidance literature:

In ethyl acetate;

Reference yield:

3-aminobenzoic acid ethyl ester (582-33-2) → (3R)-3-(2-(3-(ethoxycarbonyl)phenylamino)-2-(6-methoxypyridin-3-yl)acetoxy)-1-(2-(isoxazol-3-ylamino)-2-oxoethyl)-1-azoniabicyclo[2.2.2]octane chloride (1352450-64-6)

Guidance literature:

Multi-step reaction with 3 steps

1: acetonitrile / 20 °C

2: dicyclohexyl-carbodiimide; benzotriazol-1-ol / tetrahydrofuran / 20 °C

3: ethyl acetate / 20 °C

With benzotriazol-1-ol; dicyclohexyl-carbodiimide; In tetrahydrofuran; ethyl acetate; acetonitrile;

Reference yield:

2-methoxy-pyridine-5-boronic acid (163105-89-3,600726-67-8) → (3R)-3-(2-(3-(ethoxycarbonyl)phenylamino)-2-(6-methoxypyridin-3-yl)acetoxy)-1-(2-(isoxazol-3-ylamino)-2-oxoethyl)-1-azoniabicyclo[2.2.2]octane chloride (1352450-64-6)

Guidance literature:

Multi-step reaction with 3 steps

1: acetonitrile / 20 °C

2: dicyclohexyl-carbodiimide; benzotriazol-1-ol / tetrahydrofuran / 20 °C

3: ethyl acetate / 20 °C

With benzotriazol-1-ol; dicyclohexyl-carbodiimide; In tetrahydrofuran; ethyl acetate; acetonitrile;

upstream raw materials:

2-chloro-N-(isoxazol-3-yl)acetamide

3-aminobenzoic acid ethyl ester

2-methoxy-pyridine-5-boronic acid

2-(3-(ethoxycarbonyl)phenylamino)-2-(6-methoxypyridin-3-yl)acetic acid
