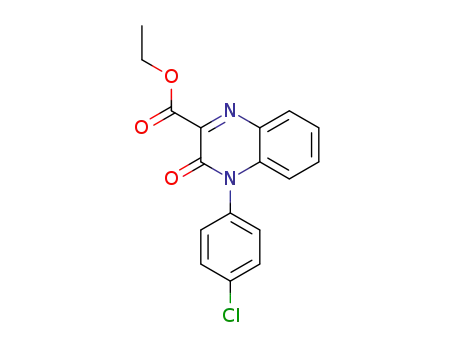

ethyl 4-(4-chlorophenyl)-3-oxo-3,4-dihydroquinoxaline-2-carboxylate

Base Information

• Chemical Name: ethyl 4-(4-chlorophenyl)-3-oxo-3,4-dihydroquinoxaline-2-carboxylate
• CAS No.: 1459785-79-5
• Molecular Formula: C₁₇H₁₃ClN₂O₃
• Molecular Weight: 328.755
• Mol file: 1459785-79-5.mol

Synonyms:ethyl 4-(4-chlorophenyl)-3-oxo-3,4-dihydroquinoxaline-2-carboxylate

Chemical Property of ethyl 4-(4-chlorophenyl)-3-oxo-3,4-dihydroquinoxaline-2-carboxylate

Chemical Property:

Purity/Quality:

Safty Information:

• Pictogram(s):
• Hazard Codes:

MSDS Files:

Useful:

Technology Process of ethyl 4-(4-chlorophenyl)-3-oxo-3,4-dihydroquinoxaline-2-carboxylate

There total 4 articles about ethyl 4-(4-chlorophenyl)-3-oxo-3,4-dihydroquinoxaline-2-carboxylate which guide to synthetic route it. The literature collected by LookChem mainly comes from the sharing of users and the free literature resources found by Internet computing technology. We keep the original model of the professional version of literature to make it easier and faster for users to retrieve and use. At the same time, we analyze and calculate the most feasible synthesis route with the highest yield for your reference as below:

synthetic route:

Reference yield: 69.6%

2-(4-chloroanilino)aniline (68817-71-0) + Diethyl ketomalonate (609-09-6) → ethyl 4-(4-chlorophenyl)-3-oxo-3,4-dihydroquinoxaline-2-carboxylate (1459785-79-5)

Guidance literature:

In toluene; for 12h; Reflux;

DOI:10.1016/j.bmc.2017.06.037

Reference yield:

ortho-nitrofluorobenzene (1493-27-2,127723-77-7) → ethyl 4-(4-chlorophenyl)-3-oxo-3,4-dihydroquinoxaline-2-carboxylate (1459785-79-5)

Guidance literature:

Multi-step reaction with 3 steps

1.1: sodium hydride / N,N-dimethyl-formamide / 0.5 h / 0 °C

1.2: 16 h / 25 °C

2.1: acetic acid; iron / water; ethyl acetate / 6 h / Reflux

3.1: toluene / 12 h / Reflux

With iron; sodium hydride; acetic acid; In water; ethyl acetate; N,N-dimethyl-formamide; toluene;

DOI:10.1016/j.bmc.2017.06.037

Reference yield:

4-chloro-aniline (106-47-8) → ethyl 4-(4-chlorophenyl)-3-oxo-3,4-dihydroquinoxaline-2-carboxylate (1459785-79-5)

Guidance literature:

Multi-step reaction with 3 steps

1.1: sodium hydride / N,N-dimethyl-formamide / 0.5 h / 0 °C

1.2: 16 h / 25 °C

2.1: acetic acid; iron / water; ethyl acetate / 6 h / Reflux

3.1: toluene / 12 h / Reflux

With iron; sodium hydride; acetic acid; In water; ethyl acetate; N,N-dimethyl-formamide; toluene;

DOI:10.1016/j.bmc.2017.06.037

upstream raw materials:

ortho-nitrofluorobenzene

4-chloro-aniline

2-(4-chloroanilino)aniline

Diethyl ketomalonate

Downstream raw materials:

ethyl 4-(4-chlorophenyl)-3-oxoquinoxaline-2-carboxylate
