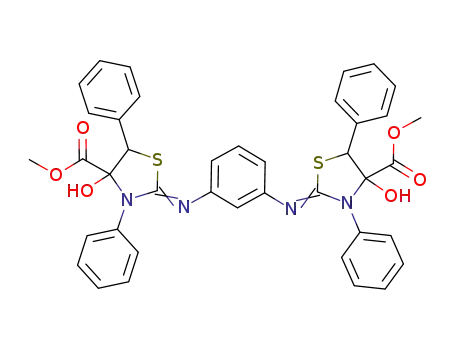

1,3-bis(4-hydroxy-4-methoxycarbonyl-3,5-diphenylthiazolidin-2-ylidenamino)benzene

Base Information

• Chemical Name: 1,3-bis(4-hydroxy-4-methoxycarbonyl-3,5-diphenylthiazolidin-2-ylidenamino)benzene
• CAS No.: 946497-44-5
• Molecular Formula: C₄₀H₃₄N₄O₆S₂
• Molecular Weight: 730.865
• Mol file: 946497-44-5.mol

Synonyms:1,3-bis(4-hydroxy-4-methoxycarbonyl-3,5-diphenylthiazolidin-2-ylidenamino)benzene

Chemical Property of 1,3-bis(4-hydroxy-4-methoxycarbonyl-3,5-diphenylthiazolidin-2-ylidenamino)benzene

Chemical Property:

Purity/Quality:

Safty Information:

• Pictogram(s):
• Hazard Codes:

MSDS Files:

Useful:

Technology Process of 1,3-bis(4-hydroxy-4-methoxycarbonyl-3,5-diphenylthiazolidin-2-ylidenamino)benzene

There total 3 articles about 1,3-bis(4-hydroxy-4-methoxycarbonyl-3,5-diphenylthiazolidin-2-ylidenamino)benzene which guide to synthetic route it. The literature collected by LookChem mainly comes from the sharing of users and the free literature resources found by Internet computing technology. We keep the original model of the professional version of literature to make it easier and faster for users to retrieve and use. At the same time, we analyze and calculate the most feasible synthesis route with the highest yield for your reference as below:

synthetic route:

Reference yield: 94.0%

methyl 3-phenyl-3-chloro-2-ketopropionate (32803-73-9) + 1,3-bis(phenylthioureido)benzene (99876-88-7) → 1,3-bis(4-hydroxy-4-methoxycarbonyl-3,5-diphenylthiazolidin-2-ylidenamino)benzene (946497-44-5)

Guidance literature:

With sodium acetate; In methanol; at 20 ℃; for 10h;

DOI:10.1007/s11172-006-0472-z

Reference yield:

m-phenylenediamine (108-45-2,64554-26-3,76583-20-5) → 1,3-bis(4-hydroxy-4-methoxycarbonyl-3,5-diphenylthiazolidin-2-ylidenamino)benzene (946497-44-5)

Guidance literature:

Multi-step reaction with 2 steps

1: 92 percent / ethanol / 4 h

2: 94 percent / sodium acetate / methanol / 10 h / 20 °C

With sodium acetate; In methanol; ethanol;

DOI:10.1007/s11172-006-0472-z

Reference yield:

phenyl isothiocyanate (103-72-0) → 1,3-bis(4-hydroxy-4-methoxycarbonyl-3,5-diphenylthiazolidin-2-ylidenamino)benzene (946497-44-5)

Guidance literature:

Multi-step reaction with 2 steps

1: 92 percent / ethanol / 4 h

2: 94 percent / sodium acetate / methanol / 10 h / 20 °C

With sodium acetate; In methanol; ethanol;

DOI:10.1007/s11172-006-0472-z

upstream raw materials:

methyl 3-phenyl-3-chloro-2-ketopropionate

1,3-bis(phenylthioureido)benzene

m-phenylenediamine

phenyl isothiocyanate

Downstream raw materials:

3-phenyl-1-phenylimino-4,5-dihydro-1H-thiazolo[3,4-a]quinoxalin-4-one
