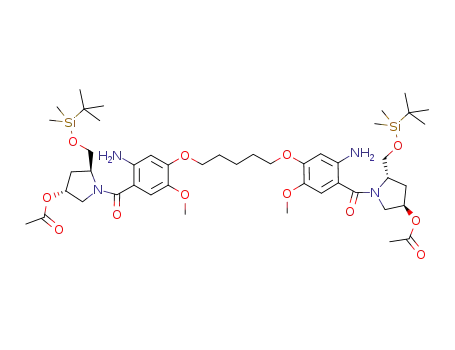

1,1'-[[(pentane-1,5-diyl)dioxy]bis[(2S,4R)-(5-methoxy-2-amino-1,4-phenylene)carbonyl]]bis[2-(tert-butyldimethylsilyloxymethyl)-4-hydroxyacetylpyrrolidine]

Base Information

• Chemical Name: 1,1'-[[(pentane-1,5-diyl)dioxy]bis[(2S,4R)-(5-methoxy-2-amino-1,4-phenylene)carbonyl]]bis[2-(tert-butyldimethylsilyloxymethyl)-4-hydroxyacetylpyrrolidine]
• CAS No.: 913262-31-4
• Molecular Formula: C₄₇H₇₆N₄O₁₂Si₂
• Molecular Weight: 945.311
• Mol file: 913262-31-4.mol

Synonyms:1,1'-[[(pentane-1,5-diyl)dioxy]bis[(2S,4R)-(5-methoxy-2-amino-1,4-phenylene)carbonyl]]bis[2-(tert-butyldimethylsilyloxymethyl)-4-hydroxyacetylpyrrolidine]

Chemical Property of 1,1'-[[(pentane-1,5-diyl)dioxy]bis[(2S,4R)-(5-methoxy-2-amino-1,4-phenylene)carbonyl]]bis[2-(tert-butyldimethylsilyloxymethyl)-4-hydroxyacetylpyrrolidine]

Chemical Property:

Purity/Quality:

Safty Information:

• Pictogram(s):
• Hazard Codes:

MSDS Files:

Useful:

Technology Process of 1,1'-[[(pentane-1,5-diyl)dioxy]bis[(2S,4R)-(5-methoxy-2-amino-1,4-phenylene)carbonyl]]bis[2-(tert-butyldimethylsilyloxymethyl)-4-hydroxyacetylpyrrolidine]

There total 6 articles about 1,1'-[[(pentane-1,5-diyl)dioxy]bis[(2S,4R)-(5-methoxy-2-amino-1,4-phenylene)carbonyl]]bis[2-(tert-butyldimethylsilyloxymethyl)-4-hydroxyacetylpyrrolidine] which guide to synthetic route it. The literature collected by LookChem mainly comes from the sharing of users and the free literature resources found by Internet computing technology. We keep the original model of the professional version of literature to make it easier and faster for users to retrieve and use. At the same time, we analyze and calculate the most feasible synthesis route with the highest yield for your reference as below:

synthetic route:

Reference yield: 100.0%

1,1'-[[(pentane-1,5-diyl)dioxy]bis[(2S,4R)-(5-methoxy-2-nitro-1,4-phenylene)carbonyl]]bis[2-(tert-butyldimethylsilyloxymethyl)-4-hydroxyacetylpyrrolidine] (913262-30-3) → 1,1'-[[(pentane-1,5-diyl)dioxy]bis[(2S,4R)-(5-methoxy-2-amino-1,4-phenylene)carbonyl]]bis[2-(tert-butyldimethylsilyloxymethyl)-4-hydroxyacetylpyrrolidine] (913262-31-4)

Guidance literature:

With hydrogen; palladium 10% on activated carbon; In ethyl acetate; for 24h; under 1551.49 Torr;

Reference yield:

(2S,4R)-2-t-butyldimethylsilyloxymethyl-4-oxyacetylpyrrolidine (864755-03-3) → 1,1'-[[(pentane-1,5-diyl)dioxy]bis[(2S,4R)-(5-methoxy-2-amino-1,4-phenylene)carbonyl]]bis[2-(tert-butyldimethylsilyloxymethyl)-4-hydroxyacetylpyrrolidine] (913262-31-4)

Guidance literature:

Multi-step reaction with 2 steps

1: triethylamine / tetrahydrofuran / 16 h / 0 - 20 °C

2: hydrogen / palladium 10% on activated carbon / ethyl acetate / 24 h / 1551.49 Torr

With hydrogen; triethylamine; palladium 10% on activated carbon; In tetrahydrofuran; ethyl acetate;

Reference yield:

acid chloride → 1,1'-[[(pentane-1,5-diyl)dioxy]bis[(2S,4R)-(5-methoxy-2-amino-1,4-phenylene)carbonyl]]bis[2-(tert-butyldimethylsilyloxymethyl)-4-hydroxyacetylpyrrolidine] (913262-31-4)

Guidance literature:

Multi-step reaction with 2 steps

1: triethylamine / tetrahydrofuran / 16 h / 0 - 20 °C

2: hydrogen / palladium 10% on activated carbon / ethyl acetate / 24 h / 1551.49 Torr

With hydrogen; triethylamine; palladium 10% on activated carbon; In tetrahydrofuran; ethyl acetate;

upstream raw materials:

1,1'-[[(pentane-1,5-diyl)dioxy]bis[(2S,4R)-(5-methoxy-2-nitro-1,4-phenylene)carbonyl]]bis[2-(tert-butyldimethylsilyloxymethyl)-4-hydroxyacetylpyrrolidine]

(2S,4R)-2-t-butyldimethylsilyloxymethyl-4-oxyacetylpyrrolidine

(2S,4R)-N-(benzyloxycarbonyl)-2-t-butyldimethylsilyloxymethyl-4-oxyacetylpyrrolidine

1',5'-bis(4-carboxy-2-methoxy-5-nitrophenoxy)pentane

Downstream raw materials:

1,1'-[[(pentane-1,5-diyl)dioxy]bis[(2S,4R)-[5-methoxy-1,4-phenylene-2-(2,2,2-trichloroethoxycarbonylamino)]carbonyl]]bis[2-hydroxymethyl-4-hydroxyacetylpyrrolidine]

1,1'-[[(pentane-1,5-diyl)dioxy]bis[(2S,4R)-[5-methoxy-1,4-phenylene-2-(2,2,2-trichloroethoxycarbonylamino)]carbonyl]]bis[2-(tert-butyldimethylsilyloxymethyl)-4-hydroxyacetylpyrrolidine]
