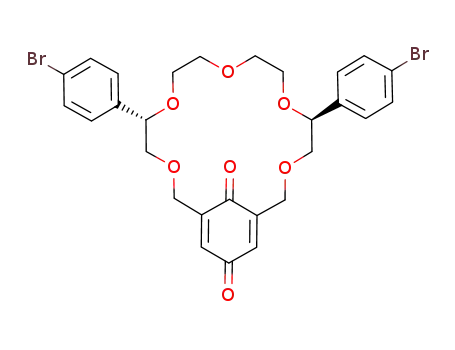

(5S,13S)-5,13-Bis-(4-bromo-phenyl)-3,6,9,12,15-pentaoxa-bicyclo[15.3.1]henicosa-1⁽²⁰⁾,17-diene-19,21-dione

Base Information

• Chemical Name: (5S,13S)-5,13-Bis-(4-bromo-phenyl)-3,6,9,12,15-pentaoxa-bicyclo[15.3.1]henicosa-1⁽²⁰⁾,17-diene-19,21-dione
• CAS No.: 306282-08-6
• Molecular Formula: C₂₈H₂₈Br₂O₇
• Molecular Weight: 636.334
• Mol file: 306282-08-6.mol

Synonyms:(5S,13S)-5,13-Bis-(4-bromo-phenyl)-3,6,9,12,15-pentaoxa-bicyclo[15.3.1]henicosa-1⁽²⁰⁾,17-diene-19,21-dione

Chemical Property of (5S,13S)-5,13-Bis-(4-bromo-phenyl)-3,6,9,12,15-pentaoxa-bicyclo[15.3.1]henicosa-1⁽²⁰⁾,17-diene-19,21-dione

Chemical Property:

Purity/Quality:

Safty Information:

• Pictogram(s):
• Hazard Codes:

MSDS Files:

Useful:

Technology Process of (5S,13S)-5,13-Bis-(4-bromo-phenyl)-3,6,9,12,15-pentaoxa-bicyclo[15.3.1]henicosa-1⁽²⁰⁾,17-diene-19,21-dione

There total 9 articles about (5S,13S)-5,13-Bis-(4-bromo-phenyl)-3,6,9,12,15-pentaoxa-bicyclo[15.3.1]henicosa-1⁽²⁰⁾,17-diene-19,21-dione which guide to synthetic route it. The literature collected by LookChem mainly comes from the sharing of users and the free literature resources found by Internet computing technology. We keep the original model of the professional version of literature to make it easier and faster for users to retrieve and use. At the same time, we analyze and calculate the most feasible synthesis route with the highest yield for your reference as below:

synthetic route:

Reference yield: 93.0%

(5S,13S)-(+)-21-hydroxy-19-methoxy-5,13-bis(p-bromophenyl)-3,6,9,12,15-pentaoxabicyclo[15.3.1]henicosa-1(21),17,19-triene (306282-05-3) → (5S,13S)-5,13-Bis-(4-bromo-phenyl)-3,6,9,12,15-pentaoxa-bicyclo[15.3.1]henicosa-1(20),17-diene-19,21-dione (306282-08-6)

Guidance literature:

With ammonium cerium(IV) nitrate; In acetonitrile; at 20 ℃; for 2h;

Reference yield:

1,3-bis-bromomethyl-2,5-dimethoxy-benzene (72652-35-8) → (5S,13S)-5,13-Bis-(4-bromo-phenyl)-3,6,9,12,15-pentaoxa-bicyclo[15.3.1]henicosa-1(20),17-diene-19,21-dione (306282-08-6)

Guidance literature:

Multi-step reaction with 3 steps

1: 72 percent / NaH / tetrahydrofuran / Heating

2: 93 percent / EtSH; NaH / dimethylformamide / 2 h / 100 °C

3: 93 percent / cerium(IV) ammonium nitrate (CAN) / acetonitrile / 2 h / 20 °C

With ammonium cerium(IV) nitrate; sodium hydride; ethanethiol; In tetrahydrofuran; N,N-dimethyl-formamide; acetonitrile;

Reference yield:

1-(4-bromophenyl)ethane-1,2-diol (92093-23-7) → (5S,13S)-5,13-Bis-(4-bromo-phenyl)-3,6,9,12,15-pentaoxa-bicyclo[15.3.1]henicosa-1(20),17-diene-19,21-dione (306282-08-6)

Guidance literature:

Multi-step reaction with 8 steps

1.1: 24 percent / lipase QL / acetonitrile; diisopropyl ether / 48 h / 30 °C

2.1: 74 percent / aq. K₂CO₃ / methanol / 1.5 h / 20 °C

3.1: 81 percent / DMAP / dimethylformamide / 15 h / 20 °C

4.1: NaH / dimethylformamide / 1 h / 60 °C

4.2: 84 percent / dimethylformamide / 24 h / 60 °C

5.1: 1.06 g / p-TsOH*H₂O / methanol / 6 h / 20 °C

6.1: 72 percent / NaH / tetrahydrofuran / Heating

7.1: 93 percent / EtSH; NaH / dimethylformamide / 2 h / 100 °C

8.1: 93 percent / cerium(IV) ammonium nitrate (CAN) / acetonitrile / 2 h / 20 °C

With dmap; ammonium cerium(IV) nitrate; Lipase QL; sodium hydride; potassium carbonate; toluene-4-sulfonic acid; ethanethiol; In tetrahydrofuran; methanol; di-isopropyl ether; N,N-dimethyl-formamide; acetonitrile;

upstream raw materials:

(5S,13S)-(+)-21-hydroxy-19-methoxy-5,13-bis(p-bromophenyl)-3,6,9,12,15-pentaoxabicyclo[15.3.1]henicosa-1⁽²¹⁾,17,19-triene

1-(4-bromophenyl)ethane-1,2-diol

1,3-bis-bromomethyl-2,5-dimethoxy-benzene

(S)-(+)-1-(4-bromophenyl)-1,2-ethanediol
