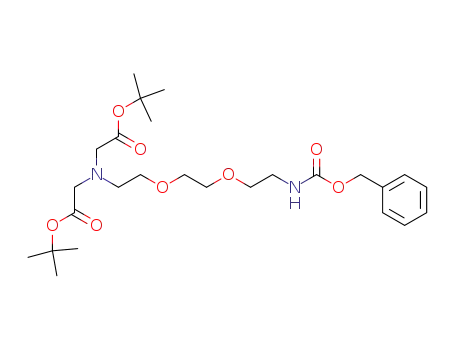

({2-[2-(2-benzyloxycarbonylamino-ethoxy)-ethoxy]-ethyl}-tert-butoxycarbonylmethyl-amino)-acetic acid tert-butyl ester

Base Information

• Chemical Name: ({2-[2-(2-benzyloxycarbonylamino-ethoxy)-ethoxy]-ethyl}-tert-butoxycarbonylmethyl-amino)-acetic acid tert-butyl ester
• CAS No.: 225115-66-2
• Molecular Formula: C₂₆H₄₂N₂O₈
• Molecular Weight: 510.628
• Mol file: 225115-66-2.mol

Synonyms:({2-[2-(2-benzyloxycarbonylamino-ethoxy)-ethoxy]-ethyl}-tert-butoxycarbonylmethyl-amino)-acetic acid tert-butyl ester

Chemical Property of ({2-[2-(2-benzyloxycarbonylamino-ethoxy)-ethoxy]-ethyl}-tert-butoxycarbonylmethyl-amino)-acetic acid tert-butyl ester

Chemical Property:

Purity/Quality:

Safty Information:

• Pictogram(s):
• Hazard Codes:

MSDS Files:

Useful:

Technology Process of ({2-[2-(2-benzyloxycarbonylamino-ethoxy)-ethoxy]-ethyl}-tert-butoxycarbonylmethyl-amino)-acetic acid tert-butyl ester

There total 3 articles about ({2-[2-(2-benzyloxycarbonylamino-ethoxy)-ethoxy]-ethyl}-tert-butoxycarbonylmethyl-amino)-acetic acid tert-butyl ester which guide to synthetic route it. The literature collected by LookChem mainly comes from the sharing of users and the free literature resources found by Internet computing technology. We keep the original model of the professional version of literature to make it easier and faster for users to retrieve and use. At the same time, we analyze and calculate the most feasible synthesis route with the highest yield for your reference as below:

synthetic route:

Reference yield: 87.0%

bromoacetic acid tert-butyl ester (5292-43-3) + {2-[2-(2-amino-ethoxy)-ethoxy]-ethyl}-carbamic acid benzyl ester (169744-02-9) → ({2-[2-(2-benzyloxycarbonylamino-ethoxy)-ethoxy]-ethyl}-tert-butoxycarbonylmethyl-amino)-acetic acid tert-butyl ester (225115-66-2)

Guidance literature:

With Proton Sponge; In chloroform; at 5 ℃; for 12h;

DOI:10.1021/jo982397j

Reference yield:

3,6-dioxa-1,8-diaminooctane (929-59-9,892154-56-2) → ({2-[2-(2-benzyloxycarbonylamino-ethoxy)-ethoxy]-ethyl}-tert-butoxycarbonylmethyl-amino)-acetic acid tert-butyl ester (225115-66-2)

Guidance literature:

Multi-step reaction with 2 steps

1: 58 percent / Et₃N / CHCl₃ / 1) -45 deg C, 3 h; 2) rt, 12 h

2: 87 percent / proton sponge / CHCl₃ / 12 h / 5 °C

With Proton Sponge; triethylamine; In chloroform;

DOI:10.1021/jo982397j

Reference yield:

benzyl chloroformate (501-53-1,94274-21-2) → ({2-[2-(2-benzyloxycarbonylamino-ethoxy)-ethoxy]-ethyl}-tert-butoxycarbonylmethyl-amino)-acetic acid tert-butyl ester (225115-66-2)

Guidance literature:

Multi-step reaction with 2 steps

1: 58 percent / Et₃N / CHCl₃ / 1) -45 deg C, 3 h; 2) rt, 12 h

2: 87 percent / proton sponge / CHCl₃ / 12 h / 5 °C

With Proton Sponge; triethylamine; In chloroform;

DOI:10.1021/jo982397j

upstream raw materials:

bromoacetic acid tert-butyl ester

{2-[2-(2-amino-ethoxy)-ethoxy]-ethyl}-carbamic acid benzyl ester

3,6-dioxa-1,8-diaminooctane

benzyl chloroformate
