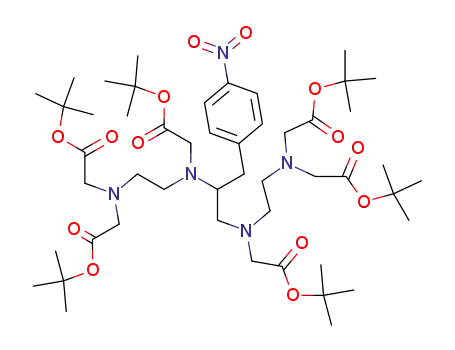

{[2-(bis-tert-butoxycarbonylmethyl-amino)-ethyl]-[2-{[2-(bis-tert-butoxycarbonylmethyl-amino)-ethyl]-tert-butoxycarbonylmethyl-amino}-1-(4-nitro-benzyl)-ethyl]-amino}-acetic acid tert-butyl ester

Base Information

• Chemical Name: {[2-(bis-tert-butoxycarbonylmethyl-amino)-ethyl]-[2-{[2-(bis-tert-butoxycarbonylmethyl-amino)-ethyl]-tert-butoxycarbonylmethyl-amino}-1-(4-nitro-benzyl)-ethyl]-amino}-acetic acid tert-butyl ester
• CAS No.: 929217-84-5
• Molecular Formula: C₄₉H₈₃N₅O₁₄
• Molecular Weight: 966.223
• Mol file: 929217-84-5.mol

Synonyms:{[2-(bis-tert-butoxycarbonylmethyl-amino)-ethyl]-[2-{[2-(bis-tert-butoxycarbonylmethyl-amino)-ethyl]-tert-butoxycarbonylmethyl-amino}-1-(4-nitro-benzyl)-ethyl]-amino}-acetic acid tert-butyl ester

Chemical Property of {[2-(bis-tert-butoxycarbonylmethyl-amino)-ethyl]-[2-{[2-(bis-tert-butoxycarbonylmethyl-amino)-ethyl]-tert-butoxycarbonylmethyl-amino}-1-(4-nitro-benzyl)-ethyl]-amino}-acetic acid tert-butyl ester

Chemical Property:

Purity/Quality:

Safty Information:

• Pictogram(s):
• Hazard Codes:

MSDS Files:

Useful:

Technology Process of {[2-(bis-tert-butoxycarbonylmethyl-amino)-ethyl]-[2-{[2-(bis-tert-butoxycarbonylmethyl-amino)-ethyl]-tert-butoxycarbonylmethyl-amino}-1-(4-nitro-benzyl)-ethyl]-amino}-acetic acid tert-butyl ester

There total 1 articles about {[2-(bis-tert-butoxycarbonylmethyl-amino)-ethyl]-[2-{[2-(bis-tert-butoxycarbonylmethyl-amino)-ethyl]-tert-butoxycarbonylmethyl-amino}-1-(4-nitro-benzyl)-ethyl]-amino}-acetic acid tert-butyl ester which guide to synthetic route it. The literature collected by LookChem mainly comes from the sharing of users and the free literature resources found by Internet computing technology. We keep the original model of the professional version of literature to make it easier and faster for users to retrieve and use. At the same time, we analyze and calculate the most feasible synthesis route with the highest yield for your reference as below:

synthetic route:

Reference yield: 62.0%

3-(4-nitrobenzyl)triethylenetetraamine (929217-83-4) + bromoacetic acid tert-butyl ester (5292-43-3) → {[2-(bis-tert-butoxycarbonylmethyl-amino)-ethyl]-[2-{[2-(bis-tert-butoxycarbonylmethyl-amino)-ethyl]-tert-butoxycarbonylmethyl-amino}-1-(4-nitro-benzyl)-ethyl]-amino}-acetic acid tert-butyl ester (929217-84-5)

Guidance literature:

With N,N,N',N'-tetramethyl-1,8-diaminonaphthalene; potassium iodide; In N,N-dimethyl-formamide; at 65 ℃; for 16h;

DOI:10.1002/jlcr.1031

Reference yield:

{[2-(bis-tert-butoxycarbonylmethyl-amino)-ethyl]-[2-{[2-(bis-tert-butoxycarbonylmethyl-amino)-ethyl]-tert-butoxycarbonylmethyl-amino}-1-(4-nitro-benzyl)-ethyl]-amino}-acetic acid tert-butyl ester (929217-84-5) → {(1-(4-amino-benzyl)-2-{[2-(bis-tert-butoxycarbonylmethyl-amino)-ethyl]-tert-butoxycarbonylmethyl-amino}-ethyl)-[2-(bis-tert-butoxycarbonylmethyl-amino)-ethyl]-amino}-acetic acid tert-butyl ester (929217-85-6)

Guidance literature:

With hydrogen; palladium on activated charcoal; In methanol; for 3h;

DOI:10.1002/jlcr.1031

Reference yield:

{[2-(bis-tert-butoxycarbonylmethyl-amino)-ethyl]-[2-{[2-(bis-tert-butoxycarbonylmethyl-amino)-ethyl]-tert-butoxycarbonylmethyl-amino}-1-(4-nitro-benzyl)-ethyl]-amino}-acetic acid tert-butyl ester (929217-84-5) → {(1-(4-amino-benzyl)-2-{[2-(bis-carboxymethyl-amino)-ethyl]-carboxymethyl-amino}-ethyl)-[2-(bis-carboxymethyl-amino)-ethyl]-amino}-acetic acid (929217-86-7)

Guidance literature:

Multi-step reaction with 2 steps

1: H₂ / Pd/C / methanol / 3 h

2: HCl / acetone / 16 h / 20 °C

With hydrogenchloride; hydrogen; palladium on activated charcoal; In methanol; acetone;

DOI:10.1002/jlcr.1031

upstream raw materials:

3-(4-nitrobenzyl)triethylenetetraamine

bromoacetic acid tert-butyl ester

Downstream raw materials:

{(1-(4-amino-benzyl)-2-{[2-(bis-tert-butoxycarbonylmethyl-amino)-ethyl]-tert-butoxycarbonylmethyl-amino}-ethyl)-[2-(bis-tert-butoxycarbonylmethyl-amino)-ethyl]-amino}-acetic acid tert-butyl ester

{(1-(4-amino-benzyl)-2-{[2-(bis-carboxymethyl-amino)-ethyl]-carboxymethyl-amino}-ethyl)-[2-(bis-carboxymethyl-amino)-ethyl]-amino}-acetic acid
