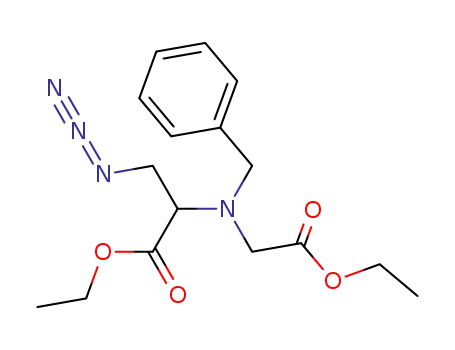

3-Azido-2-(benzyl-ethoxycarbonylmethyl-amino)-propionic acid ethyl ester

Base Information

• Chemical Name: 3-Azido-2-(benzyl-ethoxycarbonylmethyl-amino)-propionic acid ethyl ester
• CAS No.: 144888-70-0
• Molecular Formula: C₁₆H₂₂N₄O₄
• Molecular Weight: 334.375
• Mol file: 144888-70-0.mol

Synonyms:3-Azido-2-(benzyl-ethoxycarbonylmethyl-amino)-propionic acid ethyl ester

Chemical Property of 3-Azido-2-(benzyl-ethoxycarbonylmethyl-amino)-propionic acid ethyl ester

Chemical Property:

Purity/Quality:

Safty Information:

• Pictogram(s):
• Hazard Codes:

MSDS Files:

Useful:

Technology Process of 3-Azido-2-(benzyl-ethoxycarbonylmethyl-amino)-propionic acid ethyl ester

There total 3 articles about 3-Azido-2-(benzyl-ethoxycarbonylmethyl-amino)-propionic acid ethyl ester which guide to synthetic route it. The literature collected by LookChem mainly comes from the sharing of users and the free literature resources found by Internet computing technology. We keep the original model of the professional version of literature to make it easier and faster for users to retrieve and use. At the same time, we analyze and calculate the most feasible synthesis route with the highest yield for your reference as below:

synthetic route:

Reference yield:

ethyl 3-bromo-2-hydroxy propionate (92234-23-6) → 3-Azido-2-(benzyl-ethoxycarbonylmethyl-amino)-propionic acid ethyl ester (144888-70-0)

Guidance literature:

Multi-step reaction with 3 steps

1: 90 percent / NaN₃ / aq. ethanol / 17 h / 75 °C

2: lutidine / CH₂Cl₂ / 0.25 h / 0 °C

3: CH₂Cl₂ / 1.5 h / 0 - 20 °C

With sodium azide; lutidine; In ethanol; dichloromethane;

DOI:10.1016/S0040-4039(00)60105-3

Reference yield:

ethyl 3-azido-2-hydroxy-propionate (93715-83-4) → 3-Azido-2-(benzyl-ethoxycarbonylmethyl-amino)-propionic acid ethyl ester (144888-70-0)

Guidance literature:

Multi-step reaction with 2 steps

1: lutidine / CH₂Cl₂ / 0.25 h / 0 °C

2: CH₂Cl₂ / 1.5 h / 0 - 20 °C

With lutidine; In dichloromethane;

DOI:10.1016/S0040-4039(00)60105-3

Reference yield:

ethyl 2-(benzylamino)acetate (6436-90-4) + 3-Azido-2-trifluoromethanesulfonyloxy-propionic acid ethyl ester → 3-Azido-2-(benzyl-ethoxycarbonylmethyl-amino)-propionic acid ethyl ester (144888-70-0)

Guidance literature:

In dichloromethane; at 0 - 20 ℃; for 1.5h; Yield given;

DOI:10.1016/S0040-4039(00)60105-3

upstream raw materials:

ethyl 2-(benzylamino)acetate

ethyl 3-bromo-2-hydroxy propionate

ethyl 3-azido-2-hydroxy-propionate

Downstream raw materials:

1-Benzyl-5-ethoxy-1,2,3,6-tetrahydro-pyrazine-2-carboxylic acid ethyl ester

7-Benzyl-3-methyl-5,6,7,8-tetrahydro-imidazo[1,2-a]pyrazine-6-carboxylic acid ethyl ester

7-Benzyl-3-methyl-5,6,7,8-tetrahydro-[1,2,4]triazolo[4,3-a]pyrazine-6-carboxylic acid ethyl ester

7-Benzyl-3-oxo-2,3,5,6,7,8-hexahydro-[1,2,4]triazolo[4,3-a]pyrazine-6-carboxylic acid ethyl ester
