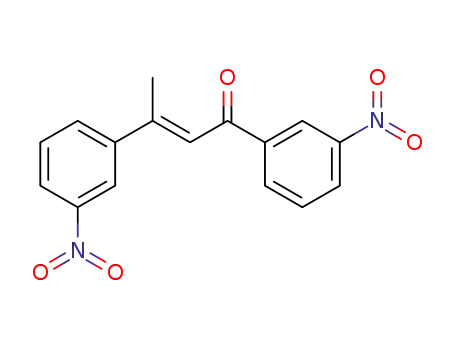

(2E)-1,3-bis(3-nitrophenyl)-2-buten-1-one

Base Information

• Chemical Name: (2E)-1,3-bis(3-nitrophenyl)-2-buten-1-one
• CAS No.: 7509-22-0
• Molecular Formula: C16H12 N2 O5
• Molecular Weight: 312.282
• NSC Number: 407268,35988
• ChEMBL ID: CHEMBL471254
• Mol file: 7509-22-0.mol

Synonyms:CHEMBL471254;WR-118117;7509-22-0;NSC35988;BDBM50278197;NSC-35988;NSC407268;NSC-407268;1,3-bis(3-nitrophenyl)but-2-en-1-one;(2E)-1,3-bis(3-nitrophenyl)-2-buten-1-one

Chemical Property of (2E)-1,3-bis(3-nitrophenyl)-2-buten-1-one

Chemical Property:

• Vapor Pressure: 1E-09mmHg at 25°C
• Boiling Point: 489.4°C at 760 mmHg
• Flash Point: 234.2°C
• Density: 1.338g/cm³
• XLogP3: 4
• Hydrogen Bond Donor Count: 0
• Hydrogen Bond Acceptor Count: 5
• Rotatable Bond Count: 3
• Exact Mass: 312.07462149
• Heavy Atom Count: 23
• Complexity: 506

Purity/Quality:

Safty Information:

• Pictogram(s):
• Hazard Codes:

MSDS Files:

SDS file from LookChem

Useful:

• Canonical SMILES: CC(=CC(=O)C1=CC(=CC=C1)[N+](=O)[O-])C2=CC(=CC=C2)[N+](=O)[O-]
• Isomeric SMILES: C/C(=C\C(=O)C1=CC(=CC=C1)[N+](=O)[O-])/C2=CC(=CC=C2)[N+](=O)[O-]

Technology Process of (2E)-1,3-bis(3-nitrophenyl)-2-buten-1-one

There total 2 articles about (2E)-1,3-bis(3-nitrophenyl)-2-buten-1-one which guide to synthetic route it. The literature collected by LookChem mainly comes from the sharing of users and the free literature resources found by Internet computing technology. We keep the original model of the professional version of literature to make it easier and faster for users to retrieve and use. At the same time, we analyze and calculate the most feasible synthesis route with the highest yield for your reference as below:

synthetic route:

Reference yield: 77.0%

3-Nitroacetophenone (121-89-1) → 1,3-bis-(3-nitro-phenyl)-but-2c-en-1-one (7509-22-0)

Guidance literature:

With tetrachlorosilane; In ethanol; for 10h; Ambient temperature;

Reference yield: 28.0%

3-Nitroacetophenone (121-89-1) → 1,3-bis-(3-nitro-phenyl)-but-2c-en-1-one (7509-22-0) + 1,2,3,4,5,6,7,8-octahydro-9-(3'-nitrophenyl)phenanthrene + 5,7-Bis-(3-nitro-phenyl)-1,2,3,4-tetrahydro-naphthalene

Guidance literature:

With tetrachlorosilane; ethanol; cyclohexanone; for 15h;

DOI:10.1016/S0040-4039(96)02470-7

upstream raw materials:

3-Nitroacetophenone
