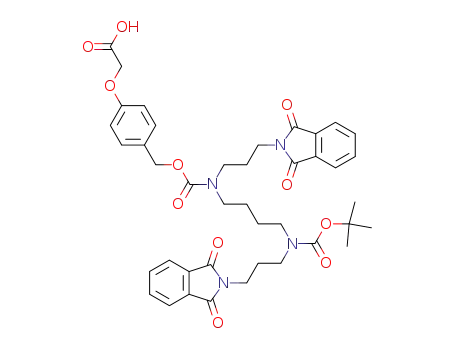

[4-({(4-{tert-Butoxycarbonyl-[3-(1,3-dioxo-1,3-dihydro-isoindol-2-yl)-propyl]-amino}-butyl)-[3-(1,3-dioxo-1,3-dihydro-isoindol-2-yl)-propyl]-carbamoyloxy}-methyl)-phenoxy]-acetic acid

Base Information

• Chemical Name: [4-({(4-{tert-Butoxycarbonyl-[3-(1,3-dioxo-1,3-dihydro-isoindol-2-yl)-propyl]-amino}-butyl)-[3-(1,3-dioxo-1,3-dihydro-isoindol-2-yl)-propyl]-carbamoyloxy}-methyl)-phenoxy]-acetic acid
• CAS No.: 213008-46-9
• Molecular Formula: C₄₁H₄₆N₄O₁₁
• Molecular Weight: 770.836
• Mol file: 213008-46-9.mol

Synonyms:[4-({(4-{tert-Butoxycarbonyl-[3-(1,3-dioxo-1,3-dihydro-isoindol-2-yl)-propyl]-amino}-butyl)-[3-(1,3-dioxo-1,3-dihydro-isoindol-2-yl)-propyl]-carbamoyloxy}-methyl)-phenoxy]-acetic acid

Chemical Property of [4-({(4-{tert-Butoxycarbonyl-[3-(1,3-dioxo-1,3-dihydro-isoindol-2-yl)-propyl]-amino}-butyl)-[3-(1,3-dioxo-1,3-dihydro-isoindol-2-yl)-propyl]-carbamoyloxy}-methyl)-phenoxy]-acetic acid

Chemical Property:

Purity/Quality:

Safty Information:

• Pictogram(s):
• Hazard Codes:

MSDS Files:

Useful:

Technology Process of [4-({(4-{tert-Butoxycarbonyl-[3-(1,3-dioxo-1,3-dihydro-isoindol-2-yl)-propyl]-amino}-butyl)-[3-(1,3-dioxo-1,3-dihydro-isoindol-2-yl)-propyl]-carbamoyloxy}-methyl)-phenoxy]-acetic acid

There total 10 articles about [4-({(4-{tert-Butoxycarbonyl-[3-(1,3-dioxo-1,3-dihydro-isoindol-2-yl)-propyl]-amino}-butyl)-[3-(1,3-dioxo-1,3-dihydro-isoindol-2-yl)-propyl]-carbamoyloxy}-methyl)-phenoxy]-acetic acid which guide to synthetic route it. The literature collected by LookChem mainly comes from the sharing of users and the free literature resources found by Internet computing technology. We keep the original model of the professional version of literature to make it easier and faster for users to retrieve and use. At the same time, we analyze and calculate the most feasible synthesis route with the highest yield for your reference as below:

synthetic route:

Reference yield: 89.0%

[4-({(4-{tert-Butoxycarbonyl-[3-(1,3-dioxo-1,3-dihydro-isoindol-2-yl)-propyl]-amino}-butyl)-[3-(1,3-dioxo-1,3-dihydro-isoindol-2-yl)-propyl]-carbamoyloxy}-methyl)-phenoxy]-acetic acid allyl ester (213008-45-8) → [4-({(4-{tert-Butoxycarbonyl-[3-(1,3-dioxo-1,3-dihydro-isoindol-2-yl)-propyl]-amino}-butyl)-[3-(1,3-dioxo-1,3-dihydro-isoindol-2-yl)-propyl]-carbamoyloxy}-methyl)-phenoxy]-acetic acid (213008-46-9)

Guidance literature:

With tetrakis(triphenylphosphine) palladium⁽⁰⁾; dimedone; In tetrahydrofuran; dichloromethane;

DOI:10.1016/S0960-894X(98)00303-5

Reference yield:

N-ethoxycarbonylphthalimide (22509-74-6) → [4-({(4-{tert-Butoxycarbonyl-[3-(1,3-dioxo-1,3-dihydro-isoindol-2-yl)-propyl]-amino}-butyl)-[3-(1,3-dioxo-1,3-dihydro-isoindol-2-yl)-propyl]-carbamoyloxy}-methyl)-phenoxy]-acetic acid (213008-46-9)

Guidance literature:

Multi-step reaction with 3 steps

1: CHCl₃

2: NEt₃; DMAP / dimethylformamide

3: Pd(PPh₃)4; mercaptobenzoic acid / tetrahydrofuran; CH₂Cl₂

With dmap; tetrakis(triphenylphosphine) palladium⁽⁰⁾; Thiosalicylic acid; triethylamine; In tetrahydrofuran; dichloromethane; chloroform; N,N-dimethyl-formamide; 1: Acylation / 2: Acylation / 3: deallylation;

DOI:10.1016/S0960-894X(00)00471-6

Reference yield:

1,12-diphthalimido-4,9-diazadodecane (104435-59-8) → [4-({(4-{tert-Butoxycarbonyl-[3-(1,3-dioxo-1,3-dihydro-isoindol-2-yl)-propyl]-amino}-butyl)-[3-(1,3-dioxo-1,3-dihydro-isoindol-2-yl)-propyl]-carbamoyloxy}-methyl)-phenoxy]-acetic acid (213008-46-9)

Guidance literature:

Multi-step reaction with 2 steps

1: NEt₃; DMAP / dimethylformamide

2: Pd(PPh₃)4; mercaptobenzoic acid / tetrahydrofuran; CH₂Cl₂

With dmap; tetrakis(triphenylphosphine) palladium⁽⁰⁾; Thiosalicylic acid; triethylamine; In tetrahydrofuran; dichloromethane; N,N-dimethyl-formamide; 1: Acylation / 2: deallylation;

DOI:10.1016/S0960-894X(00)00471-6

upstream raw materials:

[4-({(4-{tert-Butoxycarbonyl-[3-(1,3-dioxo-1,3-dihydro-isoindol-2-yl)-propyl]-amino}-butyl)-[3-(1,3-dioxo-1,3-dihydro-isoindol-2-yl)-propyl]-carbamoyloxy}-methyl)-phenoxy]-acetic acid allyl ester

Spermine

N-ethoxycarbonylphthalimide

4-hydroxy-benzaldehyde

Downstream raw materials:

kukoamine A
