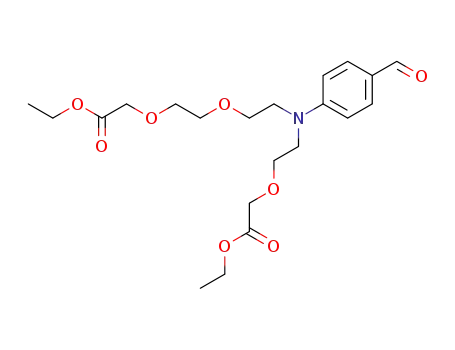

{2-[[2-(2-ethoxycarbonylmethoxyethoxy)ethyl]-(4-formylphenyl)amino]ethoxy}acetic acid ethyl ester

Base Information

• Chemical Name: {2-[[2-(2-ethoxycarbonylmethoxyethoxy)ethyl]-(4-formylphenyl)amino]ethoxy}acetic acid ethyl ester
• CAS No.: 906363-55-1
• Molecular Formula: C₂₁H₃₁NO₈
• Molecular Weight: 425.479
• Mol file: 906363-55-1.mol

Synonyms:{2-[[2-(2-ethoxycarbonylmethoxyethoxy)ethyl]-(4-formylphenyl)amino]ethoxy}acetic acid ethyl ester

Chemical Property of {2-[[2-(2-ethoxycarbonylmethoxyethoxy)ethyl]-(4-formylphenyl)amino]ethoxy}acetic acid ethyl ester

Chemical Property:

Purity/Quality:

Safty Information:

• Pictogram(s):
• Hazard Codes:

MSDS Files:

Useful:

Technology Process of {2-[[2-(2-ethoxycarbonylmethoxyethoxy)ethyl]-(4-formylphenyl)amino]ethoxy}acetic acid ethyl ester

There total 3 articles about {2-[[2-(2-ethoxycarbonylmethoxyethoxy)ethyl]-(4-formylphenyl)amino]ethoxy}acetic acid ethyl ester which guide to synthetic route it. The literature collected by LookChem mainly comes from the sharing of users and the free literature resources found by Internet computing technology. We keep the original model of the professional version of literature to make it easier and faster for users to retrieve and use. At the same time, we analyze and calculate the most feasible synthesis route with the highest yield for your reference as below:

synthetic route:

Reference yield:

2-{[2-(2-hydroxyethoxy)ethyl]phenylamino}ethanol (518046-79-2) → {2-[[2-(2-ethoxycarbonylmethoxyethoxy)ethyl]-(4-formylphenyl)amino]ethoxy}acetic acid ethyl ester (906363-55-1)

Guidance literature:

Multi-step reaction with 3 steps

1.1: potassium tert-butoxide / 2-methyl-propan-2-ol / 2 h / Heating

1.2: 2-methyl-propan-2-ol / Heating

2.1: 1.1 g / benzene / 24 h / Heating

3.1: 50 percent / POCl₃ / 1,2-dichloro-ethane / Heating

With potassium tert-butylate; trichlorophosphate; In 1,2-dichloro-ethane; tert-butyl alcohol; benzene; 3.1: Vilsmeier formylation;

DOI:10.1021/ja063029x

Reference yield:

(2-{[2-(2-carboxymethoxy-ethoxy)-ethyl]-phenyl-amino}-ethoxy)-acetic acid → {2-[[2-(2-ethoxycarbonylmethoxyethoxy)ethyl]-(4-formylphenyl)amino]ethoxy}acetic acid ethyl ester (906363-55-1)

Guidance literature:

Multi-step reaction with 2 steps

1: 1.1 g / benzene / 24 h / Heating

2: 50 percent / POCl₃ / 1,2-dichloro-ethane / Heating

With trichlorophosphate; In 1,2-dichloro-ethane; benzene; 2: Vilsmeier formylation;

DOI:10.1021/ja063029x

Reference yield:

2-Anilinoethanol (122-98-5) → {2-[[2-(2-ethoxycarbonylmethoxyethoxy)ethyl]-(4-formylphenyl)amino]ethoxy}acetic acid ethyl ester (906363-55-1)

Guidance literature:

Multi-step reaction with 4 steps

1.1: 66 percent / calcium carbonate / H₂O / Heating

2.1: potassium tert-butoxide / 2-methyl-propan-2-ol / 2 h / Heating

2.2: 2-methyl-propan-2-ol / Heating

3.1: 1.1 g / benzene / 24 h / Heating

4.1: 50 percent / POCl₃ / 1,2-dichloro-ethane / Heating

With potassium tert-butylate; calcium carbonate; trichlorophosphate; In water; 1,2-dichloro-ethane; tert-butyl alcohol; benzene; 4.1: Vilsmeier formylation;

DOI:10.1021/ja063029x

upstream raw materials:

2-{[2-(2-hydroxyethoxy)ethyl]phenylamino}ethanol

2-Anilinoethanol

Downstream raw materials:

(2-{4-bis-(2,4-dihydroxyphenyl)methyl}phenyl-{[2-(2-ethoxycarbonylmethoxyethoxy)ethyl]amino}ethoxy)acetic acid ethyl ester

(2-{[2-(2-ethoxycarbonylmethoxyethoxy)ethyl]-[4-(6-hydroxy-3-oxo-3H-xanthen-9-yl)phenyl]amino}ethoxy)acetic acid ethyl ester
