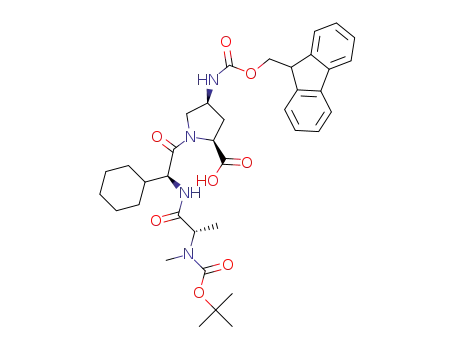

(2S,4S)-1-{(S)-2-[(S)-2-(tert-butoxycarbonyl-methyl-amino)-propionylamino]-2-cyclohexyl-acetyl}-4-(9H-fluoren-9-ylmethoxycarbonylamino)-pyrrolidine-2-carboxylic acid

Base Information

• Chemical Name: (2S,4S)-1-{(S)-2-[(S)-2-(tert-butoxycarbonyl-methyl-amino)-propionylamino]-2-cyclohexyl-acetyl}-4-(9H-fluoren-9-ylmethoxycarbonylamino)-pyrrolidine-2-carboxylic acid
• CAS No.: 1613552-04-7
• Molecular Formula: C₃₇H₄₈N₄O₈
• Molecular Weight: 676.81
• Mol file: 1613552-04-7.mol

Synonyms:(2S,4S)-1-{(S)-2-[(S)-2-(tert-butoxycarbonyl-methyl-amino)-propionylamino]-2-cyclohexyl-acetyl}-4-(9H-fluoren-9-ylmethoxycarbonylamino)-pyrrolidine-2-carboxylic acid

Chemical Property of (2S,4S)-1-{(S)-2-[(S)-2-(tert-butoxycarbonyl-methyl-amino)-propionylamino]-2-cyclohexyl-acetyl}-4-(9H-fluoren-9-ylmethoxycarbonylamino)-pyrrolidine-2-carboxylic acid

Chemical Property:

Purity/Quality:

Safty Information:

• Pictogram(s):
• Hazard Codes:

MSDS Files:

Useful:

Technology Process of (2S,4S)-1-{(S)-2-[(S)-2-(tert-butoxycarbonyl-methyl-amino)-propionylamino]-2-cyclohexyl-acetyl}-4-(9H-fluoren-9-ylmethoxycarbonylamino)-pyrrolidine-2-carboxylic acid

There total 6 articles about (2S,4S)-1-{(S)-2-[(S)-2-(tert-butoxycarbonyl-methyl-amino)-propionylamino]-2-cyclohexyl-acetyl}-4-(9H-fluoren-9-ylmethoxycarbonylamino)-pyrrolidine-2-carboxylic acid which guide to synthetic route it. The literature collected by LookChem mainly comes from the sharing of users and the free literature resources found by Internet computing technology. We keep the original model of the professional version of literature to make it easier and faster for users to retrieve and use. At the same time, we analyze and calculate the most feasible synthesis route with the highest yield for your reference as below:

synthetic route:

Reference yield: 76.0%

(2S,4S)-1-{(S)-2-[(S)-2-(tert-butoxycarbonyl-methyl-amino)-propionylamino]-2-cyclohexyl-acetyl}-4-(9H-fluoren-9-ylmethoxycarbonylamino)-pyrrolidine-2-carboxylic acid benzyl ester (1613552-08-1) → (2S,4S)-1-{(S)-2-[(S)-2-(tert-butoxycarbonyl-methyl-amino)-propionylamino]-2-cyclohexyl-acetyl}-4-(9H-fluoren-9-ylmethoxycarbonylamino)-pyrrolidine-2-carboxylic acid (1613552-04-7)

Guidance literature:

With palladium 10% on activated carbon; hydrogen; In methanol; for 1h; under 760.051 Torr;

Reference yield:

(2S,4S)-4-(9H-fluoren-9-ylmethoxycarbonylamino)-pyrrolidine-1,2-dicarboxylic acid 1-tert-butyl ester (174148-03-9) → (2S,4S)-1-{(S)-2-[(S)-2-(tert-butoxycarbonyl-methyl-amino)-propionylamino]-2-cyclohexyl-acetyl}-4-(9H-fluoren-9-ylmethoxycarbonylamino)-pyrrolidine-2-carboxylic acid (1613552-04-7)

Guidance literature:

Multi-step reaction with 6 steps

1.1: potassium carbonate / methanol; water / 1 h / 20 °C

1.2: 16 h / 20 °C

2.1: dichloromethane / 2 h / 0 °C

3.1: N-ethyl-N,N-diisopropylamine; HATU / N,N-dimethyl-formamide / 0.5 h / 0 °C

3.2: 1 h

4.1: hydrogenchloride / 1,4-dioxane / 2 h / 0 °C

5.1: N-ethyl-N,N-diisopropylamine; HATU / N,N-dimethyl-formamide / 0.5 h / 0 °C

5.2: 1 h

6.1: palladium 10% on activated carbon; hydrogen / methanol / 1 h / 760.05 Torr

With hydrogenchloride; palladium 10% on activated carbon; hydrogen; potassium carbonate; N-ethyl-N,N-diisopropylamine; HATU; In 1,4-dioxane; methanol; dichloromethane; water; N,N-dimethyl-formamide;

Reference yield:

(2S,4S)-4-(9H-fluoren-9-ylmethoxycarbonylamino)-pyrrolidine-1,2-dicarboxylic acid 2-benzyl ester 1-tert-butyl ester (1386458-54-3) → (2S,4S)-1-{(S)-2-[(S)-2-(tert-butoxycarbonyl-methyl-amino)-propionylamino]-2-cyclohexyl-acetyl}-4-(9H-fluoren-9-ylmethoxycarbonylamino)-pyrrolidine-2-carboxylic acid (1613552-04-7)

Guidance literature:

Multi-step reaction with 5 steps

1.1: dichloromethane / 2 h / 0 °C

2.1: N-ethyl-N,N-diisopropylamine; HATU / N,N-dimethyl-formamide / 0.5 h / 0 °C

2.2: 1 h

3.1: hydrogenchloride / 1,4-dioxane / 2 h / 0 °C

4.1: N-ethyl-N,N-diisopropylamine; HATU / N,N-dimethyl-formamide / 0.5 h / 0 °C

4.2: 1 h

5.1: palladium 10% on activated carbon; hydrogen / methanol / 1 h / 760.05 Torr

With hydrogenchloride; palladium 10% on activated carbon; hydrogen; N-ethyl-N,N-diisopropylamine; HATU; In 1,4-dioxane; methanol; dichloromethane; N,N-dimethyl-formamide;

upstream raw materials:

(2S,4S)-4-(9H-fluoren-9-ylmethoxycarbonylamino)-pyrrolidine-1,2-dicarboxylic acid 1-tert-butyl ester

(2S,4S)-4-(9H-fluoren-9-ylmethoxycarbonylamino)-pyrrolidine-1,2-dicarboxylic acid 2-benzyl ester 1-tert-butyl ester

(2S,4S )-1-((S)-2-tert-butoxycarbonylamino-2-cyclohexyl-acetyl)-4-(9H-fluoren-9-ylmethoxycarbonylamino)-pyrrolidine-2-carboxylic acid benzyl ester

(2S,4S)-1-{(S)-2-[(S)-2-(tert-butoxycarbonyl-methyl-amino)-propionylamino]-2-cyclohexyl-acetyl}-4-(9H-fluoren-9-ylmethoxycarbonylamino)-pyrrolidine-2-carboxylic acid benzyl ester

Downstream raw materials:

{(S)-1-[(S)-2-((2S,4S)-4-amino-2-benzylcarbamoyl-pyrrolidin-1-yl)-1-cyclohexyl-2-oxo-ethylcarbamoyl]-ethyl}-methyl-carbamic acid tert-butyl ester

tert-butyl N-[(1S)-2-[[(1S)-2-[(2S,4S)-2-(benzylcarbamoyl)-4-[[4-[(3S)-5-[(6-bromo-2-methoxy-1-naphthyl)methyl]-3-[[(2S)-2-[tertbutoxycarbonyl(methyl)amino]propanoyl]amino]-4-oxo-2,3-dihydro-1,5-benzodiazepine-1-carbonyl]benzoyl]amino]pyrrolidin-1-yl]-1-cyclohexyl-2-oxo-ethyl] amino]-1-methyl-2-oxo-ethyl]-N-methyl-carbamate

((3S,5S )-5-benzylcarbamoyl-1-{(S)-2-[(S)-2-(tert-butoxycarbonyl-methyl-amino)-propionylamino]-2-cyclohexyl-acetyl}-pyrrolidin-3-yl)-carbamic acid 9H-fluoren-9-ylmethyl ester

{(S)-1-[(S)-2-((2S,4S)-4-amino-2-isopropylcarbamoyl-pyrrolidin-1-yl)-1-cyclohexyl-2-oxo-ethylcarbamoyl]-ethyl}-methyl-carbamic acid tert-butyl ester
