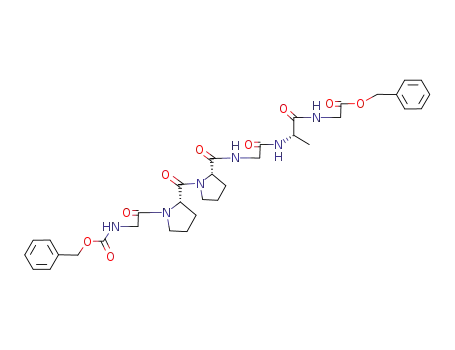

{(S)-2-[2-({(S)-1-[(S)-1-(2-Benzyloxycarbonylamino-acetyl)-pyrrolidine-2-carbonyl]-pyrrolidine-2-carbonyl}-amino)-acetylamino]-propionylamino}-acetic acid benzyl ester

Base Information

• Chemical Name: {(S)-2-[2-({(S)-1-[(S)-1-(2-Benzyloxycarbonylamino-acetyl)-pyrrolidine-2-carbonyl]-pyrrolidine-2-carbonyl}-amino)-acetylamino]-propionylamino}-acetic acid benzyl ester
• CAS No.: 125405-91-6
• Molecular Formula: C₃₄H₄₂N₆O₉
• Molecular Weight: 678.742
• Mol file: 125405-91-6.mol

Synonyms:

Chemical Property of {(S)-2-[2-({(S)-1-[(S)-1-(2-Benzyloxycarbonylamino-acetyl)-pyrrolidine-2-carbonyl]-pyrrolidine-2-carbonyl}-amino)-acetylamino]-propionylamino}-acetic acid benzyl ester

Chemical Property:

Purity/Quality:

Safty Information:

• Pictogram(s):
• Hazard Codes:

MSDS Files:

Useful:

Technology Process of {(S)-2-[2-({(S)-1-[(S)-1-(2-Benzyloxycarbonylamino-acetyl)-pyrrolidine-2-carbonyl]-pyrrolidine-2-carbonyl}-amino)-acetylamino]-propionylamino}-acetic acid benzyl ester

There total 8 articles about {(S)-2-[2-({(S)-1-[(S)-1-(2-Benzyloxycarbonylamino-acetyl)-pyrrolidine-2-carbonyl]-pyrrolidine-2-carbonyl}-amino)-acetylamino]-propionylamino}-acetic acid benzyl ester which guide to synthetic route it. The literature collected by LookChem mainly comes from the sharing of users and the free literature resources found by Internet computing technology. We keep the original model of the professional version of literature to make it easier and faster for users to retrieve and use. At the same time, we analyze and calculate the most feasible synthesis route with the highest yield for your reference as below:

synthetic route:

Reference yield:

1-(tert-butoxycarbonyl)-L-proline (15761-39-4,59433-50-0) → {(S)-2-[2-({(S)-1-[(S)-1-(2-Benzyloxycarbonylamino-acetyl)-pyrrolidine-2-carbonyl]-pyrrolidine-2-carbonyl}-amino)-acetylamino]-propionylamino}-acetic acid benzyl ester (125405-91-6)

Guidance literature:

Multi-step reaction with 5 steps

1: N-methylmorpholine/isobutylchloroformate / tetrahydrofuran / 1.)-10 deg C, 1 h 2.)r.t., 2 h

2: CF₃COOH / tetrahydrofuran / 0.5 h / Ambient temperature

3: N-methylmorpholine / CH₂Cl₂ / 1.)-10 deg C, 1 h 2.)r.t., 2 h

4: CF₃COOH / CH₂Cl₂ / 0.5 h / Ambient temperature

5: N-methylmorpholine / dimethylformamide

With 4-methyl-morpholine; trifluoroacetic acid; isobutyl chloroformate; In tetrahydrofuran; dichloromethane; N,N-dimethyl-formamide;

Reference yield:

Gly-Ala-Gly-OBzl (81782-59-4) → {(S)-2-[2-({(S)-1-[(S)-1-(2-Benzyloxycarbonylamino-acetyl)-pyrrolidine-2-carbonyl]-pyrrolidine-2-carbonyl}-amino)-acetylamino]-propionylamino}-acetic acid benzyl ester (125405-91-6)

Guidance literature:

Multi-step reaction with 5 steps

1: N-methylmorpholine/isobutylchloroformate / tetrahydrofuran / 1.)-10 deg C, 1 h 2.)r.t., 2 h

2: CF₃COOH / tetrahydrofuran / 0.5 h / Ambient temperature

3: N-methylmorpholine / CH₂Cl₂ / 1.)-10 deg C, 1 h 2.)r.t., 2 h

4: CF₃COOH / CH₂Cl₂ / 0.5 h / Ambient temperature

5: N-methylmorpholine / dimethylformamide

With 4-methyl-morpholine; trifluoroacetic acid; isobutyl chloroformate; In tetrahydrofuran; dichloromethane; N,N-dimethyl-formamide;

Reference yield:

symmetric anhydride of Boc-Pro-OH (33294-56-3) → {(S)-2-[2-({(S)-1-[(S)-1-(2-Benzyloxycarbonylamino-acetyl)-pyrrolidine-2-carbonyl]-pyrrolidine-2-carbonyl}-amino)-acetylamino]-propionylamino}-acetic acid benzyl ester (125405-91-6)

Guidance literature:

Multi-step reaction with 3 steps

1: N-methylmorpholine / CH₂Cl₂ / 1.)-10 deg C, 1 h 2.)r.t., 2 h

2: CF₃COOH / CH₂Cl₂ / 0.5 h / Ambient temperature

3: N-methylmorpholine / dimethylformamide

With 4-methyl-morpholine; trifluoroacetic acid; In dichloromethane; N,N-dimethyl-formamide;

upstream raw materials:

N-(benzyloxycarbonyl)glycine anhydride

Pro-Pro-Gly-Ala-Gly-OBzl

1-(tert-butoxycarbonyl)-L-proline

Gly-Ala-Gly-OBzl
