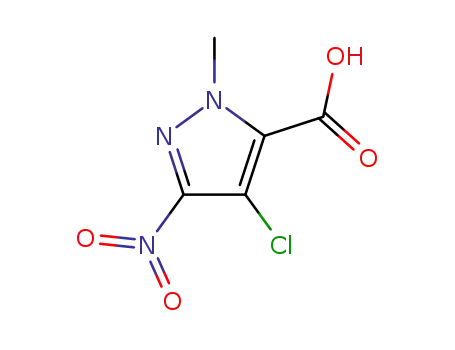

4-Chloro-1-methyl-3-nitro-1H-pyrazole-5-carboxylic acid

Base Information

• Chemical Name: 4-Chloro-1-methyl-3-nitro-1H-pyrazole-5-carboxylic acid
• CAS No.: 84547-88-6
• Molecular Formula: C₅H₄ClN₃O₄
• Molecular Weight: 205.557
• European Community (EC) Number: 865-236-6
• DSSTox Substance ID: DTXSID701203874
• Mol file: 84547-88-6.mol

Synonyms:4-CHLORO-1-METHYL-3-NITRO-1H-PYRAZOLE-5-CARBOXYLIC ACID;84547-88-6;4-CHLORO-2-METHYL-5-NITROPYRAZOLE-3-CARBOXYLIC ACID;4-Chloro-2-methyl-5-nitro-2H-pyrazole-3-carboxylic acid;DTXSID701203874;AKOS000309116;CS-0245723;F53424;EN300-3098585;4-CHLORO-1-METHYL-3-NITRO-1H-PYRAZOLE-5-CARBOXYLICACID

Chemical Property of 4-Chloro-1-methyl-3-nitro-1H-pyrazole-5-carboxylic acid

Chemical Property:

• Melting Point: 151-152 °C
• Boiling Point: 412.7±45.0 °C(Predicted)
• Density: 1.89±0.1 g/cm3(Predicted)
• XLogP3: 0.9
• Hydrogen Bond Donor Count: 1
• Hydrogen Bond Acceptor Count: 5
• Rotatable Bond Count: 1
• Exact Mass: 204.9890333
• Heavy Atom Count: 13
• Complexity: 242

Purity/Quality:

99% ^*data from raw suppliers

4-Chloro-1-methyl-3-nitro-1H-pyrazole-5-carboxylicacid 97% ^*data from reagent suppliers

Safty Information:

• Pictogram(s):
• Hazard Codes:

MSDS Files:

Useful:

• Canonical SMILES: CN1C(=C(C(=N1)[N+](=O)[O-])Cl)C(=O)O

Technology Process of 4-Chloro-1-methyl-3-nitro-1H-pyrazole-5-carboxylic acid

There total 1 articles about 4-Chloro-1-methyl-3-nitro-1H-pyrazole-5-carboxylic acid which guide to synthetic route it. The literature collected by LookChem mainly comes from the sharing of users and the free literature resources found by Internet computing technology. We keep the original model of the professional version of literature to make it easier and faster for users to retrieve and use. At the same time, we analyze and calculate the most feasible synthesis route with the highest yield for your reference as below:

synthetic route:

Reference yield: 34.0%

4-chloro-1-methyl-1H-pyrazole-5-carboxylic acid (84547-83-1) → 4-chloro-1-methyl-3,5-dinitro-1H-pyrazole (84547-96-6) + 4-chloro-1-methyl-3-nitropyrazole-5-carboxylic acid (84547-88-6)

Guidance literature:

With sulfuric acid; nitric acid; at 60 - 65 ℃; for 4h;

Reference yield: 57.0%

4-chloro-1-methyl-3-nitropyrazole-5-carboxylic acid (84547-88-6) → 4-chloro-1-methyl-3,5-dinitro-1H-pyrazole (84547-96-6)

Guidance literature:

With sulfuric acid; nitric acid; at 80 ℃; for 4h;

upstream raw materials:

4-chloro-1-methyl-1H-pyrazole-5-carboxylic acid

Downstream raw materials:

4-chloro-1-methyl-3,5-dinitro-1H-pyrazole
