Design, synthesis and anti-HIV integrase evaluation of 4-oxo-4H- quinolizine-3-carboxylic acid derivatives

Article abstract of DOI:10.3390/molecules14020868

4-Oxo-4H-quinolizine-3-carboxylic acid derivatives bearing sulfamido, carboxylamido, benzimidazole and benzothiazole substituents have been designed and synthesized. The structures of these new compounds were confirmed by ¹H-NMR, ¹³C

Full text of DOI:10.3390/molecules14020868

Molecules 2009, 14, 868-883; doi:10.3390/molecules14020868
OPEN ACCESS
molecules
ISSN 1420-3049
www.mdpi.com/journal/molecules
Article
Design, Synthesis and Anti-HIV Integrase Evaluation of 4-Oxo-
4H-quinolizine-3-carboxylic Acid Derivatives
Yi-Sheng Xu 1,2，Cheng-Chu Zeng 1,*，Zi-Guo Jiao 1，Li-Ming Hu 1 and Ru-gang Zhong 1
1
College of Life Science and Bio-Engineering, Beijing University of Technology, Beijing 100124,
P. R. China
2
Atmospheric Chemistry & Aerosol Research Department, Chinese Research Academy of
Environmental Sciences, Beijing 100012, P. R. China; E-mails: xuys@craes.org.cn (Y-S.X)
* Author to whom correspondence should be addressed; E-Mail: zengcc@bjut.edu.cn; Tel.: +86-10-
67396211; Fax: +86-10-67392001.
Received: 30 December 2008; in revised form: 16 January 2009 / Accepted: 6 February 2009 /
Published: 19 January 2009

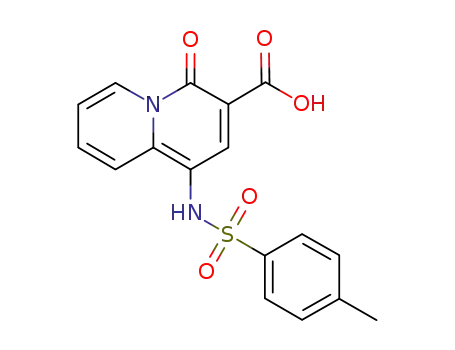

Abstract: 4-Oxo-4H-quinolizine-3-carboxylic acid derivatives bearing sulfamido,
carboxylamido, benzimidazole and benzothiazole substituents have been designed and
1
synthesized. The structures of these new compounds were confirmed by H-NMR, 13C-
NMR, IR and ESI (or HRMS) spectra. Compounds were screened for possible HIV
integrase inhibitory activity.
Keywords: 4-Oxo-4H-quinolizine-3-carboxylic acid derivatives; HIV-1 integrase; Mg2+
binding; Aryl diketo acids.
Introduction
Human immunodeficiency virus type 1 (HIV-1) is the major pathogen of the infection of acquired
immunodeficiency syndrome (AIDS) [1]. In the past two and half decades, various compounds have
been developed as medicinal candidates for the treatment of HIV infections aiming at one or several
steps of the HIV-1 life cycle [2-5] such as absorption, entry, fusion, un-coating, reverse transcription,
integration, transcription and maturation. Owing to the facts that HIV integrase (IN) is the
indispensable enzyme in the replication of the life cycle for the HIV virus and no cellular homologues

Molecules 2009, 14
869
are found in humans [6-9], inhibitors targeted selectively at HIV IN are expected to have low
cytotoxicity and thus development of HIV IN inhibitors has attracted more and more attention.
To this end, aryl diketoacids compounds have been reported to be the most promising HIV IN
inhibitors [10-12]. Structurally, this type of HIV IN inhibitors consists of two main domains, namely, a
diketoacid subunit and an aromatic moiety with one or two arylalkyl substituents. The former serves as
the pharmaphore and is proposed to sequester the divalent cofactors (Mg2+) in the IN active site and
thus block access of a host DNA to the integrase [13,14]. Meanwhile, the aromatic moiety as
hydrophobic domain, typically an indole or benzene moiety, is responsible for the selectivity to the
strand transfer (ST) reaction [15,16].
As part of our continuing efforts directed towards the development of potential HIV-1 integrase
inhibitors, we have investigated the chemical and electrochemical synthesis of styrylquinolines [17],
quinoxalones [18,19] and polyhydroxylated aromatics [20,21]. Based on the structural characteristics
of diketo acid-type compounds and their molecular mechanism as HIV IN inhibitors, very recently, a
series of 4-oxo-1,4-dihydro-1,5-naphthyridine-3-carboxylic acids have been designed and synthesized
by our group (see I, Figure 1) [22]. In view of the fact that the 4-oxo-quinolizine-3-carboxylic acid
moiety displays high selectivity and binding ability to Mg(II) (KMG-103 and KMG-104, Figure 1)
[23,24] and other derivatives show antibacterial and antimicrobial activities [25-27], in the present
work, we further modified the main core via addition of a bulky group, such as an aryl sulfonamido,
aryl carboxylamido, benzimidazole or benzothiazole chosen as the side hydrophobic chain and placed
at the C-1 position of the 4-oxo-quinolizine-3-carboxylic acid scaffold. Thus, a series of 4-oxo-
quinolizine-3-carboxylic acid derivatives 8, 9, 12 and 14 were synthesized. Results show that, although
these compounds could bind Mg2+ in CH3CN solution, no obvious anti-HIV IN activity is observed.
Figure 1. The design of 4-oxo-quinolizine-3-carboxylic acid derivatives as potential HIV
IN inhibitors.
O
O
COOH
COOH
Mg2+
N
N
O
O
O-
O
NHSO2Ar
O
8
NHCOAr'
9
N
O
n
R
n = 0, 1
O
N
N
COOH
X
X
COOH
N
N
N
N
O
OH
O
N
COOH
N
NH
KMG-103 (X = Cl)
KMG-104 (X = F)
S
I
N
H
14
12
R

Molecules 2009, 14
870
Results and Discussion
Synthesis of 4-oxo-4H-quinolizine-3-carboxylic acid derivatives 8, 9, 12 and 14
The synthesis of 4-oxo-4H-quinolizine-3-carboxylic acid derivatives 8 and 9 is described in Scheme
1. Ethyl 4-oxo-4H-quinolizine-3-carboxylate (3) was synthesized in good yield starting from 2-methyl-
pyridine according to a literature procedure [24]. Nitration of 3 afforded compound 4, which was
reduced by Na2S2O4 to generate the key intermediate ethyl 1-amino-4-oxo-4H-quinolizine-3-
carboxylate (5). In the presence of pyridine, compound 5 was treated with sulfonyl chloride or acyl
chloride to give compounds 6 and 7, respectively. The target 4-oxo-4H-quinolizine-3-carboxylic acids
8 and 9 were finally obtained after hydrolysis in NaOH/methanol followed by neutralization. During
the nitration procedure, the speed of addition of nitric acid should be carefully controlled, otherwise,
the reaction mixture would become red and the amount of by-products increased. In addition, Na2S2O4
was used to reduce nitro group and generated key intermediate 5, due to the benign reaction conditions
(usually at room temperature using water as solvent) and simple workup.
Scheme 1. The synthesis of 4-oxo-4H-quinolizine-3-carboxylic acid derivatives 8 and 9.
O
O
O
O
Xylene, reflux
OEt
1. BuLi, THF
HNO3
Ac2O
N
OEt
N
OEt
N
N
EtO
COOEt
COOEt
2.
EtOOC
3
4
NO2
2
1
COOEt
O
O
O
O
1)NaOH/CH3OH
rt
N
OEt
ArSO2Cl
N
OH
O
O
2) 1 mol/L HCl
CH2Cl2, Py.
Na2S2O4
CH3OH/H2O (1:1)
NHSO2Ar
N
OEt
NHSO2Ar
6a-e
8a-e
O
O
O
O
1)NaOH/CH3OH
reflux
NH2
Ar'COCl
5
N
OEt
N
OH
2) 1 mol/L HCl
CH2Cl2, Py.
NHCOAr'
7a-b
NHCOAr'
9a-b
Ar: a = Ph; b = p-CH3Ph; c = p-ClPh; d = p-OCH3Ph; e = p-NO2Ph
Ar': a = 3,4,5-trimethoxyphenyl; b = 3,4-dimethoxystyryl;
With 3 in hand, we then synthesized benzothiazole- and benzimidazole-substituted 4-oxo-4H-
quinolizine-3-carboxylic acid derivatives 12 and 14. As shown in Scheme 2, reaction of compound 3
with DMF and POCl3 generated intermediate 10 [24], which reacted with 2-aminothiophenol [28, 29]
followed by subsequent hydrolysis to generate 1-(benzothiazole-2-yl)-4-oxo-4H-quinolizine-3-
carboxylic acid (12). Similarly, compound 10 underwent oxidative condensation with o-phenylene-
diamine derivatives in nitrobenzene [30] yielded compounds 13a-c, which were hydrolyzed [31] to
obtain 1-(benzimidazole-2-yl)-4-oxo-4H-quinolizine-3-carboxylic acids 14a-c. It should be pointed out

Molecules 2009, 14
871
that two benzimidazole isomers were formed for each of 13b-c and 14b-c, that could not be separated
each other through conventional procedures.
It is noteworthy that the conditions for the hydrolysis of 11 and 13 were not similar to those used
for the synthesis of 8 and 9. The reaction proceeded very slowly in the NaOH/MeOH system. For
example, after 48 hours stirring at room temperature, the reaction mixtures were still slurries and most
of the starting materials were present in the reaction system. Consequently, KOH in 80% aqueous
ethanol was used for the synthesis of 12 and 14. As the reaction proceeded the slurry of the reaction
mixture turned clear and the products precipitated when 1 mol·L-1aqueous HCl was added.
Scheme 2 Synthesis of 4-oxo-4H-quinolizine-3-carboxylic acid derivatives 12 and 14.
O
O
O
O
NH2
N
N
OH
N
N
OEt
KOH, reflux
SH
S
S
EtOH/H2O
AcOH, reflux
OEt
OEt
O
O
O
O
POCl3
DMF
12
11
NH2
NH2
CHO
O
O
N
N
O
O
N
OH
N
OEt
KOH, reflux
EtOH/H2O
3
10
R
N
NH
Nitrobenzene
N
NH
13a-c
a, R = H; b, R = Cl; c, R = OCH3
14a-c
R
R
Structural analysis
The structures of all new 4-oxo-4H-quinolizine-3-carboxylic acid derivatives 6-14 were confirmed
1
13
1
by H-NMR, C-NMR, IR and ESI-MS (or HRMS) spectra. In the H-NMR spectra of ethyl 4-oxo-
4H-quinolizine-3-carboxylates 6, 7, 11, 13, the 4-oxo-4H-quinolizine ring proton signals appeared at
1
lower field compared with those of the benzene ring. For example, in the H-NMR spectra of 6b, the
two doublets at 9.43 ppm and 8.28 ppm were ascribed to the protons at C-5 and C-8 of the 4-oxo-4H-
quinolizine ring, respectively, while the protons at C-6 and C-7 exhibited two double doublets at 7.76
ppm and 7.29 ppm. The proton at C-2 resided at 7.63 ppm. A high field AB system (7.31 ppm and 7.64
ppm) corresponded to the signals of the four benzene ring protons.
1
In the H-NMR of target compounds 8, 9, 12, 14a, one sharp singlet in the δ 13.7-14.1 range was
observed, which disappeared after the D2O exchange and was consequently attributed to the COOH
proton. For example, the proton signals of the COOH groups of compounds 8a and 14a were located at
13.7 ppm and 13.8 ppm, respectively. In addition, compound 14a has a strong singlet at δ 13.7 ppm,
which demonstrated the existence of a N-H proton in the benzimidazole ring. In the 13C-NMR spectra
of these compounds one C=O peak at about 166 ppm and one around 159 ppm corresponded to the
signals of the 3-carboxylic acid and carbonyl groups in the quinolizine rings. The IR spectra of these

Molecules 2009, 14
872
compounds further support their postulated structures. There were several medium broad bands at
3,200~3,400 cm-1 corresponding to O-H and N-H bond and strong bands at 1,690~1,730 cm-1 due to
C=O bonds. The mass spectra of compounds 8c, 13b and 14b exhibited a M+2 signal, whose intensity
was 1/3 of the molecular ion signal, and corresponding to the Cl isotopes in these compounds.
Preliminary investigation of Mg2+ binding
To elucidate a two-metal inhibition model, very recently, Kawasuji et al [32] performed metal
titration studies of 2-hydroxy-3-heteroarylacrylic acid derivatives and observed a two-step shift of the
UV-Vis spectra upon the addition of Mg2+ if these compounds exhibited HIV-IN inhibitory activity.
On the contrary, simple change of UV-Vis absorption curves or no shift was found for their mutated
compounds which do not inhibit HIV integrase. Inspirited by this assumption, preliminary ion binding
experiments were also carried out by UV-Vis spectroscopy, using compound 14a as an example. Due
to the low solubility of 14a in water, CH3CN was used to prepare the stock solution for the UV-Vis
measurements. As shown in Figure 2, for the free compound 14a, two intense absorption bands at 352
nm and 414 nm were observed in the 320 – 550 nm range. As the Mg2+ concentration (as perchlorate
salt) increased, the absorption intensity of the peak at 414 nm first decreased and then the wavelength
shifted blue to around 402 nm. Figure 3 further demonstrated the selectivity of compound 14a to Mg2+.
In the presence of a 100-fold equivalent amount of Na+ or K+, no obvious change was observed.
However, the Mg2+ induced a blue shift of the absorption curve of compound 14a. Similar behaviors
were also observed for other divalent metals, including Mn2+, Co2+, Cu2+, Ca2+ and Ni2+ (not shown in
Figure 3).
Figure 2. Changes of UV-vis spectra with 14a in CH3CN on addition of 0-16×10-6 mol·L-1
of [Mg2+] at 25 °C.
× 10 −6 mol .L−1
0.25
0.20
0.15
0.10
0.05
0.00
[Mg2+]/
0
2
4
6
8
10
12
16
nm
350
400
450
wavelength
500
Conditions: [Mg2+] =2 × 10-3 M. [14a] = 2 × 10-5 MBlack: 0×10-6 mol·L-1, blue: 2×10-6 mol·L-1, red:
4×10-6 mol·L-1, navy: 6×10-6 mol·L-1, brown: 8×10-6 mol·L-1, green: 10×10-6 mol·L-1, dark cyan:
12×10-6 mol·L-1, brass: 16×10-6 mol.L-1.

Molecules 2009, 14
873
The titration experiment of 14a with Mg2+ further demonstrated that the binding ratio is 1:1, which
is consistent with that of KMG-103 and KMG-104 to Mg2+, indicating that the introduction of
benzimidazole substituent on the C-1 position of the 4-oxo-4H-quinolizine-3-carboxylic acid scaffold
does not affect its Mg2+ binding ability. In a word, a two-step shift of the absorption curve of
compound 14a upon the addition of Mg2+ was observed, similar to 2-hydroxy-3-heteroaryl acrylic acid
derivatives reported by Kawasuji et al [32]. These UV-Vis results indicated that our compounds might
interact with metal ions (Mg2+) in the active site of HIV IN and thus offer a piece of in vitro indication
of possible HIV IN inhibitory activity of these new compounds, in spite of no strict demonstration of
correction between the inhibitory activity and the metal affinity.
Figure 3. UV-Vis absorption spectra of free 14a and 14a in the presence of K+, Na+ or
Mg2+ ion in CH3CN solution.
0.2
{14a, Na+, K+}
Mg2+
0.1
0.0
nm
350
400
450
500
Wavelength
Conditions: [14a] = 2 × 10-5 M; [Mg2+] = [K+] = [Na+] = 2×10-3 M; Black: 14a, blue: Na+ complex,
red: K+ complex, navy: Mg2+ complex.
HIV integrase inhibitory activities of 4-oxo-4H-quinolizine-3-carboxylic acid derivatives
The target compounds 8, 9, 12, 14 were screened against purified HIV IN to determine any
potential inhibitory activity. Thus, a synthesized 30 oligonucleotide and a 20 oligonucleotide were
used as donor DNA and target DNA, respectively, which were purchased from Shanghai Sangon
Biological Engineering Technology & Services Co. Ltd. The donor DNA was biotinylated at the 5′ end
(5′ bio-DNA) and immobilized on streptavidin-coated 96-well microtiter plates. To the donor DNA
streptavidin-coated 96-well microtiter plate were added test sample, 3' digoxygenin-labeled target
DNA (3' dig-DNA) and recombinant HIV integrase and subjected to incubation in optimized
condition.
The plate was further washed with phosphate-buffered saline (PBS) containing 0.1% Tween®-20
and anti-digoxigenin-peroxidase (POD, 100 µL) was added to each well. After incubation at 37°C for
60 min, the plate was washed with PBS containing 0.1% Tween®-20. The digoxygenin-labeled
products were visualized by adding a POD substrate, tetramethylbenzidine (TMB). The colorimetric

Molecules 2009, 14
874
reaction was stopped by addition of 0.5 mol/L H2SO4 (100 µL), and the absorbance was measured at
450 nm on a microplate reader. The total inhibitory effect (including inhibiting 3′ process reaction and
strand transfer reaction) were obtained by comparing the absorbance of drug group with control group
(without test compound). As shown in Table 1, the values of IC50 of these compounds are more than
100 μg/mL, which mean a low inhibitory activity to HIV integrase.
The low HIV IN inhibitory activity of these designed 4-oxo-4H-quinolizine-3-carboxylic acid
derivatives might stem from various cofactors. Structurally, compounds 8, 9, 12 and 14 possess a
chelating scaffold suitable for binding only one ion. However, a two-metal chelating scaffold to form
respectively a five-membered and a six-membered system is required according to the two-metal
coordinating model for diketoacid-type HIV IN inhibitors. Therefore, the selective binding to Mg2+ is
not enough, the two-metal binding scaffold is also necessary in the design of diketoacid-type HIV IN
inhibitors. In addition, an appropriate substituent at appropriate position of the chelating scaffold is
also essential to ensure potential inhibitory activity.
Table 1. Integrase inhibitory activity data of 4-oxo-4H-quinolizine-3-carboxylic acid derivatives.
Initial concentration
IC50
Initial concentration
IC50
Sample
Sample
(μg/mL)
12
(μg/mL)
0.56
(μg/mL)
100
(μg/mL)
2
S-y1
8a
9a
-
2
2
100
-
9b
100
-
2
2
8b
8c
100
-
12
100
-
2
2
100
-
14a
14b
14c
100
-
2
2
8d
100
-
100
-
2
2
8e
100
-
100
-
1 S-y provided by the Shanghai Institute of Organic Chemistry was used as positive contrast.
2 “-” indicates that the HIV-IN inhibitory effect was less than 50% at the initial concentration.
Conclusions
Aryl diketoacid-containing compounds were demonstrated to be the most promising HIV IN
inhibitors. Based on the molecular mechanism of aryl diketoacids as HIV IN inhibitors and the
selective binding to Mg2+ of 4-oxo-4H-quinolizine-3-carboxylic acid unit, a series of 4-oxo-4H-
quinolizine-3-carboxylic acid derivatives, substituted by sulfonoamido, carboxylamido, benzimidazole
and benzothiazole groups, were designed and synthesized as diketoacid bioisosters. Their anti-HIV IN
activity was evaluated and no obvious inhibitory activities were observed. Based on the present results,
in the course of our coming works on development of HIV IN inhibitors, we would have a concept that
new types of HIV IN inhibitors would incorporate a two-metal chelating scaffold and a appreciate
hydrophobic domain. Moreover, the two-metal chelating scaffold could have an obvious binding
affinity to Mg2+.

Molecules 2009, 14
Experimental
General
875
All melting points (m.p.) were measured with a XT4A electrothermal apparatus equipped with a
microscope and are uncorrected. Infrared spectra (IR) were recorded as thin films on KBr plates with a
1
13
Bruker IR spectrophotometer and are expressed in v (cm-1). H- and C-NMR spectra were recorded
with an AV 400 M Bruker spectrometer (400 MHz 1H frequency, 100 MHz 13C frequency). Chemical
shifts were measured in CDCl3 or DMSO-d6 with TMS as internal reference. The MS spectra (ESI)
were recorded on a Bruker Esquire 6000 mass spectrometer. HRMS spectra were recorded in the
negative ion mode using APEX II FT-ICRMS of Bruker Daltonics Inc. All solvents were of
commercial quality and were dried and purified by standard procedures. Compounds 2, 3, 4, 10 were
synthesized according to the literature procedure [24].
General procedure for the synthesis of ethyl 1-(substituted phenylsulfonamido)-4-oxo-4H-quinolizine-
3-carboxylates 6
Compound 4 (1.97 g, 7.5 mmol) was suspended in a 1:1 mixture of methanol and water (100 mL) in
a 250 mL flask. Na2S2O4 (7.8 g，45 mmol) was then added in one portion at room temperature and the
mixture was stirred for about 2 hours. After the reaction, the organic compound was extracted three
times using CH2Cl2 and dried over anhydrous Na2SO4. After filtration of the Na2SO4, the solvent was
removed under reduced pressure to give 1.0 g (57%) of 5 as a red solid, which was used for the
following reactions without further purification. The appropriate substituted sulfonyl chloride (3.44
mmol) in CH2Cl2 (30 mL) was added dropwise to a CH2Cl2 solution (30 mL) containing 5 (3.44 mmol)
and dry pyridine (0.3 mL). The solution changed from red to dark and TLC showed the formation of
new compounds with red fluorescence emission. After the reaction, the solution was washed with
water and the organic layer was dried over anhydrous MgSO4. After filtration of the MgSO4, the
solvent was removed under reduced pressure and the residue was recrystallized by ethyl acetate to give
the desired products 6 as yellow solids.
Ethyl 1-phenylsulfonamido-4-oxo-4H-quinolizine-3-carboxylate (6a): Yield 72%. m.p.: 207-209 °C;
1H-NMR (CDCl3): δ 1.34 (t, 3H, J = 7.1 Hz, CH3), 4.32 (q, 2H, J = 7.1 Hz, OCH2), 7.25 (dd, 1H, J =
13
7.7 Hz, J = 5.9 Hz), 7.48~7.91 (m, 8H, Ar-H), 9.42 (d, 1H, J = 7.1 Hz, ); C-NMR (CDCl3): δ 14.4,
60.9, 105.6, 106.9, 117.3, 122.0, 128.9, 129.3, 130.1, 134.6, 135.5, 138.4, 143.9, 147.2, 154.7, 164.5;
IR: ν 3491, 3139, 2981, 1734, 1698, 1493 cm-1; MS (ESI): m/z 370.9 [M - H]-.
Ethyl 1-p-methylphenylsulfonamido-4-oxo-4H-quinolizine-3-carboxylate (6b): Yield 60%. m.p.: 115-
117 °C; 1H-NMR (CDCl3): δ 1.31 (t, 3H, J = 7.2 Hz, CH3), 2.45 (s, 3H, PhCH3), 4.30 (q, 2H, J = 7.2
Hz, CH2), 6.38 (s, 1H, NH), 7.29~7.33 (m, 3H, Ar-H), 7.64(s, 1H, Ar-H), 7.65(d, 2H, J = 7.6 Hz, Ar),
7.77 (dd, 1H, J = 7.5 Hz, J = 8.0 Hz, Ar-H), 8.28 (d, 1H, J = 8.8 Hz, Ar-H), 9.43 (d, 1H, J = 7.1 Hz);
13C-NMR (CDCl3): δ 14.6, 21.8, 61.1, 104.9, 108.3, 117.7, 122.9, 128.0, 130.1, 130.1, 135.4, 135.5,

Molecules 2009, 14
876
141.5, 144.7, 146.9, 155.1, 165.3; IR: ν 3452, 3164, 2972, 1718, 1629, 1490 cm-1; MS (ESI): m/z 387.0
[M + H]+.
Ethyl 1-p-chloro-phenylsulfonamido-4-oxo-4H-quinolizine-3-carboxylate (6c): Yield 73%. m.p.: 210-
212°C; 1H-NMR (DMSO-d6): δ 1.24 (t, 3H, J = 7.6 Hz, CH3), 4.18 (q, 2H, J = 7.6 Hz, CH2), 7.54 (s,
1H, Ar-H), 7.55 (dd, 1H, J = 7.2 Hz, J = 6.4 Hz, Ar-H), 7.68 (d, 2H, J = 8.8 Hz, Ar-H), 7.73 (d, 2H, J
13
= 8.8 Hz, Ar-H), 7.97-8.05 (m, 2H, Ar-H), 9.29 (d, 1H, J = 7.2 Hz, Ar-H); C-NMR (DMSO-d6): δ
14.6, 60.3, 103.1, 108.5, 118.7, 122.4, 129.7, 129.9, 130.0, 136.6, 138.0, 138.6, 140.1, 146.0, 154.0,
164.5; IR: ν 3445, 3155, 2972, 1715, 1494 cm-1; MS (ESI): m/z 404.9 [M -1]-, 428.8 [M + Na]+.
Ethyl 1-p-methyloxyphenylsulfonamido-4-oxo-4H-quinolizine-3-carboxylate (6d): Yield 92%. m.p.:
236-238°C; 1H NMR (DMSO-d6): δ 1.19 (t, 3H, J = 6.9 Hz, CH3), 3.82 (s, 3H, OCH3), 4.11 (q, 2H, J =
7.0, CH2), 7.06 (d, 2H, J = 8.6, Ar-H), 7.49-7.51 (m, 2H, Ar-H), 7.60 (d, 2H, J = 8.6 Hz, Ar-H), 7.90-
13
8.01 (m, 2H, Ar-H), 9.24 (d, 1H, J = 7.2 Hz, Ar-H), 9.58 (s, 1H, NH); C NMR (DMSO-d6): δ 14.5,
56.1, 60.4, 103.2, 109.1, 114.9, 118.7, 122.5, 129.8, 129.9, 130.6, 136.3, 140.3, 146.0, 154.1, 163.2,
164.6; IR: ν 3442, 3170, 2927, 1716, 1650, 1494 cm-1; MS (ESI): m/z 424.9 [M+Na]+.
Ethyl 1-p-nitrophenylsulfonamido-4-oxo-4H-quinolizine-3-carboxylate (6e): Yield: 76%. m.p.: 265-
1
267°C; H-NMR (DMSO-d6): δ 1.15 (t, 3H, J = 7.2 Hz, CH3), 4.1 (q, 2H, J = 7.2 Hz, CH2), 7.51 (s,
1H, Ar-H), 7.49-7.53 (m, 1H, Ar-H), 7.94-7.98 (m, 4H, Ar-H), 8.39 (d, 2H, J = 8.8 Hz, Ar-H), 9.27 (d,
13
1H, J = 7.2 Hz, Ar-H), 10.20 (s, 1H, NH); C-NMR (DMSO-d6): δ 14.5, 60.4, 103.1, 108.0, 118.8,
122.2, 125.0, 129.4, 130.1, 136.8, 140.1, 144.8, 145.8, 150.4, 154.1, 164.6; IR: ν 3446, 3204, 2981,
1727, 1627, 1497, 1233 cm-1; MS (ESI): m/z 439.9 [M + Na]+.
General procedure for the synthesis of 1-(substituted phenylsulfonamido)-4-oxo-4H-quinolizine-3-
carboxylic acids 8
To a suspension of 6 (1.2 mmol) in methanol (15 mL) was added 3 mol/L of NaOH (0.9 mL). The
reaction mixture was stirred overnight, followed by evaporation of the solvent under reduced pressure.
The remaining solid was dissolved in water (20 mL) and the clear solution was acidified with 1 mol/L
HCl to pH 1. The resulting suspension was filtered and dried under vacuum over P2O5 to give
yellowish solids.
1
1-Phenylsulfonamido-4-oxo-4H-quinolizine-3-carboxylic acid (8a): Yield 82%. m.p.: 245-247°C; H-
NMR (DMSO-d6): δ 7.51-7.55 (m, 2H, Ar-H), 7.63-7.66 (m, 5H, Ar-H), 8.00-8.09 (m, 2H, Ar-H), 9.29
13
(d, 1H, J = 7.2 Hz, Ar-H), 10.05 (s, 1H, NH), 13.71 (s, 1H, COOH); C-NMR (DMSO-d6): δ 103.7,
113.0, 120.2, 122.9, 127.6, 129.8, 133.8, 136.9, 138.6, 138.9, 145.0, 158.9, 165.6; IR: ν 3441, 3293,
3116, 1727, 1616, 1495, 1446, 1365, 1327, 1159 cm-1; MS (ESI): m/z 344.9 [M + H]+, 366.9 [M +
Na]+.
1-p-Methylphenylsulfonamido-4-oxo-4H-quinolizine-3-carboxylic acid (8b): Yield 75%. m.p.: > 300
°C; 1H-NMR (DMSO-d6): δ 2.35 (s, 3H, CH3), 7.33 (d, 2H, J = 8.1 Hz, Ar-H), 7.54 (d, 2H, J = 8.1 Hz,

Molecules 2009, 14
877
Ar-H), 7.64 (dd, 1H, J = 7.0 Hz, Ar-H), 7.67 (s, 1H, Ar-H), 8.03 (dd, 1H, J = 7.2 Hz, J = 8.4 Hz, Ar-
H), 8.11 (d, 1H, J = 8.8 Hz, Ar-H), 9.29 (d, 1H, J = 7.1 Hz, Ar-H); 13C-NMR (DMSO-d6): δ 21.5,
103.7, 113.3, 120.2, 123.0, 127.6, 129.8, 130.2, 136.2, 136.8, 138.5, 144.1, 145.0, 158.9, 165.7; IR: ν
3265, 3071, 1725, 1619, 1492, 1448, 1292, 1160, 816 cm-1; HRMS: m/z calcd for C17H13 N2O5S:
357.0551; found: 357.0550.
1-p-Chlorophenylsulfonamido-4-oxo-4H-quinolizine-3-carboxylic acid (8c): Yield 79%. mp > 300°C;
1H-NMR (DMSO-d6): δ 7.65-7.72 (m, 6H, Ar-H), 8.09-8.15 (m, 2H, Ar-H), 9.36 (d, 1H, J = 7.1 Hz,
Ar-H), 10.22 (s, 1H, NH), 13.70 (s, 1H, OH); 13C-NMR (DMSO-d6): δ 103.7, 112.7, 120.3, 122.9,
129.6, 129.9, 129.9, 137.0, 137.8, 138.5, 138.6, 145.0, 158.9, 165.7; IR: ν 3446, 3265, 2924, 1720,
1489, 1163 cm-1; MS (ESI): m/z 376.9 [M-H]-.
1-p-Methoxyphenylsulfonamido-4-oxo-4H-quinolizine-3-carboxylic acid (8d): Yield 86%. mp >
300°C; 1H-NMR (DMSO-d6): δ 3.79 (s, 3H, CH3), 7.03 (d, 2H, J = 8.8 Hz, Ar-H), 7.57 (d, 2H, J = 8.8
Hz, Ar-H), 7.65 (dd, 1H, J = 10.0 Hz, J = 7.2 Hz, Ar-H), 7.68 (s, 1H, Ar-H), 8.03 (dd, 1H, J = 8.6 Hz,
13
J = 7.0, Ar-H), 8.10 (d, 1H, J = 8.8Hz, Ar-H), 9.29 (d, 1H, J = 7.2Hz, Ar-H), 9.86 (s, 1H, NH); C-
NMR (DMSO-d6): δ 56.2, 103.7, 113.3, 114.9, 120.2, 123.0, 129.7, 129.8, 130.5, 136.8, 138.6, 145.1,
158.9, 163.3, 165.7; IR: ν 3248, 2918, 2849, 1724, 1618, 1597, 1496, 1450, 1294, 1157, 836 cm-1; MS
(ESI): m/z 375.0 [M+H]+.
1-p-Nitrophenylsulfonamido-4-oxo-4H-quinolizine-3-carboxylic acid (8e): Yield 82%; mp > 300°C;
1H-NMR (DMSO-d6): δ 7.60-7.80 (m, 1H, Ar-H), 7.73 (s, 1H, Ar-H), 7.94 (d, 2H, J = 8.0 Hz, Ar-H),
8.02-8.05 (m, 2H, Ar-H), 8.35 (d, 2H, J = 8.0 Hz, Ar-H), 9.32 (d, 1H, J = 6.4 Hz, Ar-H), 10.49 (s, 1H,
NH), 13.68 (s, 1H, OH); 13C-NMR (DMSO-d6): δ 103.8, 112.3, 120.3, 122.6, 125.1, 129.3, 129.9,
137.2, 138.6, 144.7, 144.8, 150.4, 158.9, 165.7; IR: ν 3454, 3234, 3082, 1715, 1488, 1167, 786 cm-1;
MS (ESI): m/z 387.8 [M-H]-.
General procedure for the synthesis of 7a,b
To a solution of 3,4,5-trimethoxylbenzoic acid or 3,4-dimethoxycinnamic acid (4 mmol) in ether
(20 mL) was added PCl5 (20 mL) in one portion. The reaction mixture was heated to reflux for about 4
hours and then cooled to room temperature. After maintaining in a refrigerator for about 1 hour, a
white precipitate formed which was filtered and recrystallized from cold ether to give the
corresponding carboxylic chloride. The newly-synthesized acyl chloride dissolved in CH2Cl2 (20 mL)
was added dropwise to a mixture of compound 5 (3 mmol) and triethylamine (3 mmol) in CH2Cl2 (20
mL). The reaction solution was stirred overnight at room temperature. After the reaction, the solution
was washed with water and the organic layer was dried over anhydrous MgSO4. After filtration of the
MgSO4, the solvent was removed under reduced pressure and the residue was purified by
recrystallization from ethyl acetate to give 7a or 7b as a yellow solid.
Ethyl 1-(3,4,5-trimethoxyphenylcarbonylamino)-4-oxo-4H-quinolizine-3-carboxylate (7a): Yield 40%;
mp 93°C; 1H-NMR (CDCl3): δ 1.29 (t, 3H, J = 7.2 Hz, CH3), 3.92 (s, 3H, OCH3), 3.95 (s, 6H, OCH3),

Molecules 2009, 14
878
4.26 (q, 2H, J = 7.2 Hz, OCH2), 7.11 (dd, 1H, J = 6.8 Hz, J = 7.2 Hz, Ar-H), 7.39 (s, 2H, Ph-H), 7.57
(dd, 1H, J = 8.8 Hz, J = 6.8 Hz, Ar-H), 7.66 (d, 1H, J = 8.8 Hz, Ar-H), 8.08 (s, 1H, Ar-H), 8.66 (bs,
1H, NH), 9.17 (d, 1H, J = 7.2 Hz, Ar-H); 13C-NMR (CDCl3): δ = 14.4, 56.4, 60.9, 61.0, 105.1, 105.1,
110.6, 116.9, 122.0, 128.4, 129.4, 134.2, 140.2, 141.5, 143.7, 153.3, 154.9, 165.3, 166.9; IR: ν 3462,
3328, 2939, 1720, 1678, 1587, 1487, 1336, 1216, 1126, 1009, 772 cm-1; MS (ESI): m/z 449.0 [M +
Na]+.
Ethyl 1-[3-(3,4-dimethoxyphenyl)acrylamido]-4-oxo-4H-quinolizine-3-carboxylate (7b): Yield 85%;
1
m.p.: 105-107°C; H-NMR (DMSO-d6): δ 1.30 (t, 3H, J = 7.2 Hz, CH3), 3.81 (s, 3H, OCH3), 3.83 (s,
3H, OCH3), 4.26 (q, 2H, J = 7.2 Hz, CH2), 6.81 (d, 1H, J = 15.6 Hz, CH=CH), 7.03 (d, 1H, J = 8.4 Hz,
Ar-H), 7.21 (d, 1H, J = 8.4 Hz, Ar-H), 7.26 (s, 1H, Ar-H), 7.51 (dd, 1H, J = 6.4 Hz, J = 7.2 Hz, Ar-H),
7.55 (d, 1H, J = 15.6 Hz, Ar-H), 7.86 (d, 1H, J = 8.8 Hz, Ar-H), 7.96 (dd, 1H, J = 7.2 Hz, J = 8.0 Hz,
Ar-H), 8.26 (s, 1H, Ar-H), 9.30 (d, 1H, J = 7.2 Hz, Ar-H), 9.89 (s, 1H, NH); 13C-NMR (DMSO-d6): δ
14.8, 55.9, 56.0, 60.5, 103.7, 110.6, 111.1, 112.2, 118.2, 119.4, 122.3, 122.4, 127.9, 129.8, 135.8,
139.0, 141.1, 143.1, 149.4, 150.9, 154.1, 165.3, 165.9; IR: ν 3436, 3226, 2935, 1702, 1677, 1595,
1491, 1377, 1236, 1114, 1026, 768 cm-1; MS (ESI): m/z 445.0 [M + Na]+.
General procedure for the synthesis of 9a,b
To a suspension of 7a or 7b (0.5 mmol) in 80% methanol (20 mL) was added NaOH (5 mmol). The
reaction mixture was heated to reflux till the starting 7a or 7b disappeared according to monitoring by
TLC. After evaporation of the solvent under reduced pressure, the remaining solid was dissolved in
water (20 mL) and the clear solution was acidified with 1 mol/L HCl to pH 1 and the resulting
suspension extracted with CH2Cl2. The combined organic layer was dried over anhydrous MgSO4
followed by filtration. The desired 9a or 9b were finally obtained as solids by column chromatography
(eluents: CH3OH/CHCl3 = 1:30)
1-(3,4,5-Trimethoxyphenylcarbonylamino)-4-oxo-4H-quinolizine-3-carboxylic acid (9a): Yield 92%;
m.p.: 280-282°C; 1H-NMR (DMSO-d6): δ 3.67 (s, 3H, OCH3), 3.80 (s, 6H, OCH3), 7.33 (s, 2H, Ar-H),
7.64 (dd, 1H, J = 7.2 Hz, J = 6.8 Hz, Ar-H), 7.94 (d, 1H, J = 8.8 Hz, Ar-H), 8.02 (dd, 1H, J = 6.8 Hz, J
=8.8 Hz, Ar-H ), 8.29 (s, 1H, Ar-H), 9.30 (d, 1H, J = 7.2 Hz, Ar-H), 10.29 (s, 1H, NH), 13.96 (s, 1H,
COOH); 13C-NMR (DMSO-d6): δ 56.6, 60.6, 103.9, 105.9, 115.2, 105.9, 115.2, 120.2, 123.3, 129.1,
129.7, 136.6, 138.2, 141.0, 143.0, 153.2, 159.0, 166.1, 166.5; IR: ν 3440, 3115, 2924, 2853, 1696,
1657, 1615, 1587, 1496, 1453, 1364, 1292, 1123 cm-1; MS (ESI): m/z 397.0 [M - H]-.
1-(3,4-Dimethoxystyrylcarboxylamino)-4-oxo-4H-quinolizine-3-carboxylic acid (9b): Yield 91%; m.p.:
306-308°C; 1H-NMR (DMSO-d6): δ 3.82 (s, 3H, OCH3), 3.84 (s, 3H, OCH3), 6.84 (d, 1H, J = 16.0 Hz,
CH=CH), 7.03 (d, 1H, J = 8.4 Hz, Ar-H), 7.23 (d, 1H, J = 8.4 Hz, Ar-H), 7.27 (s, 1H, Ar-H), 7.58 (d,
1H, J = 16.0 Hz, Ar-H), 7.70-7.74 (m, 1H, Ar-H), 8.10-8.12 (m, 2H, Ar-H), 8.44 (s, 1H, Ar-H), 9.37 (d,
13
1H, J = 7.2 Hz, Ar-H), 10.11 (s, 1H, NH), 14.13 (s, 1H, OH); C-NMR (DMSO-d6): δ 56.0, 56.1,
103.9, 110.9, 112.4, 115.5, 119.3, 120.0, 122.3, 122.8, 127.9, 136.3, 136.9, 141.4, 142.1, 149.5, 151.1,

Molecules 2009, 14
879
158.8, 165.8, 166.1; IR: ν 3251, 1728, 1612, 1541, 1515, 1464, 1303, 1266 cm-1; MS (ESI): m/z 393.1
[M - H]-.
Synthesis of ethyl 1-benzothiazol-2-yl-4-oxo-4H-quinolizine-3-carboxylate (11)
2-Aminophenthiol (250 mg, 2 mmol) was added to a 50 mL of round flask charged with compound
10 (490 mg, 2 mmol) and acetic acid (15 mL). The reaction mixture was heated to reflux for about one
hour till TLC confirmed that the reaction had finished. After removal of the solvent, the residue was
recrystallized from ethyl acetate to offer a needle-like yellow solid. Yield：65%；m.p.: 199-200 °C;
1H-NMR (DMSO-d6): δ 1.35 (t, 3H, J = 7.1 Hz, CH2CH3), 4.32 (q, 2H, J = 7.1 Hz, CH2CH3), 7.48 (t,
1H, J = 7.6 Hz, Ar-H), 7.57 (t, 1H, J = 7,6 Hz, Ar-H), 7.70 (t, 1H, J = 7.2 Hz), 8.07 (d, 1H, J = 8.0 Hz,
Ar-H), 8.15 (d, 1H, J = 8.0 Hz, Ar-H), 8.25 (t, 1H, J = 7.6 Hz, Ar-H), 8.75 (s, 1H, Ar-H), 9.47 (d, 1H,
13
J = 7.2 Hz, Ar-H), 9.59 (d, 1H, J = 8.0 Hz, Ar-H); C-NMR (DMSO-d6): δ 15.2, 61.2, 105.0, 106.0,
120.0, 122.8, 123.3, 124.9, 126.1, 127.5, 131.3, 134.2, 139.4, 142.9, 144.6, 154.3, 154.7, 165.4, 165.9;
IR: v 1736, 1670, 1623, 1583, 1496, 1222, 1133, 780 cm-1; MS (ESI): m/z 373 [M + Na]+.
Synthesis of 1-benzothiazol-2-yl-4-oxo-4H-quinolizine-3-carboxylic acid (12)
KOH (765 mg, 13.7 mmol) dissolved in water (6 mL) was added to a 100 mL round flask charged
with compound 11 (480 mg, 1.37 mmol) and ethanol (24 mL). The reaction mixture was heated to
reflux for about four hours till TLC confirmed that the reaction had finished. After removal of the
solvent, the residue was re-dissolved in water (30 mL) and then acidified to pH 2. The product was
extracted three times with CH2Cl2 (50 mL) and the combined organic layer was dried over anhydrous
MgSO4. After filtration of the MgSO4, the solvent was removed under reduced pressure and the
residue was purified by recrystallization from chloroform/petroleum ether to generate 12 as a yellow
1
solid. Yield 68%. m.p.: >300 °C; H-NMR (CDCl3): δ 7.32 (dd, 1H, J = 7.6 Hz, J = 7.2 Hz, Ar-H),
7.64-7.67 (m, 2H, Ar-H), 7.81-7.91(m, 2H, Ar-H), 7.95 (d, 1H, J = 8.0 Hz, Ar-H), 8.78 (d, 1H, J = 4.8
Hz), 9.21 (s, 1H, Ar-H), 9.43 (d, 1H, J = 7.2 Hz, Ar-H), 13.95 (s, 1H, COOH); 13C-NMR (DMSO-d6):
δ 110.2, 113.2, 119.9, 120.6, 122.6, 123.3, 127.6, 128.3, 130.7, 137.3, 138.3, 138.7, 147.7, 151.4,
152.4, 163.8, 165.7; IR: v 1750, 1611, 1564, 1453 cm-1; MS (ESI): m/z 345.0 [M + Na]+, 361.0 [M +
K]+.
General procedure for the synthesis of compounds 13a-c
To a 50 mL of round flask charged with phenylenediamine derivative (1 mmol) and nitrobenzene
(10 mL) was added compound 10 (245 mg,1 mmol) and then the solution was slowly heated to 100 °C.
After 1 h stirring, the reaction mixture was further heated to 150 °C and stirred till TLC showed the
absence of starting 10. The solution was cooled to room temperature and directly loaded onto a silica
column for chromatographic purification. The eluents were first petroleum ether and then ethyl
acetate/petroleum ether (1:2). After the nitrobenzene was eluted out, CHCl3/CH3OH was used to elute
the corresponding 13a-c.

Molecules 2009, 14
880
Ethyl 1-(1H-benzimidazol-2-yl)-4-oxo-4H-quinolizine-3-carboxylate (13a): Yield 85 %. m.p.: 194-195
°C; 1H-NMR (CDCl3): δ 1.20 (t, 3H, J = 7.2 Hz, OCH2CH3), 4.12 (q, 2H, J = 7.2 Hz, OCH2CH3), 7.21
(t, 1H, J = 7.2 Hz, Ar-H), 7.31~7.36 (m, 2H, Ar-H), 7.67~7.75 (m, 3H, Ar-H), 8.56 (s, 1H, Ar-H), 8.94
13
(d, 1H, J = 8.9 Hz, Ar-H), 9.30 (d, 1H, J = 7.2 Hz), 11.5 (br, 1H, NH); C-NMR (CDCl3): δ 14.2,
61.1, 104.8, 105.2, 117.7, 122.9, 124.8, 129.6, 135.6, 141.1, 144.6, 148.8, 155.2, 165.3; IR: v 1725,
1678, 1624, 1538 cm-1; MS (ESI): m/z 334 [M+1], 356 [M + Na]+.
Ethyl 1-(5(6)-chloro-1H-benzimidazol-2-yl)-4-oxo-4H-quinolizine-3-carboxylate (13b): Yield 83 %;
1
m.p.: 216-217 °C; H-NMR (CDCl3): δ 1.18 (t, 3H, J = 7.2 Hz, OCH2CH3), 4.10 (q, 2H, J = 7.2 Hz,
OCH2CH3), 7.23-7.29 (m, 2H, Ar-H), 7.63-7.76 (m, 3H, Ar-H), 8.57 (s, 1H, Ar-H), 9.04 (d, 1H, J =
13
8.8 Hz, Ar-H), 9.33 (d, 1H, J = 4.8 Hz, Ar-H), 11.8 (br, 1H, NH); C-NMR (CDCl3): δ 14.1, 61.0,
104.4, 104.9, 117.9, 123.3, 124.7, 128.3, 129.6, 135.8, 141.1, 144.5, 150.0, 155.1, 165.1; IR: v 3444,
3219, 1730, 1644, 1488, 1106 cm-1; MS (ESI): m/z 366 [M-1]-.
Ethyl 1-(5(6)-methoxy-1H-benzimidazol-2-yl)-4-oxo-4H-quinolizine-3-carboxylate (13c): Yield 88%;
1
m.p.: 234-236 °C; H-NMR (CDCl3): δ 1.20 (t, 3H, J = 7.2 Hz, OCH2CH3), 3.89 (s, 3H, OCH3), 4.13
(q, 2H, J = 7.2 Hz, OCH2CH3), 6.95 (d, 1H, J = 8.8, Ar-H), 7.21-7.71 (m,. 3H, Ar-H), 8.24 (d, 1H, J =
8.0 Hz, Ar-H), 8.54 (s, 1H, Ar-H), 8.95 (d, 1H, J = 8.8 Hz, Ar-H), 9.30 (d, 1H, d, J = 7.2 Hz, Ar-H);
13C-NMR (CDCl3): δ 165.36, 156.81, 155.19, 144.55, 140.98, 135.40, 134.56, 129.53, 129.30, 124.83,
123.49, 117.66, 105.13, 105.08, 61.05, 55.85, 14.18; IR: v 3435, 1723, 1615, 1450 cm-1; MS (ESI): m/z
362 [M-1]-.
General procedure for the synthesis of compounds 14a-c
To a 100 mL of round flask charged with compound 13 (1 mmol) and ethanol (20 mL) was added
KOH (560 mg, 10 mmol) dissolved in water (5 mL). The reaction mixtures were heated to reflux till
TLC confirmed that the reactions had finished. After removal of the solvent, the residue was re-
dissolved in water (20 mL) and then acidified to pH 2. The resulting suspensions were filtered, dried
and purified by column chromatography (eluents: CHCl3/CH3OH) to obtain corresponding 14a-c as
yellow solids.
1-(1H-Benzimidazol-2-yl)-4-oxo-4H-quinolizine-3-carboxylic acid (14a): Yield 20 %. m.p.: >300 °C;
1H-NMR (DMSO-d6): δ 7.23 (m, 2H, Ar-H), 7.53 (m, 1H, Ar-H), 7.70 (m, 1H, Ar-H), 7.79 (t, 1H, J =
6.8 Hz, Ar-H), 8.28 (t, 1H, J = 5.6 Hz, Ar-H), 8.97 (s, 1H, Ar-H), 9.47 (d, 1H, J = 6.8 Hz, Ar-H), 9.85
13
(d, 1H, J = 9.2 Hz, Ar-H), 13.14 (s, 1H, NH), 13.75 (s, 1H, COOH); C-NMR (DMSO-d6): δ 104.6,
107.0, 111.8, 119.2, 120.6, 122.3, 123.3, 125.8, 130.2, 134.8, 138.1, 139.4, 143.9, 144.2, 149.1, 159.4,
166.1; IR: v 1705, 1612, 1497, 1443 cm-1; HRMS: m/z calcd for C17H10N3O3: 304.0718; found:
304.0727.
1-(5(6)-Chloro-1H-benzimidazol-2-yl)-4-oxo-4H-quinolizine-3-carboxylic acid (14b): Yield: 35 %.
m.p.>300 °C; 1H-NMR (DMSO-d6) δ: 7.43 (dd, 1H, J = 8.4 Hz, J = 1.6 Hz, Ar-H), 7.74 (d, 1H, J = 8.4
Hz, Ar-H), 7.78 (s, 1H, Ar-H), 7.79 (t, 1H, J = 7.2 Hz, Ar-H) , 8.25 (t, 1H, J = 7.6 Hz, Ar-H), 8.89 (s,

Molecules 2009, 14
881
13
1H, Ar-H), 9.09 (d, 1H, J = 8.8 Hz, Ar-H), 9.45 (d, 1H, J = 7.2 Hz, Ar-H); C-NMR (DMSO-d6) δ:
101.9, 104.9, 114.6, 116.3, 120.7, 124.9, 125.2, 129.2, 130.6, 133.9, 136.0, 138.9, 141.7, 144.2, 148.6,
158.6, 165.7; IR: v 3434, 1718, 1612, 1499 cm-1; MS (ESI) m/z: 338 [M-1]-.
1-(5(6)-Methoxy-1H-benzimidazol-2-yl)-4-oxo-4H-quinolizine-3-carboxylic acid (14c): Yield 45 %.
m.p.: >300 °C; 1H-NMR (DMSO-d6): δ 3.86 (s, 3H, OCH3), 7.06 (dd, 1H, J = 8.4 Hz, J = 2.0 Hz, Ar-
H), 7.21 (d, 1H, J = 2.0 Hz, Ar-H), 7.66 (d, 1H, J = 8.8 Hz, Ar-H), 7.80 (t, 1H, J = 6.8 Hz, Ar-H), 8.26
(t, 1H, J = 8.4 Hz,Ar-H), 8.88 (s, 1H, Ar-H), 9.09 (d, 1H, J = 8.8 Hz, Ar-H), 9.48 (d, 1H, J = 7.2 Hz,
Ar-H); 13C-NMR (DMSO-d6): δ 165.76, 158.73, 157.63, 146.81, 144.11, 141.15, 138.64, 136.03,
130.49, 129.85, 125.03, 120.65, 115.89, 114.55, 104.84, 103.86, 97.09, 56.24; IR: v 3415, 1728, 1618
cm-1; MS (ESI): m/z 334 [M-1]-.
Acknowledgements
This work was supported by Grants from Beijing Novel Project (No. 2005B10), Beijing Natural
Science Foundation (No. 2062003) and the National Natural Science Foundation of China (No.
20772010).
References
1. Turner, B.G.; Summers, M.F. Structural biology of HIV. J. Mol. Biol. 1999, 285, 1-32.
2. Molla, A.; Granneman, G.R.; Sun, E.; Kempf, D.J. Recent developments in HIV protease inhibitor
therapy. Antiviral Res. 1998, 39, 1-23.
3. Moyle, G.; Gazzard, B. Current knowledge and future prospects for the use of HIV protease
inhibitors. Drugs 1996, 51, 701-702.
4. Pomerantz, R.J.; Horn, D.L. Twenty years of therapy for HIV 1 infection. Nature Med. 2003,
9, 867-873.
5. De Clercq, E. New developments in anti-HIV chemotherapy. Biochim. Biophys. Acta 2002, 1587,
258-275.
6. Brown, P.O. Integration of retroviral DNA. Curr. Top. Microbiol. Immunol. 1990, 157, 19-48.
7. Katz, R.A.; Skalka, A.M. The retroviral enzymes. Annu. Rev. Biochem. 1994, 63, 133-173.
8. Farnet, C.M.; Wang, B.; lipford, J.R.; Bushman, F.D. Differential inhibition of HIV-1
preintegration complexes and purified integrase protein by small molecules. Proc. Natl. Acad. Sci.
USA 1996, 93, 9742-9747.
9. Molteni, V.; Rhodes, D.; Rubins, K.; Hansen, M.; Bushman, F.D.; Siegel, J.S. A new class of
HIV-1 integrase inhibitors: the 3,3,3',3'-tetramethyl-1,1'-spirobi(indan)-5,5',6,6'-tetrol family. J.
Med. Chem. 2000, 43, 2031-2039.
10. Hazuda, D.J.; Felock, P.; Witmer, M.; Wolfe, A.; Stillmock, K.; Grobler, J.A.; Espeseth, A.;
Gabryelski, L.; Schleif, W.; Blau, C.; Miller, M.D. Inhibitors of strand transfer that prevent
integration and inhibit HIV-1 replication in cells. Science 2000, 287, 646-650.
11. Hazuda, D.J.; Yong, S.D.; Guare, J.P.; Anthony, N.J.; Gomez, R.P.; Wai, J.S.; Vacca, J.P.; Handt,
L.; Motzel, S.L.; Klein, H.J.; Tussey, L.; Schleif, W.A.; Gabryelski, L.S.; Jin, L.; Miller, M.D.;

Molecules 2009, 14
882
Casimiro, D.R.; Emini, E.A.; Shiver, J.W. Integrase inhibitors and cellular immunity suppress
retroviral replication in rhesus macaques. Science 2004, 305, 528-532.
12. Espeseth, A.S.; Felock, P.; Wolfe, A.; Witmer, M.; Grobler, J.; Anthony, N.; Egbertson, M.;
Melamed, J.Y.; Young, S.; Hamill, T.; Cole, J.L.; Hazuda, D.J. HIV-1 integrase inhibitors that
compete with the target DNA substrate define a unique strand transfer conformation for integrase.
Proc. Natl. Acad. Sci. USA 2000, 97, 11244-11249.
13. Goldgur, Y.; Craigie, R.; Cohen, G.H.; Fujiwara, T.; Yoshinaga, T.; Fujishita, T.; Sugimoto, H.;
Endo, T.; Murai, H.; Davies, D.R. Structure of the HIV-1 integrase catalytic domain complexed
with an inhibitor: a platform for antiviral drug design. Proc. Natl. Acad. Sci. USA 1999, 96,
13040-13043.
14. Grobler, J.A.; Stillmock, K.; Hu, B.; Witmer, M.; Felock, P.; Espeseth, A.; Wolfe, A.; Egbertson,
M.S.; Bourgeois, M.; Melamed, J.Y.; Wai, J.S.; Young, S.D.; Vacca, J.P.; Hazuda, D.J. Diketo
acid inhibitor mechanism and HIV-1 integrase: implications for metal binding in the active site of
phosphotransferase enzymes. Proc. Natl. Acad. Sci. USA 2002, 99, 6661-6666.
15. Zhuang, L.H.; Wai, J.S.; Embrey, M.W.; Fisher, T.E.; Egbertson, M.S.; Payne, L.S.; Juare, Jr. J.P.;
Vacca, J.P.; Hazuda, D.J.; Felock, P.J.; Wolfe, A.L.; Stillmock, K.A.; Witmer, M.V.; Moyer, G.;
Schleif, W.A.; Gabryelsk, L.J.; Leonard, Y.M.; Lynch, Jr. J.J.; Michelson, S.R.; Young, S.D.
Design and Synthesis of 8-Hydroxy-[1,6]Naphthyridines as Novel Inhibitors of HIV-1 Integrase in
Vitro and in Infected Cells. J. Med. Chem. 2003, 46, 453-456.
16. Summa, V.; Petrocchi, A.; Matassa, V.G.; Taliani, M.; Laufer, R.; Francesco, R.D.; Altamnra, S.;
Pace, P. HCV NS5b RNA-Dependent RNA Polymerase Inhibitors: From α ,γ -Diketoacids to 4,5-
Dihydroxypyrimidine- or 3-Methyl-5- hydroxypyrimidinonecarboxylic Acids. Design and
Synthesis. J. Med. Chem. 2004, 47, 5336-5339.
17. Li, X.-M.; Zeng, C.-C.; Jiao, Z.-G.; Yan, H.; Zhong, R.-G. Synthesis and crystal structure of 7-
acetamido-5-chloro-8-(p-methyloxybenzenesulfonyloxy)-2-styrylquinoline. Chinese J. Struct.
Chem. 2007, 26, 669-673.
18. Xu, Y.-S.; Zeng, C.-C.; Li, X.-M.; Zhong, R.-G.; Zeng, Y. Design, synthesis and Cu2+ recognition
of β -diketoacid and quinoxalone derivatives bearing caffeoyl or galloyl moieties linked by
arylamide as potential HIV integrase inhibitors. Chin. J. Chem. 2006, 24, 1086-1094.
19. Zeng, C.-C.; Li, X.-M.; Yan, H.; Zhong, R.-G. Design and synthesis of p/m-[p-(un)substituted
phenylsulfonamido]phenyl β -diketo acids and quinoxalone derivatives. Chin. J. Chem. 2007, 25,
1174-1182.
20. Zeng, C.-C.; Liu, C.-F.; Zeng, J.; Zhong, R.-G. Electrochemical synthesis of 6-arylsulfonyl caffeic
acid derivatives in aqueous medium. J. Electroanal. Chem. 2007, 608, 85-90.
21. Zeng, C.-C; Ping, D.-W.; Zhang, S.-C.; Zhong, R.-G.; Becker, J.Y. Electrochemical synthesis of
polyhydroxylated aromatic derivatives substituted with mono- and dipyrimidinyl thioethers in
aqueous medium. J. Electroanal. Chem. 2008, 622, 90-96.
22. Zeng, J.; Lv, X.-H.; Zeng, C.-C.; Hu. L.-M, Zhong, R.-G. Design, synthesis and anti-HIV
integrase evaluation of 1,2,3-triazol -4-yl-substituted 1,4-dihydro-4-oxo-1,5-napthyridine-3-
carboxylic acids. Chin. J. Chem. 2009 (In press).
23. Komatsu, H.; Iwasawa, N.; Citterio, D.; Suzuki, Y.; Kubota, T.; Tokuno, K.; Kitamura, Y.; Oka,
K.; Suzuki, K. Design and synthesis of highly sensitive and selective fluorescein-derived

Molecules 2009, 14
883
magnesium fluorescent probes and application to intracellular 3D Mg2+ imaging. J. Am. Chem.
Soc. 2004, 126, 16353-16360.
24. Otten, P.A.; London, R.E.; Levy, L.A. 4-Oxo-4H-quinolizine-3-carboxylic acids as Mg2+ selective,
fluorescent indicators. Bioconjugate Chem. 2001, 12, 203-212.
25. Li, Q.; Chu, D.T.W.; Claiborne, A.; Cooper, C.S.; Lee, C.M.; Raye, K.; Berst, K.B.; Donner, P.;
Wang, W.; Hasvold, L.; Fung, A.; Ma, Z.; Tufano, M.; Flamma, R.; Shen, L.L.; Baranowski, J.;
Nilius, A.; Alder, J.; Meulbroek, J.; Marsh, K.; Crowell, D.; Hui, Y.; Seif, L.; Melcher, L.M.;
Henry, R.; Spanton, S.; Faghih, R.; Klein, L.L.; Ken Tanaka, S, Plattner, J.J. Synthesis and
Structure-Activity Relationships of 2-Pyridones: A Novel Series of Potent DNA Gyrase Inhibitors
as Antibacterial Agents. J. Med. Chem. 1996, 39, 3070-3088.
26. Oya, S.; Masuda, N.; Kuroki, Y.; Inoue, T.; Okudo, M.; Iwata, T.; Kokubo, K.; Mizuno, H.;
Hagiwara, M. Preparation of 4-oxo-4H-quinolizine-3-carboxylic acid derivatives as antibacterial
agents. Jpn. Kokai Tokkyo Koho 2003, JP 2003261566 A 20030919
27. Fukumoto, R.; Niwano, Y.; Kusakabe, H.; Chu, C.; Kimura, H.; Nagasawa, K.; Yanagihara, S.;
Hirosawa, C.; Ishiduka, S. Preparation of 4-oxoquinolizines as antimicrobial agents. PCT Int.
Appl. 2003, WO 2003029253
28. Iwamoto, K.; Araki, K.; Fujishima, H.; Shinkai, S. Fluorogenic calix[4]arene. J. Chem. Soc.
Perkin Trans. 1. 1992, 1885-1887.
29. Kim, Y.H.; Youk, J.S.; Moon, S.Y.; Choe, J.I.; Chang, S.K. Hg2+-selective fluorogenic
chemosensor derived from 8-Aminoquinoline. Chem. Lett. 2004, 33, 702-703.
30. Kim, S.J.; Kool, E.T. Sensing Metal Ions with DNA Building Blocks: Fluorescent
Pyridobenzimidazole Nucleosides. J. Am. Chem. Soc. 2006, 128, 6164-6171.
31. Weatherhead-Kloster, R.A.; Selby, H.D.; Miller III, W.B.; Mash, E.A. Organic Crystal
Engineering with 1,4-Piperazine-2,5-diones. 6. Studies of the Hydrogen-Bond Association of
Cyclo[(2-methylamino-4,7-dimethoxyindan-2-carboxylicacid)(2-amino-4,7-dimethoxyindan-2-
carboxylic acid)]. J. Org. Chem. 2005, 70, 8693-8702.
32. Kawasuji, T.; Fuji, M.; Yoshinaga, T.; Sato, A.; Fujiwara, T.; Kiyama, R. A platform for
designing HIV integrase inhibitors. A two-metal binding model as a potential mechanism of HIV
integrase inhibitors. Bio. & Med. Chem., 2006, 14, 8420-8429
Sample Availability: Samples of compounds 6-14 are available from the authors.
© 2009 by the authors; licensee Molecular Diversity Preservation International, Basel, Switzerland.
This article is an open-access article distributed under the terms and conditions of the Creative
Commons Attribution license (http://creativecommons.org/licenses/by/3.0/).
