Solid-phase synthesis of a library based on biphenyl-containing trypsin-like serine protease inhibitors

Article abstract of DOI:10.1016/j.bmcl.2009.08.100

The solid-phase synthesis of a library based on an unusual biphenyl-containing trypsin-like serine protease inhibitor is described. Key to this effort was the synthesis of a highly functionalized aryl boronic acid reagent which required the development of

Full text of DOI:10.1016/j.bmcl.2009.08.100

Bioorganic & Medicinal Chemistry Letters 19 (2009) 6477–6480
Contents lists available at ScienceDirect
Bioorganic & Medicinal Chemistry Letters
journal homepage: www.elsevier.com/locate/bmcl
Solid-phase synthesis of a library based on biphenyl-containing trypsin-like
serine protease inhibitors
a
a
a
b
b
Shuhao Shi a, , Shirong Zhu , Samuel W. Gerritz , Bogumila Rachwal , Zheming Ruan , Robert Hutchins ,
*
Ramesh Kakarla a, Michael J. Sofia a, James Sutton b, Daniel Cheney b
a Bristol-Myers Squibb Company, 5 Research Parkway, Wallingford, CT 06492, United States
b Bristol-Myers Squibb Company, PO Box 4000, Princeton, NJ 08543-4000, United States
a r t i c l e i n f o
a b s t r a c t
Article history:
The solid-phase synthesis of a library based on an unusual biphenyl-containing trypsin-like serine prote-
ase inhibitor is described. Key to this effort was the synthesis of a highly functionalized aryl boronic acid
reagent which required the development of a novel and efficient method to convert a triflate to a pina-
colboronate in large scale.
Received 4 March 2009
Revised 20 August 2009
Accepted 24 August 2009
Available online 17 September 2009
Ó 2009 Elsevier Ltd. All rights reserved.
Keywords:
Solid phase library
Biphenyl
Trypsin-like serine protease inhibitor
Pinacolboronate
Nanokan
The trypsin-like serine protease superfamily contains a number
of drug discovery targets, including thrombin, elastase, urokinase,
and coagulation factors VIIa, Xa, and XIa.1 The therapeutic impor-
tance of this superfamily has prompted the discovery of a number
of common pharmacophores, as shown in Figure 1. Chemotypes
1–3 are peptidomimetic inhibitors,2–4 but structure 4 (IC50 8 nM
for factors VIIa, first disclosed by Ono Pharmaceuticals in 19995)
represents a structurally unique class of trypsin-like serine prote-
ase inhibitors due to its biphenyl scaffold, a ‘privileged’ structure
found in 4.3% of all known drugs.6 Our ongoing interest in mem-
bers of the trypsin-like serine protease superfamily prompted us
to embark on the solid-phase synthesis of a library of potential pro-
tease inhibitors related to chemotype 4.
Boronate 6 was synthesized as shown in Scheme 2. Compound
148 was converted to the orthogonally protected diester 8 in excel-
lent yield according Forsch and Rosowsky’s procedure.9 Miyaura
et al. reported an efficient one-step procedure10 for preparation of
arylboronates from aryl triflates and bis(pinacolato)-diboron 15 uti-
lizing a palladium-catalyzed coupling in the presence of a base.
However, when we tried to convert triflate 8 to arylboronate 6
according Miyaura’s standard conditions (dioxane, 80 °C, 1.1 equiv
of diboron 15, 1 equiv of triflate 8, 3% equiv of Pd(dppf), 3% equiv
of dppf, 3 equiv of KOAc, 20 h), only trace quantities of arylboronate
6 were obtained along with large amounts of unreacted triflate 8. In
order to make sufficient quantities of 6 for use in a large solid-phase
library synthesis, further optimization was required.
As reported by Kohrt et al.,7 the synthesis of 4 was not described
in detail in the original Ono disclosure. Accordingly, as shown in
Scheme 1, we developed a solid-phase retrosynthesis of 5 with
three points of diversity (R1, R2, R3R4). A Suzuki coupling was iden-
tified as the critical bond-forming step to permit disconnection of 5
to two components, pinacolboronate 6 and resin-bound amide 7.
Boronate 6 was envisioned to arise from triflate 8, which in turn
could arise from commercial available salicylic acid 9. Resin-bound
amide 7 could be disconnected into 2-halobenzoyl chloride 10 and
resin-bound amine 11 which could arise from PL-FMP resin 12 and
primary amine 13 via reductive amination.
After extensive experimentation, we found that by increasing
the Pd(dppf) loading to 8% of the triflate, adding no external dppf,
the reaction was complete after 2 h at 60–65 °C and product 6 was
obtained in more than 90% yield. However, the purification of the
product 6 was problematic- it could not be isolated by crystalliza-
tion and had to be purified by flash chromatography. Although the
Rf of 6 is 0.31 in DCM, the pinacolboronate rapidly hydrolyzed
upon exposure to silica gel even when the silica was pre-treated
with triethylamine. To prevent hydrolysis, a significantly more po-
lar eluent (DCM/EtOAc = 7:3) was used to quickly flush the product
from a column loaded with silica pre-treated with triethylamine.
This purification protocol provided 6 contaminated with approxi-
mately 5% of diboronate 15. This impure material worked very well
for Suzuki couplings in solution, but the presence of diboronate 15
* Corresponding author. Tel.: +1 203 677 7239; fax: +1 203 677 6984.
E-mail address: shij@bms.com (S. Shi).
0960-894X/$ - see front matter Ó 2009 Elsevier Ltd. All rights reserved.
doi:10.1016/j.bmcl.2009.08.100

6478
S. Shi et al. / Bioorg. Med. Chem. Lett. 19 (2009) 6477–6480
H
N
O
O
O
NH
CO2H
O
N
N
NH HN
NH HN
NH2
O
NH
OH
CF3
O
O
H
N
O
HN
S
N
H2N
O
CO2H
HN
H
COOH
N
H
CF3
NH
HN
H2N
Figure 1. Representative trypsin-like serine protease inhibitors.
1 (Inogatran)
2 (Argatroban)
H2N
NH
4
3
O
O
O
O
R4
N
O
O
CHO
OH
O
R3
TMS
2tBu
TMS
2tBu
CO
CO2H
CO
B
OTf
6
8
9
O
CO2H
R2
R1
+
OMe
CHO
N
H
O
X
O
X
R1
R1
+
R1-NH2
O
Cl
N
H
R2
N
+
5
R2
13
12
10
Scheme 1.
11
7
O
O
O
O
O
O
TMS
O
O
O
OH
B
B
TMS
TMS
O
15
O
(1 eq)
HO
t
CO2 Bu
DCC/DMAP
DCM, 0 ºC, 18h.
91%
t
t
PdCl2 (dppf) (8%)
CO2 Bu
CO2 Bu
B
OTf
6
79%
OTf
KOAc (3 eq)
Dioxane, 60-65 ºC
8
14
Scheme 2.
adversely affected the reaction on solid-phase because it was more
reactive than 6 in the Suzuki reaction with the solid-supported aryl
iodide. To overcome this issue, we reduced the diboron 15 to
1 equiv of the triflate and prolonged the reaction time to 20 h. Un-
der these conditions, boronate 6 was obtained in 79% yield with no
diboronate 15 contamination. A dimer byproduct (Suzuki coupling
between starting material triflate 8 and product boronate 6) was
clearly seen by UV (16%), but the presence of the dimer had no ef-
fect on the solid-phase reaction because it did not react with the
solid-supported aryl iodide. The optimized protocol11 is very effi-
cient and 180 g of the key intermediate 6 were prepared in several
batches.
The solid-phase synthesis of 5 is shown in Scheme 3, starting
with PL-FMP resin 12 loaded into Nanokans.12 The first diversity
TMS
(X =, I, Br)
X
t
CO2 Bu
O
OMe
CHO
OMe
1) R1-NH2
O
O
O
O
X
B
Cl
DMF/TMOF (2:1)
R2
O
R1
O
O
10
N
2) NaBH(OAc)
6
N
H
R2
HOAc
R1
DIEA/DCM
Pd(PPh3)4/K3PO4
DMF/H2O
80-90ºC, 20 h
RT, 2days
11
12
RT
7
Overnight
R4
N
R4
N
O
O
O
OH
O
R3
TMS
O
R3
1) Ghosez reagent
DCM, RT, 2h
t
CO2tBu
O
CO2 Bu
t
O
O
CO2H
O
CO2 Bu
TBAF
THF
1h
N
N
2) Amine, DCE
RT, 20h
HN
R1
N
TFA
DCM
R2
R2
R2
R2
R1
R1
R1
17
18
16
5
Scheme 3.

S. Shi et al. / Bioorg. Med. Chem. Lett. 19 (2009) 6477–6480
6479

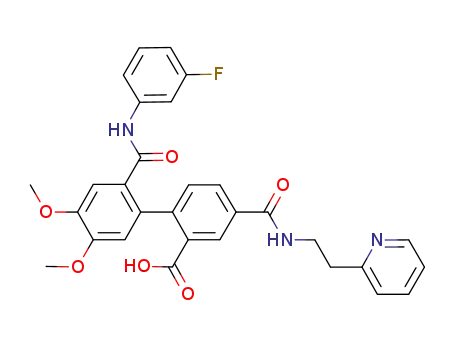

Table 1
Purity and yields of representative library products
O
H
N
R1
O
R2
N
R4
R3
HO2C
5
Entry
1
R1NH2
R2
NR3R4
Purity (%)
100
Yield (%)
NH2
66
52
50
53
79
65
N
N
BocN
2
3
4
5
6
100
100
100
97
NH2
OH
H
N
H
Me2N
NH2
BocHN
NH2
F
NH2
H
95
7
8
9
5-MeO
4-Cl
4,5-Di-MeO
97
97
97
93
43
34
45
32
BocN
H2N
H2N
NH2
OH
10
5-iPrO
11
12
13
14
15
99
98
87
82
81
81
66
55
56
74
OH
OH
N
H
NH2
F
4,5-Di-MeO
O
H2N
H2N
H2N
N
Et
N
14
The Boc-group in these reagents falls off in cleavage.

6480
S. Shi et al. / Bioorg. Med. Chem. Lett. 19 (2009) 6477–6480
element (R1) was introduced via reductive amination. Thus, PL-
FMP resin in Nanokans (1.2 mmol/g, 8 mg/Nanokan) was treated
with primary amine in DMF/TMOF for 4 h, followed by treatment
with NaBH(OAc)3 and HOAc for 2 days at room temperature to af-
ford resin-bound amine 11. The second diversity element (R2) was
introduced via coupling benzoyl chloride 10 to resin-bound amine
11 in the presence of DIEA in DCE. The biphenyl core 16 was con-
structed via Suzuki coupling between 7 and boronate 6 at 80–
90 °C for 20 h. It was critically important to use degassed DMF
and we found that aqueous potassium phosphate was optimal.
The 2-(trimethylsilyl)ethyl ester was removed by treating 16 with
TBAF in THF for 1 h to afford acid 17. The third diversity element
(NR3R4) was introduced via amide formation. Thus, dried resin-
bound acid 17 was treated with 1-chloro-N,N,2-trimethyl-prope-
nylamine (Ghosez reagent)13 in DCM for 2 h, then washed with
DCM and treated with amine in DCE for 20 h at rt. For amino alco-
hols, an alternative method was applied. Resin-bound acid 17 was
treated with EDC, HOBt, DIEA and amino alcohol in DMA for 20 h.
In either case, the final product 5 was cleaved from resin 18 with
TFA/DCM (1:1) at rt for 2 h, then the resin was filtered off and
solution was collected in 96-well plates via IRORI Nanokan sys-
tem. Concentration of the filtrate afforded product 5 without fur-
ther purification. The purity of library products was determined
by HPLC at 254 nm and mass spectroscopy. Product samples
which met our purity criteria (product peak P80% by HPLC at
254 nm, correct MS) were submitted. The quantity of products
was determined by weight (most of library products were ob-
tained in 1–3 mg per compound). The library size is more than
10,000 products and the more than 80% of library products were
submitted. The purity and yields of some representative products
are shown in Table 1.
In summary, we have discovered a very unique and easy meth-
od to convert a triflate to a pinacolboronate in large scale. We also
developed an efficient solid-phase chemistry for large library of
biphenyl core with multiple functionalities.
