582
BAIBURTLI et al.
Beta zeolite (SiO2/Al2O3 = 18) manufactured by the of 8°C/min; evaporator temperature, 280°C; ion
source temperature, 200°C; ionization energy, 70 eV).
Angarsk Catalyst and Organic Synthesis Plant in the
13
1H and C NMR spectra and homo- and heteronu-
NH4+
form was converted into the H-form by thermal
clear procedures, such as COSY, HSQC, and HMBC,
were recorded on Bruker Avance-400 instruments
(operating frequencies of 400.13 and 100.62 MHz for
1H and 13C, respectively) using CDCl3 as the solvent.
treatment in air at 540°C for 3 h. The H-ZSM-5 zeo-
lite (SiO2/Al2O3 = 30) was purchased from the Ishim-
bai Specialty Catalyst Plant. The Na-MOR zeolite
(SiO2/Al2O3 = 5.0) was synthesized at the Institute of
Petroleum Chemistry and Catalysis, according to
a procedure described in [14] and converted into the
+
The compounds had the following characteristics:

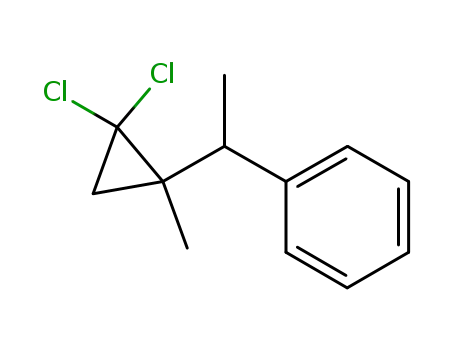

[1-(2,2-dichloro-1-methylcyclopropyl)ethyl]ben-
zene IV. Colorless liquid. Tb 106°C (2 mmHg).1H
NMR, δ, ppm (CDCl3): 1.31 (d, 3H, CH3(5)), 1.79 (s,
3H, CH3(6)), 2.45–2.65 (m, 2H, CH2(2)), 2.99–3.08
H-form by ion exchange of Na+ for
cations fol-
NH4
lowed by the thermal treatment of the obtained
ammonium form.
(m, H, CH(4)), 7.24 (s, H, CH(10)),7.32 (s, H,
The procedure for preparing the micro–meso–
13
macroporous Ymmm zeolite in the H-form CH(8,12)), 7.34 (s, H, CH(9,11)). C NMR, δ, ppm
(SiO2/Al2O3 = 7.2) is described in [15, 16] and is based (CDCl3): 20.37 (C(5)), 21.17 (C(6)), 38.11 (C(4)),
on the selective crystallization of pellets, made of 38.21 (C(3)), 44.05 (C(2)), 126.36 (C(10)), 126.88
finely divided Na-Y zeolite and amorphous binder (C(8,12)), 128.44 (C(9,11)), 133.96 (C(7)), 146.11
(C(1)). Mass spectrum, m/e (Irel, %): 228 (8) [M+],
201 (8), 199 (13), 165 (16), 163 (46), 157 (10), 129 (10),
115 (10), 105 (100), 103 (9), 91 (17), 77 (16).
(metakaolin), in sodium silicate solutions at 96–98°C.
A sample of H-Ymmm zeolite with αNa = 0.95 was
prepared via ion exchange of the Na-Ymmm zeolite.
Prior to catalyst testing, zeolite samples were sub-
jected to thermal treatment in air at 350°C for 4 h.
The zeolite catalysts were characterized using
X-ray phase (XPA) and X-ray diffraction (XRD) anal-
ysis techniques, adsorption methods, low-tempera-
ture adsorption of nitrogen, mercury porosimetry, and
temperature-programmed adsorption–desorption of
ammonia (NH3-TPD) [17–20].
1-[1-(2,2-dichloro-1-methylcyclopropyl)ethyl]-4-
methylbenzene V. Colorless liquid. Tb 131°C
1
(2 mmHg). H NMR, δ, ppm (CDCl3): 1.28 (d, 3H,
CH3(5)), 1.79 (s, 3H, CH3(6)), 2.36 (s, 3H, CH3(13)),
2.45–2.65 (m, 2H, CH2(2)), 2.96–3.02 (m, H,
CH(4)), 7.06 (s, H, CH(9,11)), 7.28 (s, H, CH(8,12)).
13C NMR, δ, ppm (CDCl3): 20.21 (C(5)), 21.20
(C(6)), 21.28 (C(13)), 37.77 (C(4)), 38.11 (C(3)),
44.06 (C(2)), 126.72 (C(9,11)), 127.08 (C(8,12)),
134.00 (C(10)), 143.77 (C(1)).Mass spectrum, m/e
(Irel, %): 242 (2) [M+], 206 (8), 191 (2), 171 (3), 141
(2), 119 (51), 103 (19), 91 (9), 77 (4).
General Procedure for C-Alkylation of Benzene
and Toluene with 2-Methyl-2-Vinyl-gem-
Dichlorocyclopropane
A calculated amount of zeolite, a reactant aromatic
(benzene (II) or toluene (III)), and the unsaturated
reactant 2-methyl-2-vinyl-gem-dichlorocyclopropane
(I) in a molar ratio of 2 : 1–8 : 1 were charged into a
glass ampoule. After sealing, the ampoule was placed
in a 17-mL “finger-type” metal autoclave which was
heated at a preset temperature with continuous rota-
tion in a thermostated cabinet for a certain time. Then
the reaction mixture was cooled, separated from the
catalyst by filtering, and analyzed by GLC. The reac-
tion products were isolated by vacuum distillation.
Compounds IV and V were obtained according to this
procedure.
RESULTS AND DISCUSSION
Characteristics of Zeolite Catalysts
The catalytic properties of the zeolite catalysts dif-
fering in the crystal lattice structure, acidic properties,
and porosity have been studied. The H-Y, H-Beta,
H-MOR, and H-ZSM-5 zeolites have a microporous
structure, and the H-Ymmm zeolite has a hierarchal
structure formed not only by micro-, but also meso-
and macropores [21, 22].
In the series of microporous zeolites, zeolites Y
(cavities with the entrance window of 0.74 × 0.74 nm)
and Beta (straight channels with a size of 0.66 ×
0.67 nm and tortuous channels with a size of 0.56 ×
0.56 nm) possess the widest pores. Pentasil ZSM-5 is
characterized by narrower pores are (straight channels
of a 0.51 × 0.55 size nm and tortuous channels of a
0.53 × 0.56 nm size). The H-MOR zeolite has a uni-
dimensional channel structure (two types of channels
with sizes of 0.70 × 0.65 and 0.26 × 0.57 nm) [23].
The chromatographic analysis of the products was
performed on a chromatograph equipped with a flame
ionization detector (25 m glass capillary column
coated with SE-30; column temperature, 50–280°C
programmed for a heating rate of 8°C/min; detector
temperature, 250°C; evaporator temperature, 300°C;
carrier gas (helium) flow rate, 30 mL/min). Mass
spectra were obtained on a SHIMADZU GCMS-
QP2010Plus instrument (SPB-5 capillary column
30 m × 0.25 mm; helium as the carrier gas, tempera-
The physicochemical properties of the zeolite cat-
ture programming from 40 to 300°C at a heating rate alysts studied are presented in Table 1.
PETROLEUM CHEMISTRY
Vol. 59
No. 6
2019
