MIL-53(Fe): Introduction of a new catalyst for the synthesis of Pyrimido[4,5-d]pyrimidine derivatives under solvent-free conditions

Article abstract of DOI:10.1016/j.molstruc.2019.07.065

In this study, the efficiency of MIL-53(Fe) metal-organic framework (MOF) the one-pot, three-component reaction of isothiocyanate, aromatic aldehydes and 6-aminouracil and/or N,N-dimethyl-6-aminouracil to form pyrimido[4,5-d]pyrimidine derivatives is inve

Full text of DOI:10.1016/j.molstruc.2019.07.065

Accepted Manuscript
MIL‐53(Fe): Introduction of a new catalyst for the synthesis of
Pyrimido[4,5-d]pyrimidine derivatives under solvent-free conditions
Mohammad Hossein Abdollahi-Basir, Farhad Shirini, Hassan Tajik, Mohammad Ali
Ghasemzadeh
PII:
S0022-2860(19)30909-3
DOI:
https://doi.org/10.1016/j.molstruc.2019.07.065
MOLSTR 26818
Reference:
To appear in: Journal of Molecular Structure
Received Date: 1 June 2019
Revised Date: 13 July 2019
Accepted Date: 15 July 2019
Please cite this article as: M.H. Abdollahi-Basir, F. Shirini, H. Tajik, M.A. Ghasemzadeh, MIL‐
53(Fe): Introduction of a new catalyst for the synthesis of Pyrimido[4,5-d]pyrimidine derivatives
under solvent-free conditions, Journal of Molecular Structure (2019), doi: https://doi.org/10.1016/
j.molstruc.2019.07.065.
This is a PDF file of an unedited manuscript that has been accepted for publication. As a service to
our customers we are providing this early version of the manuscript. The manuscript will undergo
copyediting, typesetting, and review of the resulting proof before it is published in its final form. Please
note that during the production process errors may be discovered which could affect the content, and all
legal disclaimers that apply to the journal pertain.

ACCEPTED MANUSCRIPT
MIL‐53(Fe): Introduction of a New Catalyst for the Synthesis of
Pyrimido[4,5-d]pyrimidine Derivatives Under Solvent-free
Conditions
Mohammad Hossein Abdollahi-Basir,a Farhad Shirini,a* Hassan Tajik,a Mohammad Ali
Ghasemzadehb
a Department of Chemistry, College of Science, University of Guilan, Rasht, 41335-19141, Iran
b Department of Chemistry, Qom Branch, Islamic Azad University, Qom, I. R. Iran
Corresponding author E-mail addresses: shirini@guilan.ac.ir
Abstract— In this study, the efficiency of MIL‐53(Fe) metal-organic framework (MOF) the one-pot, three-component reaction of
isothiocyanate, aromatic aldehydes and 6-aminouracil and/or N,N-dimethyl-6-aminouracil to form pyrimido[4,5-d]pyrimidine derivatives is
o
investigated. Using this method all reactions are performed at 110 C under solvent-free conditions with good to excellent product yields
during acceptable reaction times. The other important merit of this method is simple recovery of MIL‐53(Fe) through filtration which
makes it reusable for further cycles without considerable decrease in its activity. The method is demonstrated to be a truly green process
with sustainability and economics.
Keywords: Pyrimido[4,5-d]pyrimidine, Metal-Organic Framework, MIL‐53(Fe), Heterocyclic, Solvent-free.
1. Introduction
Nowadays, the requirements of green chemistry principles encourage the chemical community to search for more environmentally
sustainable methods for chemical syntheses. In this regard the development of new heterogeneous recyclable catalysts and the use of less
toxic materials as solvents and reagents are two important challenges.
Porous metal-organic frameworks (MOFs) are an intriguing class of porous crystalline networks synthesized by assembling inorganic
vertices with organic struts [1]. Over the past few decades and because of their various attractive applications in catalysis [2], selective gas
adsorption and separation [3], and drug delivery [4-6], MOFs have received great attention. In particular, due to the important properties
such as: high surface area, structural flexibility, porosity, and chemical tenability, MOFs are considered as promising materials for
applications in heterogeneous catalysis. For these reasons, the synthesis and design of different kinds of metal-organic frameworks (MOFs)
became necessary to achieve more knowledge about their structural diversity and investigate their various properties.
A solvent-free or solid state reaction may be carried out using the reactants alone or incorporating them in clays, zeolites, silica, alumina or
other matrices. Thermal process or irradiation with ultraviolet, microwave or ultrasound can be employed to bring about these types of
reactions. Solvent-free reactions obviously reduce pollution, and bring down handling costs via simplification of experimental procedure,
work-up technique and saving in labour. These would be especially important during industrial production [7, 8].
Heterocyclic chemistry is currently experiencing a renaissance because of the interest in heterocyclic scaffolds as templates for
combinatorial chemistry [9]. As heteroaromatic compounds are present in many natural products [10], and are constituents of numerous
therapeutic agents [11], they represent ideal drug-like structures for the elaboration of an increase in molecular diversity. Pyrimido[4,5-
d]pyrimidines constitute a class of heterocyclic compounds showing a wide spectrum of biological properties including antimicrobial [12],
antioxidant [13], antihypertensive [14], antiallergic [15], and anticancer [16] activities. Many methods and catalysts have been developed
for the preparation of pyrimido[4,5-d]pyrimidines [17-19]. Although these methods are useful, some of them are accompanied with

ACCEPTED MANUSCRIPT
disadvantages including long reaction times, harsh reaction conditions, slow yields and use of toxic and non-reusable catalysts. Therefore,
introduction of new catalysts to promote the synthesis of these types of compounds, which may solve all or some of the above mentioned
disadvantages is still a demand.
2. Results and discussion
Because of the very important characteristics of metal organic-inorganic frame works (MOFs), as mentioned in previously, and as a part of
our current studies on the development of new pathways in heterocyclic synthesis [20, 21], herein, we report a simple, rapid and one-pot
procedure for the regioselective synthesis of pyrimido[4,5-d]pyrimidines with high yields and purity assisted by MIL‐53(Fe) as a green,
efficient and recyclable promoter (Scheme 1).
2.1. Structure and morphology of the MIL‐53(Fe)
MIL‐53(Fe) was obtained according to the method reported in the literature (Scheme 2) [20a, 22]. The structure of MIL‐53(Fe), used in this
study, is shown in Fig. 1. The structure of this catalyst was determined using SEM and XRD (Figs. S1, S2) (see Supplementary
Information). The figures indicate that the catalyst consists of pure phases and no characteristic peaks are observed determining impurities.
To confirm the composition, MIL‐53(Fe) has also been characterized by energy-dispersive X-ray spectroscopy (EDX). As shown in Figure
S3 (see Supplementary Information), the synthesized MIL‐53(Fe) catalyst contains only iron, nitrogen, carbon and oxygen elements. FT-IR
spectrum of MIL‐53(Fe) is shown in Figure S4 (see Supplementary Information). IR spectrum showed the characteristic peaks of aromatic
rings at 731 cm-1, COO- (1396 cm-1 and 1540 cm-1), C=O (1685 cm-1) and Fe-O vibrational peak located at 559 cm-1 which demonstrate the
formation of the Fe-oxo band between the Fe(III) and carboxylic group of terephthalic acid. The thermo gravimetric analysis (TGA) of
MIL‐53(Fe) shows mass loss of organic materials as they decompose upon heating (Figure S5) (see Supplementary Information).
2.2. Catalytic activity of MIL‐53(Fe) in the synthesis of pyrimido[4,5-d]pyrimidines
In order to determine the catalytic ability of MIL‐53(Fe), its promoting effect is studied in the synthesis of pyrimido[4,5-d]pyrimidine
derivatives. First of all, to optimize the reaction temperature, the reaction of isothiocyanate, benzaldehyde and 6-aminouracil to form
corresponding pyrimido[4,5-d]pyrimidine derivative was studied under solvent-free conditions in the presence of 0.005 g MIL‐53(Fe) at
different temperatures. The results are summarized in Table 1. Accordingly, the reaction proceeded in the highest yield at 110 oC.
The effect of amount of the catalyst on the conversion and rate of the reaction was studied with varying amounts of MIL‐53(Fe) at 110 oC
under solvent-free conditions (Table 2). It was found that 0.005 g of MIL‐53(Fe) was sufficient to smoothly carry out this reaction. An
increase in the amount of MIL‐53(Fe) to more than 0.005 g showed no substantial improvement in yield, whereas it was reduced by
decreasing the amount of MIL‐53(Fe) to 0.004 g.
The results obtained from the optimization studies encouraged us to investigate the promoting effect of MIL‐53(Fe) in the synthesis of
pyrimido[4,5-d]pyrimidines drived from different types of aromatic aldehydes. As shown in Table 3, a variety of aromatic aldehydes

ACCEPTED MANUSCRIPT
containing electron-withdrawing or electron-donating substituents in reaction with isothiocyanate and 6-aminouracil were successfully
converted to the desired products in good to high yields with high purity using this method. When N,N-dimethyl-6-aminouracil was used

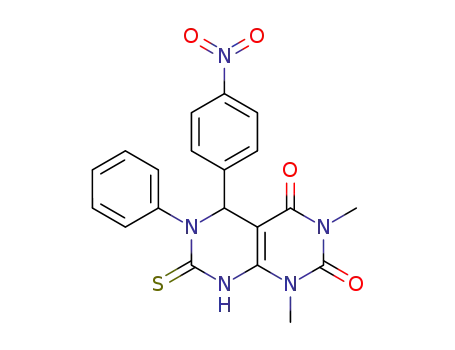

instead of 6-aminouracil, the same reactions were also performed efficiently producing the corresponding products in high yields during
acceptable reaction times.
The structures of the compounds including 4a–4m were deduced from their elemental analyses and also their IR, 1H NMR, and 13C NMR.
The mass spectra of these compounds displayed molecular ion peaks at appropriate m/z values. Among the obtained products the
compounds 4b-4k have been previously reported in the literatures [18, 19].
Reusability is an important feature of a catalyst to make it suitable to be used in organic transformations by researchers. Hence, the
reusability of MIL‐53(Fe) was checked in the synthesis of 5,6-diphenyl-7-thioxo-5,6,7,8-tetrahydropyrimido[4,5-d]pyrimidine-2,4(1H,3H)-
dione (Table 3, entry 1). After filtration and washing with CH2Cl2 the catalyst was dried at room temperature for 24 h and used for the next
catalytic cycle. The results showed that this catalyst can be reused three times without significant loss of activity.
A comparison of the efficiency of this method with selected previous methods is summarized in Table 4. Which indicate the superiority of
this method to the previously reported methods in terms of yields and reaction times.
A tentative mechanism for the formation of 4a is shown in Scheme 3 [17]. Primarily, the intermediate A is formed in situ via the reaction
of 6-aminouracil 1 with phenylisothiocyanate 2. Then, the nucleophilic attack of the intermediate A to aldehyde 3 in the presence of the
catalyst gives the intermediate B which upon cyclization and dehydration affords the desired product 4a.
In summary, we have reported a simple, environmentally benign, and efficient synthetic method for the preparation of pyrimido[4,5-
d]pyrimidines derivatives using MIL‐53(Fe) under solvent-free conditions. The notable features of this procedure are the use of a cheap,
easy to handle, and reusable catalyst, high yields, short reaction times and solvent-free conditions, which make it a useful and attractive
process for pyrimido[4,5-d]pyrimidines synthesis.
3. Experimental
3.1. Materials
All chemicals were obtained from Fluka or Merck and were used without further purification. All the materials were of commercial reagent
1
grade and were used without further purification. The IR spectra were recorded on a Perkin Elmer 781 Spectrophotometer. H NMR and
13C NMR spectra were obtained on a Bruker 300 MHz spectrometer with DMSO-d6 as the solvent using TMS as an internal standard. All
melting points are uncorrected and were determined in a capillary tube using a Boetius melting point microscope. The elemental analyses
(C, H, N) were obtained from a Carlo ERBA Model EA 1108 analyzer.
3.2. Synthesis of MIL‐53(Fe)
MIL-53(Fe) was synthesized according to the method reported in the literature with some modifications [20a, 22]. In a typical catalyst
preparation, FeCl3 (5 mmol, 1.35g) and 1,4-benzenedicarboxylates acid (5 mmol, 0.83g) were added to 25 mL, N,N-dimethylformanide
(DMF) and sonicated for 10 minutes. The solution was transferred and sealed in a teflon-lined autoclave, and kept at 150oC for 15h. A light
brown powder was collected by filtration and washed three times with 100 mL of fresh DMF. After wards, the MIL-53(Fe) was kept under

ACCEPTED MANUSCRIPT
o
stirring in methanol for three days. Finally, the solid powder was heated at 150 C overnight to remove guest molecules (H2O, DMF, and
methanol).
3.3. General procedure for the synthesis of pyrimido[4,5-d]pyrimidine derivatives 4a–4m
A mixture of isothiocyanate (1 mmol), aromatic aldehyde (1 mmol) and 6-aminouracil or N,N-dimethyl-6-aminouracil (1 mmol) and MIL‐
53(Fe) (0.005 g) was heated at 110 oC under solvent-free conditions for the appropriate time (Table 3). After completion of the reaction as
indicated by TLC (ethyl acetate: n-hexane, 1:3), the reaction mixture was cool to room temperature and CH2Cl2 was added. The catalyst
was separated by simple filtration [20a]. The solvent was evaporated and the residue was recrystallized from ethanol to afford the pure
product.
All products gave satisfactory spectral data in accordance with the assigned structures. The spectral data of the new products are as follow:
5,6-Diphenyl-7-thioxo-5,6,7,8-tetrahydropyrimido[4,5-d]pyrimidine-2,4(1H,3H)-dione (4a)
White solid, m.p. 290-292°C.1H NMR (300 MHz, DMSO-d6) δ: 5.24 (s, 1H, CH), 6.93-7.03 (m, 3H, ArH), 7.24-7.30 (t, 2H, ArH), 7.47-
7.59 (m, 4H, ArH, NH), 7.81-7.84 (d, 2H, ArH), 9.97 (s, 1H, NH), 11.13 (s, 1H, NH). 13C NMR (75 MHz, DMSO-d6) δ: 78.556, 90.100,
115.060, 121.584, 129.068, 129.291, 129.405, 129.546, 130.253, 130.909, 137.363, 147.076, 157.617, 162.067, 162.197. FT-IR (KBr) v:
3490, 1699, 1618 cm-1. MS (EI) (m/z): 350.08 (M+). Anal. Calcd. for: C18H14N4O2S (Mr= 350.40): C 61.70, H 4.03, N 15.99. Found: C
61.79, H 4.00, N 15.94.
5-(4-Nitrophenyl)-6-phenyl-7-thioxo-5,6,7,8-tetrahydropyrimido[4,5-d]pyrimidine-2,4(1H,3H)-dione (4l)
White solid; m.p. 255-257°C.1H NMR (300 MHz, DMSO-d6) δ: 5.32 (s, 1H, CH), 6.97-7.34 (m, 6H, ArH, NH), 8.09-8.12 (d, 2H, ArH),
8.32-8.36 (d, 2H, ArH), 10.39 (s, 1H, NH), 11.26 (s, 1H, NH). 13C NMR (75 MHz, DMSO-d6) δ: 77.038, 90.089, 112.570, 119.115,
121.687, 127.086, 127.158, 135.476, 144.819, 146.987, 155.115, 157.414, 159.554. FT-IR (KBr) v: 3494, 1697, 1622 cm-1. MS (EI) (m/z):
395.07 (M+). Anal. Calcd. for: C18H13N5O4S (Mr= 395.39): C 54.68, H 3.31, N 17.71. Found: C 54.58, H 3.33, N 17.76.
5-(4-Hydroxyphenyl)-6-phenyl-7-thioxo-5,6,7,8-tetrahydropyrimido[4,5-d]pyrimidine-2,4(1H,3H)-dione (4m)
White solid; m.p. 283-285°C.1H NMR (300 MHz, DMSO-d6) δ: 5.19 (s, 1H, CH), 7.18-7.31 (m, 5H, ArH), 7.51-7.62 (m, 3H, ArH), 7.83-
7.86 (t, 2H, ArH), 9.58 (s, 1H, OH), 10.38 (s, 1H, NH), 11.90 (s, 1H, NH). 13C NMR (75 MHz, DMSO-d6) δ: 77.554, 89.384, 112.477,
118.878, 121.825, 125.257, 126.138, 126.448, 126.627, 127.047, 130.732, 140.481, 148.495, 151.901, 155.386. FT-IR (KBr) v: 3497,
1691, 1626 cm-1. MS (EI) (m/z): 366.08 (M+). Anal. Calcd. for: C18H14N4O3S (Mr= 366.40): C 59.01, H 3.85, N 15.29. Found: C 58.92, H
3.89, N 15.37.
Acknowledgments
The authors are thankful to the University of Guilan Research Council for the partial support of this work.
References

ACCEPTED MANUSCRIPT
[1] O. K. Farha, J. T. Hupp, Rational Design, Synthesis, Purification, and Activation of Metal-Organic Framework Materials, Acc. Chem.
Res. 43 (2010) 1166-1175.
[2] A. Corma, H. Garcia, F. X. L. Xamena, Engineering Metal Organic Frameworks for Heterogeneous Catalysis, Chem. Rev. 110 (2010)
4606-4655.
[3] J. R. Li, R. J. Kuppler, H. C. Zhou, Selective gas adsorption and separation in metal-organic frameworks, Chem. Soc. Rev. 38 (2009)
1477-1504.
[4] P. Horcajada, C. Serre, M. Vallet-Regi, M. Sebban, F. Taulelle, G. Fe´rey, Metal-Organic Frameworks as Efficient Materials for Drug
Delivery, Angew. Chem. Int. Ed. 45 (2006) 5974-5978.
[5] K. M. L. Taylor-Pashow, J. D. Rocca, Z. G. Xie, S. Tran, W. B. Lin, Postsynthetic Modifications of Iron-Carboxylate Nanoscale Metal-
Organic Frameworks for Imaging and Drug Delivery, J. Am. Chem. Soc. 131 (2009) 14261-14263.
[6] P. Horcajada, T. Chalati, C. Serre, B. Gillet, C. Sebrie, T. Baati, J. F. Eubank, D. Heurtaux, P. Clayette, C. Kreuz, J. S. Chang, Y. K.
Hwang, V. Marsaud, P. N. Bories, L. Cynober, S. Gil, G. Fe´rey, P. Couvreur, R. Gref, Porous metal–organic-framework nanoscale carriers
as a potential platform for drug delivery and imaging, Nat. Mater. 9 (2010) 172-178.
[7] G. N. agendrappa, Organic synthesis using clay and clay-supported catalysts, Appl. Clay Sci. 53 (2011) 106-138.
[8] G. R. Desiraju, Organic solid state chemistry, J. Appl. Cryst. 21 (1988) 580.
[9] (a) K.A. Hansford, V. Zanzarova, A. Dorr, W.D. Lubell, Three-Step Solution-Phase Combinatorial Access to 1,2-Disubstitutedand
1,2,5-Trisubstituted Pyrroles from Carboxylic Esters, J. Comb. Chem. 6 (2004) 893-898. (b) A. R. Katritzky, Introduction:ꢀ Heterocycles,
Chem. Rev. 104 (2004) 2125-2126.
[10] (a) G. Heckmann, T. Bach, Synthesis of the Heterocyclic Core of the GE2270Antibiotics and Structure Elucidation of a
MajorDegradation Product, Angew. Chem. Int. Ed. 44 (2005) 1199-1201. (b) E. C. Taylor, R. J. Knopf, R. F. Meyer, A. Holmes, M. L.
Hoefle, Pyrimido [4,5-d]pyrimidines. Part I, J. Am. Chem. Soc. 82 (1960) 5711-5718.
[11] S. Hegde, J. Carter, To Market, To Market-2003, In: A. M. Doherty (ed), Annual Reports in Medicinal Chemistry, Academic Press,
Amesterdam. 39, 2004, pp. 335-368.
[12] P. Sharma, N. Rane, V. K. Gurram, Synthesis and QSAR studies of pyrimido[4,5-d]pyrimidine-2,5-dione derivatives as potential
antimicrobial agents, Bioorg. Med. Chem. Lett. 14 (2004) 4185-4190.
[13] J. P. De la Cruz, T. Carrasco, G. Ortega, F. Sanchez De La Cuesta, Inhibition of ferrous-induced lipid peroxidation by pyrimido-
pyrimidine derivatives in human liver membranes, Lipids. 27 (1992) 192-194.
[14] P. Raddatz, R. Bergmann, DE Patent 360731; Chem. Abstr. 109 (1988) 54786.
[15] N. Kitamura, A. Onishi, EU Patent 163599; Chem. Abstr. 104 (1984) 186439.
[16] S. M. El-Moghazy, D. A. Ibrahim, N. M. Abdelgawad, N. A. H. Farag, A. S. EL-Khouly, Design, Synthesis and Biological Evaluation
of Novel Pyrimido[4,5-d]pyrimidine CDK2 Inhibitors as Anti-Tumor Agents, Sci. Pharm., 79 (2011) 429-448.
[17] (a) S. Majumder, P. Borah, P. J-Bhuyan, An Efficient and Regioselective One-Pot Multi-Component Synthesis of Pyrimido[4,5-
d]pyrimidine Derivatives in Water, Tetrahedron Lett. 55 (2014) 1168-1170. (b) D. Prajapatia, A. J. Thakur, Studies on 6-
[(dimethylamino)methylene]aminouracil: a facileone-pot synthesis of novel pyrimido[4,5-d]pyrimidine derivatives, Tetrahedron Lett. 46
(2005) 1433-1436. (c) A. Mobinikhaledi, T. Mosleh, N. Foroughifar, Triethyl benzyl ammonium chloride (TEBAC) catalyzed solvent-free
one-pot synthesisof pyrimido[4,5-d]pyrimidines, Res. Chem. Intermed. 41 (2015) 2985-2990. (d) F. Matloubi Moghaddam, M. R.
Khodabakhshi, M. Aminaee, Highly efficient synthesis of pyrimido[4,5-d]pyrimidine-2,4-dione derivatives catalyzed by iodine,
Tetrahedron Lett. 55 (2014) 4720-4723.
[18] R. Ghorbani‐Vaghei, N. Sarmast, Green synthesis of new pyrimido[4,5‐d]pyrimidine derivatives using 7‐aminonaphthalene‐1,3‐
disulfonic acid‐functionalized magnetic Fe3O4@SiO2nanoparticles ascatalyst, Appl. Organomet. Chem. 32 (2017) e4003.
[19] S. Badvel, R. Gopireddy, T. Shaik, S. Hasti, V. Tummaluru, N. Chamarthi, An efficient one-pot three-component synthesis of
pyrimido[4,5-d]pyrimidine derivatives in aqueous medium, Chem. Heterocycl. Compd. 51 (2015) 749-753.
[20] (a) M.A. Ghasemzadeh, B. Mirhosseini-Eshkevari, M.H. Abdollahi-basir, MIL-53(Fe) Metal–Organic Frameworks (MOFs) as an
Efficient and Reusable Catalyst for the One‐Pot Four‐Component Synthesis of Pyrano[2,3-c]pyrazoles, Appl. Organomet. Chem., 33
(2019) e4679. (b) M. A. Ghasemzadeh, M. H. Abdollahi-Basr,
Ultrasound-assisted one-pot multi-component synthesis of 2-
pyrrolidinon-3-olates catalyzed by Co3O4@SiO2 core–shell nanocomposite, Green Chem. Lett. Rev. 9 (2016) 156-165. (c) M. A.
Ghasemzadeh, B. Mirhosseini-Eshkevari, M. H. Abdollahi-Basr, Rapid and Efficient One-Pot Synthesis of 3,4-Dihydroquinoxalin-2-
Amine Derivatives Catalyzed by Co3O4@SiO2 Core-Shell Nanoparticles Under Ultrasound Irradiation, Comb. Chem. High Throughput
Screen. 19 (2016) 592-601.
[21] (a) O.G. Jolodar, F. Shirini, M. Seddighi, Introduction of a novel nanosized N-sulfonated Brönsted acidic catalyst for the promotion of
the synthesis of polyhydroquinoline derivatives via Hantzsch condensation under solvent-free conditions, RSC Adv. 6 (2016) 26026-
26037. (b) F. Shirini, M. S. N. Langarudi, N. Daneshvar, Preparation of a new DABCO-based ionic liquid [H2-DABCO][H2PO4]2} and its
application in the synthesis of tetrahydrobenzo[b]pyran and pyrano[2,3-d]pyrimidinone derivatives, J. Mol. Liq. 234 (2017) 268-278. (c) F.
Shirini, M. S. N. Langarudi, N. Daneshvar, N. Jamasbi, rankhah-Khanghah, Preparation and characterization of [H2-DABCO][ClO4]2 as a
new member of DABCO-based ionic liquids for the synthesis of pyrimido[4,5-b]-quinoline and pyrimido[4,5-d]pyrimidine derivatives, J.
Mol. Struct. 1161 (2018) 366-382.
[22] (a) P. Horcajada, C. Serre, G. Maurin, N. A. Ramsahye, F. Balas, M. Vallet‐Regi, M. Sebban, F. Taulelle, G. Férey, Flexible Porous
Metal-Organic Frameworks for a Controlled Drug Delivery, J. Am. Chem. Soc. 130 (2008) 6774-6780. (b) M. Pu, Y. Ma, J. Wan, Y.
Wang, J. Wang, M. L. Brusseau, Activation performance and mechanism of a novel heterogeneous persulfate catalyst: metal-organic
framework MIL-53(Fe) with FeII/FeIII mixed-valence coordinatively unsaturated iron center, Catal. Sci. Technol. 7 (2017) 1129-1140.

ACCEPTED MANUSCRIPT
Scheme 1. Synthesis of pyrimido[4,5-d]pyrimidines.

ACCEPTED MANUSCRIPT
Scheme 2. Preparation process of MIL-53(Fe).

ACCEPTED MANUSCRIPT
Figure 1. Structure MIL-53(Fe) metal–organic framework.

ACCEPTED MANUSCRIPT
Table 1. Optimization of temperature in the synthesis of pyrimido[4,5-d]pyrimidine derivative of benzaldehyde.a
Entry
1
Temperature (◦C)
Time (min.)
90
Yield (%)b
45
60
2
3
4
5
6
7
70
80
80
60
20
20
20
20
51
73
82
90
98
98
90
100
110
120
aReaction conditions: isothiocyanate (1 mmol), benzaldehyde (1 mmol) and 6-aminouracil (1 mmol), MIL-53(Fe) (0.005 g), solvent-
free.
bIsolated yield.

ACCEPTED MANUSCRIPT
Table 2. The effect of the amounts of the catalyst in the synthesis of pyrimido[4,5-d]pyrimidine derivative of benzaldehyde. a
Entry
1
MIL-53(Fe) (g)
None
Time (min.)
100
Yield (%)b
10
2
4
5
6
7
8
0.001
0.002
0.003
0.004
0.005
0.006
80
20
20
20
20
20
49
66
80
84
98
97
aReaction conditions: isothiocyanate (1 mmol), benzaldehyde (1 mmol) and 6-aminouracil (1 mmol), solvent-free, 110 oC.
bIsolated yield.

ACCEPTED MANUSCRIPT
Table 3. Synthesis of pyrimido[4,5-d]pyrimidines in the presence of MIL-53(Fe).
Entry
Product
Yield (%)a
M.P.(°C)
290-292
Lit. M.P.(°C)
1
98
------b, c
2
92
265-267
264-266[18]
3
97
278-280
283-284[18]
4
98
275-277
283-284[18]
5
89
268-271
268–271[18]

ACCEPTED MANUSCRIPT
6
95
274-276
272-274[18]
7
93
276-278
274-275[19]
8
86
91
96
274-276
261-263
285-287
273-276[18]
259-261[18]
282-283[18]
9
10

ACCEPTED MANUSCRIPT
11
88
271-273
270-272[18]
12
97
255-257
------b
13
94
283-285
------b
a Yield obtained after 20-25 min.
b New compound.
c 4a, yield 98% in the presence of MIL-53(Fe) for the first run, 97% in the second run, and 95% in the third run using the recycled
catalyst.

ACCEPTED MANUSCRIPT
Table 4. MIL-53(Fe) catalyzed the synthesis of pyrimido[4,5-d]pyrimidine 4d in comparison with other reagents reported in the
literature. a
Entry
Catalyst
Conditions
Time/ Yield (%)
References
1
2
p-TSA
Water/ reflux
Water/ reflux
1 h/ 67
17
18
Fe3O4@SiO2@Propyl-ANDSA
60 min./ 98
3
4
PEG–SO3H
MIL-53(Fe)
Water/ 70°C
60 min./ 90
20 min./ 98
19
Solvent-free/ 110°C
This work
a Based on the three-component reaction of 4-nitrobenzaldehyde; N,N-dimethyl-6-aminouracil and phenylisothiocyanate.

ACCEPTED MANUSCRIPT
Scheme 3. The proposed mechanism for the synthesis of 4a catalyzed by MIL-53(Fe).

ACCEPTED MANUSCRIPT
Graphical abstract

ACCEPTED MANUSCRIPT
Research Highlights
•
•
The MIL-53(Fe) were characterized by spectroscopic analysis including EDX, SEM, TGA, XRD and FT-IR
analysis.
The attractive features of this process are high yields, short reaction times, simple workup and environmentally
benign procedure.
•
•
•
MIL-53(Fe) as an efficient and green catalyst for the multicomponent synthesis of pyrimido[4,5-d]pyrimidines.
The catalyst can be recovered several cycles without any loss of catalytic activity.
Synthesis and characterization of new derivatives.
