Organic Letters
Letter
could be prepared by carefully controlling the temperature to
no more than −10 °C. It was also found that the reactions of
the diazines 3f−3h did not fully proceed to 1,2,3-triazine 2-
oxides and only nitramine products were separated. The
structures of 3b, 3d-1, 3e, 3f-1, and 3h-1 were confirmed by
single-crystal XRD.
Scheme 3. Reactions of o-Aminocyanides 1a−1m with
Hydroxylamine
To gain more insight into the nitration mechanism, quantum
calculations were carried out to study the reaction
intermediates and transition states for the nitration of 2b. A
plausible mechanism is proposed in Figure 2. Its energy profile
reaction conditions. The results are listed in Table 2. From
entries 1−3, temperature has a crucial influence on the yield.
Figure 2. Calculated reaction mechanism. Numbers in parentheses
are calculated energy barriers (in kcal/mol).
Table 2. Optimization of Diazotization Reactions for 4a
is also shown (more calculation details could be found in the
a relatively high energy barrier of 39.7 kcal/mol and is
considered as the key step of the whole reaction process. The
intermediate IM-2 already bears a 1,2,3-triazine skeleton and is
dehydrated to IM-3, with a huge energy release of 37.1 kcal/
mol. A final tetrazole−azide transformation yields the product
3b with another energy drop of 8.7 kcal/mol. Calculated
results reveal that initially a nitramine intermediate IM-1 was
formed. It was further dehydrated via a complicated process to
generate the product 3b. According to this mechanism, the
nitrogen atom of the N-oxide comes from nitric acid. To verify
this mechanism experimentally, a 15N-labeled KNO3 with 10%
abundance was used in place of nitric acid in the nitrating
reaction. The 15N NMR spectrum of 15N-labeled 3b shows a
single peak with chemical shift at 334.14 ppm (liquid NH3 as
external standard), which is assigned to the nitrogen atom of
the N-oxide. This is in good agreement with the calculated
mechanism.
After the successful syntheses of the bicyclic 1,2,3-triazine 2-
oxides, the syntheses of bicyclic 1,2,3-triazine 3-oxide were
explored. In this synthetic method, o-aminocyanide reacts
readily with hydroxylamine to give o-aminoamidoxime. This is
followed by diazotization and cyclization to the product 4-
amino-1,2,3-triazine 3-oxide. Twelve different six- and five-
membered precursors were prepared (Scheme 3). Reactions
for most substrates achieved medium-to-high yields up to 92%.

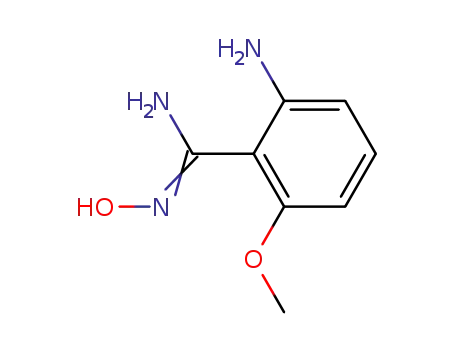

The reaction for compound 4l showed the highest yield, which
could be attributed to the electron-donating methoxy group on
the ring. Imidazole, 1k, has a low reactivity with aqueous
NH2OH, giving rise to a low conversion yield even after a
couple of days. Pyrimidine derivative 1h, upon reacting with
NH2OH, gave a pair of E/Z isomers of 4h-E/Z.30,31
entry
diazotization agent
temp (°C)
yield (%)
1
2
3
4
5
6
7
8
NaNO2/HCl
NaNO2/HCl
NaNO2/HCl
NaNO2/H2SO4
NaNO2/AcOH
iAmONO/HBF4
tBuONO/AcOH
NOBF4/MeCN
−5
10
rt
−5
−5
−5
−5
−5
72
46
0
23
64
23
45
0
The highest yield of 72% was achieved at −5 °C. Increasing
the temperature to 10 °C resulted in a lower yield of 46%. At
room temperature, no 1,2,3-triazine 3-oxide was detected on
TLC from the reaction. Different diazotization agents had
varied reactivities in the diazotization reaction. A mixture of
NaNO2/HCl led to the highest yield of 72%. Replacing the
acid with H2SO4 significantly reduced the yield to 23%. Using
AcOH as the acid resulted in a modest yield of 64%. Other
diazotization agents such as isoamyl nitrite or tert-butyl nitrite
gave relatively lower yields up to 45%.
After the determination of the best optimized conditions, the
reaction scope was expanded to other oxime compounds
prepared in Scheme 3. Among these new compounds, phenyl
and pyridine derivatives 4a−4e, 4k gave smooth reactions with
medium-to-high yields from 65% to 79% (Scheme 4). The
structure of 1,2,3-triazine 3-oxide was further confirmed with
single-crystal XRD for 5a. However, the diazine compounds
4f−4h showed very different reactivity. They all gave
chloroxime products 5f-1, 5g-1, and 5h-1 instead of the
expected 1,2,3-triazine 3-oxides. It could be inferred that the
formation of a 1,2,3-triazine 3-oxide or a chloroxime are
competing reactions. The reaction pathway depends on the
The second step is a diazotization reaction followed by a
cyclization to 1,2,3-triazine 3-oxide. 2-Amino-N′-hydroxyben-
zimidamide (4a) was selected as the substrate to optimize the
C
