Photolysis Experiments on Phosmet
J. Agric. Food Chem., Vol. 51, No. 20, 2003 5991
(ESI+), m/z 192 ([M + H]+), 209 ([M + NH4]+), 160 ([M - MeOH]+);
1H NMR (DMSO) δ 3.27 (3H, s, CH3), 4.92 (2H, s, CH2), 7.94-7.86
(4H, m, Ar-H); 13C NMR (DMSO) δ 56.73 (s, CH3), 68.66 (s, CH2),
The objective of our study is the determination of the
photodegradation and reaction pathways of phosmet, depending
on the respective environments in different model solvents
simulating animal skin fat (e.g., wool wax). Like many former
studies (6-10) demonstrated, the photochemistry of pesticides
depends in the first instance on the functional chemistry of the
environment. As wool grease is a constituent element (10-25%
w/w) of the sheared greasy wool and is a complex mixture of
polyesters and monoesters of high molecular weight, free fatty
acids, and alcohols (11, 12), in the first step several simple
models were utilized for UV irradiation experiments, resembling
common structure moieties of wool wax. Therefore, cyclohexane
and cyclohexene, which are also parts of the skeleton of sterols,
were generally used as models for saturated and unsaturated
constituents, respectively, of animal skin or hair lipids (e.g.,
sheep wool wax). Methanol and 2-propanol were models for
primary and secondary alcohol groups as they occur in free fatty
alcohols, hydroxy fatty acids, and sterols. These simple models,
following models for plant cuticle lipids introduced by Schwack
(7-10), have proved to be the best practical way to study
possible reaction pathways and product formation, prior to
moving on to the more complex natural system. In our previous
studies (8) we additionally showed that the photoproducts,
derived through these simple model experiments, could as well
be found on plant surfaces, which also confirms the utilization
of model systems in the first step. Furthermore, the resulting
products can effectively be used as analytical standards (13)
for later studies in natural environments.
123.75, 131.64, 135.12 (s, Ar-C), 167.96 (s, CdO); IR (ATR) (cm-1
)
2998, 2959, 2932, 2843, 1774, 1709, 1605, 1481, 1467, 1448, 1436,
1412, 1344, 1325, 1287, 1229, 1186, 1162, 1083, 985, 960, 912, 889,
852, 798, 722, 711, 693] and to published data [mp ) 121-122 °C
(ethanol) (16), mp 120-121 °C (17)].
Phosmet-oxon was synthesized from isolated phosmet by use of
bromine solution (methanol, 200 mM). A solution of phosmet (20 mM)
in methanol (1.5 mL) was treated with 1.5 mL of bromine solution
and agitated for 2 min in the closed vessel. The excess of bromine was
reduced with an aqueous solution of ascorbic acid. The reaction mixture
was treated with saturated saline and extracted twice with diethyl ether.
Extracts of five reaction mixtures were combined, the solvent was
evaporated under reduced pressure, and the residue was dissolved in
methanol and subjected to preparative HPLC. Fractions were collected,
methanol was evaporated, and residual water phase was lyophilized
(yield ) 35% of theory). Spectroscopic data of the obtained colorless
crystals agreed with the proposed structure [MS (ESI+), m/z 302 ([M
1
+ H]+), 319 ([M + NH4]+), 340 ([M + K]+); H NMR (DMSO) δ
3.67 (6H, d, CH3), 4.97 (2H, d, CH2), 7.95-7.87 (4H, m, Ar-H); 13
C
NMR (DMSO) δ 36.89 (d, CH2), 54.75 (d, CH3), 123.62, 131.41, 135.04
(s, Ar-C), 166.23 (s, CdO); IR (ATR) (cm-1) 3041, 2960, 1777, 1719,
1610, 1465, 1423, 1382, 1307, 1286, 1244, 1189, 1160, 1085, 1012,
922, 836, 770, 685; mp ) 68 °C].
General Techniques. High-performance liquid chromatography
(HPLC) analyses of phosmet and photolysis products were carried out
on an HP1100 system consisting of an autosampler, a gradient pump,
and a diode array detector (DAD) module (Hewlett-Packard, Wald-
bronn, Germany). For data acquisition and processing HP ChemStation
software (rev. A.06.01) was used. DAD was performed at wavelengths
of 220, 250, and 320 nm, each with spectral bandwidth (SBW) 8 nm,
ref 500 nm (SBW 100 nm). Separation was performed at 25 °C with
a reversed phase analytical column (5 µm Eurospher 100-C18, 250 ×
3 mm, Knauer, Berlin, Germany) including a precolumn (Eurospher 5
µm C18, 5 × 3 mm, Knauer), using a gradient system consisting of 20
mM phosphate buffer (pH 4.0) and methanol (injection volume ) 10
µL, flow rate ) 0.5 mL/min): 0/50, 1/80, 12/100, 20/100, 28/50, and
31/50 (minute/percent methanol).
Preparative HPLC was carried out on a system consisting of two
pumps (Kronlab, Sinsheim, Germany), an A0293 variable-wavelength
monitor (Knauer), a C-R3A integrator (Shimadzu, Duisburg, Germany),
and a Kronlab HPLC column (guard column, 50 × 20 mm; column,
250 × 20 mm; Nucleosil RP 18, 7 µm); a gradient system consisting
of ammonium formate buffer (10 mM, pH 4.0) and methanol as eluents
(flow rate ) 20 mL/min), with gradient as above, was used. Pumps
were controlled by Prepcon software.
High-performance liquid chromatography-mass spectrometry (LC-
MS) analyses were performed on an HPLC system (HP1100 as
described above), coupled to a VG platform II quadrupole mass
spectrometer (Micromass, Manchester, U.K.) equipped with an elec-
trospray interface (ESI). For data acquisition and processing, MassLynx
3.2 software was used. The same gradient system as in HPLC analysis
was used except the mobile phase, which consisted of 10 mM
ammonium formate buffer (pH 4.0) and methanol. All other parameters
remained as mentioned before. MS parameters: ESI+; source tem-
perature, 120 °C; capillary, 3.5 kV; HV lens, 0.5 kV; cone ramp, 20-
60 V. For LC analysis, the MS was operated in full-scan mode (m/z
80-1200).
MATERIALS AND METHODS
Materials. All solvents used were of analytical grade or distilled
prior to use. Cyclohexene (Merck, Darmstadt, Germany) was distilled
over 10% of P2O5 (Roth, Karlsruhe, Germany) before use.
Water was purified by a Milli-Q 185 plus water purification system
(Millipore Corp., Bedford, MA).
N-Methylphthalimide (Sigma-Aldrich, Steinheim, Germany), N-
hydroxymethylphthalimide, and phthalimide (Fluka, Deisenhofen,
Germany) were obtained as standards in analytical quality. Silica gel,
63-200 µm (Merck) was stirred with 10% of nitric acid (65%) for 30
min, washed until neutral, and dried for 15 h at 130 °C before use for
column chromatography.
Phosmet was extracted from Imidan [52% Phosmet (w/w), Siegfried
Agro, Zofingen, Switzerland) with acetone in a Soxhlet apparatus and,
after evaporation under reduced pressure, recrystallized from methanol
twice before use. Spectroscopic properties [MS (ESI+), m/z 318 ([M
1
+ H]+); H NMR (DMSO) δ 3.67 (6H, d, CH3), 4.96 (2H, d, CH2),
7.95-7.86 (4H, m, Ar-H); 13C NMR (DMSO) δ 54.32 (d, CH3), 39.05
(d, CH2), 123.80, 131.55, 135.23 (s, Ar-C), 166.39 (s, CdO); IR (ATR)
(cm-1) 3481, 3025, 2995, 2949, 2867, 1780, 1719, 1612, 1463, 1452,
1406, 1376, 1304, 1279, 1188, 1082, 1072, 914, 831, 819, 797, 722,
692, 676] and melting point of the obtained colorless crystals
corresponded to the expected structure and data given in refs 14 (melting
point) and 15 (IR spectra). The purity of the recrystallized phosmet
was determined by HPLC to be >99% (UV, 220 nm). The log ꢀ221nm
(methanol) calculated (4.69) matched the determined log ꢀ221nm
(methanol) of the commercial standard substance (Pestanal, Sigma-
Aldrich).
Ultraviolet (UV) spectra were measured with a Perkin-Elmer
Lambda2 instrument (U¨ berlingen, Germany) or an HP1100 DAD
module, respectively.
1H and 13C nuclear magnetic resonance (NMR) spectra were recorded
on a Unity Inova 300 (Varian, Darmstadt, Germany), at 298 K at 300
and 75 MHz (nominal frequency), respectively, in dimethyl-d6 sulfoxide
(DMSO-d6). Chemical shifts are given in δ (parts per million) relative
to tetramethylsilane (TMS).

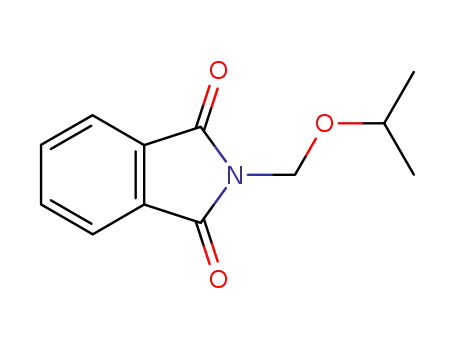

Syntheses. N-Methoxymethylphthalimide was synthesized by em-
ploying a modified procedure according to ref 16 starting from
N-hydroxymethylphthalimide and absoluted methanol. N-Hydroxy-
methylphthalimide (1.5 mmol, 260 mg) was dissolved in 6 mL of
absoluted methanol, and the reaction was catalyzed by 0.3 mL of
sulfuric acid (98%). After 15 h at 70 °C, the mixture was neutralized
with sodium hydrogen carbonate and extracted twice with diethyl ether.
After evaporation of the solvent under reduced pressure, the crystal
needles were recrystallized from ethanol (yield ) 73% of theory).
Spectroscopic properties corresponded to the proposed structure [MS
Infrared attenuated total reflection (IR-ATR) spectra were recorded
on a Avatar 320 E.S.P. Fourier transform IR spectrometer (FTIR)
(Nicolet, Offenbach, Germany).
