5478 J . Org. Chem., Vol. 65, No. 18, 2000
Delfourne et al.
4.12 (3H, s), 7.12 (1H, d, J ) 8.8 Hz), 7.68 (1H, d, J ) 5.2 Hz),
8.03 (1H, d, J ) 8.8 Hz), 9.08 (1H, d, J ) 5.2 Hz); 13C NMR
(CDCl3) 57.10, 106.72, 114.60, 114.87, 118.29 (q, J ) 320 Hz),
126.54, 137.97, 141.92, 150.12, 150.85, 158.56; IR (KBr) 1601,
(1H, ddd, J ) 7, 7, 1.5 Hz), 7.42 (1H, d, J ) 5 Hz), 7.93 (1H,
d, J ) 7.4 Hz), 8.48 (1H, d, J ) 5. Hz); 13C NMR (DMSO-d6)
56.25, 101.87, 107.09, 112.67, 115.06, 115.42, 119.30, 120.04,
124.22, 132.06, 132.13, 140.13, 140.29, 140.44, 145.10, 150.42;
IR (KBr) 3336, 1628, 1591, 1457, 1358 cm-1; EIMS m/z
(relative intensity) 248 (81), 247 (100), 233 (38), 219 (33). Anal.
Calcd for C16H12N2O, 1 CH2Cl2: C, 61.26; H, 4.20; N, 8.41.
Found: C, 61.03; H, 4.20; N, 8.21.
1534, 1346 cm-1
.
8-Meth oxy-5-n itr o-4-(2′-flu or op h en yl)qu in olin e (7). To
a solution of 2 M K2CO3 (14 mL), EtOH (7 mL), and deoxy-
genated toluene (135 mL) were added chloride 5 (3.2 g, 13.4
mL) and 2-fluorobenzene boronic acid (1.9 g, 13.4 mmol). The
mixture was stirred under nitrogen pressure, at room tem-
perature, for 30 min, and tetrakis(triphenylphosphine)pal-
ladium (471 mg, 0.402 mmol) was added. The reaction mixture
was refluxed overnight. After cooling, the precipitate was
washed with toluene. The filtrate was dried over MgSO4 and
concentrated under reduced pressure. The crude product was
purified by flash chromatography (CH2Cl2) to give 7 as a
yellow-orange solid: mp 215 °C (3.1 g, 78% yield); 1H NMR
(CDCl3) 4.15 (3H, s), 7.04 (1H, d, J ) 8.8 Hz), 7.18 (3H, m),
7.40 (1H, m), 7.57 (1H, d, J ) 4.4 Hz), 7.99 (1H, d, J ) 8.8
Hz), 9.05 (1H, d, J ) 4.4 Hz); 13C NMR (CDCl3) 56.84, 105.07,
115.97 (d, J ) 21.4 Hz), 120.71, 124.34, 125.88, 126.21 (d, J )
16 Hz), 126.84, 129.50, 130.75, 140.29, 140.60, 141.05, 149.56,
Eth yl 2-[N-[8-Meth oxy-4-(2′-flu or op h en yl)qu in olin -5-
yl]h yd r a zon o]p r op ion a te (12). To a well-stirred suspension
of amino derivative 8 (0.5 g, 1.87 mmol) in 4 M HCl solution
(2.5 mL, 9.35 mmol) was slowly added a solution of NaNO2
(0.131 g, 1.87 mmol) in water (0.4 mL). After being stirred, at
0 °C, for 30 min, the resulting diazonium salt solution was
added into a vigorously stirred mixture of ethyl-2-methyl-3-
oxobutyrate (90%, 0.3 g, 1.87 mmol), EtOH (2.4 mL), KOH
(0.56 g, 10.1 mmol), NaOAc (0.56 g), and H2O (3.5 mL)
maintained at 0 °C. The mixture was stirred continuously at
0 °C for 1 h. The precipitate was collected by filtration and
washed with water to obtain 12 as a bright yellow solid: mp
64 °C (0.612 g, 86% yield); 1H NMR (CDCl3) 1.22 (3H, s), 1.34
(3H, t, J ) 7.3 Hz), 4.11 (3H, s), 4.26 (2H, q, J ) 7.3 Hz), 7.14
(1H, d, J ) 8.8 Hz), 7.22 (1H, d, J ) 4.4 Hz), 7.24 (1H, d, J )
7.4 Hz), 7.33 (1H, ddd, J ) 7.4, 7.4, 1.1 Hz), 7.43 (1H, ddd, J
) 7.4, 7.4, 1.8 Hz), 7.47 (1H, bs), 7.51 (2H, m), 7.71 (1H, d, J
) 8.8 Hz); 13C NMR (CDCl3) 9.21, 14.31, 56.21, 61.18, 108.66,
113.25, 116.55 (d, J ) 21 Hz), 117.80, 124.23, 124.98, 127,
130.64, 131.26, 132.55 (d, J ) 40 Hz), 138.85, 140.63, 147.87,
151.32, 159.19 (d, J ) 227 Hz), 165.38, 175.14; IR (CHCl3)
3370, 1700, 1613, 1559, 1490 cm-1; EIMS m/z (relative
158.53 (d, J ) 245 Hz),159.22; IR (KBr) 1614, 1517, 1342 cm-1
;
EIMS m/z (relative intensity) 298 (19), 297 (16), 252 (68), 251
(80), 222 (83), 221 (100). Anal. Calcd for C16H11FN2O3: C, 64.43;
H, 3.69; N, 9.40. Found: C, 64.19; H, 3.60; N, 9.36.
8-Met h oxy-5-a m in o-4-(2′-flu or op h en yl)q u in olin e (8).
To a suspension of the nitro derivative 7 (1.45 g, 4.87 mmol)
and 10% Pd/C (2.68 g) in absolute EtOH (67 mL) was added
cyclohexene (3 mL). The reaction mixture was refluxed for 45
min. After evaporation, the crude product was purified by flash
chromatography to yield the amino derivative as a yellow-
intensity) 381 (100), 247 (91), 218 (39). Anal. Calcd for C21H20
-
FN3O3: C, 66.14; H, 5.25; N, 11.02. Found: C, 66.10; H, 5.45;
N, 10.68.
1
brown solid: mp 191 °C (0.85 g, 65% yield); H NMR (CDCl3)
4.04 (3H, s), 6.66 (1H, d J ) 8.2 Hz), 6.95 (1H, d ) 8.2 Hz),
7.17 (1H, d, J ) 4.2 Hz), 7.20 (1H, dd, J ) 8.8 Hz; 0.7 Hz),
7.26 (1H, dd, J ) 7.4, 1.1 Hz), 7.38 (1H, dd, J ) 7.4 Hz; 1.8
Hz), 7.48 (1H, m), 8.9 (1H, d, J ) 4.2 Hz); 13C NMR (CDCl3)
56.20, 108.79, 111.52, 115.9 (d, J ) 21.4 Hz), 118.13, 123.30,
124.11, 128.40 (d, J ) 18 Hz), 130.36, 130.67, 136.32, 140.41,
141, 147.94, 148.94, 159.2 (d, J ) 240 Hz); IR (CHCl3) 3468,
3362, 1611, 1474, 1277 cm-1; EIMS m/z (relative intensity) 268
(100), 267 (91), 239 (26), 218 (38). Anal. Calcd for C16H13FN2O:
C,71.64; H,4.85; N,10.45. Found: C, 71.85; H, 5.09; N, 10.47.
7-Am in o-4-m et h oxy-7H -p yr id o[2,3,4-k l]a cr id in e (10).
To a solution of amino derivative 8 (100 mg, 0.4 mmol) in water
(1 mL) were added, at 0 °C, 36% HCl (51 µL) and a solution of
sodium nitrite (27 mg, 0.4 mmol) in water (70 µL). The reaction
mixture was stirred for 15 min and then was added to a
solution of Na2S2O4 in water/ether (2 mL/2 mL) before being
stirred for an additional 30 min. NaOH (1 N) was added until
basic pH and the etheral phase was decanted. The aqueous
phase was extracted with CH2Cl2, and the organic layers were
dried over MgSO4 and concentrated. Purification of the crude
product by flash chromatography gave compound 10 as an
orange solid: mp 244 °C (35 mg, 33% yield); 1H NMR (DMSO-
d6) 3.88 (3H, s), 5.74 (2H, s), 6.98 (1H, dd, J ) 7.8, 7.8 Hz),
7.04 (1H, d, J ) 8.4 Hz), 7.21 (1H, d, J ) 8.4 Hz), 7.45 (1H,
dd, J ) 7.8, 7.8 Hz), 7.56 (1H, d, J ) 5.2 Hz), 7.74 (1H, d, J )

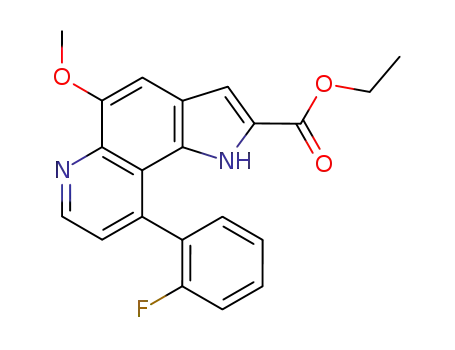

Eth yl 9-(2′-Flu or oph en yl)-5-m eth oxypyr r olo[2,3-f]qu in -
olin e-2-ca r boxyla te (13). A mixture of ester derivative 12
(200 mg, 0.53 mmol) and polyphosphoric acid (1.3 g) in toluene
(2.5 mL) was warmed at 100 °C for 6 h. After cooling, water
was added until complete dissolution. The reaction mixture
was extracted with CH2Cl2, and the organic layers were dried
over MgSO4 and concentrated under reduced pressure. Puri-
fication of the crude product by flash chromatography (CH2-
Cl2) afforded the indolic compound 13 as a yellow solid: mp
105 °C (110 mg, 58% yield); 1H NMR (CDCl3) 1.31 (3H, t, J )
7.3 Hz), 4.13 (3H, s), 4.23 (2H, q, J ) 7.3 Hz), 7.16 (1H, d, J )
2.2 Hz), 7.25 (1H, s), 7.37 (1H, d, J ) 8.4 Hz), 7.41 (1H, d, J
) 4.4 Hz), 7.45 (1H, m), 7.47 (1H, ddd, J ) 7.7, 7, 2.2 Hz),
7.67 (1H, m), 8.15 (1H, bs), 9.02 (1H, d, J ) 4.4 Hz); 13C NMR
(CDCl3) 14.19, 56.06, 60.65, 101.71, 108.46, 116.72 (d, J ) 15
Hz), 117.02, 122.85, 124.25, 125.20 (d, J ) 3.8 Hz), 125.63,
126.41, 126.58, 130.51, 132.16, 138.24, 141.28, 147.12, 150.80,
159.27 (d, J ) 300 Hz), 160.25; IR (CHCl3) 3449, 1700, 1613,
1330 cm-1; EIMS m/z (relative intensity) 364 (100), 363 (95),
317 (62), 316 (61), 288 (25). Anal. Calcd for C21H17FN2O3: C,
69.23; H, 4.67; N, 7.69. Found: C, 69.13; H, 4.71; N, 7.77.
Eth yl 4-Meth oxyp yr id o[4,3,2-m n ]p yr r olo[3,2,1-d e]a cr i-
d in e-1-ca r boxyla te (14). The indole derivative 13 (50 mg,
0.137 mmol) in DMSO (0.5 mL) was heated at 120 °C for 2 h,
in the presence of 18-crown-6 (4 mg, 0.0137 mmol) and 37%
potassium fluoride absorbed onto basic alumina (1 weight
equivalent based on the indole, 50 mg). The reaction mixture
was filtered and partitioned between water and CH2Cl2. The
organic layer was dried over MgSO4 and concentrated under
reduced pressure. The crude product was purified by flash
chromatography (CH2Cl2) to give the pentacyclic derivative as
a yellow solid: mp 179 °C (141 mg, 57% yield); 1H NMR (CDCl3)
1.50 (3H, t, J ) 7.3 Hz), 4.19 (3H, s), 4.52 (2H, q, J ) 7.3 Hz),
7.43 (1H, s), 7.56 (1H, dd, J ) 8.8, 7 Hz), 7.75 (1H, dd, J ) 7,
8.1 Hz), 7.91 (1H, s), 8.13 (1H, d, J ) 5.1 Hz), 8.54 (1H, d, J
) 8.1 Hz), 9.03 (1H, d, J ) 8.8 Hz), 9.17 (1H, d, J ) 5.1 Hz);
13C NMR (CDCl3) 14.41, 56.04, 61.26, 101.01, 110.92, 114.02,
115.15, 118.02, 120.21, 120.81, 124.61, 124.84, 125.10, 126.14,
130.49, 133.28, 135.40, 140.49, 148.17, 150.96, 162.11; IR
(CHCl3) 1700, 1507, 1428 cm-1; EIMS m/z (relative intensity)
344 (56), 343 (100), 342 (72), 315 (14), 314 (17), 242 (10), 241
7.8 Hz), 8.04 (1H, d, J ) 7.8 Hz), 8.55 (1H, d, J ) 5.2 Hz); 13
C
NMR (DMSO-d6) 56.05, 101.15, 107.60, 111.39, 114.26, 115.88,
119.30, 119.97, 123.82, 131.80, 134.91, 138.36, 140.70, 143.14,
146.30, 150.25; IR (KBr) 3418, 3299, 3138, 1534, 1359 cm-1
;
EIMS m/z (relative intensity) 263 (71), 247 (100), 218 (61).
Anal. Calcd for C16H13N3O: C, 73.00; H, 4.94; N, 15.97.
Found: C, 72.92; H, 4.87; N, 15.92.
4-Meth oxy-7H-p yr id o[2,3,4-kl]a cr id in e (11). Hydrazine
derivative 10 (263 mg, 1 mmol) was dissolved in ethanol (5
mL). Methyl pyruvate (110 mg, 1.07 mmol) was added, and
the resulting solution was stirred for 1 h. The solution was
concentrated under reduced pressure. The crude product was
heated at 130 °C under reduced pressure (20 mmHg) for 1 h.
Purification by flash chromatography (CH2Cl2/MeOH 95:5)
gave 11: mp > 260 °C (65 mg, 26%); 1H NMR (DMSO-d6) 3.84
(s, 3H), 6.58 (1H, d, J ) 8.4 Hz), 6.91 (1H, dd, J ) 7.8, 7.8
Hz), 6.94 (1H, d, J ) 8.4 Hz), 7.10 (1H, d, J ) 8.8 Hz), 7.33
