Sila-majantol and Germa-majantol
Organometallics, Vol. 21, No. 1, 2002 119
the mixture was stirred for 16 h, water (100 mL) was added.
The phases were separated, and the aqueous layer was
extracted with diethyl ether (2 × 30 mL). The combined
organic extracts were dried over anhydrous Na2SO4, the
solvent was removed under reduced pressure, and the residue
was distilled in vacuo (115 °C, 10 mbar) to give 7 in 65% yield
under reduced pressure and the residue distilled in vacuo (0.01
mbar, 79 °C) to give 11 in 90% yield as a colorless liquid (2.80
1
g, 10.9 mmol). H NMR (CDCl3): δ 0.21 (s, 6 H, SiCH3), 2.29
(s, 3 H, CCH3), 2.31 (s, 2 H, GeCH2C), 2.89 (s, 2 H, GeCH2Cl),
6.81-6.90 (m, 3 H, H-2, H-4, H-6, C6H4), 7.08-7.13 (m, 1 H,
H-5, C6H4). 13C NMR (CDCl3): δ -5.1 (GeCH3), 21.4 (CCH3),
23.3 (GeCH2C), 29.8 (GeCH2Cl), 124.7 (C-4 or C-6, C6H4), 125.1
(C-4 or C-6, C6H4), 128.3 (C-5, C6H4), 128.5 (C-2, C6H4), 137.9
(C-1 or C-3, C6H4), 139.7 (C-1 or C-3, C6H4). Anal. Calcd for
1
as a colorless liquid (14.9 g, 70.0 mmol). H NMR (CDCl3): δ
0.12 (s, 6 H, SiCH3), 2.20 (s, 2 H, SiCH2C), 2.32 (s, 3 H, CCH3),
2.76 (s, 2 H, SiCH2Cl), 6.84-6.94 (m, 3 H, H-2, H-4, H-6, C6H4),
7.11-7.16 (m, 1 H, H-5, C6H4). 13C NMR (CDCl3): δ -4.9
(SiCH3), 21.4 (CCH3), 23.4 (SiCH2C), 29.6 (SiCH2Cl), 125.11
(C-4 or C-6, C6H4), 125.13 (C-4 or C-6, C6H4), 128.2 (C-5, C6H4),
128.9 (C-2, C6H4), 137.9 (C-1 or C-3, C6H4), 138.8 (C-1 or C-3,
C6H4). 29Si NMR (CDCl3): δ 3.0. Anal. Calcd for C11H17ClSi:
C, 62.09; H, 8.05. Found: C, 62.3; H, 8.0.
P r ep a r a tion of (Acetoxym eth yl)d im eth yl(3-m eth yl-
ben zyl)sila n e (8). A mixture of sodium acetate (2.83 g, 34.5
mmol) and 7 (5.00 g, 23.5 mmol) in DMF (50 mL) was stirred
for 3 days at 80 °C. After the mixture was cooled to room
temperature, water (35 mL) and diethyl ether (40 mL) were
added. The phases were separated, and the organic layer was
washed with water (2 × 10 mL) and then dried over anhydrous
Na2SO4. The solvent was removed under reduced pressure and
the residue distilled in vacuo (0.01 mbar, 70 °C) to give 8 in
69% yield as a colorless liquid (3.86 g, 16.3 mmol). 1H NMR
(CDCl3): δ 0.04 (s, 6 H, SiCH3), 2.02 (s, 3 H, CCH3), 2.12 (s, 2
H, SiCH2C), 2.28 (s, 3 H, C(O)CH3) 3.74 (s, 2 H, SiCH2O), 6.78-
6.90 (m, 3 H, H-2, H-4, H-6, C6H4), 7.07-7.12 (m, 1 H, H-5,
C6H4). 13C NMR (CDCl3): δ -5.0 (SiCH3), 20.7 (C(O)CH3), 21.4
(CCH3), 23.7 (SiCH2C), 56.1 (SiCH2O), 125.0 (C-4 or C-6, C6H4),
125.1 (C-4 or C-6, C6H4), 128.2 (C-5, C6H4), 128.9 (C-2, C6H4),
137.8 (C-1 or C-3, C6H4), 138.8 (C-1 or C-3, C6H4), 171.8 (CdO).
29Si NMR (CDCl3): δ 0.3. Anal. Calcd for C13H20O2Si: C, 66.05;
H, 8.53. Found: C, 66.4; H, 8.5.
C
11H17ClGe: C, 51.35; H, 6.66. Found: C, 51.6; H, 6.8.
P r ep a r a tion of (Acetoxym eth yl)d im eth yl(3-m eth yl-
ben zyl)ger m a n e (12). A mixture of sodium acetate (1.66 g,
20.2 mmol) and 11 (2.60 g, 10.1 mmol) in DMF (13 mL) was
heated under reflux for 5 h. After the mixture was cooled to
room temperature, water (10 mL) and diethyl ether (20 mL)
were added. The phases were separated, and the organic layer
was extracted with water (2 × 5 mL) and then dried over
anhydrous Na2SO4. The solvent was removed under reduced
pressure and the residue distilled in vacuo (0.01 mbar, 98 °C)
to give 12 in 87% yield as a colorless liquid (2.48 g, 8.83 mmol).
1H NMR (CDCl3): δ 0.15 (s, 6 H, GeCH3), 2.01 (s, 3 H,
C(O)CH3), 2.26 (s, 2 H, GeCH2C), 2.28 (s, 3 H, CCH3), 2.89 (s,
2 H, GeCH2Cl), 6.78-6.88 (m, 3 H, H-2, H-4, H-6, C6H4), 7.06-
7.11 (m, 1 H, H-5, C6H4). 13C NMR (CDCl3): δ -5.0 (GeCH3),
20.7 (C(O)CH3), 21.4 (CCH3), 23.8 (GeCH2C), 57.5 (GeCH2O),
124.8 (C-4 or C-6, C6H4), 125.0 (C-4 or C-6, C6H4), 128.2 (C-5,
C6H4), 128.5 (C-2, C6H4), 137.8 (C-1 or C-3, C6H4), 140.0 (C-1
or C-3, C6H4), 171.7 (CdO). Anal. Calcd for C13H20GeO2: C,
55.58; H, 7.18. Found: C, 55.2; H, 6.8.
Sin gle-Cr ysta l X-r a y Diffr a ction Stu d ies. Suitable single
crystals of 1a , 1b, and 1c were obtained by crystallization from
solutions in n-pentane at -20 °C. The crystals were mounted
in inert oil (perfluoroalkyl ether, ABCR) on a glass fiber and
then transferred to the cold nitrogen gas stream of the
diffractometer [Stoe IPDS; graphite-monochromated Mo KR
radiation (λ ) 0.71073 Å)]. The data for 1a and 1b were
collected at 173 K and the data for 1c at 263 K. Initial models
for the refinement of the structures of 1a , 1b, and 1c were
obtained by direct methods.18,19 All non-hydrogen atoms were
refined anisotropically.20 Hydrogen atoms could be located from
the peak lists of subsequent difference Fourier maps and were
refined using a riding model and geometrical recalculation at
ideal positions. Only those hydrogen atoms linked to the
oxygen atoms were refined freely with their temperature
factors tied to 1.5 times of the corresponding oxygen atom
temperature factors.
Com p u ta tion a l Stu d ies. RI-MP211 geometry optimizations
(TZVP12 level) of the C/Si/Ge analogs 1a /1b/1c were performed
using the TURBOMOLE program system.13 The experimen-
tally established conformations 1a , 1b-R, and 1c-R in the
crystal served as starting geometries for these calculations.
Each critical point of the respective potential energy surface
was characterized as a local minimum by calculation of the
vibrational frequencies. The calculated energies14 of 1a , 1b-R,
and 1c-R include the MP2 energies and the zero-point vibra-
tional energies obtained by SCF calculations. The electrostatic
potentials and electron densities of 1a , 1b -R, and 1c-R
(conformations obtained in the RI-MP2 calculations) were
calculated with the program GAUSSIAN 9815 using the DFT
method (B3LYP16/TZVP level).
Sen sor y Ch a r a cter iza tion . To get highly pure samples
for the sensory characterization, the NMR-spectroscopically
pure compounds 1a , 1b, and 1c were additionally purified by
thin-layer chromatography on silica gel (PLC plates, 20 × 20
cm, silica gel 60 F254, 1 mm; Merck, 1.13895) using n-hexane/
diethyl ether [10:1 (v/v)] as solvent. To remove traces of silica,
P r ep a r a tion of Tr ich lor o(ch lor om eth yl)ger m a n e (9).
This compound was synthesized according to ref 17a (see also
ref 17b).
P r ep a r a tion of Dich lor o(ch lor om eth yl)(3-m eth ylben -
zyl)ger m a n e (10). A solution of 3-methylbenzyl chloride (4.31
g, 30.7 mmol) in diethyl ether (20 mL) was added dropwise
over a period of 30 min at -10 °C to a suspension of magne-
sium turnings (751 mg, 30.9 mmol) in diethyl ether (5 mL).
The mixture was stirred for 1 h at this temperature and then
added dropwise within 30 min at room temperature to a stirred
solution of 9 (7.00 g, 30.6 mmol) in diethyl ether (40 mL). After
the mixture was stirred for 16 h at room temperature and
heated under reflux for 1 h, n-pentane (50 mL) was added.
The resulting precipitate was filtered off and washed with
n-pentane (2 × 20 mL). The filtrate and wash solutions were
combined, the solvent was removed under reduced pressure,
and the residue was distilled in vacuo (0.01 mbar, 90 °C) to
give 10 in 39% yield as a colorless liquid (3.60 g, 12.1 mmol).
1H NMR (CDCl3): δ 2.34 (s, 3 H, CCH3), 3.17 (s, 2 H, GeCH2C),
3.38 (s, 2 H, GeCH2Cl), 7.03-7.07 (m, 3 H, H-2, H-4, H-6, C6H4),
7.18-7.21 (m, 1 H, H-5, C6H4). 13C NMR (CDCl3): δ 21.4 (CCH3),
31.0 (GeCH2C), 32.5 (GeCH2Cl), 126.0 (C-4 or C-6, C6H4), 127.7
(C-4 or C-6, C6H4), 128.9 (C-5, C6H4), 129.7 (C-2, C6H4), 132.0
(C-1 or C-3, C6H4), 138.7 (C-1 or C-3, C6H4). Anal. Calcd for
C9H11Cl3Ge: C, 36.26; H, 3.72. Found: C, 36.4; H, 3.8.

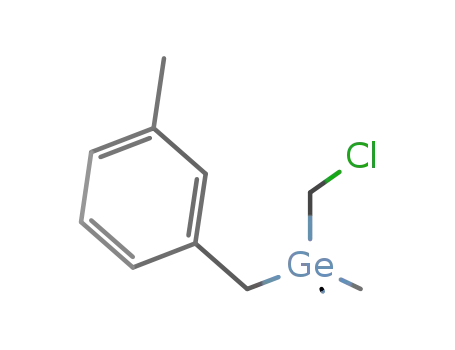

P r ep a r a tion of (Ch lor om eth yl)d im eth yl(3-m eth ylben -
zyl)ger m a n e (11). A 1.6 M solution of methyllithium in
diethyl ether (15 mL, 24.0 mmol of MeLi) was diluted with
diethyl ether (20 mL) and the resulting solution then added
dropwise over a period of 45 min at -10 °C to a solution of 10
(3.60 g, 12.1 mmol) in diethyl ether (60 mL). The mixture was
stirred for 1 h at -10 °C and then warmed to room temper-
ature and stirred for another 3 h. The solvent was removed
(18) Sheldrick, G. M. SHELXS-97; University of Go¨ttingen: Ger-
many, 1997.
(17) (a) Tacke, R.; Becker, B. J . Organomet. Chem. 1988, 354, 147-
153. (b) Seyferth, D.; Rochow, E. G. J . Am. Chem. Soc. 1955, 77, 907-
910.
(19) Sheldrick, G. M. Acta Crystallogr., Sect. A 1990, 46, 467-473.
(20) Sheldrick, G. M. SHELXL-97; University of Go¨ttingen: Ger-
many, 1997.
