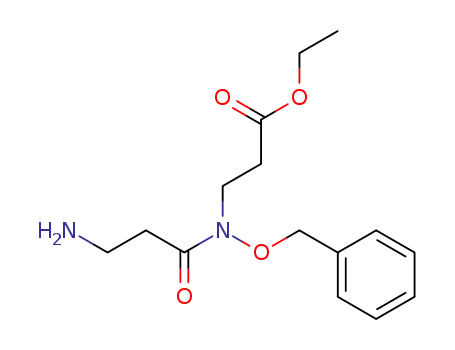

A Molecular Keypad Lock: A Photochemical Device Capable
of Authorizing Password Entries
David Margulies, Clifford E. Felder, Galina Melman, and Abraham Shanzer*
Contribution from the Department of Organic Chemistry, The Weizmann Institute of Science,
RehoVot 76100, Israel
Received July 25, 2006; E-mail: abraham.shanzer@weizmann.ac.il
Abstract: This paper describes a new concept in the way information can be protected at the molecular
scale. By harnessing the principles of molecular Boolean logic, we have designed a molecular device that
mimics the operation of an electronic keypad lock, e.g., a common security circuit used for numerous
applications, in which access to an object or data is to be restricted to a limited number of persons. What
distinguishes this lock from a simple molecular logic gate is the fact that its output signals are dependent
not only on the proper combination of the inputs but also on the correct order by which these inputs are
introduced. In other words, one needs to know the exact passwords that open this lock. The different
password entries are coded by a combination of two chemical and one optical input signals, which can
activate, separately, blue or green fluorescence output channels from pyrene or fluorescein fluorophores.
The information in each channel is a single-bit light output signal that can be used to authorize a user, to
verify authentication of a product, or to initiate a higher process. This development not only opens the way
for a new class of molecular decision-making devices but also adds a new dimension of protection to
existing defense technologies, such as cryptography and steganography, previously achieved with molecules.
Introduction
computers, electronic logic circuits control the operation of a
variety of devices around us,32 from calculators and store
The increasing role electronic devices play in our daily lives,
as well as our constant need to pursue superior technologies,
have raised a wide interest in the development of molecular
systems mimicking the operation of electronic logic gates and
circuits.1-31 Besides their integration in the heart of digital
automation to video games and music equipment. In the past
few years, the feasibility of molecular logic gates to be integrated
into practical decision-making devices has also been demon-
strated. Although these devices so far include merely an
interactive game,33 a few moleculators34 (see also refs 35-50),
and a comparator,50 such progress raises an unavoidable thought
