J . Org. Chem. 1999, 64, 8156-8160
An Exp ed itiou s Rou te to Novel 1,4,2-Ben zod ia za p h osp h ep in -5-on e
2-Oxid e An a logu es
Gary M. Karp
Agricultural Products Research Division, American Cyanamid Company,
Princeton, New J ersey 08543-0400
Received May 24, 1999
A short and efficient synthesis of the novel 1,4,2-benzodiazaphosphepin-5-one 2-oxide ring system,
a phosphonamidate isostere of the 1,4-benzodiazepine-2,5-dione system, has been carried out in
good overall yield. The key step is the base-induced cyclization of (2-aminobenzamido)methylphos-
phonates 6a -c to the 1,4,2-benzodiazaphosphepin-5-one 2-oxides 7a -c. Alkylation of 7b with methyl
iodide gives the expected N-methyl analogue 9. When a tandem one-pot cyclization/alkylation is
carried out from 6b in the presence of excess base, the sole isolable product obtained is the
phosphonate 13, presumably via ethanolysis of a transiently formed 9. Carrying out the tandem
cyclization/alkylation in the absence of excess base, however, affords only 9. Thionation of 7 with
Lawesson’s reagent occurs at either the phosphonamidate oxygen (P-2) or the amide carbonyl
(C-5) depending on the steric constraint of the N-4 substituent.
During the course of an investigation of the herbicidal
diones11 by utilization of the appropriate aminometh-
ylphosphonate.12 The C-5 amide linkage would be estab-
lished initially upon reaction of an o-nitrobenzoyl chloride
with the aminomethylphosphonate followed by formation
of the P-2 phosphonamidate center (after nitro reduction
and subsequent cyclization). To investigate this approach
to 2 (R ) tert-butyl), 5-chloro-2-nitrobenzoyl chloride 311
properties of 1,4-benzodiazepine-2,5-diones,1 including
homologues1a and isosteres,2 a further understanding of
the steric and electronic factors necessary for activity
fueled our interest to examine additional related systems.
We were intrigued by the idea of incorporating a phos-
phorus atom into the benzodiazepine skeleton. Organo-
phosphorus compounds are ubiquitous in living systems,
comprising a central role in the structure of nucleic acids
and cell membranes.3 The incorporation of phosphorus
into organic molecules has found utility as enzyme
transition-state inhibitors,4 antibiotics,5 and agrochemi-
cals.6 In light of our continued interest in the preparation
of isosteres of benzodiazepinediones 1, we were interested
in the preparation of the 1,4,2-benzodiazaphosphepin-5-
one 2-oxide system 2, where the trigonal C-2 amide
carbonyl of 1 is replaced by a tetracoordinate pentavalent
phosphorus atom in 2. Phosphonamidates have been
utilized as isosteres for the tetrahedral transition state
of protease inhibitors.7 Despite the existence of numerous
examples of cyclic phosphonamidates,8-10 the target 1,4,2-
benzodiazaphosphepin-5-one 2-oxide system 2 appears to
be unknown.
(4) (a) Malachowski, W. P.; Coward, J . K. J . Org. Chem. 1994, 59,
7616. (b) Dugas, H. Bioorganic Chemistry. A Chemical Approach to
Enzyme Action, 2nd ed.; Springer-Verlag: New York, 1989; pp 80-
85. (c) Allen, M. C.; Fuhrer, W.; Tuck, B.; Wade, R.; Wood, J . M. J .
Med. Chem. 1989, 32, 1652. (d) Giannousis, P. P.; Bartlett, P. A. J .
Med. Chem. 1987, 30, 1603. (e) Bartlett, P. A.; Marlowe, C. K. Science
1987, 235, 569.
(5) Atherton, F. R.; Hassall, C. H.; Lambert, R. W. J . Med. Chem.
1986, 29, 29.
(6) Fest, C.; Schmidt, K.-J . The Chemistry of Organophosphorus
Pesticides, 2nd ed.; Springer-Verlag: Berlin, 1982; pp 80-182.
(7) See, for example: (a) Radkiewicz, J . L.; McAllister, M. A.;
Goldstein, E.; Houk, K. N. J . Org. Chem. 1998, 63, 1419. (b) Musiol,
H.-J .; Grams, F.; Rudolph-Bohner, S.; Moroder, L. J . Org. Chem. 1994,
59, 6144. (c) Morgan, B. P.; Holland, D. R.; Matthews, B. W.; Bart-
lett, P. A. J . Am. Chem. Soc. 1994, 116, 3251. (d) Camp, N. P.;
Hawkins, P. C. D.; Hitchcock, P. B.; Gani, D. Bioorg. Med. Chem. Lett.
1992, 2, 1047. (e) McLeod, D. A.; Brinkworth, R. I.; Ashley, J . A.; J anda,
K. D.; Wirsching, P. Bioorg. Med. Chem. Lett. 1991, 1, 653. (f) J anda,
K. D.; Schloeder, D.; Benkovic, S. J .; Lerner, R. A. Science 1988,
241, 1188.
(8) For the preparation of 1,2-azaphosphetidine 2-oxides, see: (a)
Laws, A. P.; Stone, J . R.; Page, M. I. J . Chem. Soc., Chem. Commun.
1994, 1223. (b) Afarinkia, K.; Cadogan, J . I. G.; Rees, C. W. J . Chem.
Soc., Chem. Commun. 1992, 285. (c) Gubnitskaya, E. S.; Parkhomenko,
V. S.; Semashko, Z. T.; Samaray, L. I. Phosphorous Sulfur 1983, 15,
257.
(9) For the preparation of some 1,2-azaphospholidine 2-oxides, see:
(a) Angelov, C. M.; Enchev, D. D. Heteroatom Chem. 1992, 3, 651. (b)
Collins, D. J .; Hetherington, J . W.; Swan, J . M. Aust. J . Chem. 1974,
27, 1759. (c) Collins, D. J .; Drygala, P. F.; Swan, J . M. Aust. J . Chem.
1983, 36, 2517.
(10) For the preparation of some 1,2-azaphosphinane 2-oxides, see:
(a) Natchev, I. A. Bull. Chem. Soc. J pn. 1988, 61, 4447. (b) Natchev,
I. A. Bull. Chem. Soc. J pn. 1988, 61, 3711. (c) Hewitt, D. G.; Teese, M.
W. Aust. J . Chem. 1984, 37, 1631.
It was envisioned that 2 could be constructed in a
manner analogous to that of the benzodiazepine-2,5-
(1) (a) Karp, G. M.; Manfredi, M. C.; Guaciaro, M. A.; Harrington,
P. M.; Marc, P.; Ortlip, C. L.; Quakenbush, L. S.; Birk, I. T. In Synthesis
and Chemistry of Agrochemicals V; Baker, D. R., Fenyes, J . G.,
Basarab, G. S., Hunt, D. A., Eds.; ACS Symposium Series 686;
American Chemical Society: Washington, D.C., 1998; pp 95-106. (b)
Karp, G. M.; Manfredi, M. C.; Guaciaro, M. A.; Ortlip, C. L.; Marc, P.;
Szamosi, I. T. J . Agric. Food Chem. 1997, 45, 493.
(11) Karp, G. M. J . Org. Chem. 1995, 60, 5814 and referenced cited
therein.
(12) For recent approaches to aminoalkylphosphonates, see: (a)
Couture, A.; Deniau, E.; Woisel, P.; Grandclaudon, P. Tetrahedron Lett.
1995, 36, 2483. (b) Lewis, R. T.; Motherwell, W. B. Tetrahedron, 1992,
48, 1465. (c) Courtois, G.; Miginiac, L. Synth. Commun. 1991, 21, 201.
(d) Ha, H.-J .; Nam, G.-S.; Park, K. P. Bull. Korean Chem. Soc. 1990,
11, 485.
(2) Karp, G. M. J . Heterocycl. Chem. 1996, 33, 1131.
(3) Eibl, H. Angew. Chem., Int. Ed. Engl. 1984, 23, 257.
10.1021/jo9908400 CCC: $18.00 © 1999 American Chemical Society
Published on Web 10/06/1999

1,4,2-Benzodiazaphosphepin-5-one 2-Oxide Analogues
J . Org. Chem., Vol. 64, No. 22, 1999 8157
Sch em e 1
To further illustrate the current approach to the
benzodiazaphosphepin-5-one 2-oxide system, the 4-meth-
yl (7b) and 4-benzyl (7c) analogues were prepared. Entry
into the 4-methyl series was carried out by initial

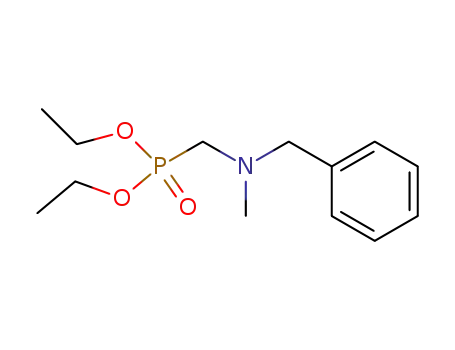

formation of N-benzyl-N-methylaminophosphonate via a
