Preparation of 1-Hydroxy-2,5-hexanedione from HMF by the Combination of Commercial Pd/C and Acetic Acid

Article abstract of DOI:10.3390/molecules25112475

The development of a simple and durable catalytic system for the production of chemicals from a high concentration of a substrate is important for biomass conversion. In this manuscript, 5-hydroxymethylfurfural (HMF) was converted to 1-hydroxy-2,5-hexanedione (HHD) using the combination of commercial Pd/C and acetic acid (AcOH) in water. The influence of temperature, H₂ pressure, reaction time, catalyst amount and the concentration of AcOH and HMF on this transformation was investigated. A 68% yield of HHD was able to be obtained from HMF at a 13.6 wt% aqueous solution with a 98% conversion of HMF. The resinification of intermediates on the catalyst was characterized to be the main reason for the deactivation of Pd/C. The reusability of the used Pd/C was studied to find that most of the activity could be recovered by being washed in hot tetrahydrofuran.

Full text of DOI:10.3390/molecules25112475

molecules
Article
Preparation of 1-Hydroxy-2,5-hexanedione from HMF
by the Combination of Commercial Pd/C and
Acetic Acid
Yanliang Yang 1,*, Dexi Yang 1, Chi Zhang 1, Min Zheng 1 and Ying Duan 2
1
Henan Key Laboratory of Function-Oriented Porous Material, College of Chemistry and Chemical
Engineering, Luoyang Normal University, Luoyang 471934, China; dexiyang2000@163.com (D.Y.);
zhangchi0826@126.com (C.Z.); zhengmin@lynu.edu.cn (M.Z.)
College of Food and Drug, Luoyang Normal University, Luoyang 471934, China; duanying@mail.ustc.edu.cn
2
*
Correspondence: yangyli@mail.ustc.edu.cn; Tel.: +86-379-6861-8320
ꢀꢁꢂꢀꢃꢄꢅꢆꢇ
Academic Editor: Rafał Łukasik
Received: 16 April 2020; Accepted: 25 May 2020; Published: 26 May 2020
ꢀꢁꢂꢃꢄꢅꢆ
Abstract: The development of a simple and durable catalytic system for the production of chemicals
from a high concentration of a substrate is important for biomass conversion. In this manuscript,
5-hydroxymethylfurfural (HMF) was converted to 1-hydroxy-2,5-hexanedione (HHD) using the
combination of commercial Pd/C and acetic acid (AcOH) in water. The influence of temperature,
H2 pressure, reaction time, catalyst amount and the concentration of AcOH and HMF on this
transformation was investigated. A 68% yield of HHD was able to be obtained from HMF at a
13.6 wt% aqueous solution with a 98% conversion of HMF. The resinification of intermediates on
the catalyst was characterized to be the main reason for the deactivation of Pd/C. The reusability of
the used Pd/C was studied to find that most of the activity could be recovered by being washed in
hot tetrahydrofuran.
Keywords: HMF; 1-hydroxy-2,5-hexanedione; acetic acid; Pd/C; high concentration
1. Introduction
The production of chemicals from renewable resources is one of the targets for green and
sustainable chemistry. Glucose, fructose and other carbohydrates, which are renewable every
year in nature, are promising candidates for renewable resources [
compounds can be readily dehydrated in the presence of acid to form 5-hydroxymethylfurfural
(HMF), levulinic acid or lactic acid as critical platform compounds [ 17]. As a result,
the conversion of HMF to valuable products has attracted much attention. Up to now, it has
been reported that many chemicals such as 2,5-dimethylfuran (DMF) [18 21], furan-2,5-diyldimethanol
(DHMF) [22 23], furan-2,5-dicarbaldehyde [24 26], furan-2,5-dicarboxylic acid [27 31], cyclopentanone
derivatives [32 38], acyclic 2,5-diketones [39 41] and so on [42 47] can be obtained from HMF through
1–3]. The carbohydrate
4–
–
,
–
–
–
–
–
hydrogenation, oxidation and other catalytic processes. The acyclic 2,5-diketones, derived from
the hydrogenation of HMF, are valuable intermediates with widespread applications in polymers,
surfactants, medicine and solvents.
1-hydroxy-2,5-hexanedione (HHD) is a typical 2,5-diketone obtained from HMF [32]. HHD is an
intermediate for 3-methyl-2-cyclopenten-1-one (MCP), which is a commercial perfume traditionally
obtained from adipic acid via multi-step procedures using organic solvents and toxic reagents with low
yield. The use of HMF as a raw material for the production of MCP through HHD as the intermediate
is a competitive route, considering the renewable resources, two-step procedure and water as the
solvent. As the conversion of HHD to MCP is an intramolecular aldol condensation reaction with high
yield at mild conditions, the transformation of HMF to HHD is a key step for this route.
Molecules 2020, 25, 2475; doi:10.3390/molecules25112475
www.mdpi.com/journal/molecules

Molecules 2020, 25, 2475
2 of 14
The proposed pathway for the hydrogenation of HMF to HHD is shown in Scheme 1. DHMF
is reported to be the intermediate for the preparation of HHD. Tetrahydrofuran-2,5-dimethylethanol
(THFDM), 2,5-hexanedione (HD) and DMF are the possible by-products. G. Descotes et al. gave the
first report on this transformation with a yield of 60% of HHD using Pt/C and oxalic acid, in 1991 [48].
After that, there were several reports on the hydrogenation of HMF to HHD catalyzed by heterogeneous
or homogeneous precious metal catalysts [48–56]. Ir or Ru is favored as a homogeneous catalyst and
Pd or Au are effective as heterogeneous catalysts. Though possessing the advantage in recycling,
heterogeneous catalysts often have lower activity compared with homogeneous catalysts. To make
this reaction more efficient and economical, single atomic-site catalysts (Pd0.02 Au/TiO2) [49] and
∧
none-precious metal catalysts (Ni2P) [56] have also been attempted. Acids are reported to be a necessity
for this transformation, as the ring-opening of HMF usually needs the assistance of an acid. Mineral
acid, hydrochloric acid and phosphoric acid were proved to be an effective acid additive. F. De Campo
and F. Jerome et al. reported that the in situ formation of carbonic acid from CO2 is a very potent
acid site for this reaction. The only insufficient aspect is the pressure that CO2 puts forward higher
requirements for the reactor [52]. To avoid the application of acid additives and decrease the total
pressure, solid acids are selected as the support for the preparation of supported precious metal
catalysts. The bi-functional catalysts Pd0.02 Au/TiO2 [49], Pd /MIL-101 [57] and Pd/Nb2O5 [32] were
∧
reported to achieve a satisfactory yield of HHD without the addition of acid additives. However,
the condensation of intermediates, catalyzed by the acid site, can occur on the surface of bi-functional
catalysts to mask the active catalytic site, based on our recent results [57]. This also further prevented
the use of fixed-bed reactors for this reaction.
Scheme 1. The hydrogenation of 5-hydroxymethylfurfural (HMF) to 1-hydroxy-2,5-hexanedione
(HHD) and by-products in water.
A durable and straightforward catalyst should be developed for the promotion of the
transformation of HMF to HHD. In this manuscript, commercial Pd/C was selected as the hydrogenation
catalyst. Acetic acid, with lower corrosiveness compared with hydrochloric acid and phosphoric acid,
was used as the acid additive. The combination of commercial Pd/C and acetic acid achieved a high
yield of HHD from HMF at a high concentration of HMF. The activity of the used Pd/C could be mostly
recovered by being washed in hot tetrahydrofuran.

Molecules 2020, 25, 2475
3 of 14
2. Results and Discussion
2.1. The Role of Acetic Acid
The hydrogenation of HMF to HHD was firstly conducted in water with different amounts of
AcOH. When no AcOH was added, the conversion of HMF was 95% with 18% selectivity to HHD
(Table 1, Entry 1). This was consistent with the previous reports that the acid was necessary for the
high selectivity to HHD. The DHMF was an intermediate for the conversion of HMF to HHD. The 56%
selectivity to DHMF showed that the absence of acid reduced the ring-opening of the furan ring. Once
a small amount of AcOH was added, the selectivity to DHMF had a drastic decline, while the selectivity
to HHD increased from 18% to 66% (Table 1, Entry 2). The weak acidity condition provided by AcOH
could catalyze the ring-opening of the furan ring in DHMF. Then, the effect for the concentration of
AcOH on the hydrogenation of HMF was studied by the addition of different amounts of AcOH (Table 1,
Entry 2–7). It was found that the selectivity to HHD kept between 64% to 71% as the concentration of
AcOH increased from 1.4 to 6.6 wt%. The selectivity to DHMF remained very low at all acid additions.
The combination of commercial Pd/C and AcOH was a qualified candidate for the conversion of HMF
to HHD. The pure AcOH was also tested as a solvent for this transformation. However, only 24%
selectivity to HHD was acquired with a 31% conversion of HMF.
Table 1. Hydrogenation of HMF on Pd/C with different amount of AcOH a.
Distribution of Products (%)
Entry
AcOH (mg)
AcOH (wt%) Conversion (%) HHD Yield (%)
HD
HHD
THFDM
DHMF
1
2
3
4
5
0
30
60
0
95(4)
97(3)
92(3)
85(5)
93(1)
94(1)
31(6)
17(5)
64(5)
65(3)
57(6)
60(6)
60(4)
7(1)
4(3)
8(2)
18(6)
66(4)
71(4)
67(3)
64(6)
64(4)
24(4)
16(1)
14(2)
5(2)
8(2)
1(1)
3(1)
21(6)
56(1)
2(1)
1(1)
1(1)
2(2)
2(2)
12(5)
1.4
2.7
4.1
5.3
6.6
100
12(3)
11(2)
13(5)
13(4)
9(4)
90
120
150
2000
6
7 b
a
Reaction conditions: Pd/C (5.0 mg, mole ratio of HMF/Pd = 420), HMF (1 mmol), H2O (2.00 g), 4 MPa H2, 393
K, 1 h. HD: 2,5-hexanedione, HHD: 1-hydroxy-2,5-hexanedione, THFDM: tetrahydrofuran-2,5-dimethylethanol,
b
DHMF: 2,5-di(hydroxymethyl)furan. no H2O. The numbers in brackets refer to the confidence interval with
95% confidence.
2.2. The Influence of Temperature and H2 Pressure
The effect of temperature and H2 pressure was then investigated and the results are presented
in Table 2 and Figure 1. The temperature did not have much influence on the conversion but did
affect the distribution of the products. When the reaction was performed at 353 K, selectivity to HHD
was 25%, while DHMF was 39%. Though 60 mg of AcOH was added, the high selectivity to the
intermediate (DHMF) showed that the low temperature inhibited the ring-opening of DHMF. As a
result, the selectivity to the hydrogenated product (THFDM) of DHMF increased to 18%. When the
temperature rose to 363 K, the selectivity to DHMF decreased to 8%, while THFDM increased to
42%. The selectivity to HHD had a little increase to 30%. As the temperature continued to grow,
the selectivity to THFDM decreased as the HHD increased, with low selectivity to DHMF. We could
understand the effect of temperature in this way. The temperature had much more of an influence on
the ring-opening of DHMF than the hydrogenation of DHMF. The lower temperature both inhibited
the isomerization and hydrogenation reaction to have high selectivity to DHMF. When the temperature
increased a little, the hydrogenation of DHMF was prior to the conduct to give the increased selectivity
to THFDM. When the temperature was raised to a high extent, the ring-opening of DHMF gained
priority to give the increased selectivity to HHD. When the temperature rose to 393 K, the selectivity
to HHD did not increase, which should be ascribed to the increasing side reactions. In contrary to
the effect of temperature, the H2 pressure did not have much influence on the selectivity to HHD but
influenced the conversion of HMF. The conversion of HMF increased with the increase in H2 pressure.
The selectivity to HHD kept around 65% when the pressure increased from 1 to 5 MPa.

Molecules 2020, 25, 2475
4 of 14
Table 2. Hydrogenation of HMF on Pd/C at different temperature a.
Distribution of Products (%)
Entry
Temperature (K)
Conversion (%)
HHD Yield (%)
HD
HHD
THFDM
DHMF
1
2
3
4
5
6
7
353
363
373
383
393
403
413
96(3)
96(4)
95(5)
96(3)
92(3)
90(4)
86(1)
24(4)
28(2)
51(1)
61(5)
65(3)
57(5)
58(2)
2(0)
6(3)
9(2)
25(4)
30(3)
53(2)
63(4)
71(4)
63(3)
67(1)
18(2)
42(4)
30(2)
15(1)
5(2)
39(5)
8(1)
2(2)
5(2)
1(1)
1(1)
2(1)
7(2)
12(3)
13(4)
14(1)
8(3)
4(3)
a
Reaction conditions: Pd/C (5.0 mg, mole ratio of HMF/Pd = 420:1), HMF (1 mmol), H2O (2.00 g), AcOH (60.0 mg,
1 mmol), 4 MPa H2, 1 h. The numbers in brackets refer to the confidence interval with 95% confidence.
Figure 1. The effect of H2 pressure on the hydrogenation of HMF. Reaction conditions: Pd/C (5.0 mg,
mole ratio, HMF/Pd = 420:1), HMF (1 mmol), AcOH (60.0 mg, 1 mmol), H2O (2.00 g), H2 (1–5 MPa),
393 K, 1 h. The error bars refer to the confidence interval with 95% confidence.
2.3. Yield of HHD from Highly Concentrated HMF
The reported concentration of HMF in the production of HHD was mostly no more than 5 wt%.
We wanted to see whether the combination of Pd/C and AcOH could work at a higher concentration.
The reaction was conducted using a different amount of HMF and the results are shown in Table 3.
When 0.5 mmol (3.1 wt%) of HMF was used as the substrate, the selectivity to HHD was 59%, which was
the lowest within the concentration range investigated. The main by-product was HD. This by-product
decreased as the concentration of HMF increased. The selectivity to HHD kept around 70% when the
amount of HMF was risen from 1 to 2.5 mmol (5.9 to 13.6 wt%). The selectivity to HHD decreased
to 65% and 60% when we continued to increase the amount of HMF to 3.0 and 3.5 mmol (15.9 and
18.1 wt%). The experimental results showed that the combination of Pd/C and AcOH could work at
a higher concentration. The conversion of HMF decreased with the increase in the concentration of
HMF. Based on our previous work, the condensation of intermediates on the active site would occur
during the reaction to reduce the activity of Pd/C. The high concentration of HMF promoted this effect
to decrease the conversion.

Molecules 2020, 25, 2475
5 of 14
Table 3. The influence of concentration on the hydrogenation of HMF a.
Distribution of Products (%)
Entry
HMF (mmol)
HMF (wt%)
Conversion (%)
HHD Yield (%)
HD
HHD
THFDM
DHMF
1
2
3
4
5
6
7
0.5
1.0
1.5
2.0
2.5
3.0
3.5
3.1
5.9
8.6
11.2
13.6
15.9
18.1
96(4)
92(3)
85(3)
86(3)
61(4)
62(7)
54(5)
57(6)
65(3)
59(1)
58(2)
42(2)
40(6)
32(5)
13(2)
12(3)
10(1)
6(2)
4(3)
5(3)
59(5)
71(4)
69(2)
67(2)
69(3)
65(5)
60(3)
1(1)
5(2)
2(1)
4(3)
4(2)
3(2)
3(3)
13(1)
1(1)
5(1)
2(1)
3(1)
6(3)
21(4)
7(5)
a
Reaction conditions: Pd/C (mole ratio, HMF/Pd = 420:1), HMF (0.5–3.5 mmol), AcOH (60.0 mg, 1 mmol), H2O
(2.00 g), 4 MPa H2, 393 K, 1 h. The number in brackets refer to the confidence interval with 95% confidence.
The reaction time was extended to find whether a high yield of HHD could be achieved at a high
HMF load (2.5 mmol) and the results are shown in Figure 2. The reaction time was varied from 0.5 to
3.0 h. A 33% conversion of HMF was obtained with 73% selectivity to HHD after being reacted for
0.5 h. The conversion of HMF increased with the increase in reaction time and the selectivity to HHD
was maintained around 70%. The highest yield of HHD could reach 66% (93% conversion of HMF and
71% selectivity to HHD) when the reaction time was 3.0 h.

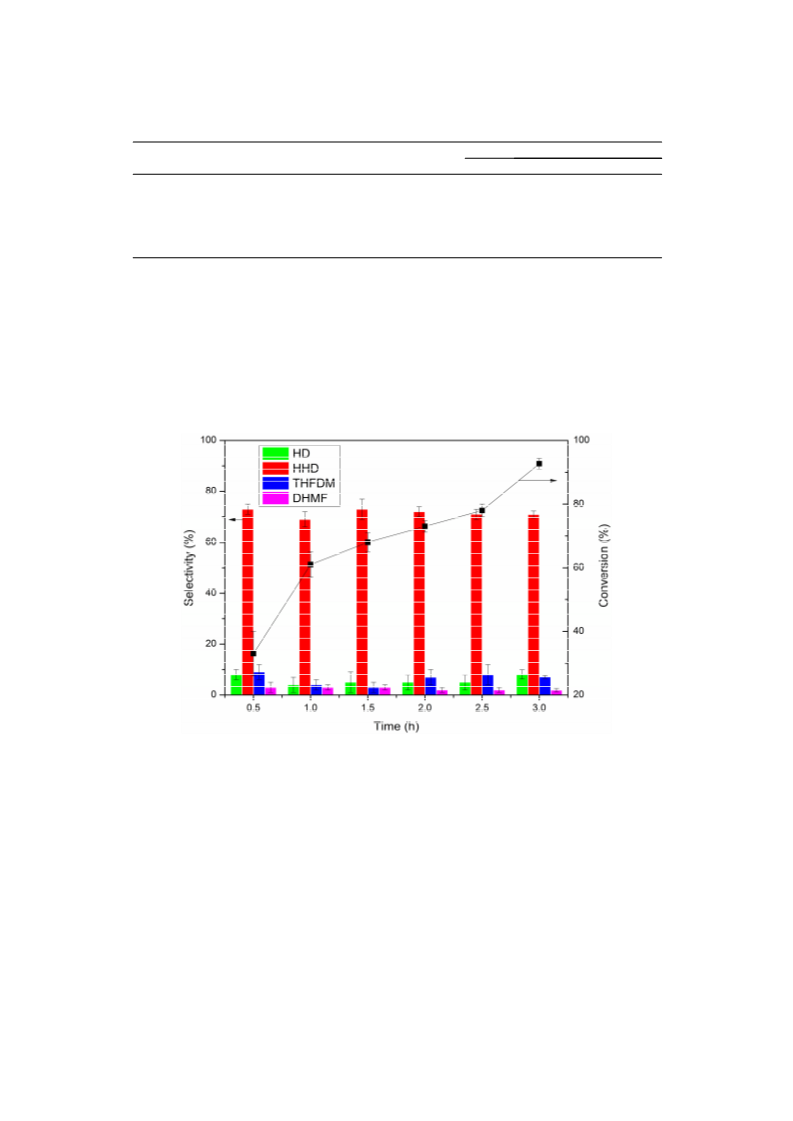

Figure 2. Hydrogenation of HMF as a function of time. Reaction conditions: Pd/C (12.5 mg, mole ratio,
HMF/Pd = 420:1), HMF (2.5 mmol), AcOH (60.0 mg, 1 mmol), H2O (2.00 g), H2 (4 MPa), 393 K, 0.5–3 h.
The error bars refer to the confidence interval with 95% confidence.
The mole ratio for HMF/Pd of 420 was among the common amount found in the literature for the
conversion of HMF to HHD when using supported Pd as catalysts [32,40,49,52,55,57]. To study the
influence of the catalyst amount on conversion and selectivity, we performed the experiments using a
different amount of catalysts. The results are shown in Figure 3. Lower conversion and selectivity were
obtained when the mole ratio of HMF/Pd was 840. As the amount of catalyst increased, the conversion
increased rapidly to over 90%, accompanied with the increase in selectivity. The highest selectivity
(71%) to HHD was gained at a mole ratio of 420, while the best yield (68%) was obtained at 280.
When the mole ratio was lower than 280, the HMF was almost completely converted. The selectivity to
HHD decreased slightly as the amount continued to increase. This might be caused by the increase in
side reactions. It indicated that an appropriate amount of catalyst was needed for the reaction.

Molecules 2020, 25, 2475
6 of 14

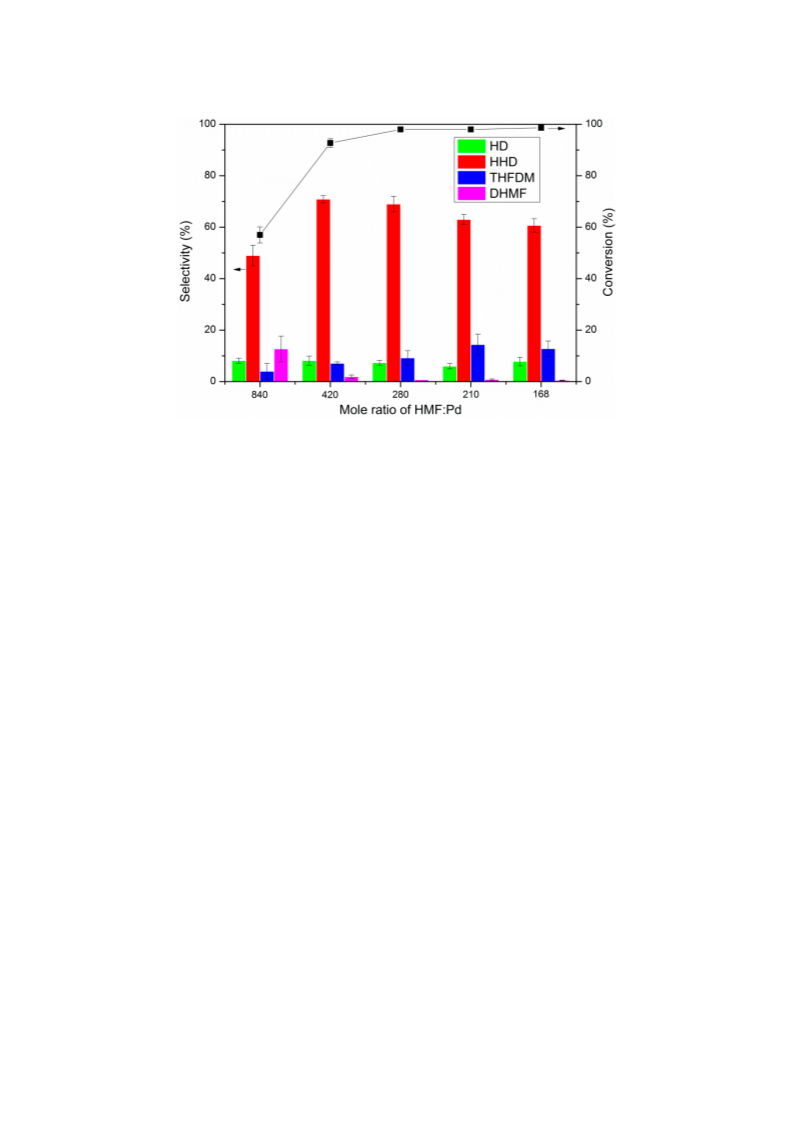

Figure 3. The effect of mole ratio on the hydrogenation of HMF. Reaction conditions: Pd/C (12.5 mg,
mole ratio, HMF/Pd = 420:1), HMF (2.5 mmol), AcOH (60.0 mg, 1 mmol), H2O (2.00 g), H2 (4 MPa),
393 K, 3 h. The error bars refer to the confidence interval with 95% confidence.
2.4. Reusable Performance
The repetitive utilization of the catalyst at a high HMF load (2.5 mmol) was studied by the
recovered Pd/C after each reaction (Figure 4). The catalysts were recovered in two ways. The first
washed the catalysts by water and ethanol for three repetitions, respectively, at room temperature
after filtering (Figure 4a). The other method was further washing the catalysts in hot tetrahydrofuran
(393 K) after washing by water and ethanol (Figure 4b). It was found that the activity was greatly
reduced, especially for the third use, revealed by the conversion of HMF being decreased from 93% to
40% (Figure 4a) when just washed by water and ethanol (Figure 4a). The Pd/C could not be reused
by simply washing. This was probably caused by the condensation of intermediates on Pd at a high
HMF load, and thus the polymer could not be cleaned up by water and ethanol at room temperature.
In order to be able to reuse the Pd/C, the catalyst was washed in hot tetrahydrofuran (393 K) to dissolve
the capped polymer (Figure 4b). After the wash, the tetrahydrofuran changed from colorless to light
yellow and most of the activity of Pd/C was recovered. It can be seen from Figure 4b that the conversion
of HMF had a very little decrease even for the fourth reuse. The selectivity to HHD kept above 65%.
2.5. Characterization
X-ray photoelectron spectroscopy (Figure 5) was used to find the difference between the fresh
and used catalysts after the third cycle in Figure 4a. The survey scan showed the signal of C, O and
Pd and had no noticeable difference for both catalysts (Figure 5a). After the deconvolution process,
the high-resolution spectrum of Pd 3d for fresh Pd/C showed binding energy peaks at 335.5 and
337.3 eV for Pd 3d5/2 and 340.9 and 342.6 eV for Pd 3d3/2 (Figure 5b). The 335.5 and 340.9 eV results
can be attributed to Pd (0), while the other two peaks are the signal of Pd (II) [58–61]. The Pd (II)
should generate in the passivation process of Pd/C. The deconvolution of the used catalyst also gave
four peaks with a similar binding energy as the fresh catalyst (Figure 5c). The peak intensity of Pd
decreased compared with the fresh catalyst. This was probably caused by the presence of a polymer
on the surface of Pd, which was produced by the condensation of the intermediates.

Molecules 2020, 25, 2475
7 of 14
(a)
(b)

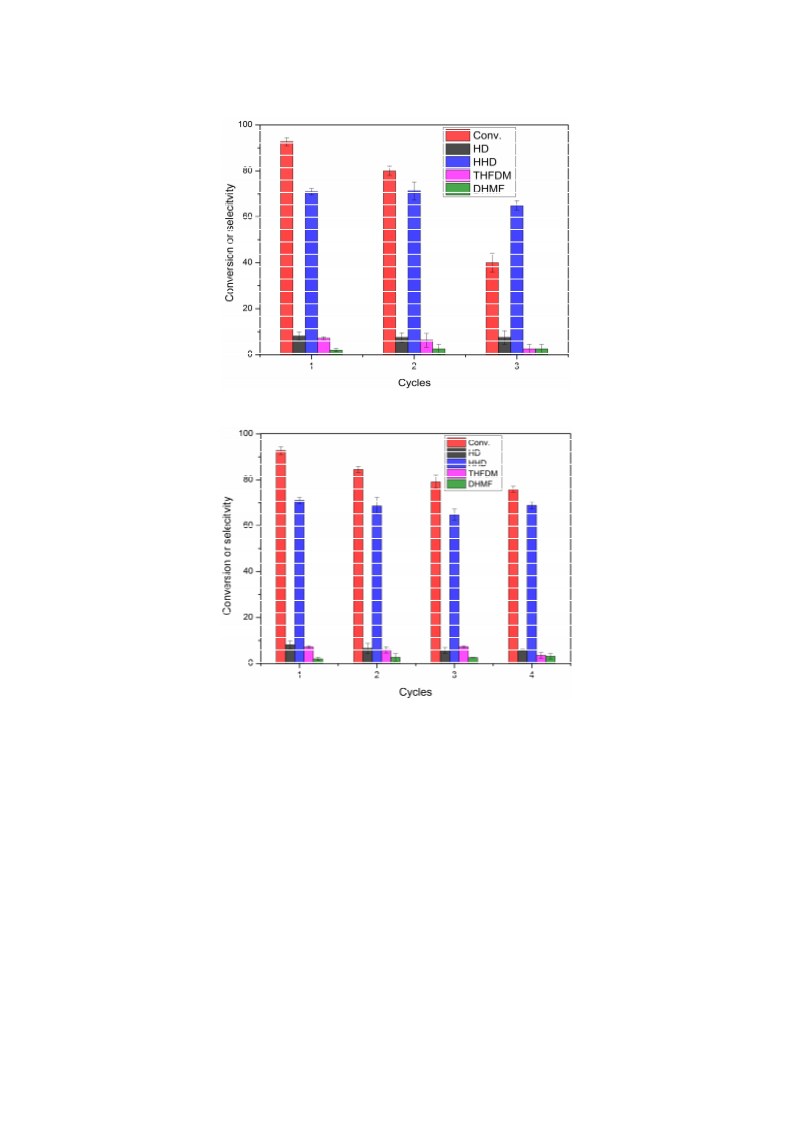

Figure 4. Reuse experiment for the hydrogenation of HMF to HHD with different recycling method,
washed by H2O/C2H5OH ( ), further washed in hot tetrahydrofuran ( ). Reaction conditions: Pd/C
a
b
(12.5 mg, mole ratio, HMF/Pd = 420:1), HMF (2.5 mmol), AcOH (60.0 mg, 1 mmol), H2O (2.00 g),
H2 (4 MPa), 393 K, 3 h. The error bars refer to the confidence interval with 95% confidence.
The TEM images and the corresponding distribution of the particle size for the fresh and used
Pd/C after the third cycle in Figure 4a are shown in Figure 6. The fresh Pd/C had a narrow particle size
distribution of 2–4 nm (Figure 6b). After the reaction, the Pd nanoparticles enlarged a little and some
large particles could be observed in the TEM image (Figure 6c). The particle size distribution of used
Pd/C increased to 3–5 nm which should be one of the reasons for the decline in activity (Figure 6d).
The HRTEM images are shown in the Figure 6e,f. The lattice stripe corresponding to the Pd (111)
crystal plane can be clearly seen in the fresh Pd/C (Figure 6e). The diffraction spots corresponding to
the Pd (111) crystal plane can also be seen after the fast Fourier transform. The used Pd/C also showed
diffraction spots corresponding to the Pd (111) crystal plane after the fast Fourier transform (Figure 6f).
However, the lattice stripe was indistinct for the used Pd/C. This was another evidence for the carbon
deposition on the Pd surface, which was caused by the condensation of the intermediates.

Molecules 2020, 25, 2475
8 of 14
(a)
(b)
(c)
Figure 5. XPS spectra of fresh and used Pd/C: the survey spectrum (a), high-resolution of Pd spectrum
for fresh Pd/C (b) and the used catalyst (c).

Molecules 2020, 25, 2475
9 of 14
(a)
(b)
(c)
(d)
(e)
(f)

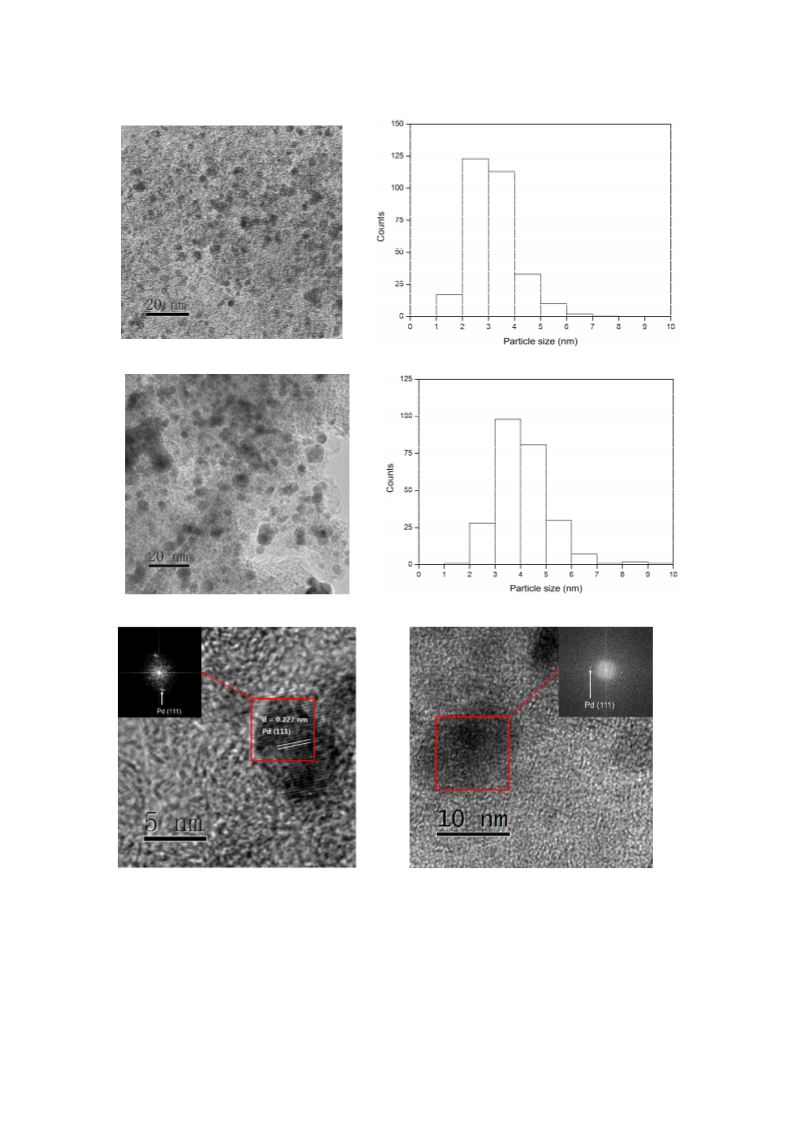

Figure 6. TEM images, the particle size distribution and HRTEM images of fresh Pd/C (
a,b,e) and the
used Pd/C (c,d,f). The inset in the HRTEM image is the diffraction spots after fast Fourier transform.

Molecules 2020, 25, 2475
10 of 14
3. Materials and Methods
3.1. Materials
Pd/C (5 wt%) was obtained from Shanxi Rock New Materials Co. Ltd. Baoji China. HMF was
bought from Zhengzhou Alpha Chemical Co. Ltd. Zhengzhou China, and 2,5-hexanedione, AcOH,
ethanol and tetrahydrofuran were purchased from Aladdin Chemistry Co. Ltd. Shanghai China,
and 2,5-di(hydroxymethyl)furan was prepared by reducing HMF with sodium borohydride. Unless
otherwise stated, the chemicals were used as received.
3.2. Characterization
X-ray photoelectron spectroscopy (XPS) was conducted on a Thermo Fisher K-alpha (Waltham,
MA, USA) using an Al Ka (1486.6 eV) radiation source. The pass energy for the survey scan and
high-resolution spectra were 200.0 and 50 eV, respectively. Transmission electron microscopy (TEM)
images were collected by an FEI Tecnai G2 F20 microscope (Hillsboro, OR, USA). The accelerating
voltage was 200 kV. Before the test, the sample was ultrasonic in ethanol.
3.3. Catalytic Reactions
A 20 mL stainless-steel autoclave equipped with a glass lining was used for the hydrogenation of
HMF. A magnetic stirring oil bath with a temperature controller was used to control the temperature.
For a typical procedure, the magneton, HMF (1 mmol, 126.1 mg), H2O (2.00 g), AcOH (1 mmol, 60.0 mg)
and Pd/C were put in the glass lining. Then, the lining was put into the autoclave and the autoclave was
purged with 2 MPa H2 four times to exclude the air before 4 MPa H2 was charged. Then, the autoclave
was put in the oil bath at 393 K. After the reaction, the autoclave was cooled down to room temperature.
The internal standard and ethanol were added into the glass lining. The mixture was centrifugated
and the liquid phase was used for analysis. The reaction was repeated at least twice to calculate the
confidence interval with 95% confidence. The solid was washed with water and ethanol for three
times respectively and dried in a vacuum for the next run. To recover the activity, the solid was then
washed by tetrahydrofuran at 393 K for 1 h after being washed by water and ethanol. The procedure
for washing by tetrahydrofuran was performed in a 100 mL stainless-steel autoclave (Gongyi Ying
Yu Instrument Factory, Gongyi, China). Before being heated, the air in the autoclave was replaced by
1 atm N2 by shlenk technology.
3.4. Product Analysis
The qualitative and quantitative analysis was conducted on an Agilent 6890N GC/5973 MS (Agilent
Technologies Inc., Santa Clara, CA, USA) and Agilent 7890A GC (Agilent Technologies Inc., Santa Clara,
CA, USA), respectively. The detailed process has been described in our previous report [32].
4. Conclusions
The combination of commercial Pd/C and AcOH was effective for the conversion of HMF to HHD.
The addition of a small amount of AcOH promoted the ring-opening of DHMF, thus leading to the
high selectivity to HHD. The reaction could conduct at a high concentration of HMF and a 68% yield of
HHD was achieved from a 13.6 wt% aqueous solution of HMF. The activity of the used Pd/C decreased
due to the carbon deposition and grain growth of the Pd nanoparticles. The activity of the used Pd/C
could be mostly recovered through being washed by hot tetrahydrofuran.
Author Contributions: Conceptualization, Y.Y. methodology, D.Y.; writing—original draft preparation, M.Z.;
writing—review and editing, Y.Y.; visualization, C.Z.; supervision, Y.D.; funding acquisition, Y.Y. and Y.D. All
authors have read and agreed to the published version of the manuscript.
Funding: This research was funded by the National Natural Science Foundation of China (21902071), the Science
and Technology Research Project of Henan Province (192102210160) and Intercollegiate Key Scientific Research
Projects of Henan Province (19B150012).

Molecules 2020, 25, 2475
11 of 14
Conflicts of Interest: The authors declare no conflict of interest.
References
1.
2.
3.
4.
5.
Besson, M.; Gallezot, P.; Pinel, C. Conversion of biomass into chemicals over metal catalysts. Chem. Rev.
2014, 114, 1827–1870. [CrossRef]
Corma, A.; Iborra, S.; Velty, A. Chemical routes for the transformation of biomass into chemicals. Chem. Rev.
2007, 107, 2411–2502. [CrossRef]
Mika, L.T.; Cséfalvay, E.; Németh, Á. Catalytic conversion of carbohydrates to initial platform chemicals:
Chemistry and sustainability. Chem. Rev. 2017, 118, 506–613. [CrossRef] [PubMed]
Zhou, D.; Shen, D.; Lu, W.; Song, T.; Wang, M.; Feng, H.; Shentu, J.; Long, Y. Production of
5-hydroxymethylfurfural from chitin biomass: A review. Molecules 2020, 25, 541. [CrossRef] [PubMed]
Zhang, J.; Das, A.; Assary, R.S.; Curtiss, L.A.; Weitz, E. A combined experimental and computational study of
the mechanism of fructose dehydration to 5-hydroxymethylfurfural in dimethylsulfoxide using Amberlyst
70, PO43−/niobic acid, or sulfuric acid catalysts. Appl. Catal. B Environ. 2016, 181, 874–887. [CrossRef]
Yu, I.K.M.; Tsang, D.C.W. Conversion of biomass to hydroxymethylfurfural: A review of catalytic systems
and underlying mechanisms. Bioresour. Technol. 2017, 238, 716–732. [CrossRef] [PubMed]
Antonetti, C.; Raspolli Galletti, A.M.; Fulignati, S.; Licursi, D. Amberlyst A-70: A surprisingly active catalyst
for the MW-assisted dehydration of fructose and inulin to HMF in water. Catal. Commun. 2017, 97, 146–150.
[CrossRef]
6.
7.
8.
9.
Zhao, J.; Zhou, C.; He, C.; Dai, Y.; Jia, X.; Yang, Y. Efficient dehydration of fructose to 5-hydroxymethylfurfural
over sulfonated carbon sphere solid acid catalysts. Catal. Today 2016, 264, 123–130. [CrossRef]
Bodachivskyi, I.; Kuzhiumparambil, U.; Williams, D.B.G. Acid-catalysed conversion of carbohydrates into
furan-type molecules in zinc chloride hydrate. ChemPlusChem 2019, 84, 352–357. [CrossRef]
10. Bodachivskyi, I.; Kuzhiumparambil, U.; Williams, D.B.G. Acid-catalyzed conversion of carbohydrates into
value-added small molecules in aqueous media and ionic liquids. ChemSusChem 2018, 11, 642–660. [CrossRef]
11. Liu, B.; Zhang, Z. One-pot conversion of carbohydrates into furan derivatives via furfural and
5-hydroxylmethylfurfural as intermediates. ChemSusChem 2016, 9, 2015–2036. [CrossRef]
12. Fan, W.; Verrier, C.; Queneau, Y.; Popowycz, F. 5-Hydroxymethylfurfural (HMF) in organic synthesis:
A review of its recent applications towards fine chemicals. Curr. Org. Synth. 2019, 16, 583–614. [CrossRef]
13. Kang, P.-L.; Shang, C.; Liu, Z.-P. Glucose to 5-hydroxymethylfurfural: Origin of site-selectivity resolved by
machine learning based reaction sampling. J. Am. Chem. Soc. 2019, 141, 20525–20536. [CrossRef]
14. Menegazzo, F.; Ghedini, E.; Signoretto, M. 5-hydroxymethylfurfural (HMF) production from real biomasses.
Molecules 2018, 23, 2201. [CrossRef]
15. Chambon, F.; Rataboul, F.; Pinel, C.; Cabiac, A.; Guillon, E.; Essayem, N. Cellulose hydrothermal conversion
promoted by heterogeneous Brønsted and Lewis acids: Remarkable efficiency of solid Lewis acids to produce
lactic acid. Appl. Catal. B Environ. 2011, 105, 171–181. [CrossRef]
16. Kang, S.; Fu, J.; Zhang, G. From lignocellulosic biomass to levulinic acid: A review on acid-catalyzed
hydrolysis. Renew. Sustain. Energy Rev. 2018, 94, 340–362. [CrossRef]
17. Tallarico, S.; Costanzo, P.; Bonacci, S.; Macario, A.; Di Gioia, M.L.; Nardi, M.; Procopio, A.; Oliverio, M.
Combined Ultrasound/Microwave Chemocatalytic Method for Selective Conversion of Cellulose into Lactic
Acid. Sci. Rep. 2019, 9, 18858. [CrossRef]
18. Esteves, L.M.; Brijaldo, M.H.; Oliveira, E.G.; Martinez, J.J.; Rojas, H.; Caytuero, A.; Passos, F.B. Effect
of support on selective 5-hydroxymethylfurfural hydrogenation towards 2,5-dimethylfuran over copper
catalysts. Fuel 2020, 270, 117524. [CrossRef]
19. Yang, F.; Mao, J.; Li, S.; Yin, J.; Zhou, J.; Liu, W. Cobalt–graphene nanomaterial as an efficient catalyst for
selective hydrogenation of 5-hydroxymethylfurfural into 2,5-dimethylfuran. Catal. Sci. Technol. 2019, 9,
1329–1333. [CrossRef]
20. Han, W.; Tang, M.; Li, J.; Li, X.; Wang, J.; Zhou, L.; Yang, Y.; Wang, Y.; Ge, H. Selective hydrogenolysis
of 5-hydroxymethylfurfural to 2,5-dimethylfuran catalyzed by ordered mesoporous alumina supported
nickel-molybdenum sulfide catalysts. Appl. Catal. B Environ. 2020, 268, 118748. [CrossRef]

Molecules 2020, 25, 2475
12 of 14
21. Chen, S.; Ciotonea, C.; Vigier, K.D.O.; J
é
r
ôme, F.; Wojcieszak, R.; Dumeignil, F.; Marceau, E.; Royer, S.
Hydroconversion of 5-hydroxymethylfurfural to 2,5-dimethylfuran and 2,5-dimethyltetrahydrofuran over
non-promoted Ni/SBA-15. ChemCatChem 2020, 12, 2050–2059. [CrossRef]
22. Hu, L.; Dai, X.; Li, N.; Tang, X.; Jiang, Y. Highly selective hydrogenation of biomass-derived
5-hydroxymethylfurfural into 2,5-bis(hydroxymethyl)furan over an acid-base bifunctional hafnium-based
coordination polymer catalyst. Sustain. Energ. Fuels 2019, 3, 1033–1041. [CrossRef]
23. Elsayed, I.; Jackson, M.A.; Hassan, E.B. Hydrogen-free catalytic reduction of biomass-derived
5-hydroxymethylfurfural into 2,5-bis(hydroxymethyl)furan using copper-iron oxides bimetallic nanocatalyst.
ACS Sustain. Chem. Eng. 2020, 8, 1774–1785. [CrossRef]
24. Wu, Z.; Shi, L.; Yu, X.; Zhang, S.; Chen, G. Co-immobilization of tri-enzymes for the conversion of
hydroxymethylfurfural to 2,5-diformylfuran. Molecules 2020, 24, 3648. [CrossRef]
25. Mart
ínez-Vargas, D.X.; Rivera De La Rosa, J.; Sandoval-Rangel, L.; Guzm
án-Mar, J.L.; Garza-Navarro, M.A.;
Lucio-Ortiz, C.J.; De Haro-Del Río, D.A. 5-Hydroxymethylfurfural catalytic oxidation under mild conditions
by Co (II), Fe (III) and Cu (II) Salen complexes supported on SBA-15: Synthesis, characterization and activity.
Appl. Catal. A Gen. 2017, 547, 132–145. [CrossRef]
26. Lolli, A.; Maslova, V.; Bonincontro, D.; Basile, F.; Ortelli, S.; Albonetti, S. Selective oxidation of HMF via
catalytic and photocatalytic processes using metal-supported catalysts. Molecules 2018, 23, 2792. [CrossRef]
27. Zhang, Z.; Huber, G.W. Catalytic oxidation of carbohydrates into organic acids and furan chemicals. Chem.
Soc. Rev. 2018, 47, 1351–1390. [CrossRef]
28. Neat, u, F.; Marin, R.S.; Florea, M.; Petrea, N.; Pavel, O.D.; Pârvulescu, V.I. Selective oxidation of
5-hydroxymethyl furfural over non-precious metal heterogeneous catalysts. Appl. Catal. B Environ.
2016, 180, 751–757. [CrossRef]
29. Zhang, Z.; Deng, K. Recent Advances in the catalytic synthesis of 2,5-furandicarboxylic acid and its derivatives.
ACS Catal. 2015, 5, 6529–6544. [CrossRef]
30. Wang, M.; Ma, J.; Liu, H.; Luo, N.; Zhao, Z.; Wang, F. Sustainable productions of organic acids and their
derivatives from biomass via selective oxidative cleavage of C–C bond. ACS Catal. 2018, 8, 2129–2165.
[CrossRef]
31. Han, X.; Li, C.; Guo, Y.; Liu, X.; Zhang, Y.; Wang, Y. N-doped carbon supported Pt catalyst for base-free
oxidation of 5-hydroxymethylfurfural to 2,5-furandicarboxylic acid. Appl. Catal. A Gen. 2016, 526, 1–8.
[CrossRef]
32. Duan, Y.; Zheng, M.; Li, D.; Deng, D.; Ma, L.-F.; Yang, Y. Conversion of HMF to methyl cyclopentenolone by
the Pd/Nb2O5 and Ca-Al catalysts via two-steps procedure. Green Chem. 2017, 19, 5103–5113. [CrossRef]
33. Zhang, S.; Ma, H.; Sun, Y.; Luo, Y.; Liu, X.; Zhang, M.; Gao, J.; Xu, J. Catalytic selective hydrogenation and
rearrangement of 5-hydroxymethylfurfural to 3-hydroxymethyl-cyclopentone over a bimetallic nickel-copper
catalyst in water. Green Chem. 2019, 21, 1702–1709. [CrossRef]
34. Ohyama, J.; Ohira, Y.; Satsuma, A. Hydrogenative ring-rearrangement of biomass derived
5-(hydroxymethyl)furfural to 3-(hydroxymethyl)cyclopentanol using combination catalyst systems of
Pt/SiO2 and lanthanoid oxides. Catal. Sci. Technol. 2017, 7, 2947–2953. [CrossRef]
35. Xu, Y.-J.; Shi, J.; Wu, W.-P.; Zhu, R.; Li, X.-L.; Deng, J.; Fu, Y. Effect of Cp*iridium(III) complex and acid
co-catalyst on conversion of furfural compounds to cyclopentanones or straight chain ketones. Appl. Catal.
A-Gen. 2017, 543, 266–273. [CrossRef]
36. Wozniak, B.; Spannenberg, A.; Li, Y.; Hinze, S.; de Vries, J.G. Cyclopentanone derivatives from
5-Hydroxymethylfurfural via 1-hydroxyhexane-2,5-dione as intermediate. Chem. Sus. Chem 2018, 11,
356–359. [CrossRef]
37. Ramos, R.; Grigoropoulos, A.; Perret, N.; Zanella, M.; Katsoulidis, A.P.; Manning, T.D.; Claridge, J.B.;
Rosseinsky, M.J. Selective conversion of 5-hydroxymethylfurfural to cyclopentanone derivatives over
Cu-Al2O3 and Co-Al2O3 catalysts in water. Green Chem. 2017, 19, 1701–1713. [CrossRef]
38. Ohyama, J.; Kanao, R.; Ohira, Y.; Satsuma, A. The effect of heterogeneous acid–base catalysis on conversion
of 5-hydroxymethylfurfural into a cyclopentanone derivative. Green Chem. 2016, 18, 676–680. [CrossRef]
39. Gupta, K.; Tyagi, D.; Dwivedi, A.D.; Mobin, S.M.; Singh, S.K. Catalytic transformation of bio-derived furans
to valuable ketoacids and diketones by water-soluble ruthenium catalysts. Green Chem. 2015, 17, 4618–4627.
[CrossRef]

Molecules 2020, 25, 2475
13 of 14
40. Liu, F.; Audemar, M.; De Oliveira Vigier, K.; Clacens, J.-M.; De Campo, F.; J
é
rôme, F. Combination of Pd/C
and Amberlyst-15 in a single reactor for the acid/hydrogenating catalytic conversion of carbohydrates to
5-hydroxy-2,5-hexanedione. Green Chem. 2014, 16, 4110–4114. [CrossRef]
41. Ren, D.; Song, Z.; Li, L.; Liu, Y.; Jin, F.; Huo, Z. Production of 2,5-hexanedione and
3-methyl-2-cyclopenten-1-one from 5-hydroxymethylfurfural. Green Chem. 2016, 18, 3075–3081. [CrossRef]
42. Buntara, T.; Noel, S.; Phua, P.H.; Melian-Cabrera, I.; de Vries, J.G.; Heeres, H.J. Caprolactam from renewable
resources: Catalytic conversion of 5-hydroxymethylfurfural into caprolactone. Angew. Chem. Int. Ed. 2011
50, 7083–7087. [CrossRef] [PubMed]
,
43. Li, K.; Zhou, F.; Liu, X.; Ma, H.; Deng, J.; Xu, G.; Zhang, Y. Hydrodeoxygenation of lignocellulose-derived
oxygenates to diesel or jet fuel range alkanes under mild conditions. Catal. Sci. Technol. 2020, 10, 1151–1160.
[CrossRef]
44. Che, P.; Lu, F.; Nie, X.; Huang, Y.; Yang, Y.; Wang, F.; Xu, J. Hydrogen bond distinction and activation upon
catalytic etherification of hydroxyl compounds. Chem. Commun. 2015, 51, 1077–1080. [CrossRef] [PubMed]
45. Yang, Y.; Du, Z.; Ma, J.; Lu, F.; Zhang, J.; Xu, J. Biphasic catalytic conversion of fructose by continuous
hydrogenation of HMF over a hydrophobic ruthenium catalyst. ChemSusChem 2014, 7, 1352–1356. [CrossRef]
[PubMed]
46. Liu, A.; Liu, B.; Wang, Y.; Ren, R.; Zhang, Z. Efficient one-pot synthesis of 5-ethoxymethylfurfural from
fructose catalyzed by heteropolyacid supported on K-10 clay. Fuel 2014, 117, 68–73. [CrossRef]
47. Karve, V.V.; Sun, D.T.; Trukhina, O.; Yang, S.; Oveisi, E.; Luterbacher, J.; Queen, W.L. Efficient reductive
amination of HMF with well dispersed Pd nanoparticles immobilized in a porous MOF/polymer composite.
Green Chem. 2020, 22, 368–378. [CrossRef]
48. Schiavo, V.; Descotes, G.; Mentech, J. Catalytic-hydrogenation of 5-hydroxymethylfurfural in
aqueous-medium. Bull. Soc. Chim. Fr. 1991, 5, 704–711.
49. Zhu, M.-M.; Du, X.-L.; Zhao, Y.; Mei, B.-B.; Zhang, Q.; Sun, F.-F.; Jiang, Z.; Liu, Y.-M.; He, H.-Y.; Cao, Y.
Ring-opening transformation of 5-hydroxymethylfurfural using a golden single-atomic-site palladium
catalyst. ACS Catal. 2019, 9, 6212–6222. [CrossRef]
50. Xu, Z.; Yan, P.; Xu, W.; Liu, X.; Xia, Z.; Chung, B.; Jia, S.; Zhang, Z.C. Hydrogenation/hydrolytic ring opening
of 5-HMF by Cp*-iridium(III) half-sandwich complexes for bioketones synthesis. ACS Catal. 2015, 5, 788–792.
[CrossRef]
51. Wozniak, B.; Tin, S.; de Vries, J.G. Bio-based building blocks from 5-hydroxymethylfurfural via
1-hydroxyhexane-2,5-dione as intermediate. Chem. Sci. 2019, 10, 6024–6034. [CrossRef]
52. Liu, F.; Audemar, M.; De Oliveira Vigier, K.; Clacens, J.M.; De Campo, F.; Jerome, F. Palladium/carbon dioxide
cooperative catalysis for the production of diketone derivatives from carbohydrates. ChemSusChem 2014, 7,
2089–2093. [CrossRef] [PubMed]
53. Wu, W.P.; Xu, Y.J.; Zhu, R.; Cui, M.S.; Li, X.L.; Deng, J.; Fu, Y. Selective conversion of
5-hydroxymethylfuraldehyde using Cp*Ir catalysts in aqueous formate buffer solution. ChemSusChem
2016, 9, 1209–1215. [CrossRef] [PubMed]
54. Xu, Z.; Yan, P.; Zhang, Z.C. Advance in the hydrogentaion of 5-hydroxymethylfurfural to produce
1-hydroxyhexane-2,5-dione. Chin. J. Org. Chem. 2017, 37, 40–46. [CrossRef]
55. Ramos, R.; Grigoropoulos, A.; Griffiths, B.L.; Katsoulidis, A.P.; Zanella, M.; Manning, T.D.; Blanc, F.;
Claridge, J.B.; Rosseinsky, M.J. Selective conversion of 5-hydroxymethylfurfural to diketone derivatives over
Beta zeolite-supported Pd catalysts in water. J. Catal. 2019, 375, 224–233. [CrossRef]
56. Fujita, S.; Nakajima, K.; Yamasaki, J.; Mizugaki, T.; Jitsukawa, K.; Mitsudome, T. Unique catalysis of nickel
phosphide nanoparticles to promote the selective transformation of biofuranic aldehydes into diketones in
water. ACS Catal. 2020, 10, 4216–4267. [CrossRef]
57. Yang, Y.; Xie, Y.; Deng, D.; Li, D.; Zheng, M.; Duan, Y. Highly selective conversion of HMF to
1-hydroxy-2,5-hexanedione on Pd/MIL-101(Cr). ChemistrySelect 2019, 4, 11165–11171. [CrossRef]
58. Brun, M.; Berthet, A.; Bertolini, J.C. XPS, AES and Auger parameter of Pd and PdO. J. Electron. Spectrosc.
Relat. Phenom. 1999, 104, 55–60. [CrossRef]
59. Duan, Y.; Zheng, M.; Li, D.; Deng, D.; Wu, C.; Yang, Y. Synthesis of Pd/SBA-15 catalyst employing
surface-bonded vinyl as a reductant and its application in the hydrogenation of nitroarenes. RSC Adv. 2017
7, 3443–3449. [CrossRef]
,

Molecules 2020, 25, 2475
14 of 14
60. Yang, Y.; Xie, Y.; Zhang, J.; Li, D.; Deng, D.; Duan, Y. Fabrication of Pd/SiO2 with controllable wettability
for enhanced catalytic hydrogenation activity at ambient H2 pressure. ChemCatChem 2019, 11, 5430–5434.
[CrossRef]
61. Yang, Y.; Deng, D.; Sui, D.; Xie, Y.; Li, D.; Duan, Y. Facile preparation of Pd/UiO-66-v for the conversion of
furfuryl alcohol to tetrahydrofurfuryl alcohol under mild conditions in water. Nanomaterials 2019, 9, 1698.
[CrossRef] [PubMed]
Sample Availability: Samples of the compounds 1-hydroxy-2,5-hexanedione are available from the authors.
©
2020 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access
article distributed under the terms and conditions of the Creative Commons Attribution
(CC BY) license (http://creativecommons.org/licenses/by/4.0/).
