Polyphenylene dendrimers with different fluorescent chromophores asymmetrically distributed at the periphery

Article abstract of DOI:10.1021/ja010579g

A new synthetic approach leading to asymmetrically substituted polyphenylene dendrimers is presented. Following this method, polyphenylene dendrimers decorated with an increasing number of chromophores at the periphery have been obtained up to the second

Full text of DOI:10.1021/ja010579g

J. Am. Chem. Soc. 2001, 123, 8101-8108
8101
Polyphenylene Dendrimers with Different Fluorescent Chromophores
Asymmetrically Distributed at the Periphery
Tanja Weil, Uwe M. Wiesler, Andreas Herrmann, Roland Bauer, Johan Hofkens,‡
Frans C. De Schryver,‡ and Klaus Mu1llen*
Contribution from the Max-Planck-Institut fu¨r Polymerforschung, Ackermannweg 10,
55128 Mainz, Germany, and Department of Chemistry, Katholieke UniVersiteit LeuVen,
Celestijnenlaan 200F, 3001 HeVerlee, Belgium
ReceiVed March 5, 2001
Abstract: A new synthetic approach leading to asymmetrically substituted polyphenylene dendrimers is
presented. Following this method, polyphenylene dendrimers decorated with an increasing number of
chromophores at the periphery have been obtained up to the second generation. Especially the synthesis of a
polyphenylene dendrimer bearing three donor chromophores and one acceptor chromophore has been realized.
Intramolecular energy transfer within this molecule is demonstrated by applying absorption and fluorescence
measurements.
Introduction
or just one functional group15,16 at the periphery. However, the
proposed use of dendrimers as nanosupports often requires that
they provide a predefined spatial nanoenvironment, which in
turn determines the necessary position of functional groups on
their surfaces. The flexibility of dendrimers built up from
aliphatic chains often precludes such a perfect spatial separation
of the functional groups, as backfolding of the peripheral
substituents can occur.17,18 Especially the study of chro-
mophore-chromophore through-space interactions in such a
system requires a rigid support since increased flexibility leads
to undesired interactions such as aggregation, excimer formation,
and dye self-quenching.19,20 Recently, the shape persistence of
polyphenylene dendrimers has successfully been proven by
applying advanced NMR studies21 and AFM measurements.22
In particular, solid-state NMR characterization has clearly
proven that, due to the sterical hindrance imposed on a given
phenyl group by its neighbors which are bound to the same
core, only collective reorientations of all rings around one central
core can take place. As a result, only limited dynamics which
were identified as a well-localized, restricted reorientation of
single terminal phenyl substituents around fixed axes could be
observed. Furthermore, the stiffness and the size of these
In recent years there has been an increasing interest in the
design of macromolecules on the nanometer scale.1 Among these
nanoobjects, dendrimers play an important role, which is due
to their distinct size, monodispersity, and the ease of introduction
of functional groups.2,3 Some effort has been made toward the
synthesis of dendrimers bearing more than one type of functional
group at the periphery.4 Only the convergent approach allows
an accurate control over the number and placement of func-
tionalities and therefore fulfils the requirement for the buildup
of asymmetric surface-functionalized dendrimers. Fre´chet and
co-workers were able to introduce two different functions via
the convergent attachment of two differently substituted poly-
(aryl ether) dendrons to a bifunctional core.5 In this way
fascinating new molecules such as amphiphilic dendrimers
coated with carboxylic acid groups on one-half and alkyl chains
on the other6-9 or molecular dipoles10 have been synthesized.
Recently, there have been a few examples of dendrimers
carrying multiple functions in close proximity to each other11-14
* Address correspondence to this author: Max-Planck-Institut fu¨r
Polymerforschung; (Phone/Fax) ++49-6131-379151; (e-mail) muellen@mpip-
mainz.mpg.de.
‡ Katholieke Universiteit Leuven.
(1) Adler, H. J.; Fischer, P.; Heller, A.; Jansen, I.; Kuckling, D.; Komber,
H.; Lehmann, D.; Piontek, J.; Pleul, D.; Simon, F. Acta Polym. 1999, 50,
132.
(2) Newkome, G. R.; Moorefield, C. N.; Vo¨gtle, F. Dendritic Molecules;
VCH Verlagsgesellschaft mbH: Weinheim, Germany, 1996.
(3) Fischer, M.; Vo¨gtle, F. Angew. Chem., Int. Ed. Engl. 1999, 38, 884.
(4) Freeman, A. W.; Christoffels, L. A. J.; Frechet, J. M. J. J. Org. Chem.
2000, 65, 7612.
(12) Newkome, G. R.; Weis, C. D.; Moorefield, C. N.; Baker, G. R.;
Childs, B. J.; Epperson, J. Angew. Chem. 1998, 110, 318.
(13) Larre, C.; Bressolles, D.; Turrin, C.; Donnadieu, B.; Caminade, A.-
M.; Majoral, J.-P. J. Am. Chem. Soc. 1998, 120, 13070.
(14) Freeman, A. W.; Chrisstoffels, L. A. J.; Frechet, J. M. J. J. Org.
Chem. 2000, 65, 7612.
(15) Bo, Z.; Scha¨fer, A.; Franke, P.; Schlu¨ter, A. D. Org. Lett. 2000,
11, 1645.
(5) Leon, J. W.; Frechet, J. M. J. Polym. Bull. 1995, 35, 449.
(6) Sanford, E. M.; Frechet, J. M. J.; Wooley, K. L.; Hawker, C. J. Polym.
Prepr. 1993, 34, 654.
(7) Hawker, C. J.; Wooley, K. L.; Frechet, J. M. J. J. Chem. Soc., Perkin
Trans. 1 1993, 12, 1287.
(8) Hawker, C. J.; Wooley, K. L.; Frechet, J. M. J. Polym. Prepr. 1993,
34, 54.
(9) Frechet, J. M. J.; Hawker, C. J.; Wooley, K. L. J. M. S. Pure Appl.
Chem. 1994, A31, 1627.
(10) Wooley, K. L.; Hawker, C. J.; Frechet, J. M. J. J. Am. Chem. Soc.
1993, 115, 11496.
(11) Maraval, V.; Laurent, R.; Donnadieu, B.; Mauzac, M.; Caminade,
A.-M.; Majoral, J.-P. J. Am. Chem. Soc. 2000, 122, 2499.
(16) Hawker, C. J.; Frechet, J. M. J. Macromolecules 1990, 23, 4726.
(17) Bodnar, I.; Silva, A. S.; Deitcher, R. W.; Weisman, N. E.; Kim, Y.
H.; Wagner, N. J. J. Polym. Sci. Part B: Polym. Phys. 2000, 38, 857.
(18) Scherrenberg, R.; Coussens, B.; Vliet, P. v.; Edouard, G.; Brackman,
J.; Brabander, E. d.; Mortensen, K. Macromolecules 1998, 31, 456.
(19) Becker, S.; Klok, H. A.; Rodriguez-Hernandez, J.; Schuch, F.;
Mu¨llen, K. Macromolecules. Submitted for publication.
(20) Stewart, G. M.; Fox, M. A. J. Am. Chem. Soc. 1996, 118, 4354.
(21) Wind, M.; Wiesler, U.-M.; Saalwa¨chter, K.; Mu¨llen, K.; Spiess, H.
W. AdV. Mater. 2001, 13, 752-756.
(22) Zhang, H.; Grim, P. C. M.; Foubert, P.; Vosch, T.; Vanoppen, P.;
Wiesler, U. M.; Berresheim, A. J.; Mu¨llen, K.; Schryver, F. C. D. Langmuir
2000, 16, 9009.
10.1021/ja010579g CCC: $20.00 © 2001 American Chemical Society
Published on Web 08/15/2001

8102 J. Am. Chem. Soc., Vol. 123, No. 33, 2001
Weil et al.
Scheme 1. Synthesis of the Asymmetrically Substituted Tetraphenylmethane Cores 2 (36%), 3 (47%), and 4 (6%)a
a Conditions: (i) n-BuLi, THF, 2 h, -78 °C; (ii) triisopropylsilyl chloride, 2 h, room temperature.
Scheme 2. Synthesis of BTI-Tetraphenylcyclopentadienone 12
dendrimers have also been determined by PFM-AFM (pulsed
force mode) measurements.22 The construction of polyphenylene
dendrimers via the Diels-Alder reaction of a core molecule
carrying free ethynyl units with tetraphenylcyclopentadienones
has been the subject of many publications from our group.23-26
The reaction proceeds with concomitant extrusion of CO and
allows a quantitative formation of the resulting dendrimer.
Functional groups are introduced at the periphery by using
tetraphenylcyclopentadienone building units carrying the ap-
propriate functionality.27 Besides the topologically defined
location of the functions, a further advantage of this system for
the use as a nanosupport is the absence of functional groups
within the dendritic scaffold, which is therefore highly chemi-
cally and thermally stable as well as inert to the introduced
groups. Based on a convergent approach toward polyphenylene
dendrimers, we now present dendrimers whose surface is coated
asymmetrically with chromophores. Furthermore, the synthesis
of a multichromophore consisting of three donor chromophores
and one acceptor chromophore in a defined spatial arrangement
will be described. So far, there exist some examples of
dendrimers whose surface is completely decorated with one type
of chromophore.28-32 To the best of our knowledge, the
attachment of an increasing number of single chromophores to
(23) Morgenroth, F.; Reuther, E.; Mu¨llen, K. Angew. Chem., Int. Ed.
Engl. 1997, 36, 631.
(24) Morgenroth, F.; Ku¨bel, C.; Mu¨llen, K. J. Mater. Chem. 1997, 7,
1207.
(28) Gensch, T.; Hofkens, J.; Heirmann, A.; Tsuda, K.; Verheijen, W.;
Vosch, T.; Christ, T.; Basche´, T.; Mu¨llen, K.; Schryver, F. C. D. Angew.
Chem., Int. Ed. Engl. 1999, 38, 3752.
(25) Morgenroth, F.; Mu¨llen, K. Tetrahedron 1997, 53, 15349.
(26) Muller, M.; Ku¨bel, C.; Morgenroth, F.; Iyer, V. S.; Mu¨llen, K.
Carbon 1998, 36, 827.
(27) Wiesler, U.-M.; Weil, T.; Mu¨llen, K. Top. Curr. Chem 2001,
212, 1.
(29) Yeow, E. K. L.; Ghiggino, K. P.; Reek, J. N. H.; Crossley, M. J.;
Bosman, A. W.; Schenning, A. P. H. J.; Meijer, E. W. J. Phys. Chem. B
2000, 104, 2596.
(30) Vo¨gtle, F.; Gestermann, S.; Kauffmann, C.; Ceroni, P.; Vicinelli,
V.; Cola, L. D.; Balzani, V. J. Am. Chem. Soc. 1999, 121, 12161.

Asymmetrically Substituted Polyphenylene Dendrimers
J. Am. Chem. Soc., Vol. 123, No. 33, 2001 8103
Scheme 3. Synthetic Route toward Unfunctionalized and Monofunctionalized Dendrons
a dendritic core which results in an asymmetrically substituted
surface has not been described previously. Recently, some
examples of dendrimers carrying two different types of chro-
mophores (a donor and an acceptor) have been published.31,33-39
However these antenna systems cannot be used for single
molecule spectroscopy (SMS) where the photochemical stability
of the chromophores and the emission at higher wavelength is
a key concern. We chose chromophores of the rylene series due
to their outstanding properties, e.g. chemical and photochemical
stability, which make them attractive candidates for SMS.40,41
SMS is an excellent method for the measurement of spatial,
conformational, and time-dependent inhomogenities of chro-
mophores in a close vicinity, e.g. energy transfer.41-43 These
investigations are important for the better understanding of
biological processes such as energy transfer processes involved
(31) Gilat, S. L.; Adronov, A.; Fre´chet, J. M. J. J. Org. Chem. 1999, 64,
7474.
(32) Jiang, D. L.; Aida, T. J. Am. Chem. Soc. 1998, 120, 10895.
(33) Shortreed, M. R.; Swallen, S. F.; Shi, Z. Y.; Tan, W. H.; Xu, Z. F.;
Devadoss, C.; Moore, J. S.; Kopelman, R. J. Phys. Chem. B 1997, 101,
6318-6322.
(34) Adronov, A.; Gilat, S. L.; Fre´chet, J. M. J.; Ohta, K.; Neuwahl, F.
V. R.; Fleming, G. R. J. Am. Chem. Soc. 2000, 122, 1175.
(35) Adronov, A.; Frechet, J. M. J. Chem. Commun. 2000, 18, 1701.
(36) Gilat, S. L.; Adronov, A.; Fre´chet, J. M. J. Angew. Chem., Int. Ed.
1999, 38, 1422-1427.
(37) Devadoss, C.; Bharathi, P.; Moore, J. S. J. Am. Chem. Soc. 1996,
118, 9635.
(38) Maruo, N.; Uchiyama, M.; Kato, T.; Arai, T.; Akisada, H.; Nishino,
N. Chem. Commun. 1999, 2057-2058.
(39) Plevoets, M.; Vo¨gtle, F.; Cola, L. D.; Balzani, V. New J. Chem.
1999, 23, 63-69.
(40) Lee, S. K.; Zu, Y. B.; Herrmann, A.; Geerts, Y.; Mu¨llen, K.; Bard,
A. J. J. Am. Chem. Soc. 1998, 141, 3513.
(41) Hofkens, J.; Maus, M.; Gensch, T.; Vosch, T.; Cotlet, M.; Kohn,
F.; Herrmann, A.; Mu¨llen, K.; Schryver, F. C. D. J. Am. Chem. Soc. 2000,
122, 9278.
(42) Moerner, W. E.; Orrit, M. Science 1999, 283, 1670.
(43) Weiss, S. Science 1999, 283, 1676.

8104 J. Am. Chem. Soc., Vol. 123, No. 33, 2001
Weil et al.
Scheme 4. General Method for the Synthesis of Asymmetrically Substituted Polyphenylene Dendrimers up to the Second
Generationa
a Representatively, this method is only shown for the case of a 3:1 ratio of the functionalities at the periphery.
in photosynthesis44-48 as well as for applications in the field of
light harvesting systems.49,50
Results and Discussion
Synthesis of the Asymmetric Core. The synthesis of
asymmetric polyphenylene dendrimers via the Diels-Alder
reaction is based on a tetrahedral core carrying both free and
protected ethynyl units. The key feature of such a core molecule
is that the Diels-Alder reaction with tetraphenylcyclopentadi-
enones proceeds only with the unprotected ethynyl units
resulting in an asymmetrical dendrimer growth. Such a core is
(44) Knox, R. S. Primary Processes of Photosynthesis; Elsevier: Am-
sterdam, The Netherlands, 1977; Vol. 2.
(45) Deming-Adams, B. Biochim. Biophys. Acta 1990, 1020, 1.
(46) Goedheer, J. D. Biochim. Biophys. Acta 1969, 172, 252.
(47) Cogdell, R. J.; Frank, H. A. Biochim. Biophys. Acta 1987, 895, 63.
(48) McDermott, G.; Prince, S. M.; Freer, A. A.; Hawthornthwaite-
Lawless, A. M.; Papiz, M. Z.; Cogdell, R. J.; Isaacs, N. W. Nature 1995,
374, 517.

Asymmetrically Substituted Polyphenylene Dendrimers
J. Am. Chem. Soc., Vol. 123, No. 33, 2001 8105
N-(2,6-diisopropylphenyl)-1,6-di(4-tert-butylphenoxy)-11(CO),-
12-benzoylterrylen-3,4-dicarboximide (BTI, 7), due to their
outstanding photophysical properties and the spectral overlap
between the PMI-donor emission and the BTI-acceptor absorp-
tion. A PMI-labeled tetraphenylcyclopentadienone 6 has already
been reported by us.28,53 The attempted synthesis of tetraphe-
nylcyclopentadienone 12 carrying a BTI chromophore by
analogous chemistry was not successful. Therefore we have
applied a new reaction sequence starting from 3-(4-bromophe-
nyl)-2,4,5-triphenylcyclopentadienone (9), which is converted
into a protected boronic acid 11 by using the commercially
available bispinacolatodiboron 10.54 Compound 8 then reacts
with 11 via a Suzuki coupling55 leading to 12 in 69% yield.
The build-up of the BTI-substituted tetraphenylcyclopenta-
dienone 12 required the new BTI chromophore 8 carrying a
single bromo function. Compound 8 is prepared via bromination
of BTI 7 with bromine in trichloromethane at room temperature
in good yield (79%). Reaction monitoring via thin-layer
chromatography or FD-mass spectrometry is indispensable to
minimize formation of multiply brominated byproducts which
appear after prolonged reaction times. The key compound for
the synthesis of polyphenylene dendrons is 4,4′-diethynylbenzil
(13), which contains two free ethynyl dienophile units and one
ethanedione function. This starting material is prepared via
Sonogashira coupling56 of triisopropylsilylacetylene and 4,4′-
dibromobenzil, followed by deprotection with KF in DMF (70%,
yellow crystals). After Diels-Alder cycloaddition with an excess
of tetraphenylcyclopentadienone (14) in refluxing o-xylene, the
benzil 15 is obtained as a pale yellow amorphous powder

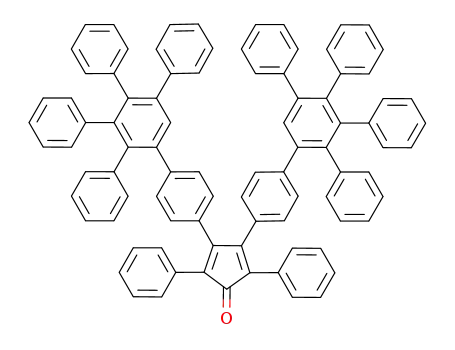

(Scheme 3). The Knoevenagel condensation of compound 15
with 1,3-diphenylacetone (16) in the presence of tetrabutylam-
monium hydroxide leads to the corresponding dendron 17 in
85% yield. The synthesis of an asymmetrically functionalized
dendron 20 carrying one single bromo group also starts from
diethynylbenzil 13 outlined in Scheme 3. Separation of un-
wanted byproducts 13 and 15 is achieved via column chroma-
tography. In the following, the cycloaddition of 18 and 9 gives
19 in nearly quantitative yield. 19 is then converted into the
dendron 20 via a Knoevenagel condensation with 1,3-diphenyl-
acetone (16) as described above. The formation of the protected
boronic acid 21 is accomplished in nearly quantitative yield via
a reaction of 20 with bispinacolatodiboron 10. 21 is purified
via filtration over a short pad of silica gel. In the last step, the
Suzuki coupling of 21 and N-(2,6-diisopropylphenyl)-9-bro-
moperylene-3,4-dicarboximide leads to the target molecule: a
mono-PMI-substituted dendron 22 that is isolated as a dark red
solid in moderate yields (73%). The key feature of the boronic
acid-functionalized tetraphenylcyclopentadienone building unit
21 is the ease of introduction of new functional groups, via
simple coupling with a bromo- or iodo-substituted aromatic
compound carrying the desired functionality.
Figure 1. MALDI-TOF mass spectra of the second generation
polyphenylene dendrimer carrying one single PMI chromophore 28a
and the bichromophore 25e. The calculated weight is 5365 g/mol for
28a and 4283 g/mol for 25e.
obtained by treating tetrakis(4-ethynylphenyl)methane (1) with
a controlled amount of n-BuLi (see below) at -78 °C.51,52 The
reaction mixture is then stirred for an additional 2 h under argon
after addition of a 2-fold excess of triisopropylsilyl chloride
(TipsCl), relative to the amount of n-BuLi. A statistical product
mixture of one-, two-, three-, and 4-fold triisopropylsilyl-
protected derivatives results (Scheme 1, compounds 2, 3, and
4), which is separated via column chromatography. The ap-
proximate number of Tips groups is adjustable via the amount
of n-BuLi used: for example, a 2.2-fold excess of n-BuLi gives
3 as the main product in 47% yield. After separation of the
main product via column chromatography, the remaining
unresolved reaction mixture can be deprotected completely with
fluoride salts. In this way the starting compound 1 can be
recovered in nearly quantitative yield. Via this reaction sequence
compounds 2, 3, and 4 can readily be synthesized in gram scale.
Synthesis of the Chromophore-Labeled Branches. In the
following we will focus on the introduction of a distinct number
of chromophores at the periphery of first- and second-generation
polyphenylene dendrimers. The essential building unit for the
construction of fluorescent first-generation dendrimers is a
chromophore-labeled tetraphenylcyclopentadienone. Second-
generation dendrimers with a varying amount of chromophores
are synthesized via the convergent-growth approach by using
dendrons (dendrimer branches) carrying the chromophore. We
chose two chromophores of the rylene series: 7-N-(2,6-
diisopropylphenyl)perylene-3,4-dicarboximide (PMI, 5) and
Synthesis of the Asymmetrically Substituted Polyphe-
nylene Dendrimers. Starting from the pure partially protected
cores (2, 3, or 4), Diels-Alder cycloaddition with the PMI
tetraphenylcyclopentadienone 6 introduces from one up to four
PMI chromophore units. Representatively, this reaction sequence
is shown in Scheme 4 only for core 2. To contribute to the
clarity of the molecular structure, the number of the dendrimer
corresponds to a series of structurally similar dendrimers and
(53) Weil, T.; Herrmann, A.; Mu¨llen, K. Chem. Eur. J. Submitted for
publication.
(54) Ishiyama, T.; Murata, M.; Miyaura, N. J. Org. Chem. 1995, 60,
7508.
(49) Zuber, H.; Brunisholz, R. A. Structure and Function of Antenna
Polypeptides and Chlorophyll-Protein Complexes: Principles and Vari-
ability; CRC Press: Boca Raton, FL, 1991.
(50) Scholes, G. D.; Fleming, G. R. J. Phys. Chem. B 2000, 104, 1854.
(51) Galoppini, E.; Gilardi, R. Chem. Commun. 1999, 2, 173.
(52) Mongin, O.; Gossauer, A. Tetrahedron 1997, 53, 6835.
(55) Watanabe, T.; Miyaura, N.; Suzuki, A. Synlett 1992, 3, 207.
(56) Takahashi, S.; Kuroyama, Y.; Sonogashira, K.; Hagihara, N.
Synthesis 1980, 627.

8106 J. Am. Chem. Soc., Vol. 123, No. 33, 2001
Weil et al.
Figure 2. First- and second-generation polyphenylene dendrimers coated with an increasing number of PMI chromophores (25a-d/
28a-d) and 3D model of the bichromophore 25e.
the alphabetic letter describes one dendrimer of this series.
Deprotection of the remaining triisopropylsilyl-protected ethynyl
unit of the dendrimer 23c with Bu4NF/THF led to 24c.
Subsequent Diels-Alder reaction of 24c with a tetraphenylcy-
clopentadienone coated with a functionality “R3” 12/14 gave
the first-generation polyphenylene dendrimer 25c/25e. For
R3 ) H, 25c, a dendrimer with an asymmetric PMI distribution
at the periphery, was obtained as a bright red powder. The first-
generation polyphenylene dendrimers substituted with one, two,
and four PMI units (25a, 25b, and 25d) have been realized in

Asymmetrically Substituted Polyphenylene Dendrimers
J. Am. Chem. Soc., Vol. 123, No. 33, 2001 8107
Figure 3. UV/vis absorption spectra of 7, 25c, and 25e (CHCl3).
Figure 4. Fluorescence emission spectrum of 25e; λexc ) 500 nm (toluene).
the same way by starting from core 4, 3, or 1 as shown in
Scheme 4. By using the BTI-functionalized tetraphenylcyclo-
pentadienone building unit 12 (R3 ) BTI) to 24c, polyphenylene
dendrimer 25e carrying both PMI and BTI chromophores was
obtained.
The synthesis of the corresponding second-generation polyphe-
nylene dendrimers was performed by starting from core 2 and
Diels-Alder reaction with dendron 17. Deprotection of the
remaining triisopropylsilyl groups with Bu4NF and Diels-Alder
reaction with the PMI-substituted dendron 22 gave the second-
generation polyphenylene dendrimer 28a carrying one single
PMI chromophore. The synthesis of the second-generation
polyphenylene dendrimers decorated with a higher number of
chromophores has been carried out analogously. Two exemplary
mass spectra of the second-generation dendrimer 28a decorated
with one PMI chromophore and the multichromophore 25e are
given in Figure 1, showing only one single peak corresponding
to the molecular mass. In case of the multichromophore, an
additional molecular mass peak [M + Ag]+ cluster was detected.
The perfect agreement between the calculated and experimen-
tally determined m/z ratios for different generations of den-
drimers confirms their monodispersity.
Figure 2 gives an overview of the herein reported target
molecules. Molecular mechanics calculations reveal a diameter
of about 2.5 nm for the first-generation series and 4.5 nm for
the second-generation series. The minimized structures of the
first-generation dendrimers have been obtained by applying the
MM2 (MM+) force field as implemented in the software
package HyperChem 6.0 (Hypercube Inc.). In this way, the
dendrimer and the PMI chromophores have been calculated

8108 J. Am. Chem. Soc., Vol. 123, No. 33, 2001
Weil et al.
separately and the global minimum has been obtained for both
separate molecules. The minimum structure of the tetrahedral
core has been obtained by applying the same strategy that is
already well documented in the literature.57 In the last step, the
chromophores are attached to the dendrimer surface and the
whole molecule is optimized with the MM+ force field. Figure
2 shows one possible low-energy geometry of the multichro-
mophore 25e, which was found to be sufficient to evaluate the
diameter of the molecule (diameter of about 2.7 nm) and the
approximate position of the chromophores with respect to each
other. According to the simulation, the chromophores are
situated exclusively on the surface of the dendrimer where their
spatial arrangement is well-defined.
Absorption and Fluorescence Measurements. 25e has been
obtained as a dark purple powder and shows good solubility in
most organic solvents. The color corresponds to the spectral
sum of the red PMI and the blue BTI. The absorption spectra
of the multichromophore 25e, the 3-fold PMI substituted
dendrimer 25c, and the unfunctionalized BTI chromophore 7
in chloroform are depicted in Figure 3. The spectrum of 25c
exhibits absorption maxima at 509 (112 352 M-1 cm-1) and
527 (111 256 M-1 cm-1) nm while the single BTI chromophore
absorbs at 691 (85 322 M-1 cm-1) nm. The multichromophore
25e displays absorption maxima at 508 (112 352 M-1 cm-1),
527 (111 256 M-1 cm-1), and 700 (83 613 M-1 cm-1) nm,
corresponding to the absorption of the PMI and the BTI units.
Therefore the absorption spectrum of 25e can be approximated
as a superposition of the spectra of the constituent moieties. In
view of the well-separated absorption envelopes it is possible
to excite the specific chromophores. The fluorescence quantum
yields (φf ) 0.98 ( 0.05) of the dendrimers 25a-d and 28a-d
are practically identical within experimental error to that of the
free PMI unit: In the multichromophore 25e the fluorescence
quantum yield for the PMI emission is decreased by 96%, thus
indicating efficient energy transfer from the PMI to the BTI is
occurring.
be described perfectly with Fo¨rster energy transfer theory, which
is discussed in more detail in the following article.58
Conclusion
We have presented a convergent-growth approach toward
structurally well-defined polyphenylene dendrimers bearing an
asymmetrical distribution of functional groups at the periphery.
Such a well-defined distribution of functionalities is based on
a “desymmetrization” step as the synthetic key point. The use
of polyphenylene dendrimers as an inert nanosupport opens up
the way for studying interactions of two different types of
functional groups where the distances and the positions of the
functionalities are predefined. Following this idea, we have
shown the synthesis of a multichromophore consisting of
perylene and terrylene chromophores that is also suitable for
single molecule spectroscopy. This system behaves as a dendritic
light harvesting antenna that shows an energy transfer from the
perylene chromophores toward the terrylene chromophore. We
are currently working on the introduction of biologically active
groups at the periphery of these highly fluorescent molecules.
The introduction of a biotin unit on one site of the dendrimer
and multiple chromophores on the others would lead to highly
fluorescent molecules bearing an affinity to a target molecule
(e.g., a protein). However, the application of thus functionalized
dendrimers as fluorescent markers in the area of visualization
(e.g., cellular processes) often requires water solubility. A
combination of multifunctionalization, water solubility, and
fluorescence is crucial.
Acknowledgment. This research was supported by the TMR
European Research Program through the SISITOMAS project,
the Volkswagen-Stiftung, and the Bundesministerium fu¨r Bil-
dung and Forschung. U.-M. Wiesler would like to thank the
Fonds der Chemischen Industrie for a Ph.D. grant. Last but not
least, we would like to thank S. Spang and C. Beer for their
synthesis support.
In the next step we addressed the possibility of energy transfer
between the two chromophores in compound 25e. After excita-
tion at λexc ) 500 nm (near λmax for PMI), the resulting
fluorescence spectrum consists of PMI as well as BTI emission
(Figure 4). The BTI fluorescence can be explained by an
excitation energy transfer from the PMI to the BTI chromophore.
In this case, more than 96% of the energy harvested by the
peryleneimide chromophores is transferred and trapped in the
terryleneimide chromophore. This energy-transfer process can
Supporting Information Available: Experimental proce-
dures for the synthesis of all dendritic compounds including
analytical data (PDF). This material is available free of charge
via the Internet at http://pubs.acs.org.
JA010579G
(58) Maus, M.; De, R.; Lor, M.; Weil, T.; Mitra, S.; Wiesler, U.-M.;
Herrmann, A.; Hofkens, J.; Vosch, T.; Mu¨llen, K.; De Schryver, F. C. J.
Am. Chem. Soc. 2001, 123, 7668-7676.
(57) Brocorens, P.; Zojer, E.; Cornil, J.; Shuai, Z.; Leising, G.; Mullen,
K.; Bredas, J. L. Synth. Met. 1999, 100, 141-162.
