Angewandte
Chemie
[
16,17]
orthogonal oxygen bridges, and J2 refers to those with
nonorthogonal oxygen bridges. The simplifying assumption
is also made that exchange through O5 and O8 is the same,
because the Cu-O-Cu angles are comparable (123.88 and
zine-3,6-dicarboxylate
with hydrazine hydrate in methanol) was
added to the above solution and the pH was adjusted to 7 with acetic
acid. The mixture was refluxed for 18 h. The resulting yellow slurry
was filtered and washed with diethyl ether (3 15 mL) to yield a
yellow powder, which was used without further purification. Yield
1
21.08, respectively).
(
1.24 g, 88%), m.p. > 3308C. Mass spectrum (major mass peaks, m/z):
Appropriate exchange equations were written for the
dinuclear and tetranuclear components, and these were
factored and combined to include corrections for TIP
3
91.4 (MꢀNH ), 302.1, 284.1, 149.1. IR (nujol): n˜ = 3309, 3197 (nNH);
2
ꢀ
1
1646 (nC = O); 1600 cm (nC=N). Elemental analysis calcd (%) for
C H N O ·0.5H O: C 46.27, H 3.64, N 40.47; found: C 46.44, H 3.41,
N 40.72.
Compound 1 was synthesized from the reaction of Cu(CF SO )
3 2
16 14 12 2 2
(
“
temperature-independent paramagnetism) and the four
isolated” corner copper(II) sites. In view of the complexity
of the exchange model, a remarkably good fit was obtained
3
(
0.608 mmol) in 1:1 MeOH/CH CN (15 mL) with L3 (0.295 mmol).
3
This reaction produced a clear, dark green solution to which aqueous
NaOH (4 mL; 0.65m) was added to achieve a neutral pH. The
resulting dark brown solution was stirred with gentle heating for 24 h
and then filtered. The filtrate was preserved for crystallization. Brown
needle-like crystals, suitable for X-ray diffraction, formed upon
standing after 12 days (35% yield). Elemental analysis calcd (%) for
(C16H N O ) Cu16(O) (OH) (H O) ](CF SO ) -
11 12 2 2 2 4 2 2 3 3 6
H O) (CH OH) : C 25.47, H 4.07, N 19.81; found: C 25.24, H 2.13,
N 19.82.
Crystal data for 1: Orthorhombic, Pmmn (no. 59), a = 25.797(2),
b = 29.199(2), c = 16.5920(13) , V= 12497.5(18) , Z = 2, 1
ꢀ1
(
ꢀ
solid lines in Figure 5) for g = 2.21, J = ꢀ45 cm , J =
1
2
ꢀ
1
ꢀ6
3
ꢀ1
2
350 cm , TIP = 800 10 cm mol , 10 R = 2.3; (R =
2
2 1/2
[
ꢀ(cobsdꢀc ) /ꢀc
] ). J1 is associated only with the
calcd
obsd
pyridazine bridges, whereas J is associated with the pyrida-
2
zine/nonorthogonal oxygen bridging connections. As would
[
(C16
H N O
12 12 2
)
6
be expected, j J j is much larger than j J j , and it is satisfying
2
1
(
2
66
3
10
to compare these values with those associated with compa-
rable simple dinuclear copper compounds involving pyrida-
zine and pyridazine/OH bridges. Weak coupling (ꢀJ =
3
=
calcd
ꢀ1
ꢀ3
ꢀ1
6
5 cm ) was found for the compound [Cu (PPD)Cl ], which
1.505 gcm , m = 1.482 mm , final R = 0.0639 for I > 2s(I), wR
1
2
=
2
4
0
.1825 for all data. The intensity data were recorded on a Rigaku
AFC8-Saturn 70 system with MoKa radiation (l = 0.71070 ) at
13(2) K. The structure was solved by direct methods and refined
involves only a magnetically active pyridazine bridge in a
[
18]
similar bonding situation. For compounds with magneti-
cally active combinations of pyridazine and m-OH, and large
Cu-OH-Cu angles (116–1268), ꢀJ values in the range 375–
1
2
by full-matrix least-squares analysis on F by using SHELXL. NH2
protons (H4, 5, 10, 11, 16, 17, 22, and 23) were located in difference
map positions. However, H23 appeared much lower in the peak list
relative to the others, and its occupancy was consequently set to 0.5.
ꢀ1
[15,16]
4
50 cm were found.
This comparison strongly supports
the assignment of the bridging connectivity in 1 and the
prediction of magnetic properties on the basis of the orbital
connectivity.
[
18]
The Platon Squeeze
procedure was applied to recover 427.1
3
electrons per unit cell in two voids (total volume 4161.7 ).
Disordered solvent water and acetonitrile molecules appeared to be
present prior to the application of Squeeze, though a good point atom
model could not be achieved for them. The application of Squeeze
greatly improved the data statistics and allowed a full anisotropic
refinement of the framework structure and counterions.
CCDC 644634 contains the supplementary crystallographic data for
this paper. These can be obtained free of charge from the Cambridge
Crystallographic Data Centre via www.ccdc.cam.ac.uk/data_request/
cif.

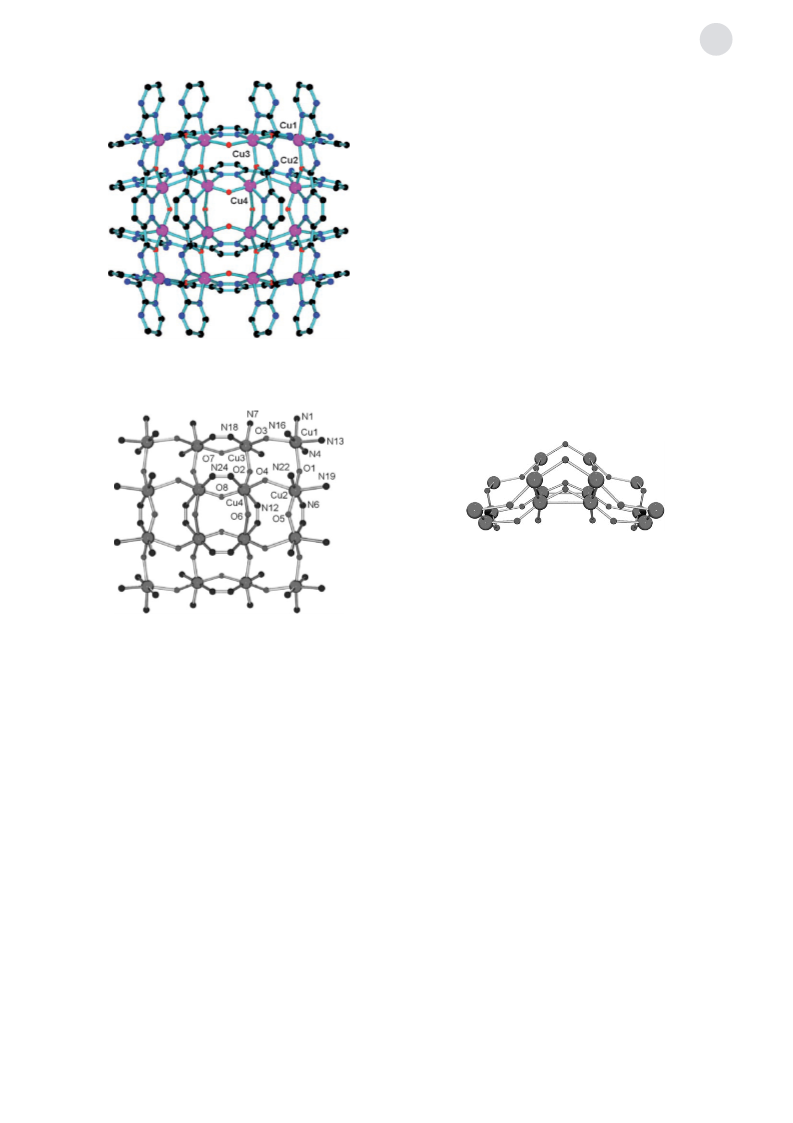

In summary, ligand design and synthesis has led to a viable
approach to the specific self-assembly of a supramolecular
polymetallic square-grid-shaped Cu16 aggregate. The forma-
tion of a complete [4 4]grid in this case, compared with an
[
9]
incomplete Cu12 grid with the closely related ligand L1, is
reasonably associated with the addition of sufficient base to
fully deprotonate the ligand hydrazone oxygen atoms. This
arrangement leads to a complex network of spin-exchange
pathways through pyridazine, hydrazone, and exogenous
oxygen bridges throughout the grid, which in some cases are
effectively switched off because of the preferred orthogonal
magnetic connections between copper ions in certain grid
positions. This behavior is typical of copper(II) in simpler [2
Variable-temperature magnetic measurements were performed
on a Quantum Design MPMS5S magnetometer in DC mode (0.1-T
field) with appropriate corrections for the sample holder and
diamagnetic complex components.
Received: April 25, 2007
Published online: August 14, 2007
2
]and [3 3]grids, in which ferromagnetic exchange domi-
nates because of a prevalence of orthogonal connections.
However, in the present case, a specific mixture of orthogonal
and nonorthogonal connections allows the antiferromagnetic
exchange terms to dominate. Fitting of the variable-temper-
ature magnetic data to an appropriate model based on this
connectivity gives exchange coupling through m-pyridazine
and m-pyridazine/O combinations comparable to those of
simpler related dinuclear complexes.
Keywords: copper · grid complexes · magnetic properties ·
N,O ligands · self-assembly
.
[
1]C. J. Matthews, K. Avery, Z. Xu, L.K. Thompson, L. Zhao, D. O.
Miller, K. Biradha, K. Poirier, M. J. Zaworotko, C. Wilson, A. E.
Goeta, J.A.K. Howard, Inorg. Chem. 1999, 38, 5266 – 5276.
2]L. K. Thompson, L. Zhao, Z. Xu, D. O. Miller, W. M. Reiff,
Inorg. Chem. 2003, 42, 128 – 139.
[
[
3]V. A. Milway, S. M. T. Abedin, V. Niel, T. L. Kelly, L. N. Dawe,
S. K. Dey, D. W. Thompson, D. O. Miller, M. S. Alam, P. Müller,
L. K. Thompson, Dalton Trans. 2006, 2835 – 2851.
Experimental Section
L3: Methyl pyrimidine-2-carboximidate was generated in situ by
reaction of 2-cyanopyrimidine (0.73 g, 6.96 mmol) with a solution of
sodium methoxide, produced by dissolving sodium metal (0.10 g,
[4]O. Waldmann, R. Koch, S. Schrom, P. Müller, L. Zhao, L. K.
Thompson, Chem. Phys. Lett. 2000, 332, 73 – 78.
[5]O. Waldmann, L. Zhao, L. K. Thompson, Phys. Rev. Lett. 2002,
88, 066401.
4
.35 mmol) in methanol (100 mL). Pyridazine-3,6-dicarbohydrazide
(0.68 g, 3.45 mmol; prepared from the reaction of dimethyl pyrida-
Angew. Chem. Int. Ed. 2007, 46, 7440 –7444
ꢀ 2007 Wiley-VCH Verlag GmbH & Co. KGaA, Weinheim
7443
