1-(3-nitrophenyl)-N-[2-[(3-nitrophenyl)methylideneamino]ethyl]methanimine

Base Information

• Chemical Name: 1-(3-nitrophenyl)-N-[2-[(3-nitrophenyl)methylideneamino]ethyl]methanimine
• CAS No.: 81928-79-2

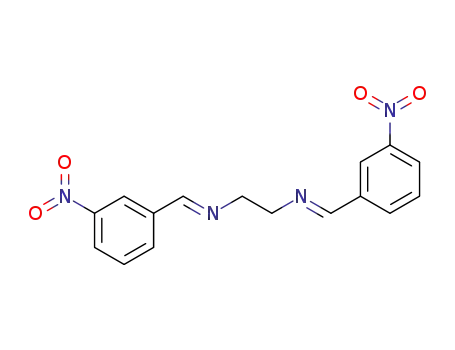

• Molecular Formula: C16H14N4O4
• Molecular Weight: 326.3068
• Mol file: 81928-79-2.mol

Synonyms:

Chemical Property of 1-(3-nitrophenyl)-N-[2-[(3-nitrophenyl)methylideneamino]ethyl]methanimine

Chemical Property:

• Boiling Point: 502.7°Cat760mmHg
• Flash Point: 257.8°C
• Density: 1.28g/cm³

Purity/Quality:

Safty Information:

• Pictogram(s):
• Hazard Codes:

MSDS Files:

SDS file from LookChem

Useful:

Technology Process of 1-(3-nitrophenyl)-N-[2-[(3-nitrophenyl)methylideneamino]ethyl]methanimine

There total 1 articles about 1-(3-nitrophenyl)-N-[2-[(3-nitrophenyl)methylideneamino]ethyl]methanimine which guide to synthetic route it. The literature collected by LookChem mainly comes from the sharing of users and the free literature resources found by Internet computing technology. We keep the original model of the professional version of literature to make it easier and faster for users to retrieve and use. At the same time, we analyze and calculate the most feasible synthesis route with the highest yield for your reference as below:

synthetic route:

Reference yield: 95.0%

3-nitro-benzaldehyde (99-61-6) + ethylenediamine (107-15-3,85404-18-8) → N,N'-Bis(3-nitrophenyl-methin)-1,2-ethylendiamin (81928-79-2)

Guidance literature:

at 100 ℃; for 0.0833333h;

Reference yield:

N,N'-Bis(3-nitrophenyl-methin)-1,2-ethylendiamin (81928-79-2) → N-(3-nitro-benzyl)-ethylenediamine (102495-23-8)

Guidance literature:

With formic acid; N,N'-bis-<3-nitro-benzyl>-ethylenediamine; sodium formate;

Reference yield:

N,N'-Bis(3-nitrophenyl-methin)-1,2-ethylendiamin (81928-79-2) → N,N'-Bis-[1-(3-amino-phenyl)-meth-(E)-ylidene]-ethane-1,2-diamine; hydrochloride

Guidance literature:

With hydrogenchloride; tin;

upstream raw materials:

3-nitro-benzaldehyde

ethylenediamine

Downstream raw materials:

N-(3-nitro-benzyl)-ethylenediamine
