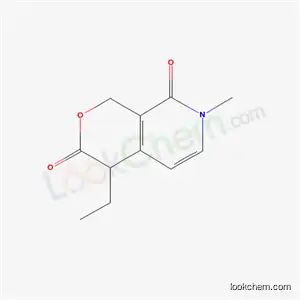

4-Ethyl-7-methyl-1,4-dihydropyrano[3,4-c]pyridine-3,8-dione

Base Information

• Chemical Name: 4-Ethyl-7-methyl-1,4-dihydropyrano[3,4-c]pyridine-3,8-dione
• CAS No.: 40163-10-8
• Molecular Formula: C11H13NO3
• Molecular Weight: 207.2258
• NSC Number: 174557
• DSSTox Substance ID: DTXSID40306179
• Mol file: 40163-10-8.mol

Synonyms:40163-10-8;NSC174557;4-ethyl-7-methyl-1,4-dihydropyrano[3,4-c]pyridine-3,8-dione;DTXSID40306179;NSC-174557

Chemical Property of 4-Ethyl-7-methyl-1,4-dihydropyrano[3,4-c]pyridine-3,8-dione

Chemical Property:

• Vapor Pressure: 7.89E-10mmHg at 25°C
• Boiling Point: 492.1°Cat760mmHg
• Flash Point: 251.4°C
• Density: 1.24g/cm³
• XLogP3: 0.2
• Hydrogen Bond Donor Count: 0
• Hydrogen Bond Acceptor Count: 3
• Rotatable Bond Count: 1
• Exact Mass: 207.08954328
• Heavy Atom Count: 15
• Complexity: 381

Purity/Quality:

99% ^*data from raw suppliers

Safty Information:

• Pictogram(s):
• Hazard Codes:

MSDS Files:

SDS file from LookChem

Useful:

• Canonical SMILES: CCC1C2=C(COC1=O)C(=O)N(C=C2)C

Technology Process of 4-Ethyl-7-methyl-1,4-dihydropyrano[3,4-c]pyridine-3,8-dione

There total 5 articles about 4-Ethyl-7-methyl-1,4-dihydropyrano[3,4-c]pyridine-3,8-dione which guide to synthetic route it. The literature collected by LookChem mainly comes from the sharing of users and the free literature resources found by Internet computing technology. We keep the original model of the professional version of literature to make it easier and faster for users to retrieve and use. At the same time, we analyze and calculate the most feasible synthesis route with the highest yield for your reference as below:

synthetic route:

Reference yield:

5-bromo-4-ethyl-7-methyl-1,7-dihydro-4H-pyrano[3,4-c]pyridine-3,8-dione (40163-09-5) → 4-ethyl-7-methyl-1,7-dihydro-4H-pyrano[3,4-c]pyridine-3,8-dione (40163-10-8)

Guidance literature:

With hydrogen; triethylamine; palladium on activated charcoal; In ethanol;

DOI:10.1021/jo00917a005

Reference yield:

2-(3-acetoxymethyl-5-bromo-1-methyl-2-oxo-1,2-dihydro-pyridin-4-yl)-butyric acid methyl ester (40163-08-4) → 4-ethyl-7-methyl-1,7-dihydro-4H-pyrano[3,4-c]pyridine-3,8-dione (40163-10-8)

Guidance literature:

Multi-step reaction with 2 steps

1: aq. H₂SO₄ / 1,2-dimethoxy-ethane / 20 h / 50 °C

2: H₂, Et₃N / Pd-C / ethanol

With sulfuric acid; hydrogen; triethylamine; palladium on activated charcoal; In 1,2-dimethoxyethane; ethanol;

DOI:10.1021/jo00917a005

Reference yield:

(3-hydroxymethyl-1-methyl-2-oxo-1,2-dihydro-pyridin-4-yl)-malonic acid di-tert-butyl ester (53937-13-6) → 4-ethyl-7-methyl-1,7-dihydro-4H-pyrano[3,4-c]pyridine-3,8-dione (40163-10-8)

Guidance literature:

Multi-step reaction with 2 steps

1: CF₃CO₂H

2: (i) NaH, DMF, (ii) /BRN= 1209224/

With trifluoroacetic acid;

DOI:10.1248/cpb.22.763

upstream raw materials:

ethyl bromide

7-methyl-1,7-dihydro-4H-pyrano[3,4-c]pyridine-3,8-dione

5-bromo-4-ethyl-7-methyl-1,7-dihydro-4H-pyrano[3,4-c]pyridine-3,8-dione

2-(3-acetoxymethyl-5-bromo-1-methyl-2-oxo-1,2-dihydro-pyridin-4-yl)-butyric acid methyl ester

Downstream raw materials:

4-ethyl-4-hydroxy-7-methyl-1,7-dihydro-4H-pyrano[3,4-c]pyridine-3,8-dione
