gamma-(p-Diethylaminophenyl)-N-(p-carboethoxyphenyl)nitrone

Base Information

• Chemical Name: gamma-(p-Diethylaminophenyl)-N-(p-carboethoxyphenyl)nitrone
• CAS No.: 93749-88-3
• Molecular Formula: C₂₀H₂₄N₂O₃
• Molecular Weight: 340.422
• Wikidata: Q76423822
• Mol file: 93749-88-3.mol

Synonyms:CEM-420 E;PMN 85-614;gamma-(p-Diethylaminophenyl)-N-(p-carboethoxyphenyl)nitrone;93749-88-3;Ethyl 4-(((4-(diethylamino)phenyl)methylene)amino)benzoate N-oxide;4-Diethylaminophenyl-4'-(ethoxycarbonylphenyl)azomethine-N-oxide (IUPAC);Benzoic acid, 4-(((4-(diethylamino)phenyl)methylene)amino)-, ethyl ester, N-oxide

Chemical Property of gamma-(p-Diethylaminophenyl)-N-(p-carboethoxyphenyl)nitrone

Chemical Property:

• XLogP3: 3.7
• Hydrogen Bond Donor Count: 0
• Hydrogen Bond Acceptor Count: 4
• Rotatable Bond Count: 8
• Exact Mass: 340.17869263
• Heavy Atom Count: 25
• Complexity: 432

Purity/Quality:

Safty Information:

• Pictogram(s):
• Hazard Codes:

MSDS Files:

SDS file from LookChem

Useful:

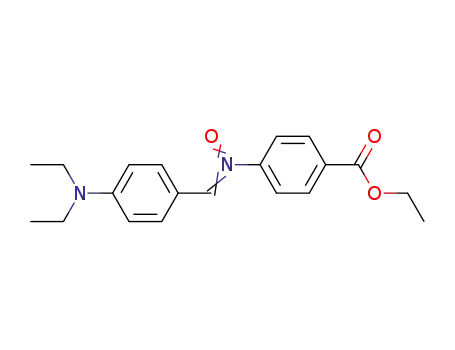

• Canonical SMILES: CCN(CC)C1=CC=C(C=C1)C=[N+](C2=CC=C(C=C2)C(=O)OCC)[O-]
• Isomeric SMILES: CCN(CC)C1=CC=C(C=C1)/C=[N+](/C2=CC=C(C=C2)C(=O)OCC)\[O-]

Technology Process of gamma-(p-Diethylaminophenyl)-N-(p-carboethoxyphenyl)nitrone

There total 1 articles about gamma-(p-Diethylaminophenyl)-N-(p-carboethoxyphenyl)nitrone which guide to synthetic route it. The literature collected by LookChem mainly comes from the sharing of users and the free literature resources found by Internet computing technology. We keep the original model of the professional version of literature to make it easier and faster for users to retrieve and use. At the same time, we analyze and calculate the most feasible synthesis route with the highest yield for your reference as below:

synthetic route:

Reference yield: 88.0%

ethyl 4-(hydroxylamino)benzoate (24171-85-5) + 4-Diethylaminobenzaldehyde (120-21-8) → α-(4-(diethylamino)phenyl)-N-(4-carbethoxyphenyl)nitrone (93749-88-3)

Guidance literature:

With methanesulfonic acid; In ethanol; for 2h; Ambient temperature;

DOI:10.1021/jo00282a040

upstream raw materials:

ethyl 4-(hydroxylamino)benzoate

4-Diethylaminobenzaldehyde
