Acetic acid, ((4-((((cyclohexylamino)oxoacetyl)amino)sulfonyl)phenyl)amino)oxo-, ethyl ester

Base Information

• Chemical Name: Acetic acid, ((4-((((cyclohexylamino)oxoacetyl)amino)sulfonyl)phenyl)amino)oxo-, ethyl ester
• CAS No.: 81717-22-8
• Molecular Formula: C18H23N3O7S
• Molecular Weight: 425.4561
• DSSTox Substance ID: DTXSID80231259
• Wikidata: Q83112124
• Mol file: 81717-22-8.mol

Synonyms:BRN 5170171;Acetic acid, ((4-((((cyclohexylamino)oxoacetyl)amino)sulfonyl)phenyl)amino)oxo-, ethyl ester;Ethyl ((4-((((cyclohexylamino)oxoacetyl)amino)sulfonyl)phenyl)amino)oxoacetate;81717-22-8;C18H23N3O7S;DTXSID80231259;C18-H23-N3-O7-S

Chemical Property of Acetic acid, ((4-((((cyclohexylamino)oxoacetyl)amino)sulfonyl)phenyl)amino)oxo-, ethyl ester

Chemical Property:

• Density: 1.4g/cm³
• XLogP3: 2
• Hydrogen Bond Donor Count: 3
• Hydrogen Bond Acceptor Count: 7
• Rotatable Bond Count: 7
• Exact Mass: 425.12567125
• Heavy Atom Count: 29
• Complexity: 718

Purity/Quality:

Safty Information:

• Pictogram(s):
• Hazard Codes:

MSDS Files:

SDS file from LookChem

Useful:

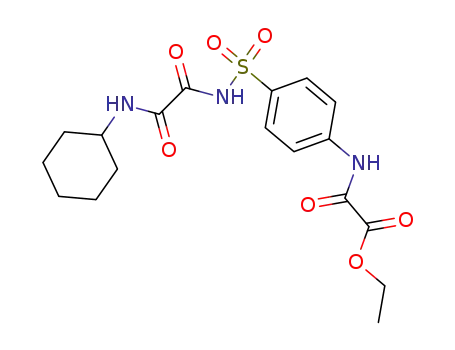

• Canonical SMILES: CCOC(=O)C(=O)NC1=CC=C(C=C1)S(=O)(=O)NC(=O)C(=O)NC2CCCCC2

Technology Process of Acetic acid, ((4-((((cyclohexylamino)oxoacetyl)amino)sulfonyl)phenyl)amino)oxo-, ethyl ester

There total 1 articles about Acetic acid, ((4-((((cyclohexylamino)oxoacetyl)amino)sulfonyl)phenyl)amino)oxo-, ethyl ester which guide to synthetic route it. The literature collected by LookChem mainly comes from the sharing of users and the free literature resources found by Internet computing technology. We keep the original model of the professional version of literature to make it easier and faster for users to retrieve and use. At the same time, we analyze and calculate the most feasible synthesis route with the highest yield for your reference as below:

synthetic route:

Reference yield: 86.0%

4-Amino-N-benzolsulfonyl-oxamidsaeure-N'-cyclohexylamid (14222-78-7) + Ethyl oxalyl chloride (4755-77-5) → p-(Ethoxalylamino)benzenesulfonyloxamic acid cyclohexyl amide (81717-22-8)

Guidance literature:

With triethylamine; In acetic acid; for 6h; Ambient temperature;

DOI:10.1007/BF00761607

upstream raw materials:

4-Amino-N-benzolsulfonyl-oxamidsaeure-N'-cyclohexylamid

Ethyl oxalyl chloride
