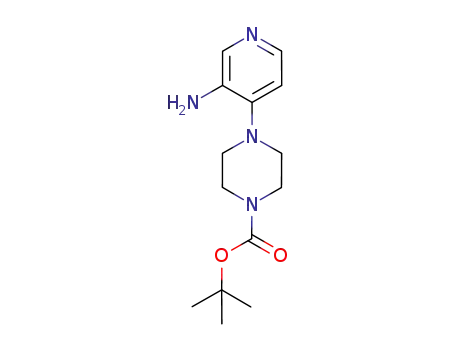

Tert-butyl 4-(3-aminopyridin-4-YL)piperazine-1-carboxylate

Base Information

• Chemical Name: Tert-butyl 4-(3-aminopyridin-4-YL)piperazine-1-carboxylate
• CAS No.: 1023298-54-5
• Molecular Formula: C14H22N4O2
• Molecular Weight: 278.35008
• Hs Code.: 2933990090
• European Community (EC) Number: 844-047-2
• DSSTox Substance ID: DTXSID90656070
• Wikidata: Q82570533
• Mol file: 1023298-54-5.mol

Synonyms:1023298-54-5;TERT-BUTYL 4-(3-AMINOPYRIDIN-4-YL)PIPERAZINE-1-CARBOXYLATE;1-Boc-4-(3-amino-4-pyridinyl)piperazine;tert-butyl 4-(3-amino-4-pyridinyl)-1-piperazinecarboxylate;SCHEMBL1955606;DTXSID90656070;SSZANZXFYGCOGL-UHFFFAOYSA-N;MFCD11849294;AB91540;AS-41939;CS-0134658;EN300-3364855;Z425397680;TERT-BUTYL4-(3-AMINOPYRIDIN-4-YL)PIPERAZINE-1-CARBOXYLATE;4-(3-amino-pyridin-4-yl)-piperazine-1-carboxylic acid tert-butyl ester

Chemical Property of Tert-butyl 4-(3-aminopyridin-4-YL)piperazine-1-carboxylate

Chemical Property:

• PSA: 71.69000
• LogP: 2.30500
• XLogP3: 1
• Hydrogen Bond Donor Count: 1
• Hydrogen Bond Acceptor Count: 5
• Rotatable Bond Count: 3
• Exact Mass: 278.17427596
• Heavy Atom Count: 20
• Complexity: 335

Purity/Quality:

97% ^*data from raw suppliers

tert-Butyl4-(3-aminopyridin-4-yl)piperazine-1-carboxylate 95+% ^*data from reagent suppliers

Safty Information:

• Pictogram(s):
• Hazard Codes:

MSDS Files:

Useful:

• Canonical SMILES: CC(C)(C)OC(=O)N1CCN(CC1)C2=C(C=NC=C2)N

Technology Process of Tert-butyl 4-(3-aminopyridin-4-YL)piperazine-1-carboxylate

There total 5 articles about Tert-butyl 4-(3-aminopyridin-4-YL)piperazine-1-carboxylate which guide to synthetic route it. The literature collected by LookChem mainly comes from the sharing of users and the free literature resources found by Internet computing technology. We keep the original model of the professional version of literature to make it easier and faster for users to retrieve and use. At the same time, we analyze and calculate the most feasible synthesis route with the highest yield for your reference as below:

synthetic route:

Reference yield: 99.0%

tert-butyl 4-(3-nitropyridin-4-yl)piperazine-1-carboxylate (608142-93-4) → 4-(3-amino-pyridin-4-yl)-piperazine-1-carboxylic acid tert-butyl ester (1023298-54-5)

Guidance literature:

With palladium 10% on activated carbon; hydrogen; In dichloromethane; at 20 ℃;

Reference yield:

4-chloro-3-nitropyridine (13091-23-1) → 4-(3-amino-pyridin-4-yl)-piperazine-1-carboxylic acid tert-butyl ester (1023298-54-5)

Guidance literature:

Multi-step reaction with 2 steps

1: N-ethyl-N,N-diisopropylamine / isopropyl alcohol / 2 h / 60 °C

2: hydrogen / palladium 10% on activated carbon / ethanol; water / 3 h / 20 °C / Inert atmosphere

With hydrogen; N-ethyl-N,N-diisopropylamine; palladium 10% on activated carbon; In ethanol; water; isopropyl alcohol;

Reference yield:

1-t-Butoxycarbonylpiperazine (57260-71-6) → 4-(3-amino-pyridin-4-yl)-piperazine-1-carboxylic acid tert-butyl ester (1023298-54-5)

Guidance literature:

Multi-step reaction with 2 steps

1: N-ethyl-N,N-diisopropylamine / isopropyl alcohol / 2 h / 60 °C

2: hydrogen / palladium 10% on activated carbon / ethanol; water / 3 h / 20 °C / Inert atmosphere

With hydrogen; N-ethyl-N,N-diisopropylamine; palladium 10% on activated carbon; In ethanol; water; isopropyl alcohol;

upstream raw materials:

tert-butyl 4-(3-nitropyridin-4-yl)piperazine-1-carboxylate

4-chloro-3-nitropyridine

1-t-Butoxycarbonylpiperazine

Downstream raw materials:

tert-butyl 4-(3-((2-(2,6-difluorophenyl)imidazo[1,5-b]pyridazin-7-yl)amino)-4-pyridinyl)-1-piperazinecarboxylate

2-(2,6-difluorophenyl)-N-(4-(1-piperazinyl)-3-pyridinyl)imidazo[1,5-b]pyridazin-7-amine

C₂₄H₂₇N₅O₃S
