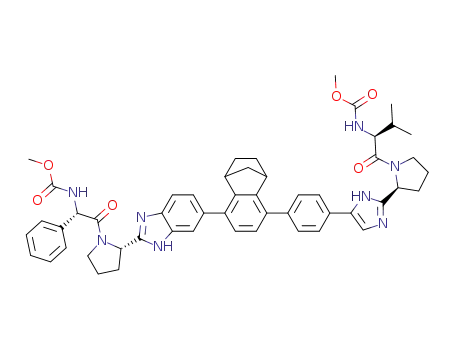

C₅₂H₅₆N₈O₆

Base Information

• Chemical Name: C₅₂H₅₆N₈O₆
• CAS No.: 1560649-09-3
• Molecular Formula: C₅₂H₅₆N₈O₆
• Molecular Weight: 889.067
• Mol file: 1560649-09-3.mol

Synonyms:C₅₂H₅₆N₈O₆

Chemical Property of C₅₂H₅₆N₈O₆

Chemical Property:

Purity/Quality:

Safty Information:

• Pictogram(s):
• Hazard Codes:

MSDS Files:

Useful:

Technology Process of C₅₂H₅₆N₈O₆

There total 17 articles about C₅₂H₅₆N₈O₆ which guide to synthetic route it. The literature collected by LookChem mainly comes from the sharing of users and the free literature resources found by Internet computing technology. We keep the original model of the professional version of literature to make it easier and faster for users to retrieve and use. At the same time, we analyze and calculate the most feasible synthesis route with the highest yield for your reference as below:

synthetic route:

Reference yield: 75.0%

C45H45N7O3*3ClH + N-methoxycarbonyl-L-valine (111398-44-8,74761-42-5) → C52H56N8O6 (1560649-09-3)

Guidance literature:

With 1-hydroxy-7-aza-benzotriazole; 1-ethyl-(3-(3-dimethylamino)propyl)-carbodiimide hydrochloride; N-ethyl-N,N-diisopropylamine; In dichloromethane; at 0 - 20 ℃; for 12h;

Reference yield:

(S)-pyrrolidine-1,2-dicarboxylic acid 2-[2-(4-bromophenyl)-2-oxoethyl]ester 1-tert-butyl ester (128120-93-4) → C52H56N8O6 (1560649-09-3)

Guidance literature:

Multi-step reaction with 6 steps

1: ammonium acetate / toluene / 120 °C

2: dichloro(1,1'-bis(diphenylphosphanyl)ferrocene)palladium(II)*CH₂Cl₂; potassium acetate / N,N-dimethyl-formamide / 3 h / 90 °C / Inert atmosphere

3: tetrakis(triphenylphosphine) palladium⁽⁰⁾; potassium carbonate / 1,2-dimethoxyethane; water / 3 h / 90 °C / Inert atmosphere

4: tetrakis(triphenylphosphine) palladium⁽⁰⁾; potassium carbonate / ethanol; water / 4 h / 90 °C / Inert atmosphere

5: hydrogenchloride / ethyl acetate / 8 h / 20 °C

6: 1-ethyl-(3-(3-dimethylamino)propyl)-carbodiimide hydrochloride; N-ethyl-N,N-diisopropylamine; 1-hydroxy-7-aza-benzotriazole / dichloromethane / 12 h / 0 - 20 °C

With hydrogenchloride; tetrakis(triphenylphosphine) palladium⁽⁰⁾; 1-hydroxy-7-aza-benzotriazole; dichloro(1,1'-bis(diphenylphosphanyl)ferrocene)palladium(II)*CH₂Cl₂; ammonium acetate; potassium acetate; potassium carbonate; 1-ethyl-(3-(3-dimethylamino)propyl)-carbodiimide hydrochloride; N-ethyl-N,N-diisopropylamine; In 1,2-dimethoxyethane; ethanol; dichloromethane; water; ethyl acetate; N,N-dimethyl-formamide; toluene;

Reference yield:

(S)-tert-butyl 2-(5-(4-(4,4,5,5-tetramethyl-1,3,2-dioxaborolan-2-yl)phenyl)-1H-imidazol-2-yl)pyrrolidine-1-carboxylate (1007882-12-3) → C52H56N8O6 (1560649-09-3)

Guidance literature:

Multi-step reaction with 4 steps

1: tetrakis(triphenylphosphine) palladium⁽⁰⁾; potassium carbonate / 1,2-dimethoxyethane; water / 3 h / 90 °C / Inert atmosphere

2: tetrakis(triphenylphosphine) palladium⁽⁰⁾; potassium carbonate / ethanol; water / 4 h / 90 °C / Inert atmosphere

3: hydrogenchloride / ethyl acetate / 8 h / 20 °C

4: 1-ethyl-(3-(3-dimethylamino)propyl)-carbodiimide hydrochloride; N-ethyl-N,N-diisopropylamine; 1-hydroxy-7-aza-benzotriazole / dichloromethane / 12 h / 0 - 20 °C

With hydrogenchloride; tetrakis(triphenylphosphine) palladium⁽⁰⁾; 1-hydroxy-7-aza-benzotriazole; potassium carbonate; 1-ethyl-(3-(3-dimethylamino)propyl)-carbodiimide hydrochloride; N-ethyl-N,N-diisopropylamine; In 1,2-dimethoxyethane; ethanol; dichloromethane; water; ethyl acetate;

upstream raw materials:

(S)-pyrrolidine-1,2-dicarboxylic acid 2-[2-(4-bromophenyl)-2-oxoethyl]ester 1-tert-butyl ester

(S)-tert-butyl 2-(5-(4-bromophenyl)-1H-imidazol-2-yl)pyrrolidine-1-carboxylate

(S)-tert-butyl 2-(5-(4-(4,4,5,5-tetramethyl-1,3,2-dioxaborolan-2-yl)phenyl)-1H-imidazol-2-yl)pyrrolidine-1-carboxylate
