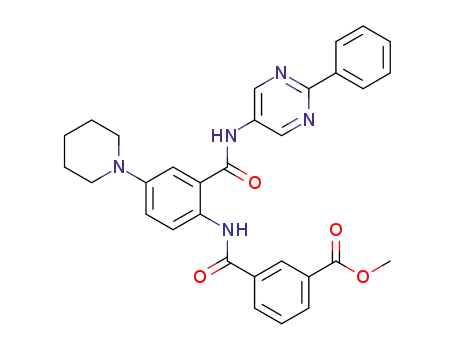

methyl 3-((2-((2-phenylpyrimidin-5-yl)carbamoyl)-4-(piperidin-1-yl)phenyl)carbamoyl)benzoate

Base Information

• Chemical Name: methyl 3-((2-((2-phenylpyrimidin-5-yl)carbamoyl)-4-(piperidin-1-yl)phenyl)carbamoyl)benzoate
• CAS No.: 1354653-05-6
• Molecular Formula: C₃₁H₂₉N₅O₄
• Molecular Weight: 535.602
• Mol file: 1354653-05-6.mol

Synonyms:methyl 3-((2-((2-phenylpyrimidin-5-yl)carbamoyl)-4-(piperidin-1-yl)phenyl)carbamoyl)benzoate

Chemical Property of methyl 3-((2-((2-phenylpyrimidin-5-yl)carbamoyl)-4-(piperidin-1-yl)phenyl)carbamoyl)benzoate

Chemical Property:

Purity/Quality:

Safty Information:

• Pictogram(s):
• Hazard Codes:

MSDS Files:

Useful:

Technology Process of methyl 3-((2-((2-phenylpyrimidin-5-yl)carbamoyl)-4-(piperidin-1-yl)phenyl)carbamoyl)benzoate

There total 4 articles about methyl 3-((2-((2-phenylpyrimidin-5-yl)carbamoyl)-4-(piperidin-1-yl)phenyl)carbamoyl)benzoate which guide to synthetic route it. The literature collected by LookChem mainly comes from the sharing of users and the free literature resources found by Internet computing technology. We keep the original model of the professional version of literature to make it easier and faster for users to retrieve and use. At the same time, we analyze and calculate the most feasible synthesis route with the highest yield for your reference as below:

synthetic route:

Reference yield: 60.0%

benzene 1,3-dicarboxylic acid monomethyl ester (1877-71-0) + 2-amino-N-(2-phenylpyrimidin-5-yl)-5-(piperidin-1-yl)benzamide (1354652-80-4) → methyl 3-((2-((2-phenylpyrimidin-5-yl)carbamoyl)-4-(piperidin-1-yl)phenyl)carbamoyl)benzoate (1354653-05-6)

Guidance literature:

With dmap; 1-ethyl-(3-(3-dimethylamino)propyl)-carbodiimide hydrochloride; In dichloromethane; at 25 ℃; for 3h;

Reference yield:

5-amino-2-phenylpyrimidine (59808-52-5) → methyl 3-((2-((2-phenylpyrimidin-5-yl)carbamoyl)-4-(piperidin-1-yl)phenyl)carbamoyl)benzoate (1354653-05-6)

Guidance literature:

Multi-step reaction with 3 steps

1: dmap; 1-ethyl-(3-(3-dimethylamino)propyl)-carbodiimide hydrochloride / dichloromethane / 25 °C

2: hydrogen / palladium on activated charcoal / ethyl acetate; ethanol / 2 h / 20 °C

3: dmap; 1-ethyl-(3-(3-dimethylamino)propyl)-carbodiimide hydrochloride / dichloromethane / 3 h / 25 °C

With dmap; hydrogen; 1-ethyl-(3-(3-dimethylamino)propyl)-carbodiimide hydrochloride; palladium on activated charcoal; In ethanol; dichloromethane; ethyl acetate;

Reference yield:

2-nitro-N-(2-phenylpyrimidin-5-yl)-5-(piperidin-1-yl)benzamide (1354652-79-1) → methyl 3-((2-((2-phenylpyrimidin-5-yl)carbamoyl)-4-(piperidin-1-yl)phenyl)carbamoyl)benzoate (1354653-05-6)

Guidance literature:

Multi-step reaction with 2 steps

1: hydrogen / palladium on activated charcoal / ethyl acetate; ethanol / 2 h / 20 °C

2: dmap; 1-ethyl-(3-(3-dimethylamino)propyl)-carbodiimide hydrochloride / dichloromethane / 3 h / 25 °C

With dmap; hydrogen; 1-ethyl-(3-(3-dimethylamino)propyl)-carbodiimide hydrochloride; palladium on activated charcoal; In ethanol; dichloromethane; ethyl acetate;

upstream raw materials:

benzene 1,3-dicarboxylic acid monomethyl ester

2-amino-N-(2-phenylpyrimidin-5-yl)-5-(piperidin-1-yl)benzamide

5-amino-2-phenylpyrimidine

2-nitro-5-(piperidin-N-yl)-benzoic acid

Downstream raw materials:

3-((2-((2-phenylpyrimidin-5-yl)carbamoyl)-4-(piperidin-1-yl)phenyl)carbamoyl)benzoic acid

C₄₄H₅₄N₆O₈

C₄₀H₄₆N₆O₈
