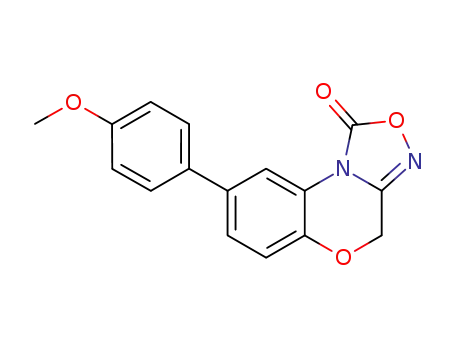

8-(4-methoxyphenyl)-4H-[1,2,4]oxadiazolo[3,4-c][1,4]benzoxazin-1-one

Base Information

• Chemical Name: 8-(4-methoxyphenyl)-4H-[1,2,4]oxadiazolo[3,4-c][1,4]benzoxazin-1-one
• CAS No.: 1219717-30-2
• Molecular Formula: C₁₆H₁₂N₂O₄
• Molecular Weight: 296.282
• Mol file: 1219717-30-2.mol

Synonyms:8-(4-methoxyphenyl)-4H-[1,2,4]oxadiazolo[3,4-c][1,4]benzoxazin-1-one

Chemical Property of 8-(4-methoxyphenyl)-4H-[1,2,4]oxadiazolo[3,4-c][1,4]benzoxazin-1-one

Chemical Property:

Purity/Quality:

Safty Information:

• Pictogram(s):
• Hazard Codes:

MSDS Files:

Useful:

Technology Process of 8-(4-methoxyphenyl)-4H-[1,2,4]oxadiazolo[3,4-c][1,4]benzoxazin-1-one

There total 2 articles about 8-(4-methoxyphenyl)-4H-[1,2,4]oxadiazolo[3,4-c][1,4]benzoxazin-1-one which guide to synthetic route it. The literature collected by LookChem mainly comes from the sharing of users and the free literature resources found by Internet computing technology. We keep the original model of the professional version of literature to make it easier and faster for users to retrieve and use. At the same time, we analyze and calculate the most feasible synthesis route with the highest yield for your reference as below:

synthetic route:

Reference yield: 85.0%

4-methoxyphenylboronic acid (5720-07-0) + 4H-8-bromo-1,2,4-oxadiazolo(3,4-d)benz(b)(1,4)oxazin-1-one → 8-(4-methoxyphenyl)-4H-[1,2,4]oxadiazolo[3,4-c][1,4]benzoxazin-1-one (1219717-30-2) + 4,4'-Dimethoxybiphenyl (2132-80-1)

Guidance literature:

With palladium diacetate; N-ethyl-N,N-diisopropylamine; In 1,4-dioxane; water; at 110 ℃; for 0.333333h;

DOI:10.1016/j.tet.2011.04.003

Reference yield: 57.0%

6-(4-methoxyphenyl)-2H-1,4-benzoxazin-3(4H)-one oxime (1219717-26-6) + 1,1'-carbonyldiimidazole (530-62-1) → 8-(4-methoxyphenyl)-4H-[1,2,4]oxadiazolo[3,4-c][1,4]benzoxazin-1-one (1219717-30-2)

Guidance literature:

In tetrahydrofuran; for 24h; Inert atmosphere; Reflux;

DOI:10.1016/j.bmc.2009.12.027

Reference yield: 91.0%

8-(4-methoxyphenyl)-4H-[1,2,4]oxadiazolo[3,4-c][1,4]benzoxazin-1-one (1219717-30-2) → 8-(4-hydroxyphenyl)-4H-[1,2,4]oxadiazolo[3,4-c][1,4]benzoxazin-1-one (1311968-94-1)

Guidance literature:

With boron tribromide; In dichloromethane; at 20 ℃; for 6h; Cooling with ice;

DOI:10.1016/j.tet.2011.04.003

upstream raw materials:

6-(4-methoxyphenyl)-2H-1,4-benzoxazin-3(4H)-one oxime

1,1'-carbonyldiimidazole

4-methoxyphenylboronic acid

Downstream raw materials:

8-(4-hydroxyphenyl)-4H-[1,2,4]oxadiazolo[3,4-c][1,4]benzoxazin-1-one

8-(4-methoxyphenyl)-4H-[1,2,4]thiadiazolo[3,4-c][1,4]benzoxazine-1-thione

8-(4-methoxyphenyl)-4H-[1,2,4]oxadiazolo[3,4-c][1,4]benzoxazine-1-thione

8-(4-methoxyphenyl)-4H-[1,2,4]thiadiazolo[3,4-c][1,4]benzoxazin-1-one
